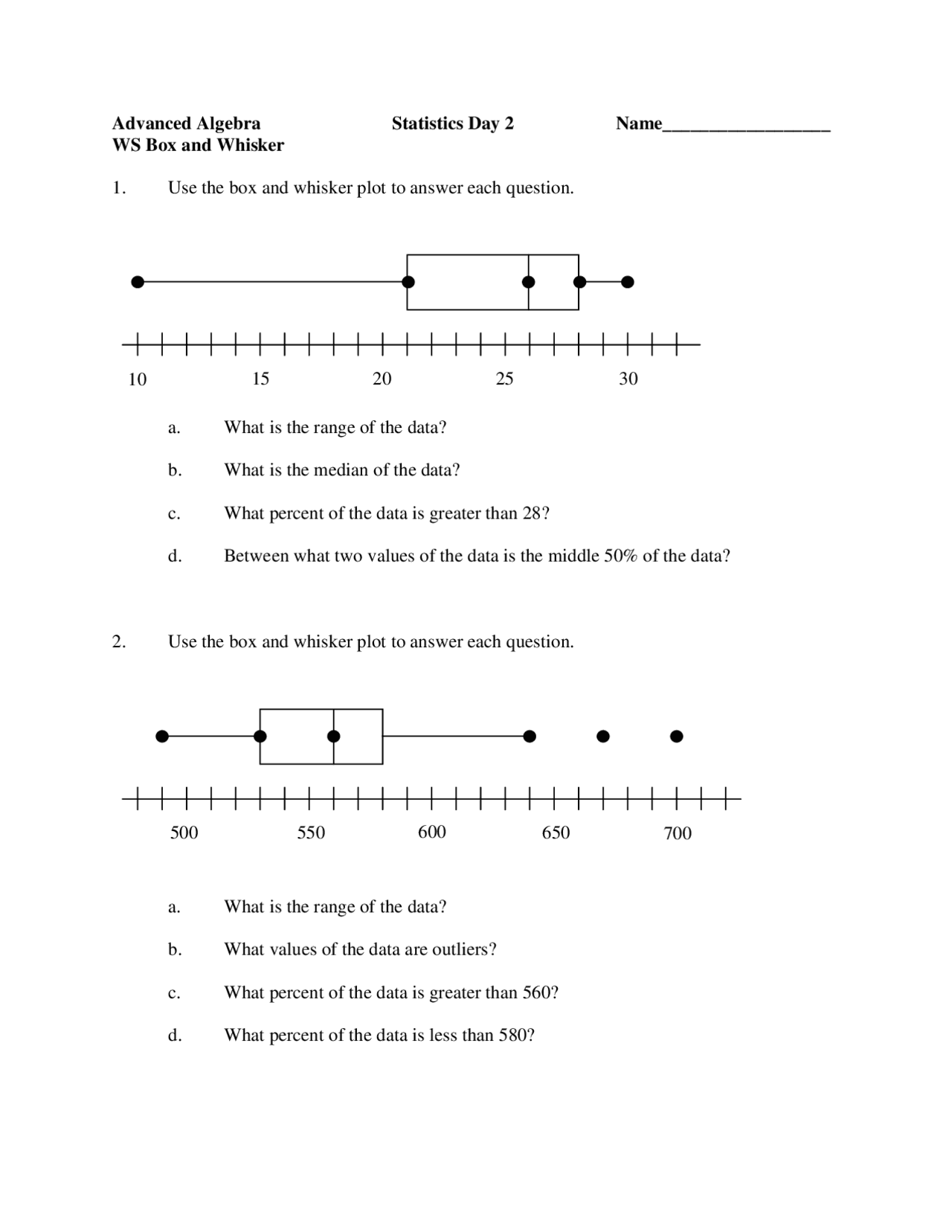

Advanced Algebra Statistics Day 2 Name__________________ WS Box and Whisker
- Use the box and whisker plot to answer each question.
a. What is the range of the data?
b. What is the median of the data?
c. What percent of the data is greater than 28?
d. Between what two values of the data is the middle 50% of the data?
- Use the box and whisker plot to answer each question.
a. What is the range of the data?
b. What values of the data are outliers?
c. What percent of the data is greater than 560?
d. What percent of the data is less than 580?
- The number of calories in a regular serving of french fries at different restaurants are listed below. Make a box and whisker plot of the data.
Restaurant Calories Restaurant Calories Burger Chef 250 Hardee’s 239 Burger King 240 McDonald’s 211 Carl’s Jr. 220 Roy Rogers 240 Dairy Queen 200 Wendy’s 327 Friendly’s 125
- The number of medals won by the top 16 countries at the 1988 Summer Olympics are given below. Make a box and whisker plot of the data.
Country Number of Medals Country Number of Medals Soviet Union 132 Great Britain 24 East Germany 102 Hungary 23 United States 94 France 16 West Germany 40 Poland 15 Bulgaria 35 Italy 14 South Korea 33 Japan 14 China 28 Australia 14 Romania 24 New Zealand 13
