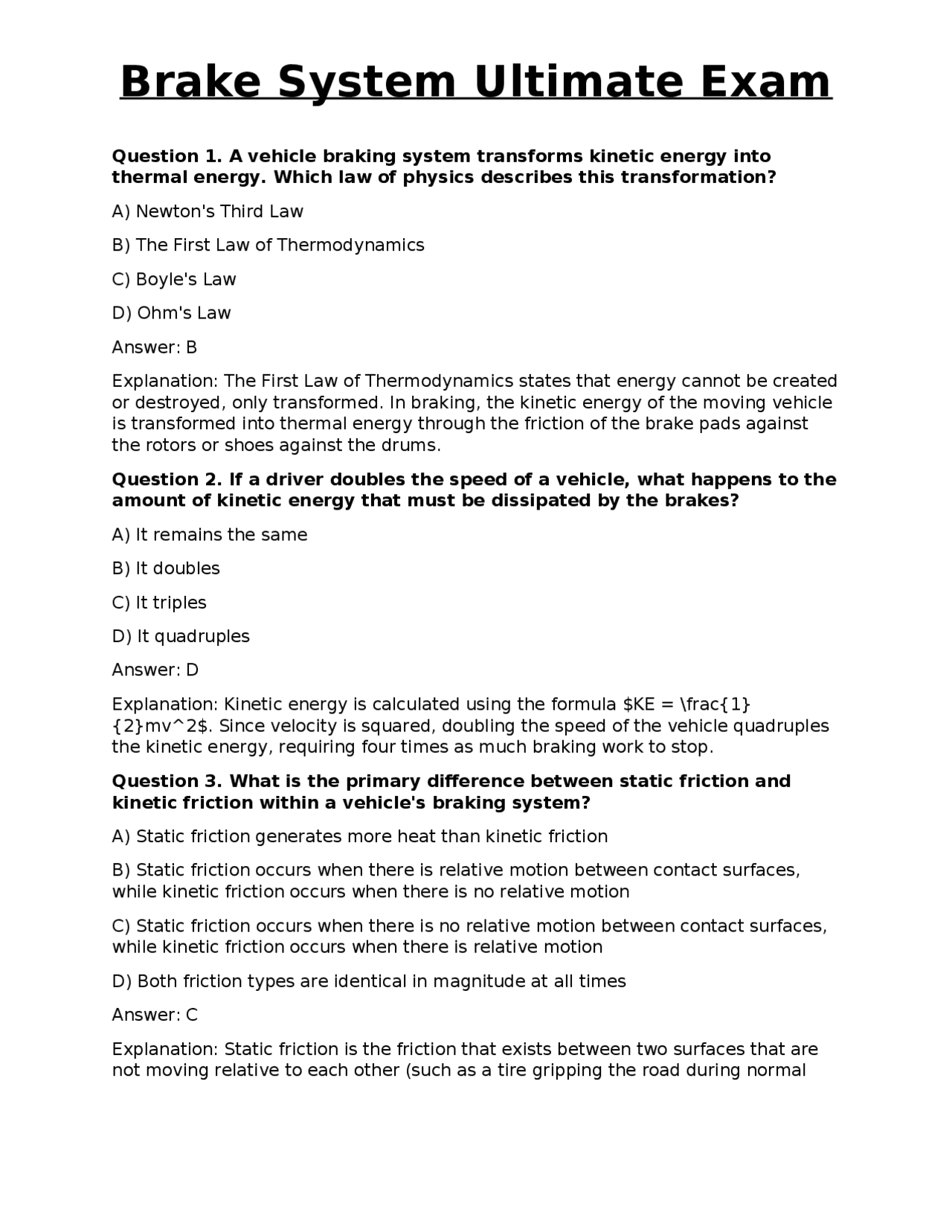

Question 1. A vehicle braking system transforms kinetic energy into thermal energy. Which law of physics describes this transformation? A) Newton's Third Law B) The First Law of Thermodynamics C) Boyle's Law D) Ohm's Law Answer: B Explanation: The First Law of Thermodynamics states that energy cannot be created or destroyed, only transformed. In braking, the kinetic energy of the moving vehicle is transformed into thermal energy through the friction of the brake pads against the rotors or shoes against the drums. Question 2. If a driver doubles the speed of a vehicle, what happens to the amount of kinetic energy that must be dissipated by the brakes? A) It remains the same B) It doubles C) It triples D) It quadruples Answer: D Explanation: Kinetic energy is calculated using the formula $KE = \frac{1} {2}mv^2$. Since velocity is squared, doubling the speed of the vehicle quadruples the kinetic energy, requiring four times as much braking work to stop. Question 3. What is the primary difference between static friction and kinetic friction within a vehicle's braking system? A) Static friction generates more heat than kinetic friction B) Static friction occurs when there is relative motion between contact surfaces, while kinetic friction occurs when there is no relative motion C) Static friction occurs when there is no relative motion between contact surfaces, while kinetic friction occurs when there is relative motion D) Both friction types are identical in magnitude at all times Answer: C Explanation: Static friction is the friction that exists between two surfaces that are not moving relative to each other (such as a tire gripping the road during normal
rolling). Kinetic friction is the friction between two surfaces in relative motion (such as brake pads gripping a spinning rotor or a sliding locked tire). Question 4. Pascal’s Law states that pressure applied to a confined fluid is transmitted equally in all directions. Which equation represents this relationship? A) $P = F \times A$ B) $P = \frac{F}{A}$ C) $P = \frac{A}{F}$ D) $P = F + A$ Answer: B Explanation: Pascal's Law is expressed as $P = \frac{F}{A}$, where $P$ is pressure, $F$ is force, and $A$ is the cross-sectional area. Applied pressure is directly proportional to force and inversely proportional to the area. Question 5. In a hydraulic brake system, if a force of 100 pounds is applied to a master cylinder piston with an area of 0.5 square inches, what is the resulting hydraulic pressure in the system? A) 50 PSI B) 100 PSI C) 200 PSI D) 400 PSI Answer: C Explanation: Using the formula $P = \frac{F}{A}$, the pressure is $P = \frac{100} {0.5} = 200\text{ PSI}$. Question 6. If the hydraulic pressure in a brake line is 800 PSI, and this pressure acts on a caliper piston with an area of 2 square inches, what is the mechanical force exerted on the brake pad? A) 400 pounds B) 800 pounds C) 1,600 pounds D) 3,200 pounds Answer: C Explanation: Rearranging Pascal's Law to find force gives $F = P \times A$. In this case, $F = 800\text{ PSI} \times 2\text{ in}^2 = 1,600\text{ pounds}$.
A) Water acts as a lubricant between the friction pad and the rotor, lowering the coefficient of friction B) Water chemically reacts with steel rotors to create a slippery surface film C) Water boils inside the brake pad backing plate, pushing the pad away from the rotor D) Water causes the caliper seals to swell and lock the caliper pistons in place Answer: A Explanation: Water fade occurs when water gets between the brake pad and the rotor. Water acts as a lubricant, reducing the coefficient of friction ($\mu$) until heat and pressure can sweep or vaporize it away. Question 11. Which component of a dual-circuit master cylinder is directly moved by the mechanical input pushrod from the brake pedal or booster? A) Secondary piston B) Proportioning valve piston C) Primary piston D) Quick-take-up valve Answer: C Explanation: The primary piston is located at the rear of the master cylinder bore and is physically connected to and driven by the pedal pushrod. The secondary piston is located ahead of the primary piston and is driven by a combination of hydraulic pressure and spring force. Question 12. In a modern dual-circuit split braking system, what is the main safety benefit of dividing the hydraulic circuits diagonally? A) It increases the total mechanical leverage of the brake pedal B) It ensures that if one circuit fails, one front wheel and the diagonally opposite rear wheel can still provide roughly 50% stopping power C) It prevents brake fluid from absorbing atmospheric moisture D) It balances the unequal physical wear between inner and outer brake pads Answer: B Explanation: Diagonally split systems pair the front-left brake with the rear-right brake, and front-right with rear-left. If one circuit leaks or fails, the remaining circuit maintains balanced braking across the vehicle, preventing severe pulling. Question 13. What is the primary purpose of the compensating port inside a hydraulic master cylinder?
A) It allows high-pressure fluid to return to the reservoir during an emergency ABS stop B) It vents air bubbles directly to the atmosphere when the brake pedal is depressed C) It allows fluid to flow between the reservoir and the cylinder bore when the pedal is fully released to accommodate thermal expansion D) It restricts fluid flow to the rear brakes to prevent premature wheel lockup Answer: C Explanation: When the brake pedal is completely released, the cup seals on the pistons clear the compensating ports. This allows fluid to move freely to or from the reservoir, compensating for volume changes due to temperature variations or pad wear. Question 14. What occurs if a master cylinder's compensating port is blocked by a misadjusted pushrod or debris? A) The brake pedal will sink completely to the floorboard B) Hydraulic pressure will lock in the lines as the fluid expands from heat, leading to brake drag C) Brake fluid will leak out of the rear seal of the master cylinder housing D) The brake warning light on the instrument cluster will immediately illuminate Answer: B Explanation: If the compensating port is blocked when the pedal is in the released position, fluid cannot return to the reservoir as it heats up and expands. This build- up of pressure causes the brakes to drag, generate heat, and eventually lock up. Question 15. Why are brake lines made of rigid double-walled steel tubing rather than copper tubing? A) Copper tubing is highly magnetic and interferes with ABS wheel speed sensors B) Steel tubing is less expensive and easier to bend by hand C) Copper tubing cannot withstand the high operating pressures of a braking system and is prone to work-hardening and fatigue cracking D) Steel tubing transfers heat to the air much faster than copper Answer: C Explanation: Automotive hydraulic brake systems can reach pressures upwards of 1,500–2,000 PSI during hard stops. Copper is too soft, expands under pressure, and is susceptible to chemical corrosion and fatigue cracking from vibration.
A) The fluid is highly resistant to chemical breakdown under high pressure B) The fluid actively absorbs moisture and water vapor from the surrounding atmosphere C) The fluid maintains a constant viscosity regardless of temperature changes D) The fluid acts as a corrosion inhibitor for aluminum caliper housings Answer: B Explanation: Glycol-based brake fluids (DOT 3, 4, and 5.1) are hygroscopic, meaning they absorb water from the air over time. This moisture absorption gradually lowers the boiling point of the fluid. Question 20. How does water contamination affect the boiling point of glycol-based brake fluids? A) It increases both the dry and wet boiling points B) It has no measurable effect on the boiling point C) It significantly lowers the boiling point, increasing the risk of vapor lock during heavy braking D) It keeps the boiling point stable while lowering the freezing point Answer: C Explanation: As brake fluid absorbs water, its boiling point drops. If the temperature of the fluid at the caliper or wheel cylinder exceeds this lower boiling point, the water/fluid turns to gas, causing vapor lock and pedal fade. Question 21. What is the primary function of a metering valve in a disc/drum front-rear brake system? A) It limits the pressure sent to the rear drum brakes during high-load stopping maneuvers B) It delays application of the front disc brakes until the rear drum brake return springs are overcome C) It balances the unequal volume requirements of dual-piston calipers D) It triggers the dashboard brake warning light if a hydraulic circuit leak occurs Answer: B Explanation: Drum brake shoes require a small amount of hydraulic pressure to overcome their heavy return springs. The metering valve delays front disc brake application until rear drum system pressure reaches roughly 75–125 PSI, ensuring balanced initial braking.
Question 22. Which valve is designed to prevent rear-wheel lockup during hard, rapid stops by limiting rear hydraulic pressure increase relative to front pressure? A) Metering valve B) Residual pressure valve C) Proportioning valve D) Pressure differential valve Answer: C Explanation: During hard braking, weight transfers from the rear to the front wheels. The proportioning valve limits pressure rise to the rear brakes to prevent rear-wheel lockup, preserving vehicle stability. Question 23. What is the function of the pressure differential valve? A) It monitors the speed difference between front and rear axles B) It alerts the driver to a loss of hydraulic pressure in one of the split braking circuits by lighting a warning lamp C) It modulates line pressure to match the speed of the engine crankshaft D) It ensures that both front calipers receive the exact same hydraulic pressure Answer: B Explanation: The pressure differential valve contains a central piston exposed to both hydraulic circuits. If one circuit loses pressure, the pressure imbalance slides the piston to one side, closing an electrical switch to illuminate the brake warning light. Question 24. What is a "combination valve" in an automotive braking system? A) A valve that combines the power steering pump output with the brake booster B) A single housing that contains the metering, proportioning, and pressure differential valves C) A valve that switches between regenerative and friction braking D) A safety valve that redirects brake fluid to the windshield washers in emergencies Answer: B Explanation: To simplify plumbing and save space, manufacturers combine the functions of the metering valve, proportioning valve, and pressure differential valve into a single component known as a combination valve.
B) It seals high-pressure brake fluid inside the caliper bore C) It keeps dirt, moisture, and road debris away from the outer surface of the piston and the square-cut seal D) It helps cool the caliper by channeling airflow Answer: C Explanation: The outer dust boot is a flexible rubber seal that protects the exposed portion of the caliper piston from road dirt, water, and debris, preventing rust and contamination of the sealing surface. Question 29. Why are high-performance brake rotors often "vented" with internal vanes? A) To reduce the total rotating weight of the axle assembly B) To increase surface area and circulate cooling air through the center of the rotor, reducing operating temperatures C) To prevent the brake pads from wearing down unevenly D) To make the brake system quieter under cold conditions Answer: B Explanation: Vented rotors feature hollow internal cooling vanes between the two friction faces. As the wheel spins, these vanes act like a centrifugal pump to pull cool air through the rotor, dissipating heat much faster than solid rotors. Question 30. What is the primary purpose of chamfering, slotting, or drilling holes in brake rotors? A) To allow water, heat, and gas to escape from the contact patch between the pad and rotor B) To permanently lock the brake pad to the rotor in emergency stops C) To allow technicians to measure rotor wear without using a micrometer D) To eliminate the need for caliper guide pin lubrication Answer: A Explanation: Cross-drilling and slotting provide escape paths for gases, water, and friction dust. This helps prevent gas fade and hydroplaning of the pad over the rotor surface, improving initial bite and wet weather braking. Question 31. What is "lateral runout" when referring to a brake rotor? A) The variation in rotor thickness measured around the circumference of the friction surface
B) The wobbling side-to-side movement of the spinning rotor relative to a fixed caliper C) The physical taper of the pad friction material from top to bottom D) The chemical decomposition of the rotor's cast iron alloy under heat Answer: B Explanation: Lateral runout is the side-to-side wobble of the rotor face as it rotates. It is typically measured with a dial indicator and can cause brake pedal pulsation or steering wheel shake during braking if it exceeds manufacturer specifications. Question 32. Which term describes a variation in thickness of the brake rotor friction surface when measured at multiple points around its circumference? A) Parallelism (Parallelism/Thickness Variation) B) Lateral runout C) Radial runout D) Surface finish roughness (Ra) Answer: A Explanation: Thickness variation (often called lack of parallelism) occurs when the rotor faces are not perfectly flat and parallel to each other. Even small variations (e.g., 0.0005 inches) can lead to notable pedal pulsation. Question 33. What is the composition of organic brake pads? A) Synthetic fibers, lubricants, and carbon compounds bound with phenolic resin B) Shredded copper, steel wool, and iron powders sintered under high heat C) Pure carbon fibers mixed with ceramic powders and silicon carbide D) Asbestos fibers bound together with natural rubber compounds Answer: A Explanation: Non-Asbestos Organic (NAO) brake pads use synthetic fibers, cellulose, glass, rubber, and organic resins. They are soft, quiet, and produce little dust, but wear out faster and have lower thermal limits than metallic pads. Question 34. What is a key advantage of semi-metallic brake pads? A) They are completely dust-free and do not squeal B) They have high thermal conductivity and maintain consistent friction levels at elevated temperatures C) They wear out the brake rotors much slower than organic pads
Answer: C Explanation: An outside micrometer measures the exact thickness of the rotor. Measurements should be taken at several points around the circumference of the rotor, typically about 1 inch from the outer edge, to check for thickness variation. Question 38. What is the purpose of using a dial indicator when servicing a disc brake rotor? A) To measure the thickness of the friction material on the brake pads B) To measure lateral runout of the mounted rotor face C) To determine the boiling point of the brake fluid inside the caliper D) To align the caliper slide pins to the caliper bracket Answer: B Explanation: A dial indicator is mounted to a magnetic base or clamped to a suspension member, with its stylus touching the rotor surface. As the rotor is turned, the needle shows the amount of lateral wobble (runout) in thousandths of an inch. Question 39. In a drum brake system, which component is pressurized by fluid to push the brake shoes outward against the drum? A) Master cylinder B) Wheel cylinder C) Self-adjuster star wheel D) Anchor pin Answer: B Explanation: The wheel cylinder is located at the top of the drum backing plate. When hydraulic pressure is applied, it pushes two opposing pistons outward, forcing the brake shoes to expand against the rotating drum. Question 40. Why do drum brakes inherently have a "self-energizing" or "servo" action? A) Because they are powered by an electric motor inside the hub B) Because rotation of the brake drum drags the shoe into the drum surface, increasing the clamping force C) Because the wheel cylinder pistons rotate as they push outward D) Because they utilize vacuum pressure from the intake manifold to hold the shoes Answer: B
Explanation: Self-energizing action occurs when the rotation of the brake drum wedges the leading brake shoe more tightly against the drum surface. This wedging action amplifies the mechanical force applied by the wheel cylinder. Question 41. In a leading/trailing drum brake design, what is the behavior of the two shoes during forward braking? A) Both shoes act as leading shoes, enjoying equal self-energizing force B) Only the front shoe (leading shoe) is self-energizing, while the rear shoe (trailing shoe) is pushed away by drum rotation C) Both shoes act as trailing shoes, offering zero self-energizing action D) The leading shoe does all the braking, and the trailing shoe only operates in reverse Answer: B Explanation: In a leading/trailing setup, the leading shoe is swept into the rotation of the drum, creating self-energizing force. The trailing shoe is pushed away by drum rotation, acting as a non-energized shoe. This makes leading/trailing brakes less sensitive to changes in coefficient of friction. Question 42. How does a duo-servo drum brake system differ from a leading/trailing design? A) It uses two wheel cylinders instead of one B) The shoes are linked together at the bottom by an adjuster screw, allowing the self-energizing force of the primary shoe to assist the secondary shoe C) It cannot operate when the vehicle moves in reverse D) It relies on electronic solenoids to actuate the shoes Answer: B Explanation: In a duo-servo drum brake, the bottoms of the shoes are not anchored; they are connected by a floating star wheel adjuster. When the primary shoe makes contact, drum rotation shifts the entire shoe assembly, using its force to press the secondary shoe against the anchor pin with high mechanical advantage. Question 43. Why is the friction lining on the secondary shoe of a duo- servo drum brake typically longer than the lining on the primary shoe? A) The secondary shoe is applied first and wears out faster B) The primary shoe experiences higher temperatures and needs less material to cool down C) The secondary shoe does the majority of the braking work because of the servo action transferring force to it D) The secondary shoe is larger to balance the weight of the parking brake lever
Answer: B Explanation: A drum micrometer is a specialized measuring tool with long arms designed to measure the internal diameter of a brake drum at multiple points to check for wear, taper, and out-of-roundness. Question 47. Why are drum brakes often prone to "fade" compared to disc brakes? A) Drum brakes are physically smaller and have less surface area B) Drums tend to trap heat, gas, and water inside their enclosed housing, whereas discs are exposed to open air C) The wheel cylinder cannot generate as much hydraulic pressure as a disc caliper D) Drum linings have a much lower boiling point than caliper seals Answer: B Explanation: Because drum brakes are enclosed, heat, moisture, and worn friction dust cannot escape easily. This heat build-up causes the drum to expand away from the shoes, resulting in reduced stopping power and pedal fade. Question 48. How is the mechanical parking brake system typically integrated into a vehicle with rear disc brakes? A) By using a high-pressure electric pump to actuate the rear calipers B) By using a small, mechanical auxiliary drum brake ("drum-in-hat") built into the center hub of the rear disc rotor C) By physically locking the vehicle's transmission output shaft using a cable D) By applying a constant vacuum to the rear calipers Answer: B Explanation: A common method of integrating a parking brake with rear disc brakes is the "drum-in-hat" design. The inside of the rear brake rotor hub serves as a small brake drum containing mechanical parking brake shoes actuated by a cable. Question 49. In a vacuum brake booster, what two chambers are separated by the internal flexible diaphragm? A) Fluid chamber and air chamber B) Primary chamber and secondary chamber C) Vacuum chamber and atmospheric (working) chamber D) High-pressure hydraulic chamber and low-pressure return chamber Answer: C
Explanation: A vacuum booster is divided by a diaphragm into a front vacuum chamber (facing the engine manifold) and a rear atmospheric chamber (facing the cabin). Question 50. What is the source of vacuum for a traditional vacuum brake booster in a gasoline-powered vehicle? A) The power steering pump B) The engine intake manifold C) An auxiliary high-pressure air compressor D) The exhaust tailpipe Answer: B Explanation: Gasoline engines generate a partial vacuum in their intake manifold during operation. A vacuum hose connects the intake manifold to the booster, maintaining a vacuum in the booster's chambers. Question 51. Why do diesel-powered and turbocharged vehicles often require an auxiliary mechanical or electric vacuum pump for brake assist? A) Diesel fuel chemically degrades the booster diaphragm B) Turbocharged and diesel engines do not produce sufficient, consistent intake manifold vacuum to power a traditional booster C) These engines run much hotter, causing vacuum lines to melt D) Diesel vehicles utilize higher operating hydraulic pressures than gasoline passenger cars Answer: B Explanation: Diesel engines lack a throttle valve and do not naturally create intake manifold vacuum. Turbocharged gasoline engines run on positive boost pressure under load rather than vacuum. Therefore, both require an auxiliary vacuum pump to operate the booster. Question 52. What is the function of the check valve located at the vacuum inlet of a brake booster? A) It prevents engine oil from entering the master cylinder reservoir B) It allows vacuum to enter the booster but seals it to maintain auxiliary vacuum if the engine stalls or the vacuum source is lost C) It releases excess atmospheric pressure into the exhaust manifold D) It balances the hydraulic pressure between the primary and secondary braking circuits Answer: B
Explanation: Hydro-Boost systems use hydraulic pressure generated by the power steering pump (rather than engine vacuum) to assist the driver's braking effort. This is common in heavy-duty trucks and diesel passenger vehicles. Question 56. What is the function of the accumulator in a Hydro-Boost system? A) It stores pressurized hydraulic fluid to provide several power-assisted stops if the power steering pump or drive belt fails B) It filters metallic contaminants out of the brake fluid C) It regulates the maximum speed of the engine's power steering pump D) It prevents brake fluid from mixing with power steering fluid Answer: A Explanation: The accumulator (either gas-charged or spring-loaded) stores a reserve of pressurized fluid. If the engine stalls or the power steering belt breaks, the accumulator discharges its pressurized fluid to provide emergency power-assisted stops. Question 57. What characterizes an Electric Brake Booster (such as a Bosch iBooster or drive-by-wire brake)? A) It uses an electric heater to keep the brake fluid at an optimum temperature B) It uses an electronically controlled brushless DC motor and gear drive to actuate the master cylinder piston directly C) It replaces the hydraulic calipers with electric solenoids at each wheel D) It uses high-voltage static electricity to attract the pads to the rotors Answer: B Explanation: Modern electric boosters use an electric motor and gear mechanism to push the master cylinder piston. They can vary the pedal feel, react faster than vacuum systems, and are essential for electric vehicles (EVs) and advanced safety suites. Question 58. How do you perform a quick functional test of a vacuum brake booster? A) Pump the brakes with the engine running, then turn off the engine and see if the pedal sinks B) Pump the brakes several times with the engine off to deplete the vacuum, hold the pedal down, and start the engine; the pedal should drop slightly C) Measure the voltage at the booster check valve with a digital multimeter D) Bleed the front brakes while keeping the booster vacuum line disconnected
Answer: B Explanation: Depleting the vacuum with the engine off creates a hard pedal. Holding the pedal down and starting the engine allows vacuum to build inside the booster. If the booster is functioning correctly, the diaphragm will pull forward, causing the pedal to sink slightly under your foot. Question 59. What is the primary goal of an Anti-lock Braking System (ABS)? A) To minimize the physical wear on brake pads and rotors B) To stop the vehicle in the shortest possible distance under all road conditions C) To prevent the wheels from locking up during braking, thereby maintaining directional steering control and vehicle stability D) To automatically apply the parking brake when parking on steep hills Answer: C Explanation: Locked wheels lose lateral traction, making steering impossible. By preventing wheel lockup during emergency stops, ABS allows the driver to steer around obstacles while decelerating. Question 60. Which type of wheel speed sensor produces an AC voltage signal whose frequency and amplitude increase with wheel speed? A) Active Hall Effect sensor B) Passive Inductive electromagnetic sensor C) Optical infrared sensor D) Digital magneto-resistive sensor Answer: B Explanation: Passive inductive wheel speed sensors consist of a permanent magnet wrapped in wire coils, positioned next to a rotating toothed ring. As the teeth pass the sensor, they alter the magnetic field, generating an AC voltage signal proportional to wheel speed. Question 61. What is a key advantage of an Active (Hall Effect) wheel speed sensor over a Passive sensor? A) Active sensors do not require any electrical power supply to operate B) Active sensors can accurately measure wheel speed down to zero MPH and are less sensitive to electromagnetic noise C) Active sensors are made of heavy-duty brass and do not use wiring harnesses D) Active sensors generate a high-voltage AC current that directly drives the ABS pump
