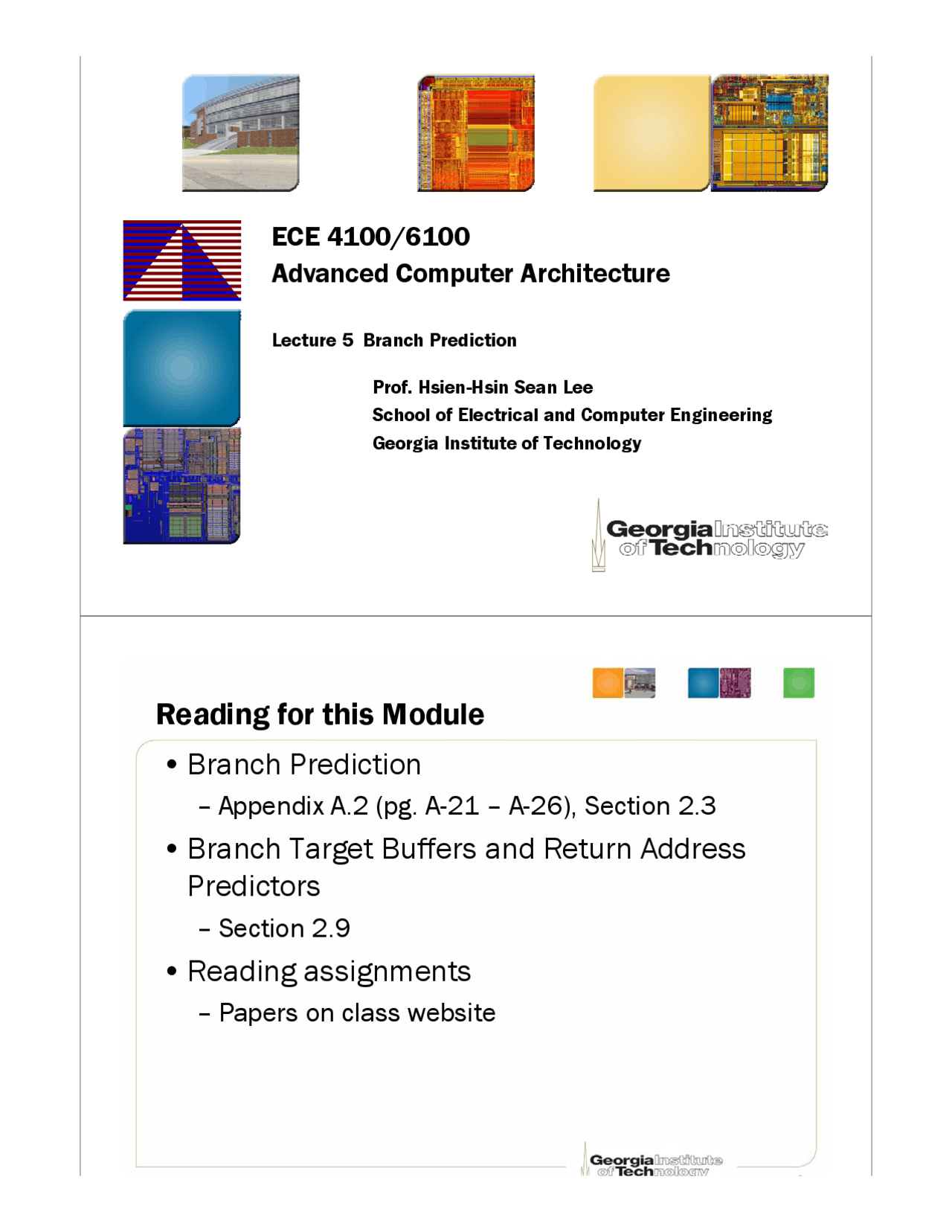

ECE 4100/6100

Advanced Computer Architecture

Lecture 5 Branch Prediction

Prof. Hsien-Hsin Sean Lee

School of Electrical and Computer Engineering

Georgia Institute of Technology

Reading for this Module

• Branch Prediction

– Appendix A.2 (pg. A-21 – A-26), Section 2.3

• Branch Target Buffers and Return Address

Predictors

–Section 2.9

• Reading assignments

– Papers on class website

Discover Study notes of Computer Architecture and Organization Georgia Institute of Technology - Main Campus

Partial preview of the text

Download Branch Prediction - Lecture Notes | ECE 4100 and more Study notes Computer Architecture and Organization in PDF only on Docsity!

ECE 4100/

Advanced Computer Architecture

Lecture 5 Branch Prediction

Prof. Hsien-Hsin Sean Lee

School of Electrical and Computer Engineering

Georgia Institute of Technology

Reading for this Module

Branch Prediction
- Appendix A.2 (pg. A-21 – A-26), Section 2.
Branch Target Buffers and Return Address

Predictors

Section 2.
Reading assignments
Papers on class website

Control Dependencies

Control dependencies determine execution order of

instructions

Instructions may be control dependent on a branch

DADD R5, R6, R

BNE R4, R2, CONTINUE

DMUL R4, R2, R5 DSUB R4, R9, R

Structural

Dependencies

Data (^) Name Control

Anti Output

I-Fetch ExecutionCore Retire

Core

Predict What?

Direction (1-bit)
- Single direction for unconditional jumps and calls/returns
- Binary for conditional branches
Target (32-bit or 64-bit addresses)
- Some are easy
  - One: Uni-directional jumps
  - Two: Fall through (Not Taken) vs. Taken
- Many: Function Pointer or Indirect Jump (e.g. jr r31)

Branch Misprediction

PC Next PC Fetch DriveAlloc Rename Queue Schedule Dispatch Reg File ExecFlags Br Resolve

Single Issue

Mispredict

Branch Misprediction

PC Next PC Fetch DriveAlloc Rename Queue Schedule Dispatch Reg File ExecFlags Br Resolve

Single Issue (flush entailed instructions and refetch)

Mispredict

Branch Misprediction

PC Next PC Fetch DriveAlloc Rename Queue Schedule Dispatch Reg File ExecFlags Br Resolve

Single Issue

Fetch the correct path

Branch Misprediction

PC Next PC Fetch DriveAlloc Rename Queue Schedule Dispatch Reg File ExecFlags Br Resolve

Single Issue

Mispredict 8-issue Superscalar Processor (Worst case)

Static prediction

Static prediction is used to guide code

scheduling strategies

Simple strategy for all branches in the code
Based on opcode or direction of branches
Profile based Æ

•individual branches tend to be strongly bimodal (set a bit in the opcode)

Provide mechanisms for compilers or

programmers to provide hints

Bit in the instruction encoding
I-fetch is steered accordingly

Profile Guided Static Prediction

IF ID EX MEM WB

IF

IF ID EX MEM WB

Bubble Bubble Bubble

beq $1,$2,L1 Branch bit in the encoded instruction is set to 1

Target address is known here

Profile Guided Static Prediction

IF ID EX MEM^ WB

IF

IF ID Bubble^ Bubble

Bubble

IF ID EX MEM WB

ID EX Bubble

Encoded prediction is incorrect

Branch condition is known here

Dynamic Branch Prediction Strategies

Use past behavior to predict the future
Local vs. global behaviors
- Branches show surprisingly good correlation with

one another and their history

They are not totally random events

…

n-1 0

prediction

Last branch behavior, i.e., taken or not taken

From Ref: “Modern Processor Design: Fundamentals of Superscalar Processors, J. Shen and M. Lipasti

Shift register

How do we capture this history?

How do we predict?

Simplest Dynamic Branch Predictor

. . .

addi r10, r0, 100 addi r1, r1, r L1: add r21, r20, r lw r2, (r21) beq r2, r0, L … … j L L2: … … … L3: addi r1, r1, 1 bne r1, r10, L

0x 0x

0x 0x4001010c 0x

0x40010B0c 0x40010B

for (i=0; i<100; i++) { if (a[i] == 0) { … } … }

1-bit Branch History Table

FSM of the Simplest Predictor

A 2-state machine
Change mind fast

If branch not taken

If branch taken

Predict not taken

Predict taken

Example using 1-bit branch history table

for (i=0; i< 44 ; i++) { …. }

Pred 00

Actual T T

T T

addi r10, r0, 4 addi r1, r1, r L1: … … addi r1, r1, 1 bne r1, r10, L

NT

T

T T

NT

T

60% accuracy

2-bit Saturating Up/Down Counter Predictor

Not Taken

Taken

Predict Not taken

Predict taken

ST: Strongly Taken

WT: Weakly Taken

WN: Weakly Not Taken

SN: Strongly Not Taken

WN

SN

WT

ST

MSB: Direction bit

LSB: Hysteresis bit

Capturing Global Behavior

A shift register captures the

local path through the

program

For each unique path a

predictor is maintained

Prediction is based on the

behavior history of each

local path

Shift register length

determines program region

size

B2 (^) B

B4 B

B6 B

T F

Branch Correlation

Branch direction
- Not independent
- Correlated to the path taken
Example: Path 1-1 of b3 can be surely known beforehand
Track path using a 2-bit register

if (aa==2) // b aa = 0; if (bb==2) // b bb = 0; if (aa!=bb) { // b ……. }

b2 b

b3 b3 b

1 (T)

0 (NT)

Path: A:1-1 B:1-0 C:0-1 D:0- aa= bb=

aa= bb≠ 2

aa≠ 2 bb=

aa≠ 2 bb≠ 2

Code Snippet

Correlated Branch Predictor [PanSoRahmeh’92]

(M,N) correlation scheme
- M: shift register size (# bits)
- N: N-bit counter

2-bit

counte

r

hash. . . .

X X

Branch PC

hash

2-bit counter

. . . . 2-bit counter

. . . .

X X

2-bit counter

. . . . 2-bit counter

. . . .

Prediction Prediction

2-bit shift register

(global branch history)

select

Subsequent branch direction

(2,2) Correlation Scheme

2-bit Sat. Counter Scheme

2 w

w

Branch PC

Two-Level Branch Predictor [YehPatt91,92,93]

Generalized correlated branch predictor
1 st^ level keeps branch history in Branch History Register (BHR)
2 nd^ level segregates pattern history in Pattern History Table (PHT)

Branch History Pattern

Pattern History Table (PHT)

Prediction

Rc-k Rc-

Rc: Actual Branch Outcome

FSM Update Logic

Branch History Register (BHR)

(Shift left when update)

N

2 N^ entries

PHT update Current State

Key Idea

Separate all of the histories of a branch Æ

sub-histories

For each sub-history employ a separate

predictor

Each history maps to a FSM

Global History Schemes

Global BHR

Global PHT

GAg

Global BHR

SetP(B) Per-set

PHTs (SPHTs)

GAs

Global BHR

Addr(B) Per-addr

PHTs (PPHTs)

GAp

[PanSoRahmeh’92]* similar to GAp

Set can be determined by branch opcode, compiler classification, or branch PC address.
