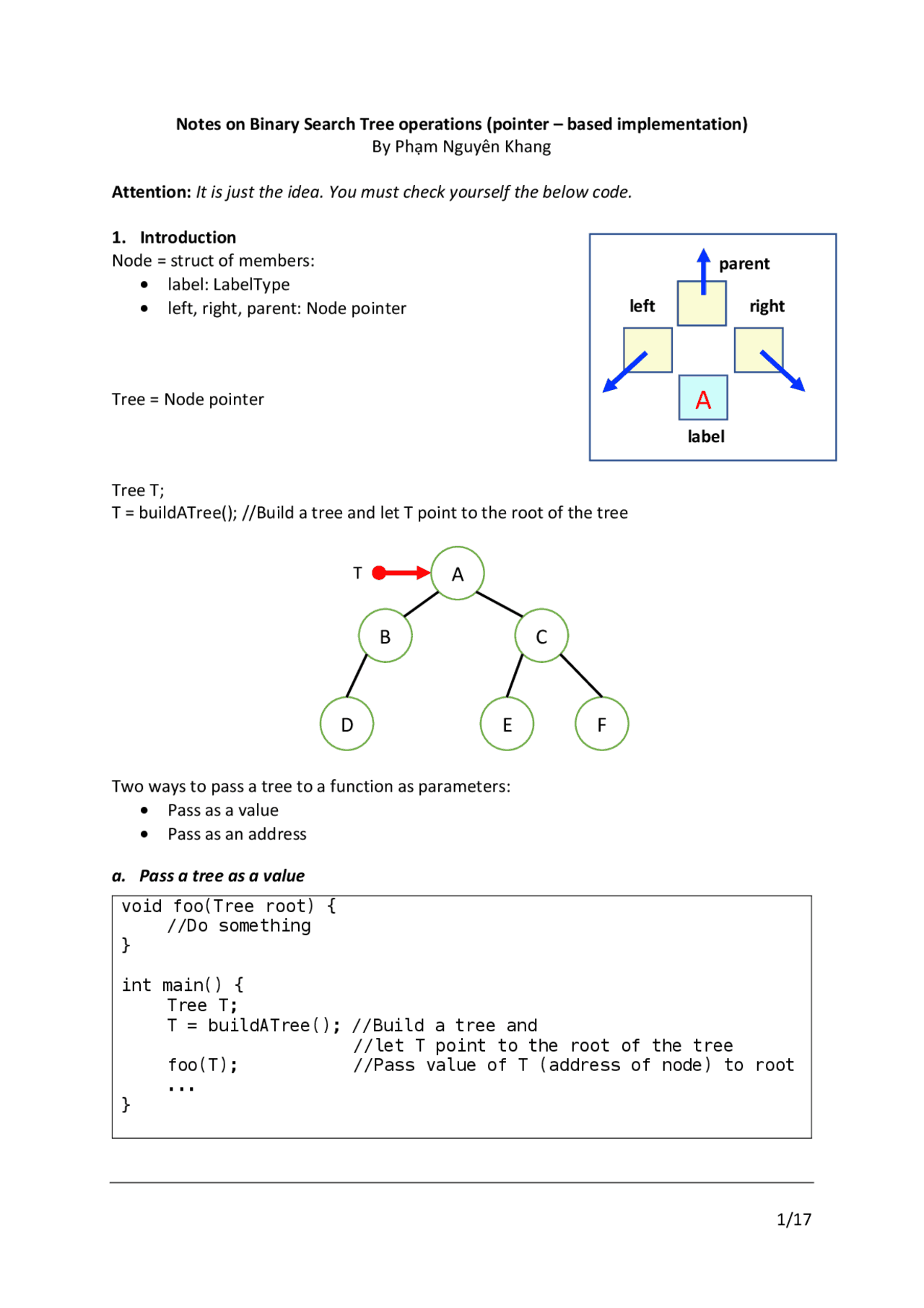

Notes on Binary Search Tree operations (pointer – based implementation)
By Phạm Nguyên Khang
Attention: It is just the idea. You must check yourself the below code.
1. Introduction
Node = struct of members:
- label: LabelType
- left, right, parent: Node pointer
Tree = Node pointer
Tree T;
T = buildATree(); //Build a tree and let T point to the root of the tree
Two ways to pass a tree to a function as parameters:
- Pass as a value
- Pass as an address
a. Pass a tree as a value
void foo(Tree root) { //Do something } int main() { Tree T; T = buildATree(); //Build a tree and //let T point to the root of the tree foo(T); //Pass value of T (address of node) to root ... }
left right
A
label
parent
A
B C
D E F
T
In this case, root and T are two different pointers (two different arrows) which point to a
same node (i.e., root).
Because T and root point to the same node, if we change the content of the node using
root, for example, make set the label of the node to ‘X’, T->label will change.
void foo(Tree root) { root->label = ‘X’; ... } int main() { Tree T; T = buildATree(); //Build a tree and //let T point to the root of the tree foo(T); ... } A B C D E F
T
root
X B C D E F
T
root
b. Pass a tree as an address
“ Address can be considered as another name (alias) of a variable. ”
void foo( *Tree pT ) { //Do something } int main() { Tree T; T = buildATree(); //Build a tree and //let T point to the root of the tree foo( &T ); //Pass address of T to pT … }
Now, pT and T are different pointers but T and (*pT) are the same pointer. So, we can say
that (*pT) is another name of T.
If we change (*pT), T will change!
A
pT
T
A C D E F
(*pT)
1. makeNull(T) – makes T be an empty tree
In this function, we want to make the pointer T point to NULL. So we must change T in the
makeNull() function. There is only one way to do this, that is passing T by address!
void makeNull( Tree pT ) { (pT) = NULL; } int main() { Tree T; T = buildATree(); //Build a tree and //let T point to the root of the tree makeNull( &T ); //Pass address of T to root … }
Before After
A
pT
T
A C D E F
(*pT) pT
T
(*pT)
NULL
2. insert(x, T) – inserts x into tree T
- If T is a null tree (a null pointer), inserting a new node makes T point to the new
node. Therefore, T must be changed.
- If T is not null, inserting a new node will change the content of some node.
So, T must be passed by address!
void insert(LabelType x, *Tree pT ) { Case 1: If pT is a null tree, if (pT == NULL) { //1a. create a node, Node root = (Node)malloc(sizeof(Node); //1b. place x and root->label = x; //1c. make pT point to the new node (pT) = root; return; } Case 2: //2a. Find a right position to insert //2b. Insert a new node }
Find a right position to insert x into tree T, can be done by loop or recursion.
a. Using loop
We start from root of T (i.e., *pT).
Node *node = *pT;
Loop until node is NULL (we left the tree) or node contains x. In the loop we compare x to
node->label and go left or right according to comparison result.
while (node != NULL) { parent = node if x == node->label => break if x < node->label node = node->left else node = node->right }
When the loop finishes, “parent” is the last node we meet before leaving the tree.
Depending on relation between x and parent->label, we will insert x into the left or the right
of parent.
If x = parent->label, x has been existed in T, just return.
The next step is to create a new node, place x, and set parent->left or parent->right point to
the new node.
Node child = (Node)malloc(sizeof(Node)); child->label = x; if (x < parent) parent->left = child; else parent->right = child; 1 0 5 1 5 2 0 4 8 1 4 1 8
insert 7
parent
void insert(LabelType x, Tree pT ) { Case 1: If pT is a null tree, if (pT == NULL) { //1a. create a node, Node root = (Node)malloc(sizeof(Node); //1b. place x and root->label = x; //1c. make pT point to the new node (pT) = root; return; } Case 2: Compare x to (pT)->label //2a. x == (pT)->label if (x == (pT)->label) return; // 2 b. x < (pT)->label => recursively insert to left subtree if (x == (pT)->label) insert(x, &((pT)->left)); // 2 c. x > (pT)->label => recursively insert to right subtree else insert(x, &((*pT)->right)); }
3. delete(x, T) – deletes x from tree T
- If the deleted node is root, T must be changed.
- Otherwise, we change the content of some node.
So, T must be passed by address!
void delete(LabelType x, *Tree pT ) { Step 1 : find the node content x Step 2: delete the node and adjust the tree }
Suppose *pT is not empty (if *pT is empty just do nothing).
Find the node content x can be done by loop or recursion.
a. Using loop
We will find the node containing x and its parent.
We start from root of T (i.e., *pT).
Node *node = *pT;
Loop until node is NULL (we left the tree) or node contains x. In the loop we compare x to
node->label and go left or right according to comparison result.
Node *parent = NULL; while (node != NULL) { if (x == node->label) break; parent = node; if (x < node->label) node = node->left; else node = node->right; }
When the loop finishes, if node == NULL, x does not appear in T, just return.
Otherwise, x == node->label and “parent” is the parent of node.
Case 3 : “node” has one child
- Take the unique child of “node”
- Set parent->left or parent->right to the child. Beware of the case parent == NULL. Node child; if (node->left == NULL) child = node->right; else child = node->left; if (parent == NULL) (pT) = child; else if (node == parent->left) parent->left = child; else parent->right = child;
void delete(LabelType x, Tree pT ) { if ((pT) == NULL) return; Step 1 : find the node containing x Node *node = *pT, parent; while (node != NULL) { if (x == node->label) break; parent = node; //keep parent before moving node if (x < node->label) node = node->left; else node = node->right; } if (node == NUL) return; //x does not appear in tree Step 2: delete the node and adjust the tree Case 1: node has no child if (node->left == NULL && node->right == NULL) { if (parent == NULL) (pT) = NULL; else if (node == parent->left) parent->left = NULL; else parent->right = NULL; return; } Case 2 : node has two children if (node->left != NULL && node->right != NULL) { node->label = deleteMin(&(node->right)); return; } Case 3 : node has only one child Node child; if (node->left == NULL) child = node->right; else child = node->left; if (parent == NULL) (pT) = child; else if node = parent->left) parent->left = child; else parent->right = child; }
4. deleteMin(T) – deletes the smallest node from T (T is not empty)
LabelType deleteMin( *Tree pT ) { Step 1: find the smallest node Step 2 : delete it }
a. Using loop
To find the smallest node, from the root, we go left until node->left == NULL. We must also
keep the parent of the node.
Node *node = *pT; Node *parent = NULL; while (node->left != NULL) { parent = node; node = node->left; }
Because node->left == NULL (as case 3 in delete function), we will set parent->left or parent-
>right to node->right.
LabelType deleteMin( *Tree pT ) { Step 1: find the smallest node Node *node = *pT; Node parent = NULL; while (node->left != NULL) { parent = node; node = node->left; } Step 2 : delete it, and return its label if (parent == NULL) //node to be delete is the root (pT) = node->right; else if (node == parent->left) parent->left = node->right; else parent->right = node->right; return node->label; }
b. Using recursion
- If (pT)->left != NULL, (pT) is the node to be delete
- Otherwise, recursively delete the left subtree LabelType deleteMin( Tree pT ) { Case 1 : if (pT) has no left child if ((pT)->left == NULL) { LabelType label = (pT)->label; (pT) = (pT)->right; return label; } Case 2: return deleteMin(&((*pT)->left)); }
