- Feature Summary and Revision History, on page 1
- Feature Description, on page 2
- Monitoring and Troubleshooting, on page 2

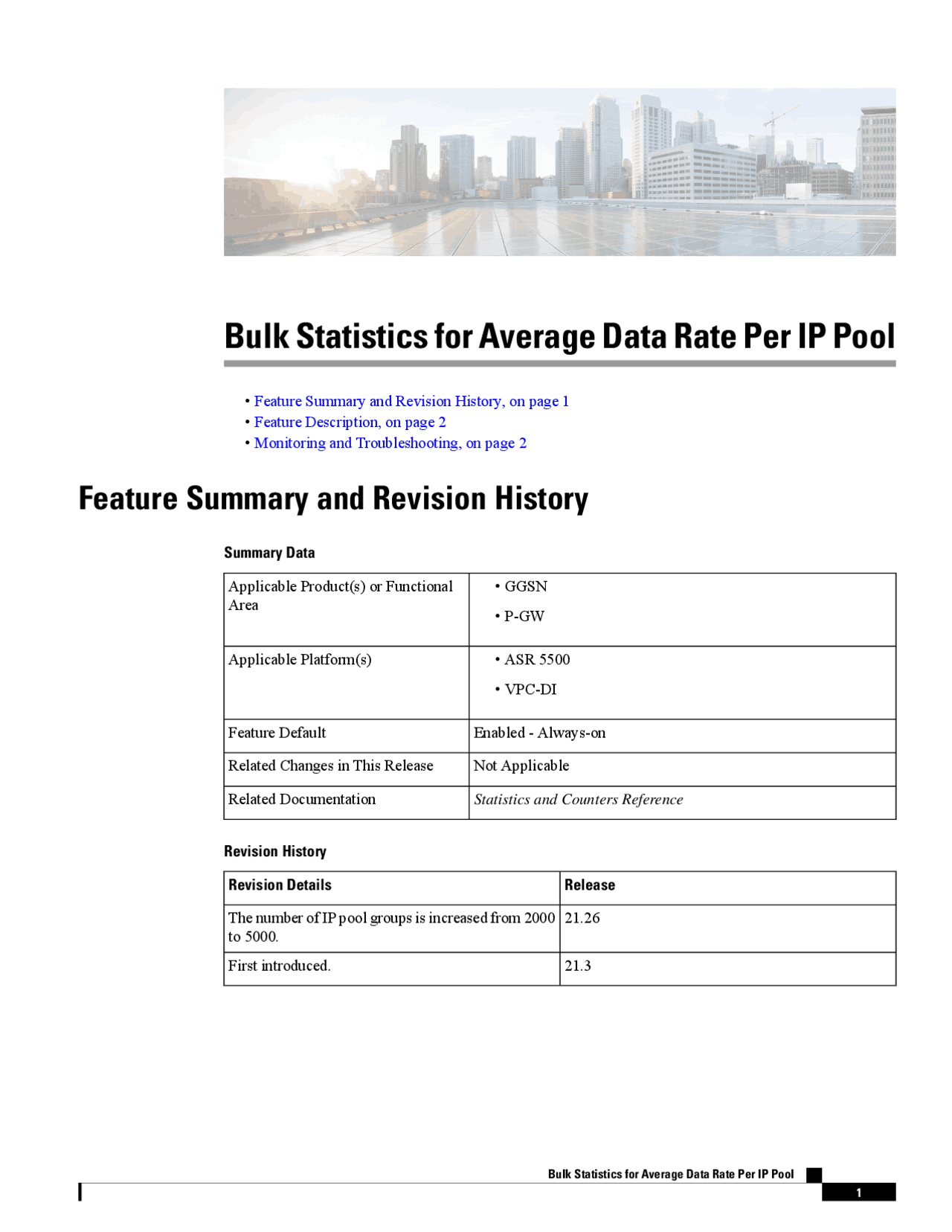

Feature Summary and Revision History
Summary Data
Applicable Product(s) or Functional Area
Applicable Platform(s)
Feature Default Enabled - Always-on Related Changes in This Release Not Applicable Related Documentation Statistics and Counters Reference
Revision History Revision Details Release The number of IP pool groups is increased from 2000 21. to 5000. First introduced. 21.
Bulk Statistics for Average Data Rate Per IP Pool
Feature Description
The bulk statistics support is enhanced to fetch the subscriber average data rate per IP pool (cumulative of all session managers). The average data rate consists of all the IP pools configured in the system. The bulk statistics collection time is enhanced for the datarate-ippool schema. This schema supports up to 5000 IP pool groups when configured.
Monitoring and Troubleshooting
This section provides information on how to monitor and troubleshoot using show commands and bulk statistics available in support of this feature.
Bulk Statistics
This feature supports the following bulk statistics:
Datarate-IPPool Schema
The following bulk statistics are added to the Datarate-IPPool schema:
- sess-datarate-ippool-name—Indicates the name of the IP pool for which average data rates are fetched.
- sess-ave-rate-fuser-bps—Indicates the average data-rate (bits/sec) from the user in uplink direction per IP pool basis.
- sess-ave-rate-tuser-bps—Indicates the average data-rate (bits/sec) to the user in downlink direction per IP pool basis.
- sess-ave-rate-fuser-pps—Indicates the average packets/second from the user in uplink direction per IP pool basis.
- sess-ave-rate-tuser-pps—Indicates the average packets/second to the user in downlink direction per IP pool basis.
Show Commands and/or Outputs
This section provides information regarding show commands and their outputs for this feature.
show bulkstats schema
Table 1: show bulkstats schema Command Output Descriptions
Field Description Bulk Statistics Server Configuration: Server State Indicates the server state—enabled or disabled. File Limit Indicates the file size limit in KB.
Bulk Statistics for Average Data Rate Per IP Pool
Feature Description
Field Description Last transfer time required Indicates the last transfer time required. No successful data transfers Indicates the total number of successful data transfers. No attempted data transfers Indicates the total number of attempted data transfers.
show bulkstats data
Table 2: show bulkstats data Command Output Descriptions
Field Description Bulk Statistics Server Configuration: Server State Indicates the server state—enabled or disabled. File Limit Indicates the file size limit in KB. Sample Interval Indicates the sampling interval. Transfer Interval Indicates the transfer interval. Receiver Mode Indicates the receiver mode. Local File Storage Indicates the local file storage. Historical Data Collection Indicates the Historical Data Collection state—enabled or disabled. Bulk Statistics Server Statistics: Records awaiting transmission Indicates the number of records awaiting transmission. Bytes awaiting transmission Indicates the number of bytes awaiting transmission. Total records collected Indicates the total number of records collected. Total bytes collected Indicates the total number of bytes collected. Total records transmitted Indicates the total number of records transmitted. Total bytes transmitted Indicates the total number of bytes transmitted. Total records discarded Indicates the total number of records discarded. Total bytes discarded Indicates the total number of bytes discarded. Last collection time required Indicates the last collection time required. Last transfer time required Indicates the last transfer time required. No successful data transfers Indicates the total number of successful data transfers. No attempted data transfers Indicates the total number of attempted data transfers.
Bulk Statistics for Average Data Rate Per IP Pool
show bulkstats data
Field Description Fine n Remote File Format The remote file format—for example, %date%-%time% File Header The file’s header. File Footer The file’s footer. No bulkstats receivers Indicates the total number of bulk statistics collection servers configured. File Statistics: Records awaiting transmission^ Indicates the number of records awaiting transmission. Bytes awaiting transmission Indicates the number of bytes awaiting transmission. Total records collected Indicates the total number of records collected. Total bytes collected Indicates the total number of bytes collected. Total records transmitted Indicates the total number of records transmitted. Total bytes transmitted Indicates the total number of bytes transmitted. Total records discarded Indicates the total number of records discarded. Total bytes discarded Indicates the total number of bytes discarded. Last transfer time required Indicates the last transfer time required. No successful data transfers Indicates the total number of successful data transfers. No attempted data transfers Indicates the total number of attempted data transfers. Handoff Statistics epdg-handoff-disc^ Configures LTE to Wi-Fi HO disconnect reason statistics. Displays the statistics corresponding to LTE to Wi-Fi HO disconnect reasons for all services.
show epdg-service statistics handoff-disc-reasons Removes the statistics corresponding to LTE to Wi-Fi HO disconnect reasons for all services.
clear epdg-service statistics handoff-disc-reasons
show subscribers data-rate ip-pool <pool_name>
Table 3: show subscribers data-rate ip-pool <pool_name> Command Output Descriptions
Field Description The peak data rate, in bits per second, obtained for data sent from the subscriber to the network during the last sampling period.
pk rate from user (bps)
Bulk Statistics for Average Data Rate Per IP Pool
show subscribers data-rate ip-pool <pool_name>
