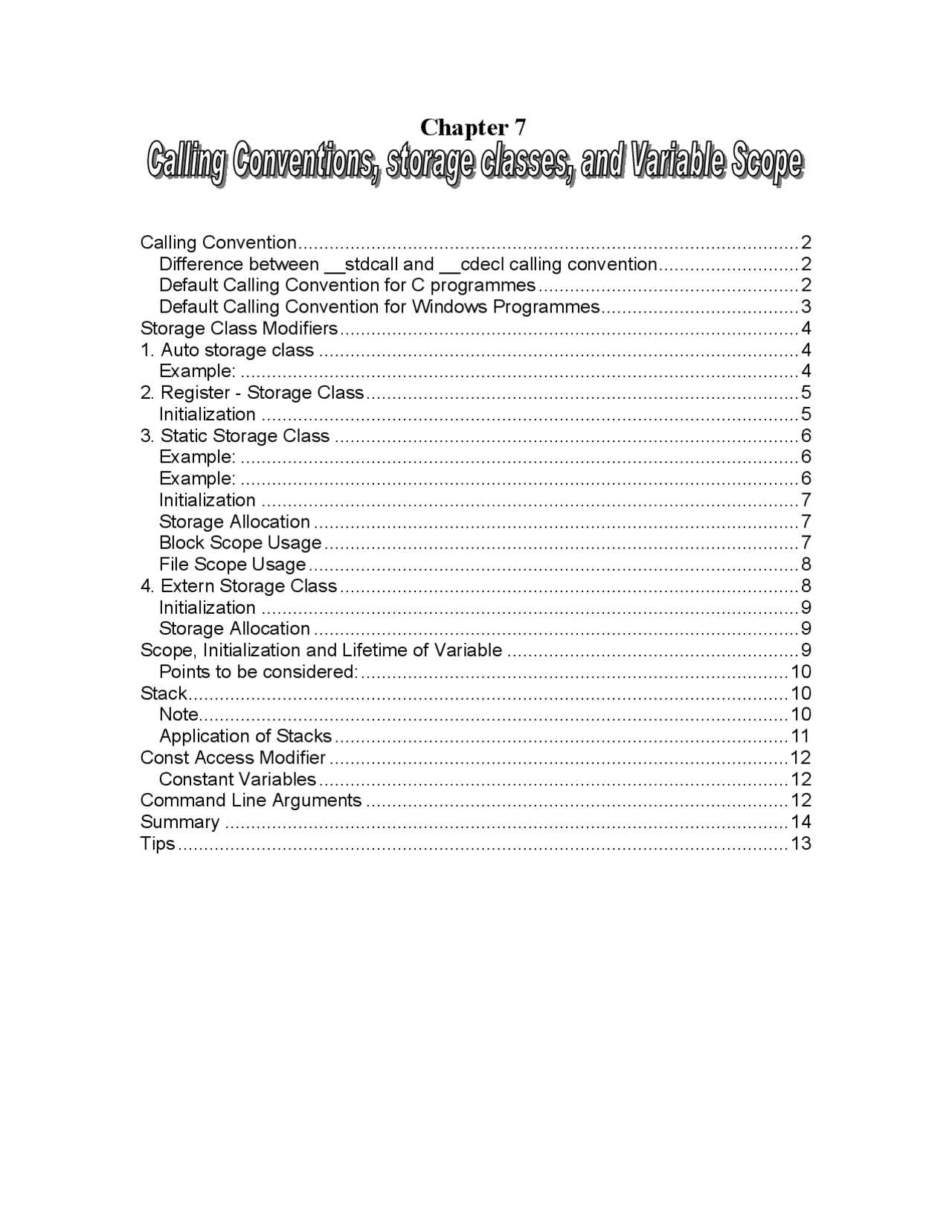

- Chapter
- Calling Convention................................................................................................
- Difference between __stdcall and __cdecl calling convention...........................
- Default Calling Convention for C programmes ..................................................
- Default Calling Convention for Windows Programmes......................................
- Storage Class Modifiers........................................................................................
- Auto storage class ............................................................................................
- Example: ...........................................................................................................
- Register - Storage Class...................................................................................
- Initialization .......................................................................................................
- Static Storage Class .........................................................................................
- Example: ...........................................................................................................
- Example: ...........................................................................................................
- Initialization .......................................................................................................
- Storage Allocation .............................................................................................
- Block Scope Usage ...........................................................................................
- File Scope Usage ..............................................................................................
- Extern Storage Class ........................................................................................
- Initialization .......................................................................................................
- Storage Allocation .............................................................................................
- Scope, Initialization and Lifetime of Variable ........................................................
- Points to be considered:..................................................................................
- Stack...................................................................................................................
- Note.................................................................................................................
- Application of Stacks .......................................................................................
- Const Access Modifier ........................................................................................
- Constant Variables ..........................................................................................
- Command Line Arguments .................................................................................
- Summary ............................................................................................................
- Tips .....................................................................................................................
Calling Convention
To call a function, you must often pass parameters to it. There are plenty of ways how this can be done. You either pass the parameters on the calling stack (place where the processor also places the temporary pointer to the code following the call, so it knows where to continue after the call was done), or you pass some of them in registers. Floating point values can also be passed on the stack of the coprocessor.
Calling conventions rule how parameters will be passed (stack only or registers), in which order they will be passed (from left to right, i.e. in the same order as they appear in source code, or the other way around), and which code will clean the stack after use, if necessary. There are a lot of possible combinations:
- pascal , the original calling convention for old Pascal programs;
- register , the current default calling convention in Delphi;
- cdecl , the standard calling convention for C and C++ code;
- stdcall , the default cross-language calling convention on 32-bit Windows;
- safecall , a special case of stdcall, which can be ignored for now.
Difference between __stdcall and __cdecl calling convention
cdecl and __stdcall just tells the compiler whether the called function or the calling function cleans up the stack. In __stdcall calling convention, the called function cleans up the stack when it is about to return. So if it is called in a bunch of different places, all of those calls do not need to extra code to clean up the stack after the function call.
In __cdecl calling convention, it is the caller function that is responsible for cleaning the stack, so every function call must also need to include extra code to clean up the stack after the function call.
Default Calling Convention for C programmes
The __cdecl is the default calling convention for C programs. In this calling convention, the stack is cleaned up by the caller. The __cdecl calling convention creates larger executables than __stdcall, because it requires each function call to include stack cleanup code.
The following list shows the implementation of _cdecl calling convention.
Element Implementation
Argument-passing order Right to left
Storage Class Modifiers
C has a concept of ' Storage classes ' which are used to define the scope (visibility) and life time of variables and/or functions.
1. Auto storage class
The default storage class for local variables is “auto storage class”. The auto storage class specifier lets you define a variable with automatic storage; its use and storage is restricted to the current block. The storage class keyword auto is optional in a data declaration. It is not permitted in a parameter declaration. A variable having the auto storage class specifier must be declared within a block. It cannot be used for file scope declarations.
Because automatic variables require storage only while they are actually being used, defining variables with the auto storage class can decrease the amount of memory required to run a program. However, having many large automatic objects may cause you to run out of stack space.
Example:
int Count; auto int Month; } The example above defines two variables with the same storage class. auto can only be used within functions, i.e. local variables.
Declaring variables with the auto storage class can also make code easier to maintain, because a change to an auto variable in one function never affects another function (unless it is passed as an argument).
Initialization
You can initialize any auto variable except parameters. If you do not initialize an automatic object, its value is indeterminate. If you provide an initial value, the expression representing the initial value can be any valid C expression. For structure and union members, the initial value must be a valid constant expression if an initializer list is used. The object is then set to that initial value each time the program block that contains the object's definition is entered.
Note: If you use the goto statement to jump into the middle of a block, automatic variables within that block are not initialized.
Storage Allocation
Objects with the auto storage class specifier have automatic storage duration. Each time a block is entered; storage for auto objects defined in that block is made available. When the block is exited, the objects are no longer available for use.
If an auto object is defined within a function that is recursively invoked, memory is allocated for the object at each invocation of the block.
2. Register - Storage Class
Register storage class is used to define local variables that should be stored in a register instead of RAM. This means that the variable has a maximum size equal to the register size (usually one word) and cant have the unary '&' operator applied to it (as it does not have a memory location). { register int Miles; }
Register should only be used for variables that require quick access - such as counters. It should also be noted that defining 'register' does not mean that the variable will be stored in a register. It means that it MIGHT be stored in a register - depending on hardware and implementation restrictions.
- The register storage class specifier indicates to the compiler that a heavily used variable (such as a loop control variable) within a block scope data definition or a parameter declaration should be allocated a register to minimize access time.
- It is equivalent to the auto storage class except that the compiler places the object, if possible, into a machine register for faster access.
- An object having the register storage class specifier must be defined within a block or declared as a parameter to a function.
The following example lines define automatic storage duration objects using the register storage class specifier:
register int score1 = 0, score2 = 0; register unsigned char code = 'A'; register int *element = &order[0];
Initialization
You can initialize any register object except parameters. If you do not initialize an automatic object, its value is indeterminate. If you provide an initial value, the expression representing the initial value can be any valid C expression. For structure and union members, the initial value must be a valid constant expression if an initializer list is used.
char * func(void) { char Text2[10]="martin"; return(Text2); }
Now, 'func' returns a pointer to the memory location where 'text2' starts BUT text2 has a storage class of 'auto' and will disappear when we exit the function and could be overwritten but something else. The answer is to specify:
static char Text[10]="martin";
The storage assigned to 'text2' will remain reserved for the duration of the program.
Initialization
We can initialize any static object with a constant expression or an expression that reduces to the address of a previously declared extern or static object, possibly modified by a constant expression. If you do not provide an initial value, the object receives the value of zero of the appropriate type.
Storage Allocation
Storage is allocated at compile time for static variables that are initialized. Un initialized static variables are mapped at compile time and initialized to 0 (zero) at load time. This storage is freed when the program finishes running. Beyond this, the language does not define the order of initialization of objects from different files.
Block Scope Usage
Use static variables to declare objects that retain their value from one execution of a block to the next execution of that block. The static storage class specifier keeps the variable from being reinitialized each time the block, where the variable is defined, runs. For example:
static float rate = 10.5;
Initialization of a static array is performed only once at compile time. The following examples show the initialization of an array of characters and an array of integers:
static char message[] = "startup completed"; static int integers[] = { 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 };
File Scope Usage
The static storage class specifier causes the variable to be visible only in the file where it is declared. Files, therefore, cannot access file scope static variables declared in other files.
Restrictions We cannot declare a static function at block scope.
4. Extern Storage Class
Extern defines a global variable that is visible to all object modules. When you use 'extern' the variable cannot be initialized as all it does is to point the variable name at a storage location that has been previously defined.
With extern keyword, we are actually pointing to such a variable that is already been defined in some other file.
Source 1 Source 2
extern int count; int count=5;
write() main() { { printf("count is %d\n", count); write(); } } Count in 'source 1' will have a value of 5. If source 1 changes the value of count - source 2 will see the new value
The extern storage class specifier lets you declare objects and functions that several source files can use. All object declarations that occur outside a function and that do not contain a storage class specifier declare identifiers with external linkage. All function definitions that do not specify a storage class define functions with external linkage.
An extern variable, function definition, or declaration also makes the described variable or function usable by the succeeding part of the current source file. This declaration does not replace the definition. The declaration is used to describe the variable that is externally defined.
scanf ("%d%d", &a, &b);
if ( a < b ) { int temp = a; /* this "temp" hides the other one / printf ("Smallest local ""temp"" = a2 = %d\n", 2temp); } / end of block; local "temp" deleted */
else { int temp = b; /* another "temp" hides the other one / printf ("Smallest local ""temp"" = b3 = %d\n", 3temp); } / end of block; other local "temp" deleted */
printf ("Global ""temp"" used: %f\n", a * b + temp);
return 0; }
Points to be considered:
- each { } block creates a new scope
- variables declared and initialized in a scope are deleted when execution leaves scope
- note the f-format to print result with global variable
Stack
A stack is an abstract data type that permits insertion and deletion at only one end called the top. A stack is a collection of items in which only the most recently added item may be removed. The latest added item is at the top. Basic operations are push and pop.
Note
Description of elements: A stack is defined to hold one type of data element. Only the element indicated by the top can be accessed. The elements are related to each other by the order in which they are put on the stack.
Description of operations: Among the standard operations for a stack are:
- insert an element on top of the stack (push)
- remove the top element from the stack (pop)
- Determine if the stack is empty.
An example of a stack is the pop-up mechanism that holds trays or plates in a cafeteria.
The last plate placed on the stack (insertion) is the first plate off the stack (deletion). A
stack is sometimes called a Last-In, First-Out or LIFO data structure. Stacks have
many uses in computing. They are used in solving such diverse problems as "evaluating
an expression" to "traversing a maze."
Application of Stacks
A stack data structure is used when subprograms are called. The system must remember
where to return after the called subprogram has executed. It must remember the contents
of all local variables before control was transferred to the called subprogram. The return
from a subprogram is to the instruction following the call that originally transferred
control to the subprogram. Therefore, the return address and the local variables of the
calling subprogram must be stored in a designated area in memory. For example,
suppose function A has control and calls B which calls C which calls D. While D is
executing, the return stack might look like this:
The first "return" would return (from D) to the return address in Function C and the
return stack would then look like:
The last function called is the first one completed. Function C cannot finish execution
until Function D has finished execution. The sequence in which these functions are
executed is last-in, first-out. Therefore, a stack is the logical data structure to use for
In this code, the main program accepts two parameters, argv and argc. The argv parameter is an array of pointers to string that contains the parameters entered when the program was invoked at the command line. The argc integer contains a count of the number of parameters.
Tips
- Remember the calling conventions used by the functions you are using. It will give you a clearer image of what happens when some parameters are passed to a function.
- Automatic variables require storage only while they are actually being used, so defining variables with the auto storage class can decrease the amount of memory required to run a program.
- Avoid defining many large automatic objects as it may cause you to run out of stack space.
- Register access modifier should only be used for variables that require quick access - such as counters.
- Use static variables to declare objects that retain their value from one execution of a block to the next execution of that block since the static storage class specifier keeps the variable from being reinitialized each time the block runs.
- An extern declaration can appear outside a function or at the beginning of a block. If the declaration describes a function or appears outside a function and describes an object with external linkage, the keyword extern is optional.
- Please note that variables declared and initialized in a scope are deleted when execution leaves scope.
- A stack data structure is used when subprograms are called. It is the logical data structure to use for storing return addresses and local variables during subprogram invocations.
- Do not try to change the value of a constant variable declared with “const” keyword after it has been initialized.
Summary
The calling conventions tells us in which order the parameters will be passed in a function and whether the calling function or the called function is responsible for the cleaning of the stack.
The default calling convention for C programs is __cdecl and in this convention, the caller is responsible for cleaning the stack after the function call.
Similarly, the default calling convention for the windows programs is __stdcall. Here the called function itself has to do the stack clean up and so no extra code is required for stack clean up with each function call. It is very obvious that the __cdecl calling convention creates larger executables because it requires each function call to include the clean up code.
Storage classes are used to describe the scope and visibility of the variables and functions. The common storage classes discussed above are auto, register, static, and extern etc.
In the lifetime of variables, we have discussed that each { } block creates a new scope. Variables declared and initialized in a scope are deleted when execution leaves that scope
The const keyword is used to create a read only variable. Thus constant variables are not allowed to be modified after initialization.
Command line arguments provide an easy way to pass some parameters to the programme in the main function when the programme execution starts. When using an executable that requires startup arguments to debug, you can type these arguments at the command line, or from within the development environment.
