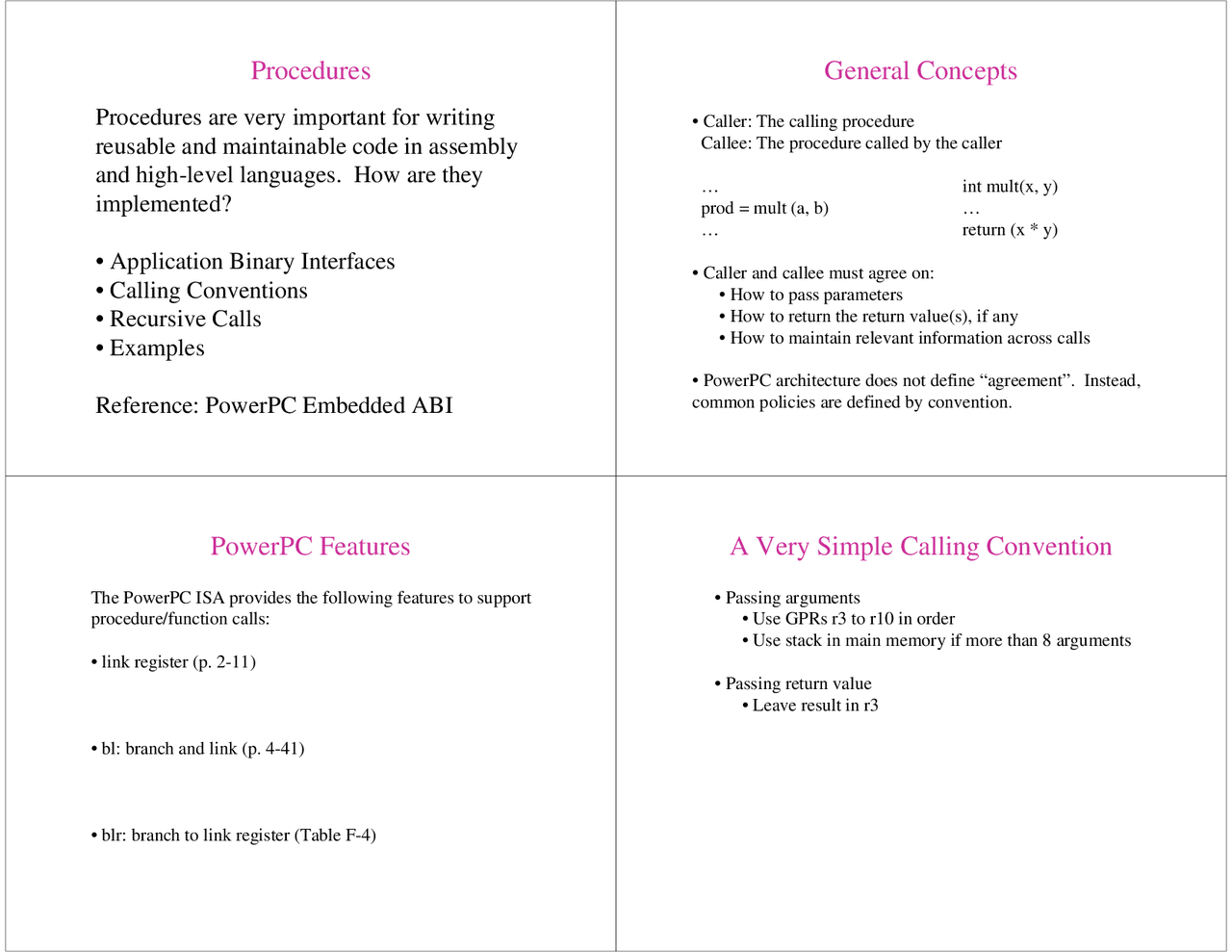

Procedures
Procedures are very important for writing
reusable and maintainable code in assembly
and high-level languages. How are they
implemented?
• Application Binary Interfaces
• Calling Conventions
• Recursive Calls
• Examples
Reference: PowerPC Embedded ABI
General Concepts
• Caller: The calling procedure
Callee: The procedure called by the caller
… int mult(x, y)
prod = mult (a, b) …
… return (x * y)
• Caller and callee must agree on:
• How to pass parameters
• How to return the return value(s), if any
• How to maintain relevant information across calls
• PowerPC architecture does not define “agreement”. Instead,
common policies are defined by convention.
PowerPC Features
The PowerPC ISA provides the following features to support
procedure/function calls:
• link register (p. 2-11)
• bl: branch and link (p. 4-41)
• blr: branch to link register (Table F-4)
A Very Simple Calling Convention
• Passing arguments
• Use GPRs r3 to r10 in order
• Use stack in main memory if more than 8 arguments
• Passing return value
• Leave result in r3
pf3
pf4

Partial preview of the text

Download Procedures and Calling Conventions in PowerPC Assembly and more Study notes Electrical and Electronics Engineering in PDF only on Docsity!

Procedures

Procedures are very important for writingreusable and maintainable code in assemblyand high-level languages. How are theyimplemented?• Application Binary Interfaces• Calling Conventions• Recursive Calls• ExamplesReference: PowerPC Embedded ABI

General Concepts

  • Caller: The calling procedureCallee: The procedure called by the caller…

int mult(x, y)

prod = mult (a, b)

return (x * y)

  • Caller and callee must agree on:
    • How to pass parameters• How to return the return value(s), if any• How to maintain relevant information across calls
      • PowerPC architecture does not define “agreement”. Instead,common policies are defined by convention.

PowerPC Features

The PowerPC ISA provides the following features to supportprocedure/function calls:• link register (p. 2-11)• bl: branch and link (p. 4-41)• blr: branch to link register (Table F-4)

A Very Simple Calling Convention

  • Passing arguments
    • Use GPRs r3 to r10 in order• Use stack in main memory if more than 8 arguments
      • Passing return value
        • Leave result in r

Example

int func(int a, int b){

return (a + b); } main{

…func(5,6);… }

Another Example

int func2(int a, int b){

return func(a , b); } main{

…func2(5,6);… }

The Stack

  • Information for each function invocation (e.g. link register) is savedon the

call stack

or simply

stack

  • Each function invocation has its own

stack frame

(a.k.a.

activation

record

func2func

stack framestack frame

stackpointer high address low address

Using the Stack

main

……bl

func …

func

……bl

func …??…

func

Describe the stack and LR contents• right before the first bl• right after the first bl• right after the second bl• after each procedure returns

EABI Stack Frame^ FPRs (optional, var size)GPRs (optional, var size)

CR (optional, 1 word)

local variables (optional, var size) function param’s (optional, var size) Padding (make size mult of 8 bytes)

Link Register^ Back Chain

frameheader

highestaddress lowestaddress
