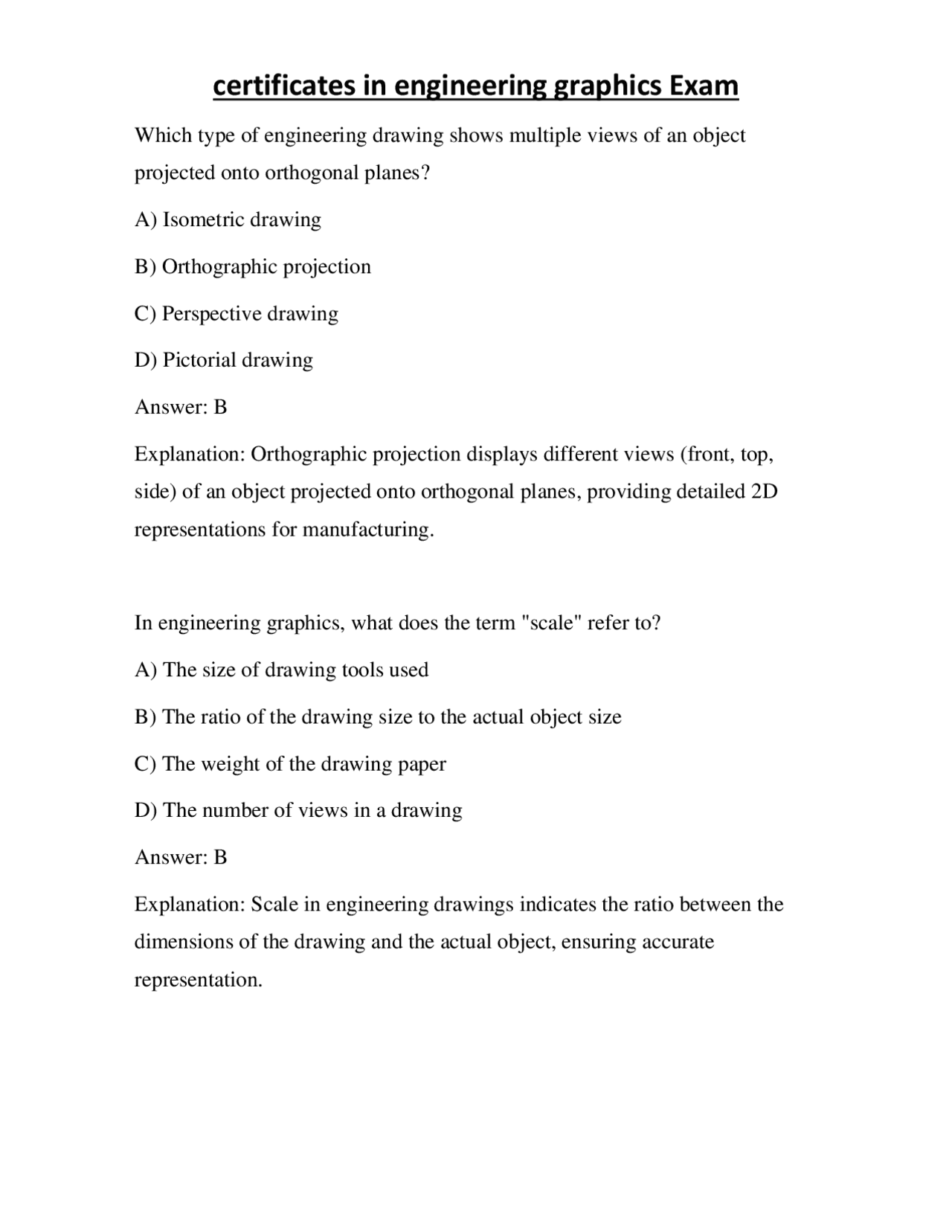

Which type of engineering drawing shows multiple views of an object projected onto orthogonal planes? A) Isometric drawing B) Orthographic projection C) Perspective drawing D) Pictorial drawing Answer: B Explanation: Orthographic projection displays different views (front, top, side) of an object projected onto orthogonal planes, providing detailed 2D representations for manufacturing. In engineering graphics, what does the term "scale" refer to? A) The size of drawing tools used B) The ratio of the drawing size to the actual object size C) The weight of the drawing paper D) The number of views in a drawing Answer: B Explanation: Scale in engineering drawings indicates the ratio between the dimensions of the drawing and the actual object, ensuring accurate representation.
Which software is most commonly used for creating detailed 3D CAD models? A) Microsoft Word B) AutoCAD C) Adobe Photoshop D) SolidWorks Answer: D Explanation: SolidWorks is specialized for 3D CAD modeling, enabling detailed parametric and surface modeling for engineering designs. Which convention is typically followed in engineering drawings according to ISO standards? A) Use of only metric units B) Use of arbitrary line types C) Standardized line types and hatching patterns D) Omitting dimensioning for clarity Answer: C Explanation: ISO standards specify standardized line types, hatching, and conventions to ensure clarity and consistency across engineering drawings. What is the primary purpose of a drawing sheet in engineering graphics? A) To serve as a decorative element
D) Excel Answer: C Explanation: SolidWorks excels at creating complex 3D assemblies, simulations, and detailed mechanical models. Which principle is essential for maintaining accuracy when using drafting tools? A) Using tools without calibration B) Applying excessive force during drawing C) Regular calibration and proper handling of tools D) Ignoring scale measurements Answer: C Explanation: Proper handling and calibration of tools ensure precision and accuracy in manual drafting. When setting up a drawing workspace, what is the recommended angle for aligning the T-square? A) 0 degrees B) 45 degrees C) 90 degrees D) 180 degrees Answer: C
Explanation: The T-square should be aligned at a 90-degree angle to the drawing board to facilitate accurate horizontal and vertical drawings. Which geometric construction is fundamental for creating perpendicular lines? A) Bisecting an angle with a compass B) Drawing parallel lines using a T-square C) Using a protractor to measure 45 degrees D) Connecting two points directly Answer: A Explanation: Bisecting an angle with a compass is a fundamental construction for creating perpendicular lines and other geometric features. In projection methods, what distinguishes first angle projection from third angle projection? A) First angle projects views onto the object, third angle onto the plane B) First angle uses the object between the observer and the plane; third angle places the object outside the projection plane C) They are identical in practice, just different terminologies D) First angle is used only in electrical drawings Answer: B
Explanation: In isometric projection, the axes are typically spaced at 120 degrees, with each axis inclined at 30 degrees to the horizontal, but the standard is to draw axes at 60 degrees to each other for clarity. Which line type in a technical drawing indicates the visible edges of an object? A) Hidden lines B) Center lines C) Visible lines D) Dimension lines Answer: C Explanation: Visible lines are continuous, thick lines that represent the edges of the object that are visible in the view. What is the purpose of section views in engineering drawings? A) To show the external features of an object only B) To reveal internal features by cutting through the object C) To provide a perspective view of the object D) To replace all other views Answer: B Explanation: Section views show internal features by cutting through the object, revealing hidden details for better understanding and manufacturing.
Which type of sectional view involves cutting the object along a plane and removing the front part? A) Full section B) Half section C) Offset section D) Removed section Answer: A Explanation: A full section involves cutting through the entire object along a plane, removing the front part to show internal features. In dimensioning, what does a "chain dimension" refer to? A) Dimensions that are linked together to show the entire length B) A series of dimensions placed end-to-end, where each dimension starts from the previous one C) Dimensions that are independent of each other D) A dimension that indicates chain links in a mechanical part Answer: B Explanation: Chain dimensioning involves placing dimensions consecutively, each starting where the previous one ends, which can lead to accumulation of errors if not managed properly.
B) Two-point perspective C) Three-point perspective D) Isometric projection Answer: C Explanation: Three-point perspective uses three vanishing points, giving a highly realistic view of objects viewed from an angle where all three axes recede. What is an exploded view in assembly drawings? A) A view showing the assembly in operation B) A diagram showing parts separated but aligned to indicate how they fit together C) A cross-section of the assembled object D) A perspective view of the assembled product Answer: B Explanation: An exploded view displays parts separated along their axes while maintaining their relative positions to illustrate assembly order and relationships. Which symbol is commonly used in assembly drawings to indicate a bolt or screw? A) A circle with an 'X' B) A hexagon
C) A standard bolt symbol with a threaded shank and head D) A square with a diagonal line Answer: C Explanation: The standard bolt or screw symbol includes a depiction of the threaded shank and head, following conventions for clarity. Which CAD operation is used to create a 3D object by rotating a 2D profile around an axis? A) Extrusion B) Revolution C) Lofting D) Filleting Answer: B Explanation: Revolution involves rotating a 2D profile around an axis to generate a 3D object, useful for creating symmetrical shapes like cylinders. In CAD, what is the primary benefit of parametric modeling? A) It allows for rapid rendering of images B) It enables the modification of dimensions and features easily and automatically updates related features C) It prevents errors in drawings D) It simplifies 2D drafting only
Explanation: A triangle symbol often indicates a section or cut line, showing where the object has been sliced for sectional views. Which surface development method involves "unfolding" a surface to create a flat pattern? A) Parallel projection B) Cutting and flattening C) Surface unrolling or unfolding techniques D) Perspective projection Answer: C Explanation: Surface unrolling or unfolding involves mathematically flattening a 3D surface to develop a pattern for manufacturing or fabrication. Which CAD operation is used to create a smooth transition between two intersecting surfaces? A) Filleting B) Chamfering C) Lofting D) Extruding Answer: A Explanation: Filleting creates a rounded transition between surfaces or edges, improving aesthetics and stress distribution.
What is the primary purpose of engineering standards in graphics? A) To limit creativity in drawings B) To ensure consistency, clarity, and interoperability in technical communication C) To restrict the use of specific tools D) To standardize only electrical symbols Answer: B Explanation: Engineering standards promote uniformity and clarity across drawings, facilitating effective communication among engineers and manufacturers. Which is an example of a line type used in section views to indicate hidden features? A) Continuous thick line B) Dashed line C) Chain line D) Thin solid line Answer: B Explanation: Dashed lines are used to represent hidden features not visible in the current view.
A) General Design & Topology B) Geometric Dimensioning & Tolerancing C) Graphical Data & Typesetting D) General Drafting & Testing Answer: B Explanation: GD&T specifies geometric tolerances and standards to control the form, orientation, and location of features. Which drawing standard specifies the use of the "title block" in technical drawings? A) ISO B) ANSI C) Both ISO and ANSI D) Neither ISO nor ANSI Answer: C Explanation: Both ISO and ANSI standards recommend including a title block on drawings, containing essential information such as title, scale, date, and author. In assembly drawings, what does the "parts list" or "bill of materials" typically include? A) Only the final assembled product
B) Names, quantities, part numbers, and descriptions of all components C) Only fasteners used in assembly D) The manufacturing process steps Answer: B Explanation: The parts list details all components required for assembly, including quantities, part numbers, and descriptions. Which CAD feature allows modification of an existing model by changing parameters? A) Sketching B) Parametric constraints C) Rendering D) Exporting Answer: B Explanation: Parametric constraints enable adjusting model parameters, which automatically update the geometry based on new values. Which symbol indicates a weld in engineering drawings? A) A triangle with a line B) A shaded triangle or fillet symbol along the joint line C) A circle with an 'X' D) A zigzag line
Which of the following best describes the purpose of tolerancing in engineering drawings? A) To specify exact dimensions without variation B) To define acceptable limits of variation in dimensions and fit C) To add decorative elements to drawings D) To indicate the material to be used Answer: B Explanation: Tolerancing defines permissible dimensional variation, ensuring parts fit and function properly in assemblies. Which type of projection is most suitable for creating a realistic view of an object for presentation purposes? A) Orthographic projection B) Perspective drawing C) Isometric projection D) Sectional view Answer: B Explanation: Perspective drawings mimic human eye view, providing a realistic visual of the object for presentations and marketing. In CAD, what does the "extrusion" command do?
A) Creates a 2D shape from a 3D object B) Extends a 2D profile into a 3D shape along a straight path C) Rotates a shape around an axis D) Merges multiple objects into one Answer: B Explanation: Extrusion extends a 2D profile into 3D by pulling it along a straight line, creating features like cylinders and prisms. Which document typically contains symbols like electrical switches and circuit elements? A) Mechanical drawing B) Electrical schematic or diagram C) Assembly drawing D) Surface development sheet Answer: B Explanation: Electrical schematics use standardized symbols for switches, switches, and circuit elements to communicate electrical connections. Which type of line in a technical drawing indicates the path of a feature that is cut away in a sectional view? A) Visible line B) Hatching line
