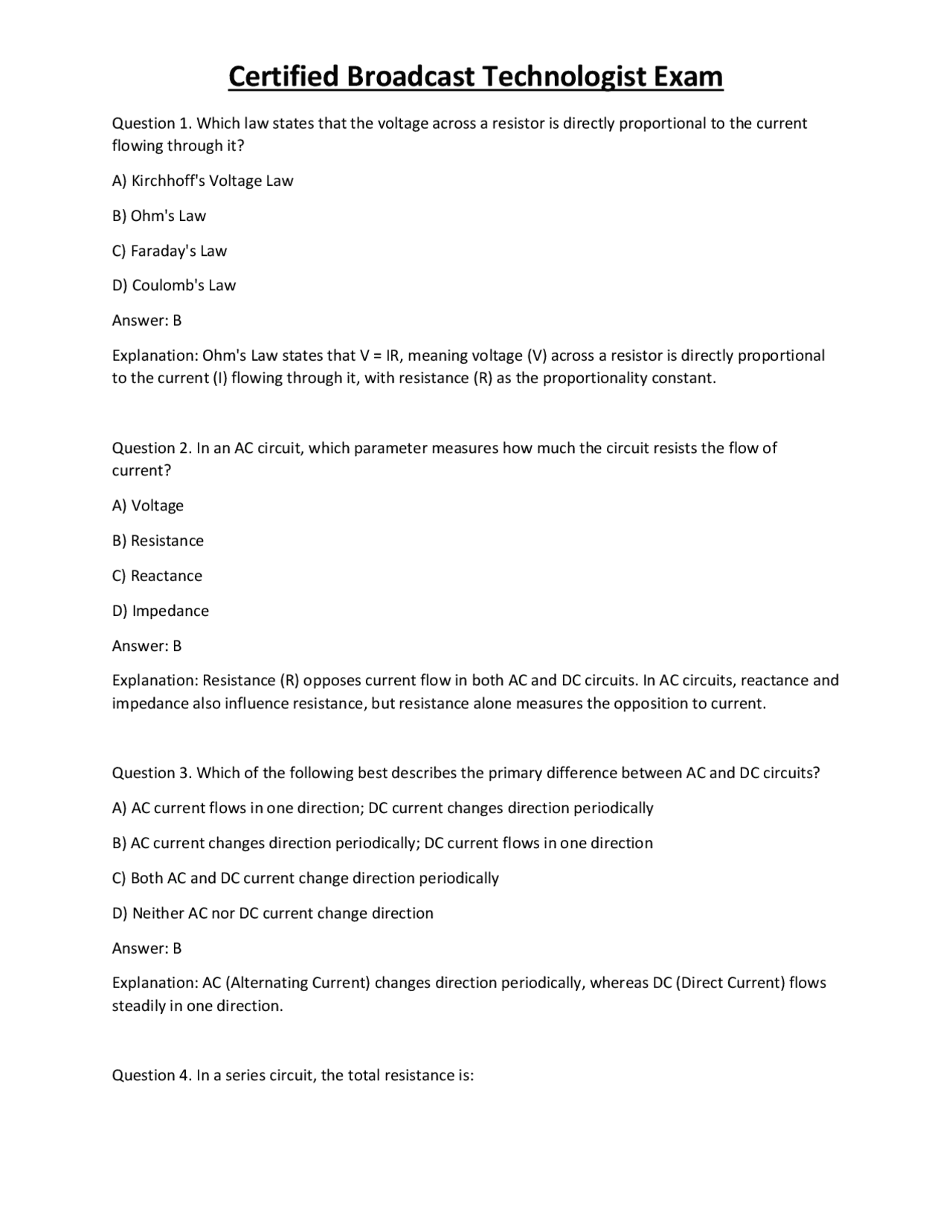

Question 1. Which law states that the voltage across a resistor is directly proportional to the current flowing through it? A) Kirchhoff's Voltage Law B) Ohm's Law C) Faraday's Law D) Coulomb's Law Answer: B Explanation: Ohm's Law states that V = IR, meaning voltage (V) across a resistor is directly proportional to the current (I) flowing through it, with resistance (R) as the proportionality constant. Question 2. In an AC circuit, which parameter measures how much the circuit resists the flow of current? A) Voltage B) Resistance C) Reactance D) Impedance Answer: B Explanation: Resistance (R) opposes current flow in both AC and DC circuits. In AC circuits, reactance and impedance also influence resistance, but resistance alone measures the opposition to current. Question 3. Which of the following best describes the primary difference between AC and DC circuits? A) AC current flows in one direction; DC current changes direction periodically B) AC current changes direction periodically; DC current flows in one direction C) Both AC and DC current change direction periodically D) Neither AC nor DC current change direction Answer: B Explanation: AC (Alternating Current) changes direction periodically, whereas DC (Direct Current) flows steadily in one direction. Question 4. In a series circuit, the total resistance is:
A) The sum of individual resistances B) The reciprocal of the sum of reciprocals of resistances C) Equal to the resistance of the largest resistor D) Equal to the average of individual resistances Answer: A Explanation: In a series circuit, total resistance is the sum of all individual resistances, R_total = R1 + R2 + R3 + ... Question 5. Which component stores energy in an electric field? A) Inductor B) Resistor C) Capacitor D) Transformer Answer: C Explanation: Capacitors store energy in an electric field between their plates when charged. Question 6. The impedance of a series RC circuit at resonance is primarily determined by: A) Resistance only B) Inductive reactance only C) Capacitive reactance only D) Resistance and capacitive reactance Answer: D Explanation: Impedance in a series RC circuit combines resistance and capacitive reactance, Z = √(R² + Xc²). Question 7. When a transformer has a turns ratio of 10:1, the output voltage relative to the input is: A) 1/10 of the input voltage B) Equal to the input voltage C) 10 times the input voltage
Explanation: Transistors, especially BJTs and FETs, are used for amplification of signals due to their ability to control large currents with small input signals. Question 11. An integrated circuit (IC) that contains multiple logic gates is classified as: A) Discrete component B) Analog device C) Digital logic device D) Passive component Answer: C Explanation: ICs that contain multiple logic gates are digital logic devices, used for processing digital signals. Question 12. Which number system is most naturally suited for digital electronics? A) Decimal B) Binary C) Hexadecimal D) Octal Answer: B Explanation: Binary (base-2) is the fundamental number system for digital electronics, representing data with two states (0 and 1). Question 13. The logic gate that outputs true only when all inputs are true is: A) OR B) AND C) NOT D) XOR Answer: B Explanation: The AND gate outputs true (1) only when all its inputs are true (1). Question 14. A flip-flop is an example of which type of digital circuit?
A) Combinational logic B) Sequential logic C) Analog circuit D) Power supply component Answer: B Explanation: Flip-flops are sequential logic devices that store binary data and are used in counters, registers, etc. Question 15. Which of the following is used to convert a digital signal back to an analog voltage? A) ADC B) DAC C) Logic gate D) Transistor Answer: B Explanation: Digital-to-Analog Converters (DACs) convert digital signals into corresponding analog voltages. Question 16. In acoustics, the term 'wavelength' refers to: A) The distance between successive crests of a sound wave B) The maximum amplitude of a sound wave C) The number of sound waves per second D) The phase difference between two sound waves Answer: A Explanation: Wavelength is the distance between successive crests or troughs of a wave, related to the wave's speed and frequency. Question 17. Decibels (dB) are a logarithmic measure of: A) Frequency B) Sound intensity or pressure level C) Wavelength
Explanation: Crossovers split the audio signal into different frequency ranges suitable for various drivers (woofers, tweeters). Question 21. An equalizer that allows independent adjustment of multiple frequency bands is called: A) Graphic equalizer B) Parametric equalizer C) Both A and B D) None of the above Answer: C Explanation: Both graphic and parametric equalizers allow for frequency-specific adjustments, with the parametric offering more control over bandwidth and gain. Question 22. Which audio effect creates a series of echoes, simulating space or environment? A) Reverb B) Delay C) Chorus D) Limiter Answer: B Explanation: Delay effects produce echoes by repeating the audio signal after a set time, creating a sense of space. Question 23. Which type of audio recording involves capturing sound directly onto magnetic tape? A) Digital recording B) Analog recording C) PCM recording D) WAV format recording Answer: B Explanation: Analog recording on tape involves magnetic storage of audio signals directly onto magnetic tape.
Question 24. What is the primary advantage of digital audio recording over analog? A) Higher noise levels B) Easier editing and copying without degradation C) Lower fidelity D) Less storage efficiency Answer: B Explanation: Digital audio can be copied and edited repeatedly without quality loss, unlike analog tapes which degrade over time. Question 25. Which digital audio file format is most suitable for high-fidelity lossless compression? A) MP B) AAC C) FLAC D) WAV Answer: C Explanation: FLAC is a lossless compression format, preserving original audio quality while reducing file size. Question 26. A common analog audio connection used in professional audio is: A) XLR B) HDMI C) S/PDIF D) MADI Answer: A Explanation: XLR connectors are standard for balanced analog audio, providing noise immunity. Question 27. Which digital audio interface is mainly used for high-bandwidth, multichannel audio over Ethernet? A) AES/EBU B) S/PDIF
Explanation: Progressive scanning draws all lines of a frame in a single pass, resulting in smoother images without interlacing artifacts. Question 31. Which camera sensor type is more sensitive to light and typically used in low-light conditions? A) CCD B) CMOS C) Both equally sensitive D) Neither Answer: A Explanation: CCD sensors generally offer higher sensitivity and lower noise in low-light conditions compared to CMOS, although CMOS has improved significantly. Question 32. The focal length of a camera lens affects: A) The depth of field and magnification B) The color accuracy C) The sensor size D) The camera's ISO setting Answer: A Explanation: Focal length determines the field of view and depth of field; longer focal lengths produce more magnification and shallower depth of field. Question 33. A key function of a video switcher is: A) Encoding video signals B) Selecting and routing multiple video sources during live production C) Recording video onto tape D) Synchronizing audio with video Answer: B Explanation: Video switchers select and switch between multiple video sources live, enabling dynamic productions.
Question 34. Which signal processing device adjusts the color balance and exposure of a video camera? A) Color corrector B) Frame synchronizer C) Chroma keyer D) Tally light Answer: A Explanation: Color correctors adjust color balance, exposure, and other image parameters to ensure consistent image quality. Question 35. An analog video connection that provides better quality than composite but less than component is: A) S-Video B) HDMI C) SDI D) VGA Answer: A Explanation: S-Video separates luminance and chrominance signals, offering better quality than composite but less than component video. Question 36. The digital video interface that supports uncompressed video over fiber optic cable is: A) HDMI B) SDI (Serial Digital Interface) C) DisplayPort D) VGA Answer: B Explanation: SDI (including variants like HD-SDI) supports uncompressed, high-bandwidth digital video over fiber or coaxial cables. Question 37. In broadcast transmission, the electromagnetic spectrum is divided into:
D) Hertz Answer: A Explanation: Power output of transmitters is typically expressed in Watts, indicating the amount of radiated power. Question 41. In RF systems, the Voltage Standing Wave Ratio (VSWR) is a measure of: A) Signal frequency B) Power efficiency of the antenna system C) Impedance matching between line and antenna D) Signal modulation depth Answer: C Explanation: VSWR indicates how well the impedance of the antenna matches the transmission line, with lower values indicating better matching. Question 42. Which type of modulation spreads the signal over a wide bandwidth to resist interference and allow multiple signals? A) AM B) FM C) OFDM D) QAM Answer: C Explanation: OFDM (Orthogonal Frequency Division Multiplexing) spreads data across multiple carriers, enhancing resistance to interference and multipath effects. Question 43. FCC regulations regarding RF exposure are designed primarily to: A) Maximize broadcast coverage B) Protect public and worker safety from excessive RF energy C) Enhance signal quality D) Prevent signal piracy Answer: B
Explanation: FCC rules set limits on RF exposure to ensure safety for the public and workers in broadcast environments. Question 44. The main function of a master control room (MCR) is: A) To encode video signals B) To oversee and coordinate the entire broadcast operation C) To store broadcast equipment D) To handle audience feedback Answer: B Explanation: The MCR manages transmission, switching, and overall coordination of broadcast content and operations. Question 45. The primary purpose of a media asset management (MAM) system is to: A) Stream live video B) Store, organize, and retrieve media files efficiently C) Encode video for broadcast D) Control audio levels Answer: B Explanation: MAM systems organize and manage media assets, facilitating efficient access and workflow. Question 46. In broadcast power systems, the function of an Uninterruptible Power Supply (UPS) is to: A) Provide backup power during outages B) Regulate voltage fluctuations C) Convert AC to DC power D) Reduce electromagnetic interference Answer: A Explanation: UPS systems supply backup power instantaneously during power failures, preventing broadcast interruption.
C) A type of video connector D) A power supply for cameras Answer: B Explanation: Codec (compressor-decompressor) encodes and decodes digital video data, enabling efficient storage and transmission. Question 51. Which video file format is known for being a widely used container that can hold different codecs? A) MOV B) MP C) AVI D) All of the above Answer: D Explanation: MOV, MP4, and AVI are container formats that can encapsulate various codecs, providing flexibility in video storage. Question 52. Which analog video connection is known for transmitting composite video signals? A) S-Video B) RCA C) HDMI D) SDI Answer: B Explanation: RCA connectors are used for composite video, transmitting combined luminance and chrominance signals. Question 53. The digital video interface that supports uncompressed, high-definition video over optical fiber is: A) HDMI B) SDI C) DisplayPort
D) SMPTE 2110
Answer: B Explanation: SDI (Serial Digital Interface) over fiber supports uncompressed HD/4K video transmission in professional settings. Question 54. Genlock in video systems is used to: A) Synchronize multiple cameras or video sources to a common timing signal B) Lock the focus of a camera lens C) Secure video files during transfer D) Encrypt video signals for security Answer: A Explanation: Genlock synchronizes video sources to a common timing reference, ensuring perfect alignment during live production. Question 55. Which of the following best describes the purpose of an RF amplifier in a broadcast transmitter chain? A) To convert digital signals to analog B) To increase the power level of RF signals for transmission C) To modulate audio signals onto RF carriers D) To demodulate received RF signals Answer: B Explanation: RF amplifiers boost the RF signal power to ensure sufficient coverage and signal strength at the receiver. Question 56. The primary reason for impedance matching in broadcast RF systems is: A) To maximize power transfer and minimize reflections B) To reduce signal frequency C) To increase antenna gain D) To prevent interference with other systems Answer: A
Question 60. A key benefit of fiber optic transmission in broadcast is: A) Resistance to electromagnetic interference B) Lower bandwidth capacity than coaxial C) Shorter transmission distances D) Compatibility only with analog signals Answer: A Explanation: Fiber optics are immune to electromagnetic interference, providing clean, high-bandwidth transmission over long distances. Question 61. The core function of a switch in a broadcast IT network is to: A) Connect multiple devices and direct data packets between them B) Convert digital signals to analog C) Amplify network signals D) Provide power to devices Answer: A Explanation: Switches connect multiple network devices and manage data traffic within a local area network efficiently. Question 62. An IPv4 address consists of: A) 32 bits B) 128 bits C) 64 bits D) 256 bits Answer: A Explanation: IPv4 addresses are 32-bit numerical labels expressed as four decimal numbers separated by dots. Question 63. Which network topology connects all devices to a central hub or switch? A) Bus topology B) Star topology
C) Ring topology D) Mesh topology Answer: B Explanation: Star topology has all devices connected to a central hub or switch, facilitating centralized management. Question 64. Virtualization in broadcast IT systems allows: A) Running multiple operating systems on a single hardware platform B) Physical separation of servers C) Eliminating the need for networking D) Directly broadcasting video signals over IP Answer: A Explanation: Virtualization enables multiple virtual machines to operate independently on a single physical server, optimizing resource use. Question 65. Media Asset Management (MAM) systems are primarily used to: A) Automate live production switches B) Organize, archive, and retrieve media files efficiently C) Encode video streams in real-time D) Provide real-time audio mixing Answer: B Explanation: MAM systems organize media assets, making storage, retrieval, and management more efficient. Question 66. A typical function of a playout automation system is: A) To encode video signals B) To automatically schedule and broadcast media content at specified times C) To monitor RF signal strength D) To provide emergency alerts Answer: B
