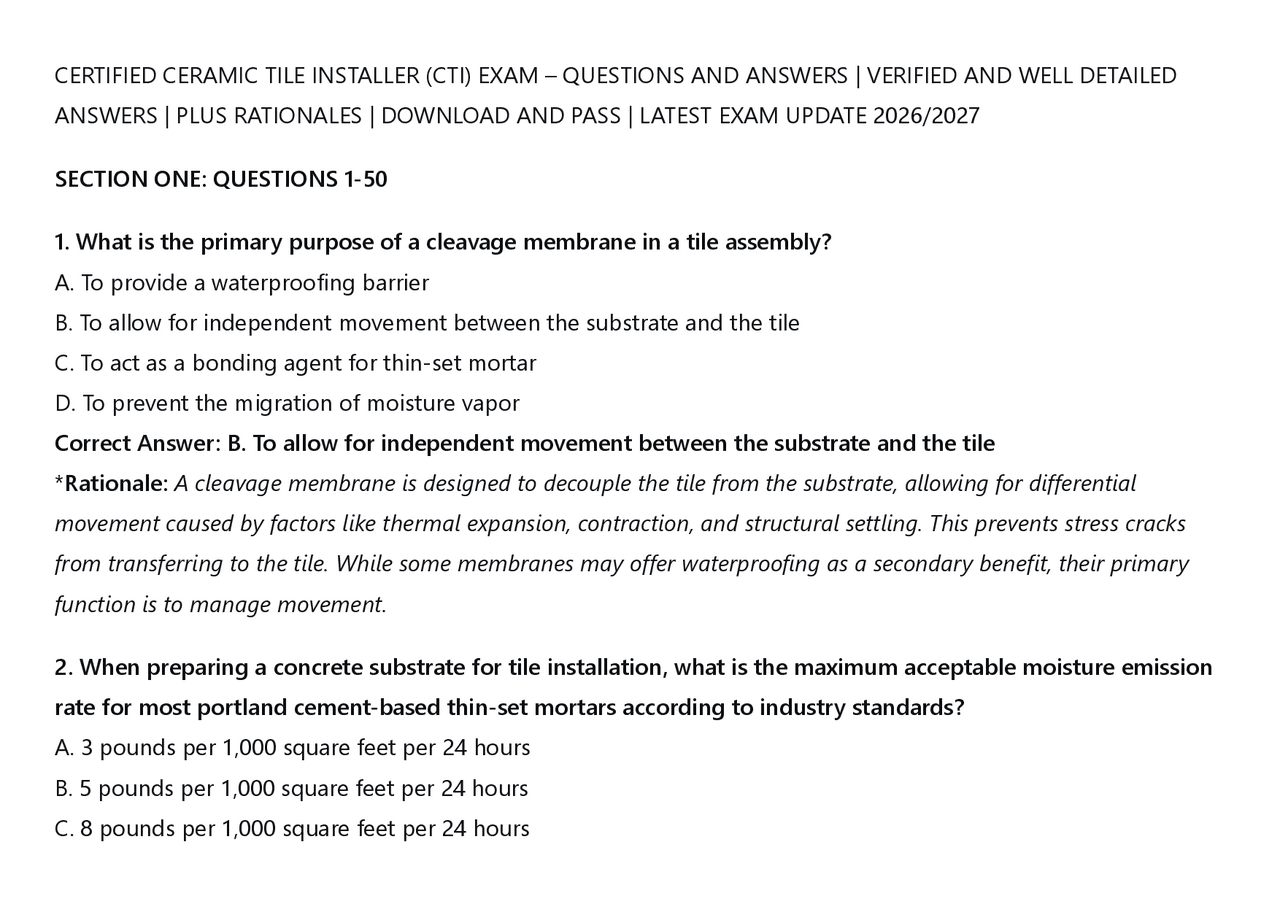

CERTIFIED CERAMIC TILE INSTALLER (CTI) EXAM – QUESTIONS AND ANSWERS | VERIFIED AND WELL DETAILED
ANSWERS | PLUS RATIONALES | DOWNLOAD AND PASS | LATEST EXAM UPDATE 2026/
SECTION ONE: QUESTIONS 1-
1. What is the primary purpose of a cleavage membrane in a tile assembly? A. To provide a waterproofing barrier B. To allow for independent movement between the substrate and the tile C. To act as a bonding agent for thin-set mortar D. To prevent the migration of moisture vapor Correct Answer: B. To allow for independent movement between the substrate and the tile
- Rationale: A cleavage membrane is designed to decouple the tile from the substrate, allowing for differential movement caused by factors like thermal expansion, contraction, and structural settling. This prevents stress cracks from transferring to the tile. While some membranes may offer waterproofing as a secondary benefit, their primary function is to manage movement. 2. When preparing a concrete substrate for tile installation, what is the maximum acceptable moisture emission rate for most portland cement-based thin-set mortars according to industry standards? A. 3 pounds per 1,000 square feet per 24 hours B. 5 pounds per 1,000 square feet per 24 hours C. 8 pounds per 1,000 square feet per 24 hours
D. 10 pounds per 1,000 square feet per 24 hours Correct Answer: B. 5 pounds per 1,000 square feet per 24 hours
- Rationale: Industry standards, such as those from the TCNA, generally recommend a maximum moisture emission rate of 5 lbs/1000 sq ft/24 hrs for the installation of impervious coverings like ceramic tile when using standard thin- set mortars. Exceeding this rate can lead to bond failure or the appearance of efflorescence. Specialized mortars or vapor-retarder systems are required for higher emission levels.
3. A tile setter is installing large-format porcelain tiles (24x24 inches). Which trowel notch size is most appropriate for achieving full coverage using the back-buttering method? A. 1/4 inch x 1/4 inch square B. 1/4 inch x 3/8 inch square C. 1/2 inch x 1/2 inch square D. 3/8 inch x 3/8 inch square Correct Answer: C. 1/2 inch x 1/2 inch square
- Rationale: Larger tiles require a larger trowel notch to accommodate the mortar needed to achieve full contact and compensate for minor substrate irregularities. A 1/2 x 1/2-inch notch is a common recommendation for large-format tiles to achieve the necessary 95% or greater coverage rate on the interior of the tile. Smaller notches may not provide sufficient mortar depth. 4. Which of the following is the most critical factor in determining the proper spacing for tile expansion joints? A. The color of the tile
B. A crack in the tile caused by impact C. The discoloration of grout due to mold D. The expansion of tile due to moisture absorption Correct Answer: A. A white, powdery deposit on the grout or tile surface
- Rationale: Efflorescence is caused by water-soluble salts migrating to the surface of the grout or tile as water evaporates. The salts leave behind a white, crystalline deposit. It is a common aesthetic issue, especially in exterior or damp environments.
7. A client wants to install a heated tile floor. Which component is most critical to ensure the longevity and performance of the system? A. The type of tile chosen B. The thermal rating of the thin-set mortar C. The use of a flexible grout D. The thickness of the heating mat Correct Answer: B. The thermal rating of the thin-set mortar
- Rationale: The thin-set mortar must be specifically rated for use with radiant heating systems to withstand the thermal cycles without breaking down. Standard thin-set mortars are not designed for the repeated expansion and contraction, which can lead to a loss of bond. The chosen tile, grout, and mat all matter, but the mortar's thermal stability is the most critical for system durability.
8. What is the maximum allowable variation in a substrate's flatness when installing tile over a concrete slab? A. 1/8 inch in 10 feet B. 1/4 inch in 10 feet C. 1/2 inch in 10 feet D. 3/4 inch in 10 feet Correct Answer: B. 1/4 inch in 10 feet
- Rationale: Industry standards generally specify a flatness tolerance of 1/4 inch in 10 feet for the substrate before the tile is installed. This ensures that the tile can be laid evenly without excessive lippage. A substrate with more variation requires leveling compounds to bring it into specification. 9. When mixing Portland cement-based thin-set mortar, what is the primary purpose of allowing the mixture to "slake" for 10-15 minutes before final mixing? A. To allow the chemical reaction to begin B. To make the mortar easier to spread C. To ensure the hydration process is complete D. To allow the liquid to fully absorb into the dry components Correct Answer: D. To allow the liquid to fully absorb into the dry components
- Rationale: Slaking allows the polymers and other additives in the mortar to completely hydrate and the mix to become fully blended. This prevents 'pinholes' in the mortar that can occur if the dry components aren't fully saturated. It leads to a more consistent, workable product and stronger bond.
12. A tile setter is installing tile over a radiant heated floor. They must ensure the substrate temperature does not exceed what threshold during installation? A. 60°F B. 70°F C. 80°F D. 90°F Correct Answer: C. 80°F
- Rationale: Industry guidelines advise that the maximum substrate temperature during the installation of tile over radiant heat should not exceed 80°F. Higher temperatures can cause the thin-set mortar to flash-set, significantly reducing working time and potentially compromising the bond. The system should be turned off for a period before and during installation. 13. What is the primary purpose of a "waterproofing membrane" in a wet area? A. To provide a thermal break B. To act as a crack isolation membrane C. To prevent water from penetrating into the substrate D. To promote faster drying of the thin-set mortar Correct Answer: C. To prevent water from penetrating into the substrate
- Rationale: A waterproofing membrane's primary function is to create an impervious barrier that stops liquid water from reaching and potentially damaging the structural substrate, such as wood framing or drywall. While some
membranes may also offer crack isolation, their core purpose in wet areas is to prevent water intrusion and the potential for mold or rot.
14. Which tool is most effective for cutting ceramic tile around curved objects like plumbing pipes? A. Manual snap cutter B. Wet saw C. Angle grinder with a diamond blade D. Nibbler Correct Answer: C. Angle grinder with a diamond blade
- Rationale: An angle grinder fitted with a diamond blade is the most versatile and effective tool for making intricate cuts, such as circles around pipes, or notches in the tile. While a wet saw can make straight or slightly angled cuts, it is not designed for the precise, curved cuts required around circular obstructions. 15. You are about to install tile over a wood subfloor. What is the first and most crucial step to ensure the installation's success? A. Apply a primer to the subfloor B. Install a cement backer board or a suitable underlayment C. Check the moisture content of the wood D. Choose a highly flexible grout Correct Answer: B. Install a cement backer board or a suitable underlayment
- Rationale: Wood subfloors are dimensionally unstable and prone to movement. Installing a cementitious backer
particles in sanded grout are too large to be forced into the narrow joints, leading to poor packing, inconsistent color, and potential cracking. Unsanded grout provides a smooth, dense fill for these thin joints.
18. A common cause of grout discoloration is adding too much water to the mix. What is the primary negative effect of this practice? A. The grout will be too stiff to work with. B. The grout will shrink and crack upon drying. C. The grout will dry with a lighter or inconsistent color. D. The grout will not bond properly to the tile edges. Correct Answer: C. The grout will dry with a lighter or inconsistent color.
- Rationale: Adding excessive water to grout dilutes the pigments and cement content. As the grout dries, the excess water evaporates, causing a lightening of the color and making the final shade unpredictable. This is a primary cause of "grout mottling" or color inconsistency. 19. What is the most effective method for cleaning cement-based grout haze off a tile surface? A. Acid-based cleaner B. Water and a sponge C. Grout haze remover or a mild acid solution D. Abrasive cleaning powder Correct Answer: C. Grout haze remover or a mild acid solution
- Rationale: Grout haze is a thin film of cement residue left on the tile after grouting. While water and a sponge can
remove some, a grout haze remover or a mild acid solution (like a 10% solution of water and sulfamic acid) is specifically formulated to dissolve and remove the alkaline cement residue without damaging the tile or grout. Abrasive cleaners can scratch the tile.
20. When installing tile over a concrete slab with active cracks, what is the most appropriate solution? A. Filling the cracks with thin-set mortar B. Grinding the cracks flush with the surface C. Applying a crack isolation membrane over the entire area D. Ignoring the cracks if they are less than 1/8 inch wide Correct Answer: C. Applying a crack isolation membrane over the entire area
- Rationale: Active cracks will continue to move. A crack isolation membrane is a flexible material that bridges the crack, allowing for movement without transferring the stress to the tile. Applying it over the entire area provides protection where future cracks might appear. Filling or grinding the crack does not address the underlying movement. 21. A tile setter is installing a mosaic tile sheet. They notice the sheets are slightly bowed. What is the best approach to ensure a flat finish? A. Press down hard with a grout float to flatten them. B. Use a heavier layer of thin-set mortar. C. Pre-flatten the sheets by applying weight and letting them sit. D. Install the sheets as they are, the grout will fill the low spots. Correct Answer: C. Pre-flatten the sheets by applying weight and letting them sit.
- Rationale: A square-notched trowel is used to apply the "key-in" coat to the substrate. The square notches create uniform furrows in the mortar that help "key" the subsequent scratch coat or setting bed into the substrate, providing a mechanical bond. The flat edge of the trowel is then used to flatten and scrape the surface.
24. In a commercial installation, what is the most common reason for requiring a specific anti-fracture membrane? A. To reduce noise transmission B. To provide a thermal barrier C. To isolate the tile from structural movement D. To improve the substrate's flatness Correct Answer: C. To isolate the tile from structural movement
- Rationale: Commercial buildings are subject to a variety of structural movements, including those from the building's frame, expansion, and contraction, and deflection. An anti-fracture membrane is specifically designed to isolate the tile installation from these movements, preventing cracks. While some offer other benefits, their primary function is crack isolation. 25. A tile setter has completed the tile installation and the grout is fully cured. They now need to seal the grout. What is the most important step immediately before applying the sealer? A. Ensure the grout is thoroughly dry. B. Clean the grout with an acid-based cleaner. C. Buff the grout with a clean, dry cloth.
D. Apply a second coat of grout release. Correct Answer: A. Ensure the grout is thoroughly dry.
- Rationale: Grout sealers work by penetrating the grout's pores. If the grout is damp or wet, the sealer will not be able to penetrate properly, and it may form a film on the surface rather than sealing from within. This leads to a poor seal and a cloudy or white residue.
26. What is the most accurate method for determining the appropriate amount of thin-set mortar needed for a specific project? A. Calculate the square footage and use a standard coverage chart. B. Estimate based on the trowel size and tile thickness. C. Use a formula that factors in waste and substrate porosity. D. There is no universally accurate formula; it must be calculated from the manufacturer's coverage data. Correct Answer: D. There is no universally accurate formula; it must be calculated from the manufacturer's coverage data.
- Rationale: The most accurate way to determine thin-set coverage is to consult the specific product's data sheet. Coverage depends on the trowel notch size, the tile's back profile, and the substrate's evenness, which can vary significantly. Standard formulas are only rough estimates and can lead to material shortages or excessive waste. 27. A tile setter is preparing to install a marble tile floor. Which of the following is the most critical consideration for this specific material? A. It is highly resistant to staining.
B. The mortar was too dry during installation. C. The tile was set with a solid thin-set bed. D. The mortar lost its bond to the tile or substrate. Correct Answer: D. The mortar lost its bond to the tile or substrate.
- Rationale: A hollow sound when tapping a tile indicates a loss of bond, meaning the tile is not fully adhered to the substrate. This is often caused by an improper mortar mix, trowel technique (not achieving full coverage), or allowing the mortar to skin over before setting the tile.
30. A tile setter is installing a mosaic tile floor that will be exposed to constant heavy foot traffic. Which grout type offers the highest durability and resistance to staining? A. Cement-based sanded grout B. Cement-based unsanded grout C. Epoxy grout D. Polymer-modified grout Correct Answer: C. Epoxy grout
- Rationale: Epoxy grout is a two-part resin system that is highly resistant to chemicals, stains, and abrasion. It is exceptionally durable and impervious to water, making it the premier choice for commercial and high-traffic areas where sanitation and longevity are critical. It is also more difficult to install than cement-based grouts. 31. What is the primary reason for maintaining a consistent grout joint width throughout an installation? A. To meet ASTM standards
B. To ensure aesthetic consistency and proper load distribution C. To make cleaning easier D. To allow for the use of smaller tiles Correct Answer: B. To ensure aesthetic consistency and proper load distribution
- Rationale: Consistent grout joints are fundamental to a professional-looking tile installation. They also play a role in the structural integrity by helping to distribute loads more evenly across the tile field. Variable joint widths can lead to stress concentrations and potentially cause cracking or lippage.
32. A tile setter is working with an epoxy mortar. What is the most significant difference they will encounter compared to a cementitious mortar? A. It has a much longer working time. B. It requires less mixing. C. It must be used with a clean substrate free of dust. D. It is highly resistant to acids and chemicals. Correct Answer: D. It is highly resistant to acids and chemicals.
- Rationale: Epoxy mortars are polymer-based and are highly resistant to acids, chemicals, and moisture. They are often used in demanding environments like commercial kitchens, laboratories, and food processing plants where chemical resistance is paramount. Their working time is typically shorter, and they require meticulous preparation. 33. What is the most common cause of tenting or buckling in a large-format tile installation? A. Using too much thin-set mortar
B. Porcelain tile with a recycled content C. Ceramic tile produced in a high-energy kiln D. Glass tile Correct Answer: B. Porcelain tile with a recycled content
- Rationale: Porcelain tiles can be manufactured with a significant percentage of recycled materials (like post- consumer and post-industrial waste), reducing the environmental impact. Additionally, their durability and long lifespan make them a sustainable choice. Importing materials dramatically increases their carbon footprint.
36. What is the recommended surface preparation for installing tile over a painted wall? A. No preparation is needed as the paint acts as a good bond breaker. B. Rough up the paint with a grinder or sandpaper. C. Completely remove the paint down to the substrate. D. Apply a bonding agent directly over the paint. Correct Answer: C. Completely remove the paint down to the substrate.
- Rationale: Tile cannot be reliably installed over painted surfaces because the paint acts as a weak layer that can separate from the substrate, causing the tile to debond. The paint must be completely removed by sanding, scraping, or chemical stripping to expose a clean, porous surface for the thin-set to properly adhere. 37. During a tile installation on a concrete slab, the setter observes hairline cracks in the slab. What is the best course of action? A. Install the tile directly over the cracks; they are not a concern.
B. Fill the cracks with a liquid epoxy and proceed. C. Apply a crack isolation membrane over the entire area. D. Cancel the project and recommend replacing the slab. Correct Answer: C. Apply a crack isolation membrane over the entire area.
- Rationale: A crack isolation membrane is designed to bridge non-structural movement in the substrate. Applying it over the entire slab is the safest and most effective method to prevent these hairline cracks from telegraphing through to the tile. It is not necessary to fill the cracks before applying the membrane.
38. The term "porcelain" refers to a tile that is: A. Made from a specific type of clay B. Made from a mixture of clays and fired at very high temperatures C. Always glazed for protection D. A subcategory of ceramic tile with a water absorption rate of 0.5% or less Correct Answer: D. A subcategory of ceramic tile with a water absorption rate of 0.5% or less
- Rationale: Porcelain tile is a type of ceramic tile that is characterized by its extremely low water absorption rate, often below 0.5%. This is achieved through the use of refined clays and high-temperature firing, resulting in a very dense, hard, and durable product. It may be glazed or unglazed. 39. What is the primary reason for using an expansion joint at the perimeter of a tile installation? A. To allow for the building to settle B. To accommodate the thermal expansion of the tiles
