Practice Exam

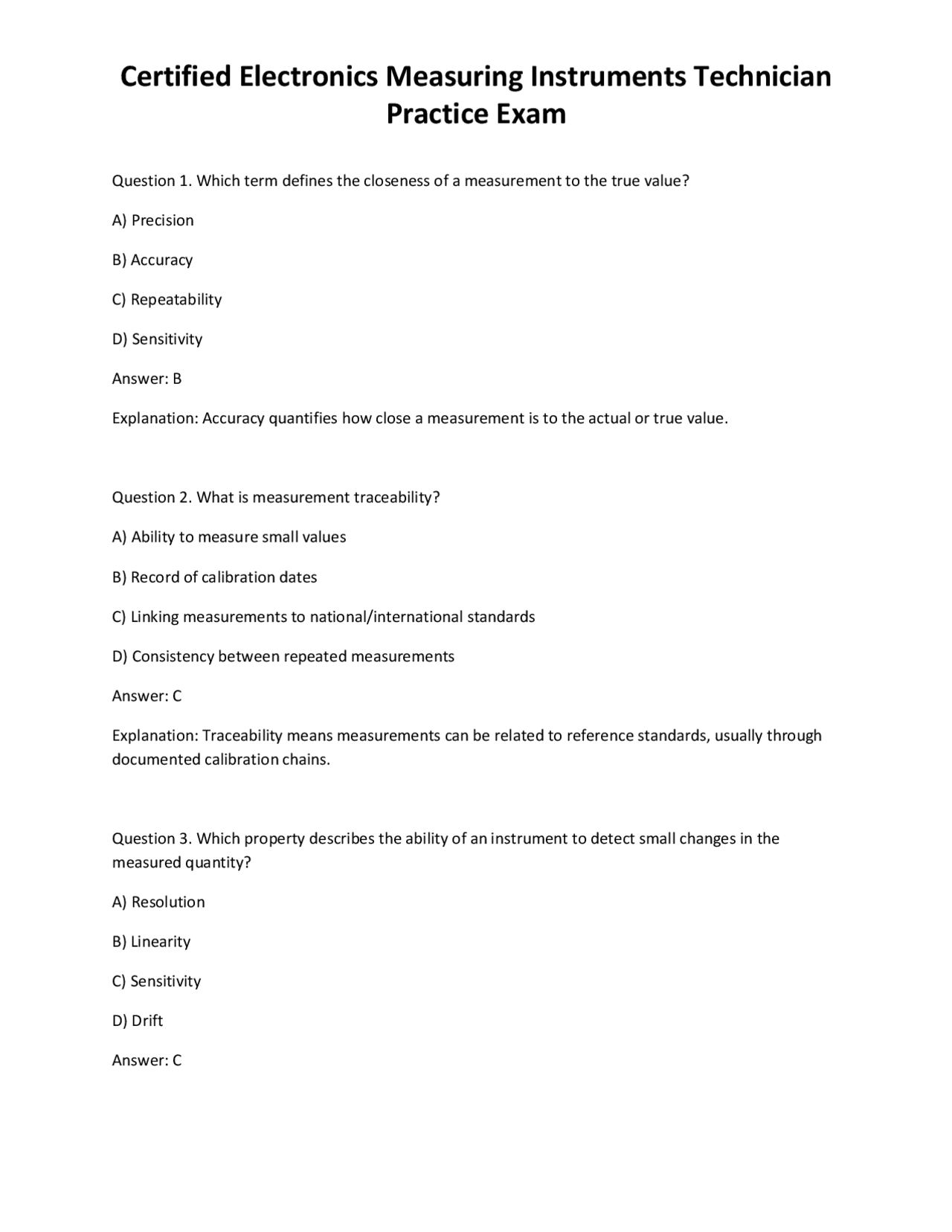

Question 1. Which term defines the closeness of a measurement to the true value? A) Precision B) Accuracy C) Repeatability D) Sensitivity Answer: B Explanation: Accuracy quantifies how close a measurement is to the actual or true value. Question 2. What is measurement traceability? A) Ability to measure small values B) Record of calibration dates C) Linking measurements to national/international standards D) Consistency between repeated measurements Answer: C Explanation: Traceability means measurements can be related to reference standards, usually through documented calibration chains. Question 3. Which property describes the ability of an instrument to detect small changes in the measured quantity? A) Resolution B) Linearity C) Sensitivity D) Drift Answer: C
Practice Exam
Explanation: Sensitivity is the ratio of output change to input change and defines how responsive the instrument is. Question 4. What does ISO/IEC 17025 primarily apply to? A) Manufacturing procedures B) Calibration and testing laboratories C) Sales documentation D) Equipment design Answer: B Explanation: ISO/IEC 17025 sets requirements for the competence of testing and calibration laboratories. Question 5. Which document records instrument status before and after calibration? A) Service history log B) As-found/as-left report C) Non-conformance report D) Quality manual Answer: B Explanation: As-found/as-left reports document instrument performance before and after calibration or adjustment. Question 6. What is the main difference between accuracy and precision? A) Precision is about closeness to true value, accuracy is repeatability B) Accuracy is about closeness to true value, precision is repeatability C) Both mean the same
Practice Exam
C) Sensitivity D) Hysteresis Answer: B Explanation: Precision refers to the ability to produce the same measurement under identical conditions. Question 10. What is 'drift' in measurement systems? A) Sudden change in output B) Slow change in output over time without change in input C) Noise in the signal D) High sensitivity Answer: B Explanation: Drift is the gradual deviation of instrument readings over time with constant input. Question 11. What does 'hysteresis' mean in instrument performance? A) Output lags input change B) Output depends on direction of input change C) Output is always stable D) Input is variable Answer: B Explanation: Hysteresis describes the difference in output when the input increases versus when it decreases. Question 12. What defines a 'quality management system' (QMS)? A) A system for measuring electrical signals
Practice Exam
B) A framework for controlling processes to meet quality objectives C) A manual for soldering components D) A method for recording instrument faults Answer: B Explanation: QMS is a coordinated system of policies, processes, and procedures to ensure quality standards. Question 13. According to GUM, what is a measurement uncertainty budget? A) Total cost of calibration B) List of sources and contributions to overall uncertainty C) Number of measurements taken D) List of instruments used Answer: B Explanation: An uncertainty budget identifies and quantifies all sources of measurement uncertainty. Question 14. What is the purpose of internal audits in calibration laboratories? A) To increase instrument speed B) To verify compliance with procedures and standards C) To calibrate instruments D) To design new equipment Answer: B Explanation: Internal audits check that lab processes and documentation meet relevant standards and requirements. Question 15. What does 'repeatability' measure?
Practice Exam
Question 18. What is the role of 'tolerance' in measurement systems? A) Defines acceptable deviation from nominal value B) Sets calibration interval C) Identifies faulty components D) Determines measurement speed Answer: A Explanation: Tolerance specifies the allowable limits within which a measurement is considered acceptable. Question 19. In metrology, what is the highest level of reference standard? A) Working standard B) International standard C) Primary standard D) Secondary standard Answer: C Explanation: Primary standards are the highest level, maintained by national or international bodies. Question 20. What does 'linearity' indicate in an instrument? A) How straight the instrument looks B) Proportional change in output relative to input throughout the range C) Ability to measure DC signals D) Amount of drift over time Answer: B Explanation: Linearity means output changes in direct proportion to input across the measurement range.
Practice Exam
Question 21. Which document provides evidence of traceability in calibration? A) User manual B) Calibration certificate C) Purchase order D) Quality audit report Answer: B Explanation: Calibration certificates document traceability to national/international standards. Question 22. What is the function of a non-conformance report? A) Records only calibration results B) Identifies deviations from procedures or standards C) Lists all instruments in use D) Outlines calibration intervals Answer: B Explanation: Non-conformance reports document any deviation from expected standards or procedures. Question 23. What is the advantage of maintaining a comprehensive service history? A) Reduces instrument cost B) Tracks calibration, repairs, and performance over time C) Increases measurement uncertainty D) Improves measurement speed Answer: B Explanation: Service history helps monitor instrument reliability and schedule maintenance.
Practice Exam
Question 27. What is the main function of a capacitor in a circuit? A) Store electrical charge B) Convert AC to DC C) Measure resistance D) Amplify signals Answer: A Explanation: Capacitors store and release electrical charge. Question 28. What is the unit of inductance? A) Ohm B) Henry C) Farad D) Volt Answer: B Explanation: Inductance is measured in henries (H). Question 29. What does impedance represent in an AC circuit? A) Only resistance B) Opposition to AC including resistance and reactance C) Amount of current flow D) Voltage drop Answer: B Explanation: Impedance is the total opposition to AC, combining resistance and reactance.
Practice Exam
Question 30. What effect does resonance have in an LCR circuit? A) Maximizes impedance B) Minimizes impedance C) Halts current flow D) Damages the circuit Answer: B Explanation: At resonance, impedance is minimized and current flow is maximized at the resonant frequency. Question 31. Which device converts electrical energy into mechanical motion? A) Transformer B) Inductor C) Motor D) Capacitor Answer: C Explanation: Motors convert electrical energy into mechanical motion. Question 32. What is the behavior of a diode in a circuit? A) Conducts current in both directions B) Blocks all current C) Allows current in one direction D) Amplifies voltage Answer: C
Practice Exam
Explanation: Op-amps amplify voltage and can compare signals in analog circuits. Question 36. What is ripple in a power supply? A) Steady DC output B) Variations in DC output due to AC components C) Noise in the input signal D) High frequency oscillations Answer: B Explanation: Ripple is the residual AC component in the DC output of a power supply. Question 37. What is the main feature of a MOSFET compared to a BJT? A) Lower input impedance B) Controlled by voltage at gate C) Controlled by current at base D) Used only in AC circuits Answer: B Explanation: MOSFETs are voltage-controlled devices with high input impedance. Question 38. What is the purpose of a voltage regulator in a circuit? A) To amplify signals B) To convert AC to DC C) To maintain constant voltage output D) To switch current Answer: C
Practice Exam
Explanation: Voltage regulators keep the output voltage steady despite variations in input or load. Question 39. What does the Nyquist criterion specify? A) Minimum sampling rate for accurate analog-to-digital conversion B) Maximum allowable voltage in a circuit C) Required impedance for digital circuits D) Number of bits in a digital signal Answer: A Explanation: The Nyquist criterion states that the sampling rate must be at least twice the highest frequency in the signal. Question 40. What is aliasing in ADC systems? A) Accurate conversion of analog to digital B) Distortion caused by undersampling C) Increased resolution D) Improved signal-to-noise ratio Answer: B Explanation: Aliasing occurs when sampling frequency is too low, causing high-frequency signals to appear as lower frequencies. Question 41. What is the main advantage of a successive approximation ADC? A) High speed and resolution B) Low speed and accuracy C) Only for DC signals D) Limited to 8 bits
Practice Exam
D) Converts AC to DC Answer: B Explanation: Microcontrollers are programmable devices managing instrument operation and communication. Question 45. What does a Digital Multi-Meter (DMM) measure? A) Only voltage B) Voltage, current, and resistance C) Only current D) Only frequency Answer: B Explanation: DMMs measure voltage, current, and resistance in AC and DC circuits. Question 46. What is the typical mode for measuring AC voltage with a DMM? A) DC mode B) AC mode C) Resistance mode D) Continuity mode Answer: B Explanation: AC voltage measurement requires the DMM to be in AC mode. Question 47. What is the internal reference used for in a DMM? A) To store data B) To calibrate voltage measurements
Practice Exam
C) To measure current D) To switch ranges Answer: B Explanation: Internal reference voltages are used to calibrate and standardize DMM readings. Question 48. What is a common cause of DMM failure? A) Overheating B) Input overvoltage damaging protection circuitry C) Lack of calibration D) Low humidity Answer: B Explanation: Overvoltage at the input can damage the DMM’s protection circuits. Question 49. What does range switching in a DMM do? A) Changes measurement mode B) Selects appropriate scale for measurement C) Turns off the instrument D) Records measurements Answer: B Explanation: Range switching selects the best scale for measurement accuracy and resolution. Question 50. What does an oscilloscope primarily display? A) Resistance values B) Time-varying electrical signals
Practice Exam
B) Horizontal sweep rate C) Probe compensation D) Trigger level Answer: B Explanation: Time base control sets the speed at which the horizontal axis displays time. Question 54. What limits the frequency response of an oscilloscope? A) Display size B) Bandwidth specification C) Input voltage rating D) Probe length Answer: B Explanation: The oscilloscope’s bandwidth determines the maximum frequency it can accurately display. Question 55. What is the function of a signal generator? A) Measure electrical signals B) Produce electrical signals of specific waveforms and frequencies C) Amplify input signals D) Test resistance Answer: B Explanation: Signal generators create signals for testing and calibrating instruments. Question 56. What is an arbitrary waveform generator (AWG)? A) Generates only sine waves
Practice Exam
B) Can create custom, user-defined waveforms C) Only measures signals D) Only works with DC signals Answer: B Explanation: AWGs allow users to produce custom waveforms for advanced testing. Question 57. What is the role of a frequency counter? A) Measures amplitude B) Measures signal frequency C) Measures resistance D) Generates signals Answer: B Explanation: Frequency counters provide accurate frequency measurements for electronic signals. Question 58. What does the IF stage in a spectrum analyzer do? A) Increases input voltage B) Converts signal to intermediate frequency for analysis C) Amplifies the output signal D) Displays signal amplitude Answer: B Explanation: The IF stage enables effective filtering and analysis in spectrum analyzers. Question 59. What does RBW stand for in spectrum analyzers? A) Real Bandwidth
