Ultimate Exam

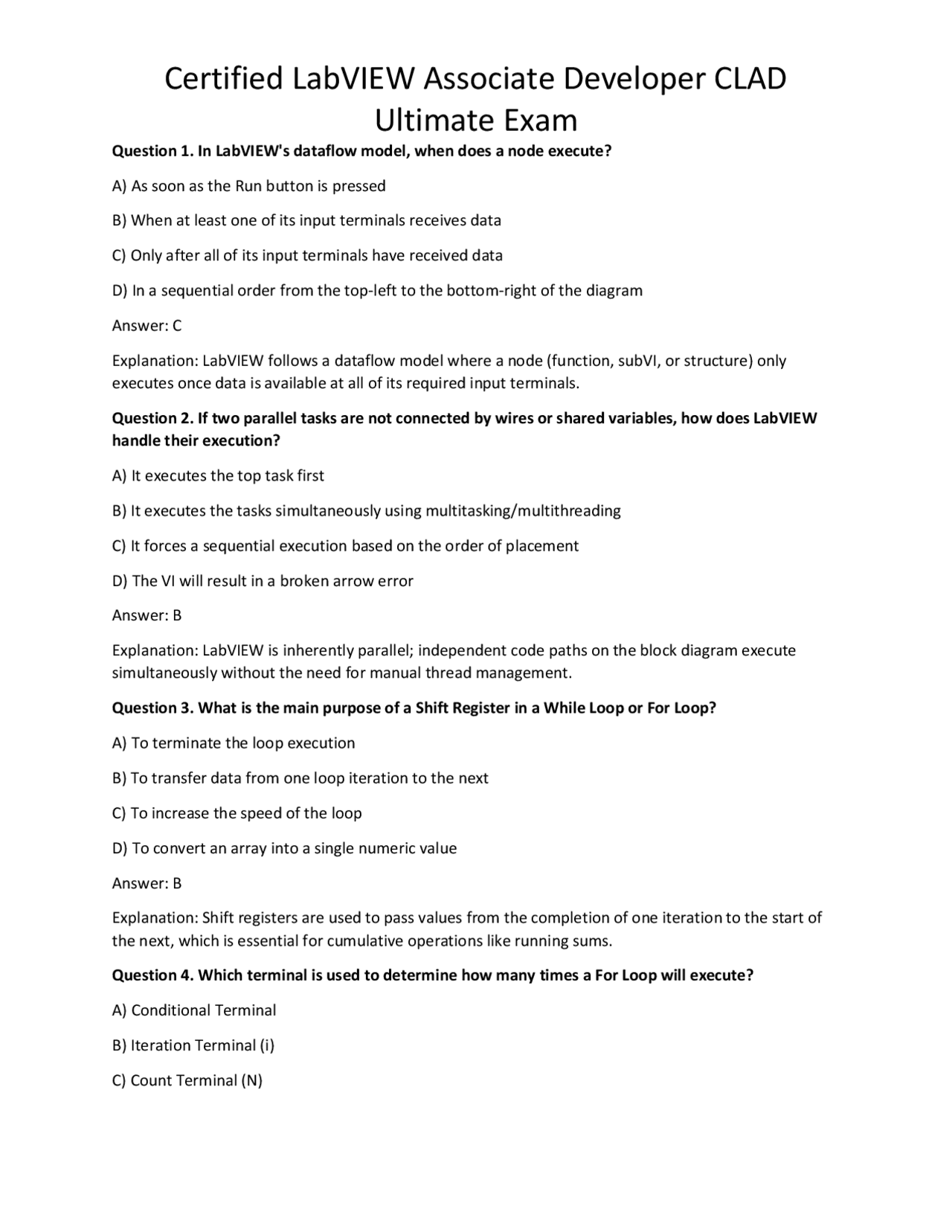

Question 1. In LabVIEW's dataflow model, when does a node execute? A) As soon as the Run button is pressed B) When at least one of its input terminals receives data C) Only after all of its input terminals have received data D) In a sequential order from the top-left to the bottom-right of the diagram Answer: C Explanation: LabVIEW follows a dataflow model where a node (function, subVI, or structure) only executes once data is available at all of its required input terminals. Question 2. If two parallel tasks are not connected by wires or shared variables, how does LabVIEW handle their execution? A) It executes the top task first B) It executes the tasks simultaneously using multitasking/multithreading C) It forces a sequential execution based on the order of placement D) The VI will result in a broken arrow error Answer: B Explanation: LabVIEW is inherently parallel; independent code paths on the block diagram execute simultaneously without the need for manual thread management. Question 3. What is the main purpose of a Shift Register in a While Loop or For Loop? A) To terminate the loop execution B) To transfer data from one loop iteration to the next C) To increase the speed of the loop D) To convert an array into a single numeric value Answer: B Explanation: Shift registers are used to pass values from the completion of one iteration to the start of the next, which is essential for cumulative operations like running sums. Question 4. Which terminal is used to determine how many times a For Loop will execute? A) Conditional Terminal B) Iteration Terminal (i) C) Count Terminal (N)
Ultimate Exam
D) Shift Register Answer: C Explanation: The Count Terminal (N) specifies the total number of iterations the For Loop will perform, provided auto-indexing is not overriding it. Question 5. What happens if a While Loop's conditional terminal is set to "Stop if True" and a False Boolean constant is wired to it? A) The loop executes once and stops B) The loop executes infinitely C) The loop does not execute at all D) The VI will produce an error and stop immediately Answer: B Explanation: If the condition is "Stop if True" and the input is False, the loop will never receive a stop signal, resulting in an infinite loop. Question 6. How do you initialize a Shift Register? A) By wiring a value to the left terminal outside the loop B) By wiring a value to the right terminal inside the loop C) By right-clicking the loop and selecting "Clear Data" D) Shift registers are automatically initialized to zero Answer: A Explanation: Wiring a value to the left shift register terminal from outside the loop sets the initial value for the first iteration; otherwise, it is "uninitialized" and retains data from the last run. Question 7. What is a Feedback Node used for? A) To display data on the Front Panel B) To store and retrieve data from the previous iteration, similar to a shift register C) To stop a loop if an error occurs D) To slow down the execution of the Block Diagram Answer: B Explanation: A Feedback Node functions similarly to a shift register but is represented as a single node on the wire to simplify the block diagram layout.
Ultimate Exam
B) Latch When Released C) Latch When Pressed D) Switch Until Released Answer: C Explanation: "Latch When Pressed" changes the value when the user clicks and returns to the default state as soon as the terminal is read by the software, making it ideal for UI buttons. Question 12. How do you group different data types (e.g., a String, a Numeric, and a Boolean) into a single wire? A) Array B) Cluster C) Matrix D) Listbox Answer: B Explanation: While Arrays must contain the same data type, Clusters allow the grouping of mixed data types into a single structure/wire. Question 13. What is the result of using the "Initialize Array" function with an element value of 5 and a dimension size of 3? A) An array containing [3, 3, 3, 3, 3] B) An array containing [5, 5, 5] C) A single numeric value of 15 D) An error Answer: B Explanation: Initialize Array creates an array of the specified size where every element is set to the provided initial value. Question 14. What is the benefit of using an Enum (Enumerated Type) over a String for a Case Structure selector? A) Enums allow for faster execution B) Enums ensure that the Case Structure is automatically updated if a value changes C) Enums provide better UI colors D) Enums can store larger amounts of data
Ultimate Exam
Answer: B Explanation: Using Enums provides "type safety"; if you change an Enum value, LabVIEW updates the Case Structure labels, and it helps prevent typos that would occur with Strings. Question 15. In the Project Explorer, what is the difference between a Virtual Folder and an Auto- populating Folder? A) Virtual folders exist only in the .lvproj file; Auto-populating folders mirror a directory on the disk B) Auto-populating folders are faster C) Virtual folders can only contain SubVIs D) There is no difference Answer: A Explanation: Auto-populating folders automatically update to reflect the actual contents of a folder on your hard drive, whereas Virtual folders are organizational tools within the project environment only. Question 16. Which UI element should be used to view a continuous stream of data points where the old data stays on the screen and new data is appended? A) Waveform Graph B) Waveform Chart C) XY Graph D) Intensity Chart Answer: B Explanation: Waveform Charts maintain a history (buffer) of previous data points and append new ones, while Graphs redraw the entire data set every time they are called. Question 17. How can you programmatically hide a control on the Front Panel during execution? A) Using a local variable set to False B) Using a Property Node set to the "Visible" property C) Using an Invoke Node D) By deleting the control from the block diagram Answer: B Explanation: Property Nodes allow developers to modify attributes of front panel objects (like visibility, color, or being disabled) while the VI is running.
Ultimate Exam
C) The VI will automatically handle errors in the background D) The execution speed will increase significantly Answer: B Explanation: Wiring error clusters (Error In/Error Out) ensures that a SubVI knows if a previous node failed, allowing it to skip its core logic and maintain the dataflow order. Question 22. Which debugging tool allows you to see the actual data values move along the wires during execution? A) Probes B) Execution Highlighting (Lightbulb icon) C) Breakpoints D) Retain Wire Values Answer: B Explanation: Execution Highlighting slows down the VI and uses bubbles to show the movement of data, which is useful for verifying logic flow. Question 23. What is the main difference between a Control and an Indicator? A) Controls are on the block diagram; Indicators are on the front panel B) Controls provide input to the VI; Indicators display output from the VI C) Indicators are always numeric; Controls are always Boolean D) There is no difference Answer: B Explanation: On the Front Panel, Controls are used for user input (data goes into the code), while Indicators are used to display results (data comes from the code). Question 24. What is the default representation of a Numeric control? A) I32 (32-bit Integer) B) DBL (Double Precision Floating Point) C) SGL (Single Precision Floating Point) D) EXT (Extended Precision) Answer: B Explanation: By default, LabVIEW creates numeric constants and controls as Double Precision (DBL) floating-point numbers.
Ultimate Exam
Question 25. What logic is used to combine multiple error clusters into a single error cluster? A) Add function B) Or function C) Merge Errors function D) Build Array function Answer: C Explanation: The "Merge Errors" function checks multiple error clusters and outputs the first error it finds; if no errors exist, it checks for warnings. Question 26. In LabVIEW, what does the "Context Help" window provide? A) A list of all files in the project B) Descriptions of functions, VIs, and their terminals when you hover over them C) A way to search the internet for help D) A tool for editing VI icons Answer: B Explanation: Context Help (Ctrl+H) is essential for identifying terminal names and data types of functions on the block diagram. Question 27. What is the standard convention for wiring on a Block Diagram? A) Right to Left B) Bottom to Top C) Left to Right D) Circular Answer: C Explanation: LabVIEW style guidelines strongly recommend a Left-to-Right layout to match Western reading standards and improve code legibility. Question 28. Which structure allows you to perform an action at least once and then repeat it until a condition is met? A) For Loop B) While Loop C) Case Structure
Ultimate Exam
A) They are slow to create B) They can lead to race conditions where two tasks try to write to the same variable at once C) They can only be used within a single VI D) They cannot store numeric data Answer: B Explanation: Global variables bypass dataflow, and if multiple threads access them simultaneously, it can cause unpredictable behavior or "race conditions." Question 33. What is the function of the "Unbundle by Name" node? A) It sorts a cluster alphabetically B) It allows you to access specific elements of a cluster using their labels C) It converts a cluster into an array D) It deletes an element from a cluster Answer: B Explanation: Unlike the standard Unbundle node which relies on position, "Unbundle by Name" makes code more readable and robust by letting you select the specific element name. Question 34. In a Case Structure, what can be used as a selector? A) Booleans, Integers, Strings, and Enums B) Only Booleans C) Only Integers D) Arrays and Clusters Answer: A Explanation: Case structures are versatile and can handle various types, though Booleans and Enums are the most common for logic control. Question 35. When creating a SubVI, what is the best practice for the icon? A) Keep the default LabVIEW icon to save time B) Create a meaningful icon that represents the VI's purpose C) Use a screenshot of the front panel D) Leave the icon blank Answer: B
Ultimate Exam
Explanation: Meaningful icons make the block diagram of the "calling" VI much easier to understand at a glance. Question 36. Which file operation is most critical to perform after you are finished reading or writing to a file? A) Open File B) Flush File C) Close File D) Delete File Answer: C Explanation: Always closing file references releases the file from memory and ensures that other applications (or your own code later) can access it without "file in use" errors. Question 37. What does the "Iteration Terminal" in a While Loop return during the first iteration? A) 1 B) 0 C) - 1 D) The total number of iterations Answer: B Explanation: Like most programming indices, the LabVIEW loop iteration terminal (i) is zero-based. Question 38. Which of the following can be used to pass data between two parallel loops on the same block diagram? A) A standard wire B) A local variable or a queue C) A shift register D) A Case structure Answer: B Explanation: You cannot wire directly between parallel loops because the first loop would have to finish before the second could start; therefore, variables, queues, or notifiers are used. Question 39. What is a "Race Condition"? A) A situation where code runs faster than the processor B) A bug where the output depends on the uncontrollable timing of parallel events
Ultimate Exam
Explanation: If any part of the VI logic is disconnected or invalid, the Run arrow breaks, and clicking it will open an Error List. Question 43. What happens when you wire a DBL numeric to an I32 input? A) The VI will not run B) A coercion dot appears, and the number is rounded to the nearest integer C) The number is truncated D) LabVIEW converts the I32 terminal to a DBL terminal Answer: B Explanation: LabVIEW rounds to the nearest even integer by default during numeric coercion from floating point to integer. Question 44. Which structure is used to execute code sequentially in a specific order? A) While Loop B) Flat Sequence Structure C) Case Structure D) For Loop Answer: B Explanation: Sequence structures force the dataflow to follow a specific frame order (0, 1, 2...), though they should be used sparingly in favor of state machines. Question 45. What is the benefit of a "Typedef" (Type Definition)? A) It makes the VI run faster B) It allows you to update all instances of a custom control across multiple VIs by changing one file C) It allows you to use different colors for your controls D) It prevents users from changing values on the Front Panel Answer: B Explanation: Type Definitions are essential for maintaining large projects, as they ensure all UI elements and constants linked to the Typedef stay synchronized. Question 46. Which tool allows you to step through a VI's execution one node at a time? A) Probe Tool B) Single Stepping (Step Into/Over)
Ultimate Exam
C) Highlight Execution D) Breakpoint Answer: B Explanation: Single Stepping gives the developer manual control over the pace of execution for deep logic inspection. Question 47. What is an "Absolute Path"? A) A path relative to the current VI's location B) A path that includes the complete address from the root drive (e.g., C:\Data\file.txt) C) A path that only works on Linux D) A path stored in a global variable Answer: B Explanation: Absolute paths provide the full location, while relative paths are usually preferred for portability between different computers. Question 48. What does "Auto-indexing" on the output tunnel of a For Loop do? A) It returns only the last value calculated in the loop B) It accumulates every value from every iteration into an array C) It calculates the average of the values D) It crashes the loop if the array is too large Answer: B Explanation: Auto-indexing on an output tunnel is a common way to build an array of results from a For Loop. Question 49. Which function is used to combine multiple strings into one? A) String Subset B) Concatenate Strings C) Match Pattern D) Format Into String Answer: B Explanation: Concatenate Strings takes multiple string inputs and joins them into a single output string. Question 50. What is the difference between a Label and a Caption?
Ultimate Exam
Explanation: Uninitialized shift registers maintain state between VI runs until the VI is cleared from memory, which can be useful but also dangerous if not intentional. Question 54. Which numeric type is unsigned and uses 8 bits of memory? A) I B) U C) U D) DBL Answer: B Explanation: U8 stands for Unsigned 8 - bit integer, which can represent values from 0 to 255. Question 55. What is the main function of the "Build Cluster" function? A) To turn an array into a cluster B) To combine individual elements into a cluster or update elements in an existing cluster C) To sort data alphabetically D) To save data to a file Answer: B Explanation: Build Cluster is used to assemble individual wires into a single cluster wire or to modify specific elements. Question 56. What happens if you wire an array of 5 elements to a For Loop with a Count Terminal (N) set to 10 and auto-indexing enabled? A) The loop runs 10 times B) The loop runs 5 times C) The loop runs 15 times D) The VI returns an error Answer: B Explanation: When a For Loop has both a count terminal and an auto-indexed array, it runs for the smaller of the two values to prevent out-of-bounds errors. Question 57. Which function allows you to retrieve the number of elements in a 1D array? A) Array Subset B) Array Size
Ultimate Exam
C) Index Array D) Reshape Array Answer: B Explanation: Array Size returns a numeric value (or array of values for multi-dimensional arrays) indicating how many elements are present. Question 58. In the error cluster, if the 'status' Boolean is True, what does it mean? A) Everything is working correctly B) An error has occurred C) A warning has occurred D) The VI is finished Answer: B Explanation: A True value in the status part of an error cluster indicates that a previous function failed. Question 59. Which terminal is used to pass a value out of a Case Structure? A) Input Tunnel B) Output Tunnel C) Selector Terminal D) Shift Register Answer: B Explanation: Output Tunnels are used to send data out of structures; all cases in the structure must have a wire connected to the output tunnel for the VI to run. Question 60. How can you clear a Waveform Chart programmatically? A) Wire an empty array to the "History Data" property node B) Right-click the chart and select "Clear Chart" C) Use a local variable set to 0 D) Charts cannot be cleared programmatically Answer: A Explanation: Accessing the History Data property and providing an empty array effectively resets the chart's internal buffer. Question 61. What is the result of adding two arrays of different sizes in LabVIEW?
Ultimate Exam
Answer: A Explanation: This function is widely used for parsing and modifying text data, such as changing configuration file parameters. Question 65. Which of the following can be used to stop a While Loop if an error occurs? A) Wire the Error Cluster status to the Conditional Terminal B) Use a Breakpoint C) Delete the Stop button D) Use a For Loop instead Answer: A Explanation: Unbundling the status Boolean from an error cluster and wiring it to the conditional terminal is a best practice for safe loop termination. Question 66. What logic does the "Wait Until Next ms Multiple" function use? A) It waits for a specific number of milliseconds starting from when it's called B) It waits until the system clock reaches a multiple of the input value C) It pauses the entire computer D) It only works inside Case structures Answer: B Explanation: This function is used to synchronize loops to a specific rate (e.g., every 100ms on the clock), which is more precise for timing loops than a simple "Wait (ms)". Question 67. How do you define a constant that is available to all VIs in a project? A) Use a Global Variable B) Use a Local Variable C) Use a Shift Register D) Use a String Constant Answer: A Explanation: Global Variables are special VIs that contain only a front panel and allow data sharing across different VIs in the same application instance. Question 68. What is the standard file extension for a LabVIEW Virtual Instrument? A) .exe
Ultimate Exam
B) .lvproj C) .vi D) .ctl Answer: C Explanation: .vi is the file extension for all standard LabVIEW source code files. Question 69. Which tool is used to edit the icon of a VI? A) Icon Editor B) Paint C) Front Panel Editor D) Property Node Answer: A Explanation: Double-clicking the icon in the upper right corner of the Front Panel or Block Diagram opens the Icon Editor. Question 70. What is the purpose of "Bundling by Name"? A) To create a new cluster from scratch B) To update specific elements in a cluster using their labels rather than their order C) To alphabetize the data in a cluster D) To convert a cluster to a string Answer: B Explanation: Bundle by Name is safer than the standard Bundle function because it prevents data being written to the wrong element if the cluster order is changed. Question 71. What does the "High-Speed Streaming" benefit of TDMS refer to? A) The ability to send data over the internet B) The ability to write data to disk quickly in a binary format without the overhead of ASCII conversion C) The ability to run VIs on multiple computers D) The ability to use the sound card for data Answer: B Explanation: Because TDMS is binary, it skips the time-consuming step of converting numbers to text (as in CSV files), making it much faster for big data.
