CLAD Practice Exam

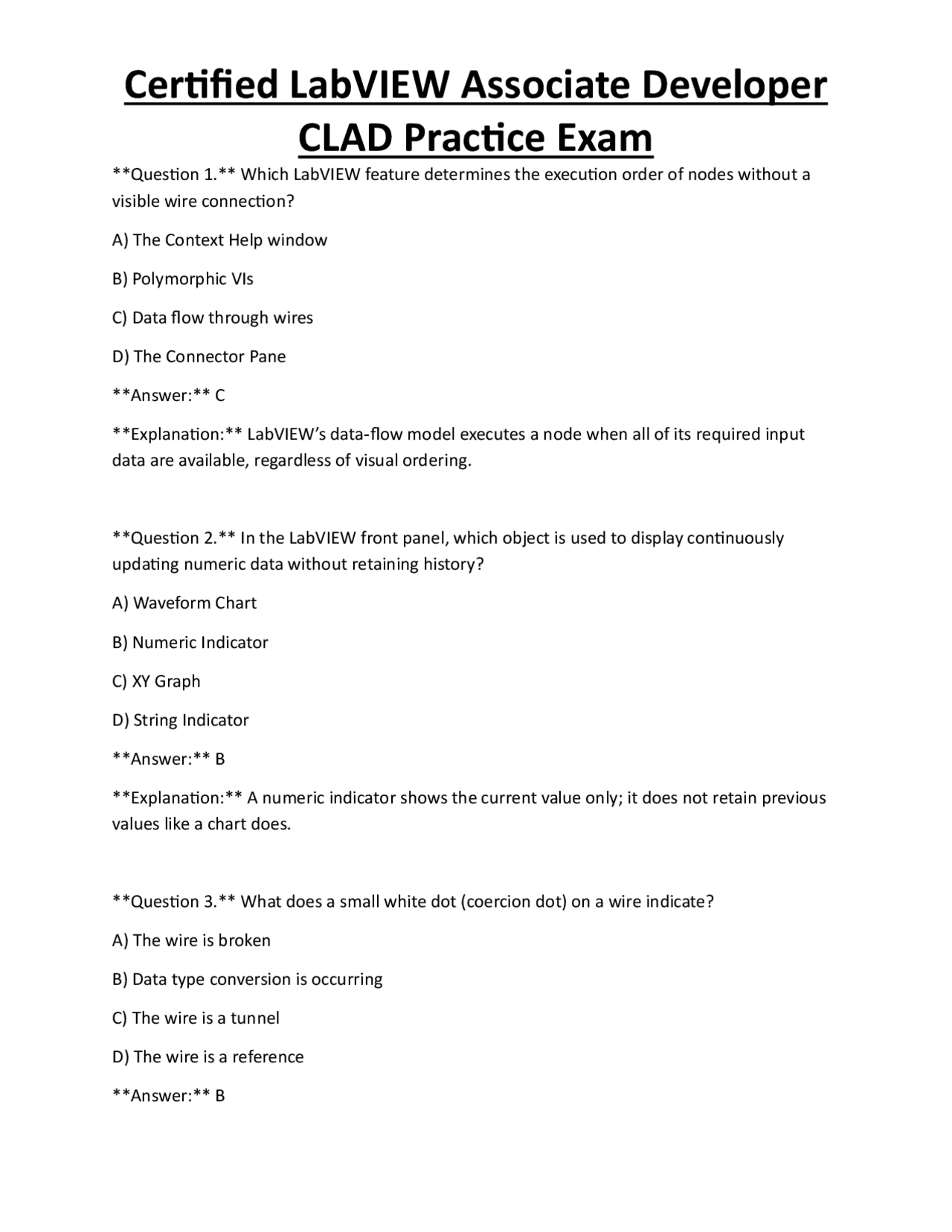

Question 1. Which LabVIEW feature determines the execution order of nodes without a visible wire connection? A) The Context Help window B) Polymorphic VIs C) Data flow through wires D) The Connector Pane Answer: C Explanation: LabVIEW’s data‑flow model executes a node when all of its required input data are available, regardless of visual ordering. Question 2. In the LabVIEW front panel, which object is used to display continuously updating numeric data without retaining history? A) Waveform Chart B) Numeric Indicator C) XY Graph D) String Indicator Answer: B Explanation: A numeric indicator shows the current value only; it does not retain previous values like a chart does. Question 3. What does a small white dot (coercion dot) on a wire indicate? A) The wire is broken B) Data type conversion is occurring C) The wire is a tunnel D) The wire is a reference Answer: B
CLAD Practice Exam
Explanation: A coercion dot appears when LabVIEW must automatically convert data from one type to another, which may affect performance. Question 4. Which of the following is NOT a primitive numeric data type in LabVIEW? A) I32 (Signed 32‑bit integer) B) U8 (Unsigned 8‑bit integer) C) DBL (Double‑precision floating point) D) String Answer: D Explanation: String is a non‑numeric data type; the others are numeric primitives. Question 5. When creating a SubVI, which layout is recommended for the connector pane? A) 2×2×2× B) 4×2×2× C) 3×3×3× D) 1×1×1× Answer: B Explanation: The standard 4×2×2×4 layout provides four terminals on each side, allowing clear input‑output organization. Question 6. Which loop structure should you use when the number of iterations is known before execution? A) While Loop B) For Loop C) Sequence Structure D) Case Structure
CLAD Practice Exam
C) For Loop D) Formula Node Answer: B Explanation: A Case Structure selects a case based on the selector input, executing only that branch. Question 10. Which tunnel mode returns the most recent value that entered the tunnel after loop execution? A) Indexing B) Conditional C) Last Value (default) D) Shift Register Answer: C Explanation: The default “Last Value” mode stores the most recent data that passed through the tunnel. Question 11. When would you use a Formula Node instead of native LabVIEW math functions? A) When you need to create a custom UI control B) When you prefer text‑based syntax for complex equations C) When you want automatic data type coercion D) When you need to read a file from disk Answer: B Explanation: Formula Nodes allow you to write C‑style expressions, useful for complex or compact mathematical code.
CLAD Practice Exam
Question 12. Which of the following best describes a local variable? A) Shares data between different VIs at runtime B) Reads or writes a front‑panel terminal within the same VI C) Provides a global namespace for all VIs in a project D) Is used only for error handling Answer: B Explanation: Local variables access a control or indicator on the same VI, enabling read/write without wiring. Question 13. What is a major risk when using global variables? A) They cannot be read inside a loop B) They cause memory leaks in the VI C) Race conditions due to simultaneous access D) They automatically reset after each run Answer: C Explanation: Global variables are shared across VIs, and unsynchronized access can lead to race conditions. Question 14. Which chart type retains historical data and automatically scrolls as new data arrives? A) Waveform Chart B) Numeric Indicator C) Boolean Switch D) String Indicator Answer: A
CLAD Practice Exam
B) Reentrant Execution – True/False C) Recursive Call – Enabled D) Thread Priority – High Answer: B Explanation: Setting “Reentrant Execution” to True allows multiple instances of the SubVI to run concurrently. Question 18. Which design pattern is most appropriate for handling multiple independent tasks that can run simultaneously? A) State Machine B) Parallel Loops C) Sequence Structure D) Case Structure Answer: B Explanation: Parallel Loops execute independently on separate threads, ideal for concurrent tasks. Question 19. In a standard state machine, which element typically stores the current state? A) An array shift register B) A numeric indicator C) A type‑defined enumerated control in a shift register D) A local variable named “State” Answer: C Explanation: An enumerated type provides named states, and a shift register carries the current state between iterations.
CLAD Practice Exam
Question 20. The LabVIEW error cluster consists of which three elements? A) Status, Code, Source B) Boolean, Integer, String C) Error ID, Message, Timestamp D) Flag, Value, Description Answer: A Explanation: The standard error cluster includes a Boolean status, a numeric error code, and a string source description. Question 21. How should error clusters be wired to ensure proper error propagation? A) Connect the error cluster to the data inputs of all nodes B) Wire the error cluster only to the error terminals of VIs that generate errors C) Connect the error cluster to the error terminal of each node in the execution path D) Use a local variable to broadcast the error cluster Answer: C Explanation: Wiring the error cluster through each node’s error terminal forces sequential execution based on error flow. Question 22. Which built‑in VI stops a loop when an error occurs? A) Simple Error Handler B) Select Error VIs C) Stop (VI) inside the loop with error‑wired case D) Clear Errors Answer: C Explanation: Placing a Stop node inside a loop and wiring the error cluster to its condition will halt the loop on error.
CLAD Practice Exam
Explanation: Descriptive camel‑case names improve clarity; “SamplingRateCtrl” indicates purpose and type. Question 26. What does the Highlight Execution tool do? A) Shows a real‑time plot of data values B) Highlights nodes in the order they execute, pausing briefly at each C) Generates a report of execution time for each node D) Saves the VI state to disk Answer: B Explanation: Highlight Execution visually steps through the data flow, aiding debugging. Question 27. Which tool allows you to inspect the actual value traveling on a wire during execution? A) Probe Tool B) Breakpoint Manager C) Retain Wire Values dialog D) Property Node Editor Answer: A Explanation: The Probe Tool attaches to a wire and displays its current value in real time. Question 28. How does a breakpoint affect VI execution? A) It permanently disables the node B) It pauses execution when the node is reached, allowing inspection C) It forces the VI to run faster D) It clears all data on the wire
CLAD Practice Exam
Answer: B Explanation: Breakpoints halt execution at a specific node, letting you examine state before continuing. Question 29. What does enabling “Retain Wire Values” do? A) Saves the wire’s data to a file after each run B) Keeps the wire’s last value in memory when the VI is stopped C) Locks the wire so it cannot be changed D) Clears the wire’s data on every iteration Answer: B Explanation: Retained wires preserve their values between runs, useful for debugging or initializing data. Question 30. Which function is used to construct a full file path from a directory and file name? A) Open/Create/Replace File VI B) Build Path VI C) Get File VI D) File Dialog VI Answer: B Explanation: Build Path concatenates a folder path and a file name into a valid absolute path. Question 31. When writing numeric data to a text file, which LabVIEW function is most appropriate? A) Write to Binary File
CLAD Practice Exam
Question 34. Which implicit property can be accessed without explicitly placing a Property Node on the block diagram? A) Visible property of a control B) Value property of a numeric indicator C) Color property of a Boolean LED D) Position property of a knob Answer: B Explanation: The value of most controls/indicators can be wired directly; LabVIEW treats it as an implicit property. Question 35. In a DAQmx task, which VI is typically used to start data acquisition? A) DAQmx Start Task VI B) DAQmx Configure Channels VI C) DAQmx Read Analog Input VI D) DAQmx Stop Task VI Answer: A Explanation: “DAQmx Start Task” initiates the acquisition after configuration. Question 36. Which component of a measurement system converts a physical quantity into an electrical signal? A) PC B) Sensor C) DAQ Device D) LabVIEW software Answer: B
CLAD Practice Exam
Explanation: Sensors transduce physical phenomena (e.g., temperature, pressure) into voltage or current signals. Question 37. Which LabVIEW palette contains the “For Loop” structure? A) Controls Palette B) Functions Palette → Structures C) Functions Palette → Programming → Structures D) Functions Palette → Signal Processing Answer: B Explanation: The For Loop resides under the Structures sub‑palette within the Functions Palette. Question 38. What does the Context Help window display when you hover over a terminal? A) The current value of the terminal B) A brief description of the terminal’s function and data type C) The wiring diagram of the VI D) The execution time of the terminal Answer: B Explanation: Context Help gives quick documentation for the hovered item, including its purpose and data type. Question 39. Which of the following is a correct way to create a polymorphic VI that works with both numeric and Boolean data? A) Use a case structure inside the VI to handle each type separately B) Place a coercion dot on every wire C) Set the VI’s “Polymorphic” property in the VI Properties and define the data types
CLAD Practice Exam
A) t0 (initial time) B) Frequency C) Sample Count D) Unit String Answer: A Explanation: Waveform clusters always include t0, dt, and the Y data array. Question 43. In a case structure, what happens if the selector value does not match any defined case? A) The VI throws an error and stops B) The default case executes (if present) C) Nothing executes and the data flow stops D) LabVIEW automatically creates a new case Answer: B Explanation: The default case runs when no other case matches; it is optional but useful for handling unexpected inputs. Question 44. Which of the following best describes a “parallel loop” in LabVIEW? A) A For Loop nested inside a While Loop B) Two loops placed side‑by‑side on the block diagram, each with its own thread of execution C) A Sequence Structure with multiple frames D) A single loop with multiple shift registers Answer: B Explanation: Parallel loops are independent loops that LabVIEW schedules on separate threads, allowing concurrent execution.
CLAD Practice Exam
Question 45. How can you make a SubVI re‑entrant without modifying its internal code? A) Set “Execution Mode” to “Preallocate Memory” B) Enable “Reentrant Execution” in the VI Properties C) Add a shift register to the SubVI’s block diagram D) Convert the SubVI to a library Answer: B Explanation: The “Reentrant Execution” property allows multiple calls to the SubVI to run simultaneously. Question 46. Which VI would you use to convert a string representing a number into a numeric data type? A] Number to String VI B] String to Number VI C] Format into String VI D] Concatenate Strings VI Answer: B Explanation: “String to Number” parses the characters and outputs the corresponding numeric value. Question 47. When using the “Read from Text File” VI, which option determines how many lines are read per call? A] Number of Bytes to Read B] Number of Lines to Read C] Read Mode (Single Line / Whole File) D] File Position Indicator Answer: B
CLAD Practice Exam
D] File I/O → Advanced Answer: A Explanation: “Array Size” belongs to the Array Operations sub‑palette. Question 51. What does the “Shift Register” icon look like on a loop border? A] A small square with a plus sign B] Two parallel lines with arrows pointing inward and outward C] A dotted line across the loop border D] A triangle pointing to the right Answer: B Explanation: Shift registers are shown as two parallel lines (one entering, one exiting) on the loop border. Question 52. Which LabVIEW structure is discouraged for new designs due to its rigid execution order? A] Sequence Structure B] Case Structure C] While Loop D] For Loop Answer: A Explanation: Sequence Structures enforce a fixed order, limiting parallelism and readability; they are generally avoided. Question 53. When you enable “Show Execution Highlight” and run a VI, what visual cue indicates a node is currently executing? A] The node’s border flashes green
CLAD Practice Exam
B] The node’s icon turns blue C] A small orange dot appears on the wire D] The node’s label becomes bold Answer: A Explanation: LabVIEW highlights the executing node’s border in green (or a similar color) during execution. Question 54. Which VI would you use to programmatically change the text of a String Indicator on the front panel? A] Set Property Node – Value B] Write to Text File VI C] Format into String VI D] Bundle by Name VI Answer: A Explanation: The Property Node for “Value” allows you to set a control or indicator’s displayed text at runtime. Question 55. In a waveform chart, what does the “History Length” property control? A] The number of points plotted per update B] The total time span of data retained on the chart C] The sampling rate of the data source D] The color of the plotted line Answer: B Explanation: “History Length” determines how much past data (in points or time) the chart keeps visible.
