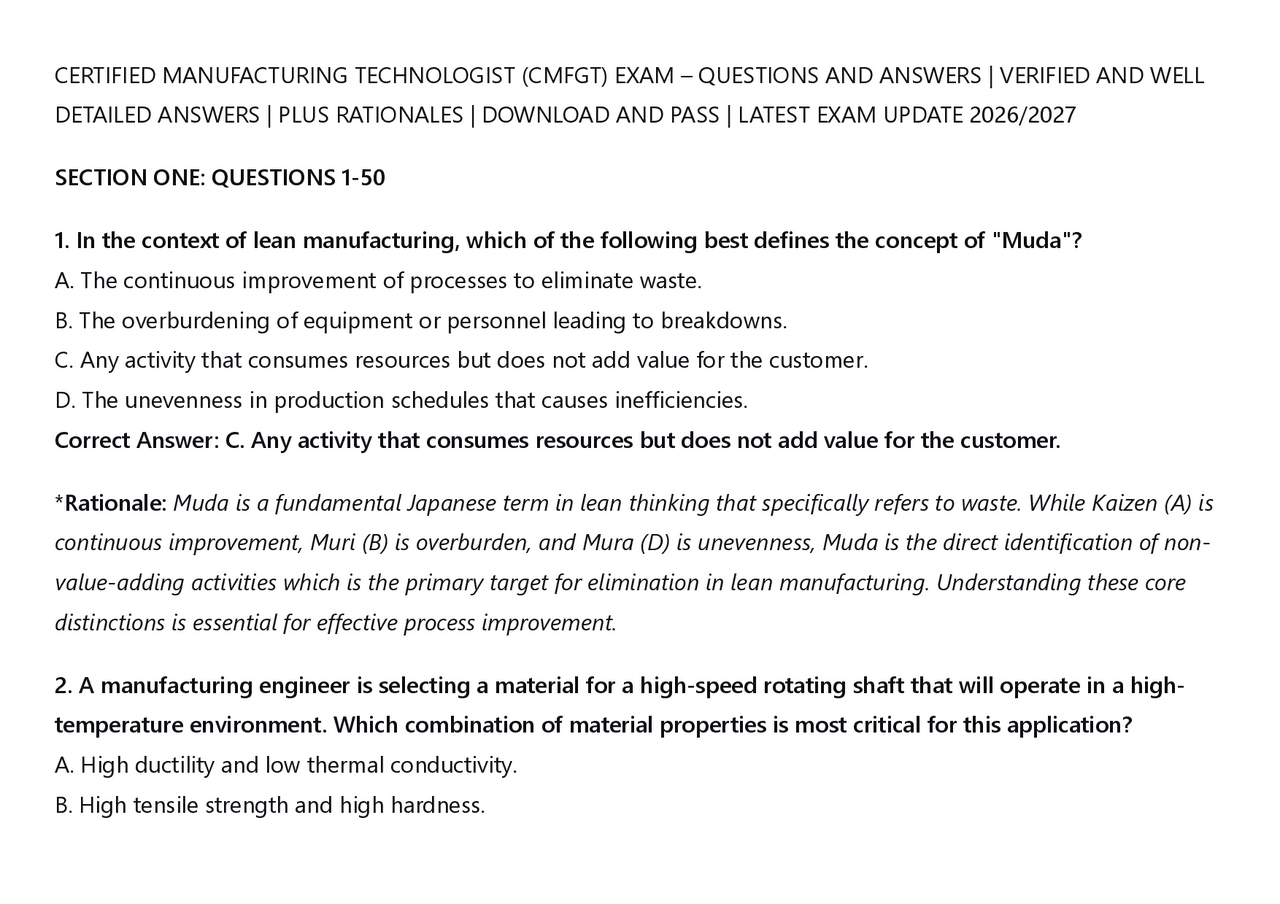

CERTIFIED MANUFACTURING TECHNOLOGIST (CMFGT) EXAM – QUESTIONS AND ANSWERS | VERIFIED AND WELL
DETAILED ANSWERS | PLUS RATIONALES | DOWNLOAD AND PASS | LATEST EXAM UPDATE 2026/
SECTION ONE: QUESTIONS 1-
1. In the context of lean manufacturing, which of the following best defines the concept of "Muda"? A. The continuous improvement of processes to eliminate waste. B. The overburdening of equipment or personnel leading to breakdowns. C. Any activity that consumes resources but does not add value for the customer. D. The unevenness in production schedules that causes inefficiencies. Correct Answer: C. Any activity that consumes resources but does not add value for the customer.
- Rationale: Muda is a fundamental Japanese term in lean thinking that specifically refers to waste. While Kaizen (A) is continuous improvement, Muri (B) is overburden, and Mura (D) is unevenness, Muda is the direct identification of non- value-adding activities which is the primary target for elimination in lean manufacturing. Understanding these core distinctions is essential for effective process improvement.
2. A manufacturing engineer is selecting a material for a high-speed rotating shaft that will operate in a high- temperature environment. Which combination of material properties is most critical for this application? A. High ductility and low thermal conductivity. B. High tensile strength and high hardness.
C. High fatigue strength and high creep resistance. D. Low density and high electrical conductivity. Correct Answer: C. High fatigue strength and high creep resistance.
Rationale: A rotating shaft experiences cyclic stresses (fatigue) and, in a high-temperature environment, is susceptible to gradual deformation under constant load (creep). Therefore, high fatigue strength to resist cyclic loading and high creep resistance to maintain dimensional stability over time are paramount. While strength and hardness (B) are important, they do not specifically address the cyclical or time-dependent high-temperature failure modes.
3. Which statistical process control (SPC) chart is most appropriate for monitoring the variability of a manufacturing process when the sample size is constant? A. X-bar chart B. R chart C. P chart D. C chart Correct Answer: B. R chart
Rationale: An R chart (Range chart) is specifically designed to monitor process variability (the spread or dispersion) by tracking the range of a sample. While an X-bar chart (A) monitors the process mean (central tendency), P (C) and C (D) charts are used for attribute data (proportion defective and count of defects, respectively). For a constant sample size, the R chart is the standard tool for monitoring variability.
Rationale: FMEA is a systematic, proactive risk assessment tool. Its primary goal is to anticipate potential failures before they happen, evaluate their severity, occurrence, and detectability, and prioritize actions to mitigate the highest risks. This is distinct from root cause analysis (A), which is reactive, or quality costing (B) and final inspection (D), which are other aspects of quality management.
6. A manufacturing process has a Cp value of 1.0 and a Cpk value of 0.7. This indicates that the process is: A. Centered and capable. B. Centered but not capable. C. Not centered and not fully capable. D. Highly capable but not centered. Correct Answer: C. Not centered and not fully capable.
Rationale: Cp measures the potential capability of a process assuming it is centered, with a value of 1.0 indicating the process spread is equal to the specification width. Cpk measures the actual capability, accounting for the process mean's location. A Cpk of 0.7 is less than 1.0, indicating the process is not capable. Since Cpk is significantly lower than Cp (0.7 vs. 1.0), it shows the process is not centered within the specification limits. This is a critical concept in process capability analysis.
7. In the context of additive manufacturing (3D printing), which of the following is a significant limitation of the fused deposition modeling (FDM) process? A. High material cost per unit volume.
B. Limited build volume and slow speed. C. Poor mechanical properties due to anisotropic behavior. D. Difficulty in creating internal channels and complex geometries. Correct Answer: C. Poor mechanical properties due to anisotropic behavior.
Rationale: FDM parts are built layer by layer, creating a bond that is weaker in the Z-direction (between layers) than in the X-Y plane. This anisotropy is a well-known and significant limitation affecting the mechanical strength of FDM components. While build volume and speed (B) can be a constraint, they are not as specific to the FDM process's material limitations. FDM is actually well-suited for creating complex geometries (D) and has relatively low material costs (A).
8. A quality inspector is using a go/no-go gauge to check the diameter of a machined hole. The "go" gauge passes through, but the "no-go" gauge also passes through. This indicates the hole is: A. Within tolerance. B. Too small. C. Too large. D. Not round. Correct Answer: C. Too large.
Rationale: In a go/no-go gauge system, the "go" gauge checks the lower specification limit (minimum size) and must pass. The "no-go" gauge checks the upper specification limit (maximum size) and must NOT pass. If the "no-go" gauge
D. Oxy-fuel Welding (OFW). Correct Answer: C. Resistance Spot Welding (RSW).
Rationale: Resistance Spot Welding (RSW) is highly suitable for high-volume, automated joining of sheet metal. It is extremely fast, and because the heat is concentrated at the weld point, it minimizes distortion and heat-affected zones in thin materials. SMAW (A) and OFW (D) are slower manual processes and produce excessive heat. GMAW (B) is faster but still more prone to heat-related issues on thin aluminum than RSW.
11. What is the primary safety concern when operating a vertical band saw? A. The blade breaking due to excessive speed. B. The workpiece being pulled from the operator's hands. C. The operator's fingers coming into contact with the moving blade. D. The machine overheating due to continuous operation. Correct Answer: C. The operator's fingers coming into contact with the moving blade.
Rationale: While all options present some level of risk, the most direct and catastrophic injury from a band saw is a laceration or amputation of fingers or hands. The blade is continuously moving and accessible, making contact the primary safety hazard. Proper use of push sticks, guards, and safe hand placement is critical to mitigate this risk.
12. A manufacturing process is capable of producing parts with a mean dimension of 50.00 mm. The process standard deviation is 0.02 mm. The customer's specification limits are 49.94 mm and 50.06 mm. What is the process capability index (Cpk)?
A. 1.
B. 1.
C. 0.
D. 0.
Correct Answer: A. 1.
Rationale: To calculate Cpk, we use the formula: Cpk = min[(USL - Mean)/3σ, (Mean - LSL)/3σ]. USL is 50.06, LSL is 49.94, Mean is 50.00, and σ is 0.02. (USL - Mean) = 0.06. 0.06 / (3 * 0.02) = 0.06 / 0.06 = 1.00. (Mean - LSL) = 0.06. 0.06 / 0.06 = 1.00. Cpk = min(1.00, 1.00) = 1.00. Since the process is perfectly centered, Cpk = Cp = 1.0.
13. Which of the following represents the correct hierarchy of hazard controls, from most to least effective? A. Engineering controls, Administrative controls, Personal Protective Equipment (PPE), Elimination. B. Elimination, Engineering controls, Administrative controls, Personal Protective Equipment (PPE). C. Personal Protective Equipment (PPE), Engineering controls, Administrative controls, Elimination. D. Administrative controls, Elimination, Personal Protective Equipment (PPE), Engineering controls. Correct Answer: B. Elimination, Engineering controls, Administrative controls, Personal Protective Equipment (PPE).
B. Reducing the tool change time by optimizing the tool path. C. Using a larger diameter cutting tool for roughing passes. D. Reducing the feed rate for finishing passes to improve surface finish. Correct Answer: C. Using a larger diameter cutting tool for roughing passes.
Rationale: Roughing operations typically remove the bulk of the material. Using a larger diameter tool allows for a higher metal removal rate (MRR) because it can take a larger depth of cut and stepover. This can dramatically reduce the number of passes required for roughing, which often accounts for a large portion of the total machining time. While reducing tool change time (B) is beneficial, it is often a smaller percentage of total time compared to roughing. Increasing spindle speed (A) has diminishing returns and is limited by tool life.
16. The "Plan-Do-Check-Act" (PDCA) cycle is a core framework for which of the following? A. Financial accounting. B. Project management, specifically for scheduling. C. Continuous improvement and problem-solving. D. Employee performance appraisals. Correct Answer: C. Continuous improvement and problem-solving.
Rationale: The PDCA cycle, also known as the Deming Wheel or Shewhart Cycle, is a foundational model for continuous improvement. It provides a structured iterative method for testing and implementing changes: Plan the
change, Do (execute) the change on a small scale, Check (study) the results, and Act on the results to either standardize or modify the plan. Its primary application is in quality management and process improvement initiatives.
17. Which of the following non-destructive testing (NDT) methods is best suited for detecting surface and near- surface flaws in ferromagnetic materials? A. Ultrasonic Testing (UT). B. Radiographic Testing (RT). C. Magnetic Particle Testing (MT). D. Dye Penetrant Testing (PT). Correct Answer: C. Magnetic Particle Testing (MT).
Rationale: Magnetic Particle Testing is specifically designed for detecting surface and slightly subsurface discontinuities (like cracks and seams) in ferromagnetic materials (iron, steel, nickel, cobalt). The part is magnetized, and a powder is applied; the powder collects at the flux leakage fields created by the defects. PT (D) is also for surface defects but works on non-porous materials, not specifically ferromagnetic. UT (A) and RT (B) are volumetric methods that can detect internal flaws.
18. A manufacturing technician notices that a hydraulic press is operating slower than normal and is overheating. The most likely cause of this issue is: A. Low hydraulic fluid level. B. A faulty pressure gauge.
demand. It is not a scheduling tool (A) in the traditional sense, nor is it a work instruction (C) or cost-tracking system (D).
20. Which type of plastic is most suitable for manufacturing a high-strength, lightweight automotive body panel? A. Polyethylene (PE). B. Polyvinyl Chloride (PVC). C. Polycarbonate (PC). D. Carbon-fiber reinforced polymer (CFRP). Correct Answer: D. Carbon-fiber reinforced polymer (CFRP).
Rationale: CFRP is a composite material that offers an exceptional strength-to-weight ratio, making it highly desirable for automotive and aerospace applications where reducing weight is critical for fuel efficiency without sacrificing structural integrity. Polycarbonate (C) is strong and impact-resistant but is not typically used for large structural panels due to cost and performance compared to CFRP. PE (A) and PVC (B) are more common in general-purpose and less demanding applications.
21. In a manufacturing context, what is the primary function of a "renishaw probe" on a CNC machine? A. To measure the temperature of the cutting tool. B. To automatically measure the workpiece and tool positions. C. To apply cutting fluid directly to the tool-workpiece interface.
D. To detect tool breakage by sensing vibrations. Correct Answer: B. To automatically measure the workpiece and tool positions.
Rationale: A Renishaw probe (or similar touch-trigger probe) is used for in-process measurement and setup. Its primary functions include automatically finding the datum (work offset) of a workpiece, checking part dimensions, and measuring tool lengths and diameters. This automation eliminates manual setting errors, reduces setup time, and allows for in-process inspection. While some advanced systems can detect tool breakage (D), the fundamental purpose is measurement and positioning.
22. Which of the following is a key characteristic of "cellular manufacturing"? A. Equipment is arranged by process type, such as all milling machines together. B. Workstations are organized to produce a family of parts in a continuous flow. C. Production is driven by a master production schedule from the top down. D. Large batches of parts are processed through each functional department. Correct Answer: B. Workstations are organized to produce a family of parts in a continuous flow.
Rationale: Cellular manufacturing is a lean manufacturing technique where machines and workstations are grouped into "cells" dedicated to producing a specific family of parts. This arrangement promotes one-piece flow or small-batch flow, reduces material handling, and minimizes work-in-process (WIP) inventory. The description in (A) describes a traditional process layout (or job shop), while (C) and (D) describe typical batch-and-queue production.
Rationale: A significant portion of a manufacturing plant's environmental footprint comes from energy consumption (electricity, natural gas, etc.). An energy audit provides a systematic approach to identifying the largest sources of energy waste and implementing the most impactful corrective actions, which often have a significant return on investment as well. While the other options are positive actions, they are relatively small in scale compared to the potential impact of a comprehensive energy efficiency program.
25. In the context of GD&T (Geometric Dimensioning and Tolerancing), what is the primary function of a "datum"? A. To define the maximum material condition for a feature. B. To establish a theoretical exact point, axis, or plane from which measurements are taken. C. To specify the allowable variation in a feature's size. D. To indicate the surface texture requirement. Correct Answer: B. To establish a theoretical exact point, axis, or plane from which measurements are taken.
Rationale: A datum is a theoretically exact geometric reference point, axis, line, or plane used as the origin for dimensioning and as a reference for defining tolerances for other features. It provides a fixed, consistent starting point for inspection and manufacturing. For example, a datum plane allows you to measure the perpendicularity or position of other features relative to it.
26. When heat treating steel, what is the main purpose of the "tempering" process that follows quenching? A. To increase the hardness and wear resistance of the steel.
B. To increase the grain size for improved ductility. C. To reduce brittleness and internal stresses while maintaining a reasonable level of hardness. D. To remove carbon from the surface layer of the steel. Correct Answer: C. To reduce brittleness and internal stresses while maintaining a reasonable level of hardness.
Rationale: Quenching steel from a high temperature creates a very hard and brittle microstructure (martensite). Tempering involves reheating the quenched steel to a moderate temperature and then cooling it. This process relieves internal stresses and reduces brittleness, making the steel tougher, while still retaining a significant portion of the hardness gained from the quenching process. The trade-off between hardness and toughness is managed through the specific tempering temperature and time.
27. A manufacturing technician is setting up a lathe to turn a long, slender shaft. Which of the following workholding methods is most appropriate to prevent deflection? A. Chucking the part at one end only. B. Using a collet to hold the part. C. Using a live center at the tailstock to support the free end. D. Using a faceplate and a steady rest. Correct Answer: C. Using a live center at the tailstock to support the free end.
Rationale: For a long, slender shaft, the greatest risk is deflection (bowing or bending) due to the cutting forces. Supporting the free end with a live center (which rotates with the workpiece) is the most effective and standard method.
D. The negative impact on manufacturing productivity caused by frequent changes in government regulations. Correct Answer: A. The phenomenon where small variations in demand at the retail level cause progressively larger variations in demand upstream (manufacturing and suppliers).
Rationale: The bullwhip effect is a classic supply chain challenge. It occurs because of distorted information flowing up the supply chain. For example, a slight increase in retailer orders leads to a larger order from the distributor, an even larger order from the manufacturer, and so on, creating significant inventory and production inefficiencies. This is often caused by lack of communication, batching, and promotional pricing.
30. What is the primary purpose of using a "two-stage" or "progressive" stamping die? A. To cut two different shapes simultaneously. B. To perform multiple operations (like punching, bending, and drawing) in a single press stroke. C. To form a part that is too large for a single-stage die. D. To increase the speed of the stamping press. Correct Answer: B. To perform multiple operations (like punching, bending, and drawing) in a single press stroke.
Rationale: A progressive die has several stations that perform sequential operations on a strip of metal as it advances through the die. A two-stage die is a simpler version of this, performing multiple operations in a single stroke, such as cutting a blank in the first stage and forming a flange in the second. The primary purpose is to produce a finished part quickly and efficiently from a single strip without requiring separate operations.
31. A manufacturing engineer is choosing a method to inspect the interior of a pipeline weld for internal defects. Which Non-Destructive Testing (NDT) method is most appropriate? A. Magnetic Particle Testing (MT). B. Dye Penetrant Testing (PT). C. Visual Inspection (VT). D. Radiographic Testing (RT). Correct Answer: D. Radiographic Testing (RT).
Rationale: Radiographic Testing (using X-rays or gamma rays) is a volumetric NDT method that can detect internal flaws like porosity, inclusions, or incomplete penetration within a weld. MT (A) and PT (B) are only for surface defects, and VT (C) is only for surface and accessible areas. Since the weld's interior is inaccessible, RT is the only viable option from the list to inspect the internal quality.
32. How does the implementation of a "5S" program contribute to workplace safety? A. It primarily focuses on providing safety training to all employees. B. It reduces hazards by organizing the workplace and eliminating clutter. C. It mandates the use of Personal Protective Equipment (PPE) at all times. D. It replaces manual lifting with automated equipment. Correct Answer: B. It reduces hazards by organizing the workplace and eliminating clutter.
