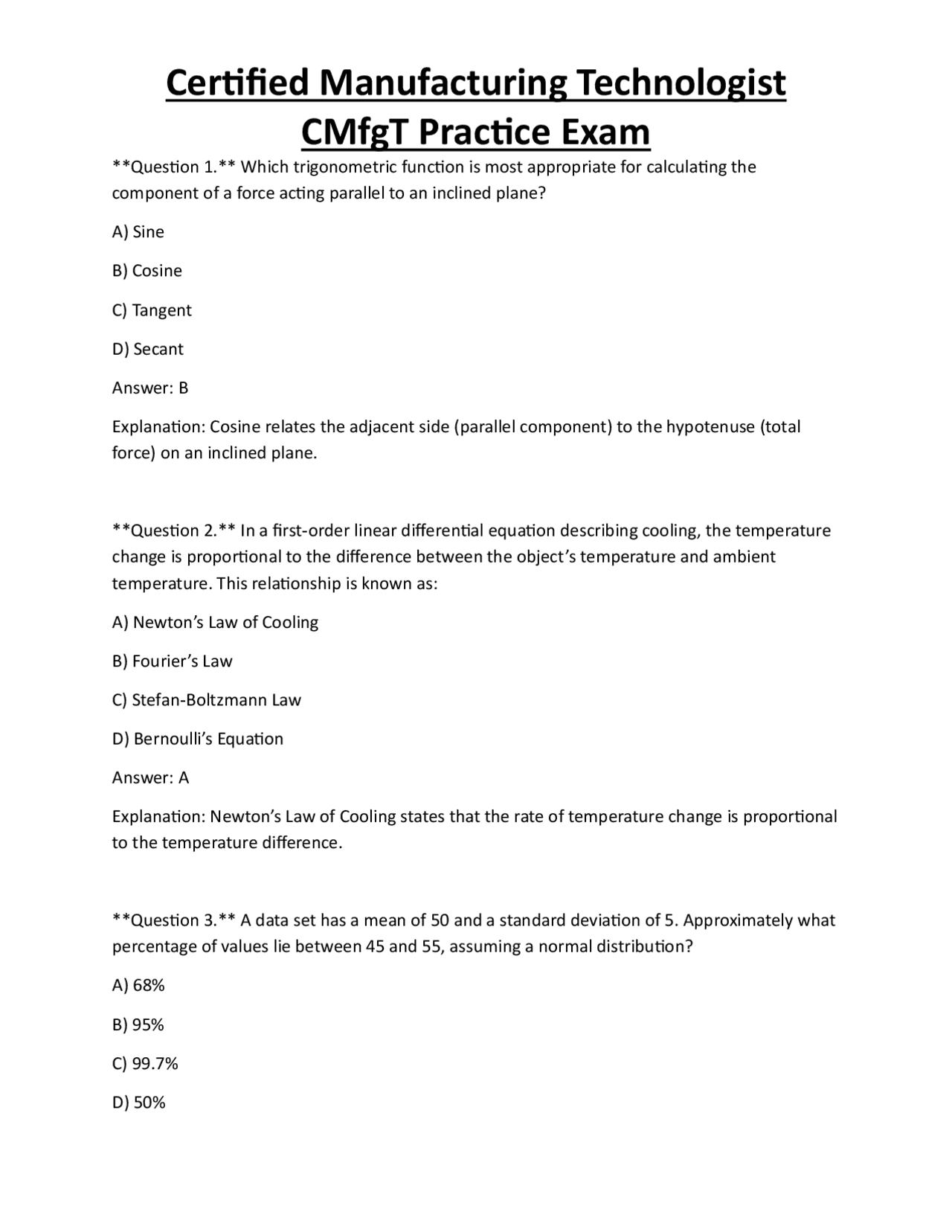

CMfgT Practice Exam
Question 1. Which trigonometric function is most appropriate for calculating the component of a force acting parallel to an inclined plane? A) Sine B) Cosine C) Tangent D) Secant Answer: B Explanation: Cosine relates the adjacent side (parallel component) to the hypotenuse (total force) on an inclined plane. Question 2. In a first‑order linear differential equation describing cooling, the temperature change is proportional to the difference between the object’s temperature and ambient temperature. This relationship is known as: A) Newton’s Law of Cooling B) Fourier’s Law C) Stefan‑Boltzmann Law D) Bernoulli’s Equation Answer: A Explanation: Newton’s Law of Cooling states that the rate of temperature change is proportional to the temperature difference. Question 3. A data set has a mean of 50 and a standard deviation of 5. Approximately what percentage of values lie between 45 and 55, assuming a normal distribution? A) 68% B) 95% C) 99.7% D) 50%
CMfgT Practice Exam
Answer: A Explanation: Within ±1 standard deviation of the mean, about 68% of values fall in a normal distribution. Question 4. Which GD&T symbol indicates that a surface must be perfectly flat within a tolerance zone? A) Ⓕ (Flatness) B) Ⓐ (Perpendicularity) C) Ⓑ (Position) D) Ⓒ (Circularity) Answer: A Explanation: The flatness symbol (a parallelogram) controls the variation of a surface from true flatness. Question 5. When interpreting a machining blueprint, the term “feed per tooth” (Fz) is used to determine: A) Cutting speed B) Depth of cut C) Material removal rate D) Chip load per cutter tooth Answer: D Explanation: Feed per tooth defines the distance each tooth advances per revolution, influencing chip load. Question 6. In a BCC crystal structure, the most densely packed plane is: A) {111}
CMfgT Practice Exam
B) Flow regime (laminar or turbulent) C) Viscosity change with temperature D) Pressure drop in a pipe Answer: B Explanation: Reynolds number compares inertial to viscous forces, indicating laminar or turbulent flow. Question 10. Which of the following is a non‑conventional machining process that removes material by electrical discharge? A) Laser cutting B) Waterjet cutting C) EDM (Electrical Discharge Machining) D) Plasma cutting Answer: C Explanation: EDM erodes material via controlled electrical sparks between the tool and workpiece. Question 11. In a casting operation, the defect caused by trapped air that forms a spherical void is called: A) Shrinkage cavity B) Porosity C) Blowhole D) Cold shut Answer: C Explanation: Blowholes are gas‑related spherical cavities formed by trapped air.
CMfgT Practice Exam
Question 12. The term “draw ratio” in extrusion refers to: A) Ratio of billet diameter to extrudate diameter B) Ratio of extrusion speed to feed rate C) Ratio of product length to cross‑sectional area D) Ratio of applied force to material flow stress Answer: A Explanation: Draw ratio = billet diameter ÷ extrudate diameter, indicating reduction in cross‑section. Question 13. Which welding process uses a non‑consumable tungsten electrode? A) SMAW (Stick) B) GMAW (MIG) C) GTAW (TIG) D) FCAW (Flux‑cored) Answer: C Explanation: GTAW (TIG) employs a tungsten electrode that does not melt. Question 14. A proximity sensor that detects metal objects without physical contact operates on which principle? A) Photoelectric illuminance B) Inductive coupling C) Ultrasonic echo D) Capacitive change Answer: B Explanation: Inductive proximity sensors generate a magnetic field and sense changes caused by metal.
CMfgT Practice Exam
Question 18. Which industrial network protocol uses a master‑slave architecture and is common in PLC communications? A) Ethernet/IP B) Profibus DP C) Wi‑Fi D. Bluetooth Answer: B Explanation: Profibus DP operates with a master controller and multiple slave devices. Question 19. The process capability index Cpk takes into account: A) Only the spread of the process distribution B) Both the process spread and its centering relative to specification limits C) The number of defects per million opportunities D) The process mean only Answer: B Explanation: Cpk measures how well the process is centered and its variability relative to limits. Question 20. In an X‑bar control chart, the control limits are typically set at: A) ±1 sigma from the center line B) ±2 sigma from the center line C) ±3 sigma from the center line D) ±4 sigma from the center line Answer: C Explanation: ±3 sigma limits capture 99.73% of normal variation, defining control limits.
CMfgT Practice Exam
Question 21. The “5 Whys” technique is used primarily for: A) Designing a product layout B) Conducting root‑cause analysis C) Calculating process capability D) Scheduling production runs Answer: B Explanation: Repeatedly asking “Why?” uncovers underlying causes of problems. Question 22. Which of the following is NOT one of the eight wastes identified in Lean manufacturing? A) Overproduction B) Motion C) Inventory D) Quality control Answer: D Explanation: Quality control is a process, not a waste; the eight wastes are defects, overproduction, waiting, non‑utilized talent, transportation, inventory, motion, and extra processing. Question 23. OEE (Overall Equipment Effectiveness) is calculated by multiplying which three factors? A) Availability, Performance, Quality B. Utilization, Efficiency, Yield C) Capacity, Throughput, Downtime D) Speed, Load, Accuracy Answer: A
CMfgT Practice Exam
Answer: A Explanation: 29 CFR 1910.147 defines lockout/tagout requirements for machine safety. Question 27. The term “pitting corrosion” describes: A) Uniform material loss across a surface B) Localized, small‑deep cavities formed by aggressive ions C) Corrosion at crevices between components D) Galvanic corrosion between dissimilar metals Answer: B Explanation: Pitting is a localized form of corrosion that produces small, deep pits. Question 28. In a CNC turning operation, the term “feed rate” is most directly related to: A) Spindle speed (RPM) B) Cutting depth C) Tool nose radius D) Distance the tool advances per revolution Answer: D Explanation: Feed rate in turning is the linear distance the tool moves per spindle revolution. Question 29. Which of the following is a common surface‑hardening process that diffuses carbon into low‑carbon steel? A) Nitriding B) Carburizing C) Induction hardening D) Flame hardening
CMfgT Practice Exam
Answer: B Explanation: Carburizing introduces carbon into the surface, forming a hard case after quenching. Question 30. In statistical process control, a “run rule” is used to detect: A) Shift in process mean B) Increase in process variance only C) Random noise D) Equipment failure Answer: A Explanation: Run rules identify non‑random patterns indicating a shift or trend in the process mean. Question 31. The primary purpose of a “gauge block” set is to: A) Measure high‑speed rotating parts B) Provide a reference standard for dimensional calibration C) Detect surface roughness D) Measure temperature variations Answer: B Explanation: Gauge blocks are precision standards used to calibrate measuring equipment. Question 32. In a CNC program, the M‑code “M03” commands: A) Spindle stop B) Coolant on C) Clockwise spindle rotation
CMfgT Practice Exam
C) The shaft reaches its yield strength D) Lubrication fails Answer: B Explanation: Critical speed is the natural frequency where resonance can cause dangerous vibrations. Question 36. Which of the following best describes the function of a “heat sink” in electronic component cooling? A) Generates heat to maintain temperature B) Converts heat into electrical energy C) Increases surface area to dissipate heat to ambient air D) Stores thermal energy for later use Answer: C Explanation: Heat sinks spread heat over a larger area, enhancing convection to the surrounding air. Question 37. In the context of material failure, “creep” is most significant under which condition? A) High cyclic loading at low temperature B) Constant high stress at elevated temperature over long time C) Sudden impact loading D) Rapid temperature changes causing thermal shock Answer: B Explanation: Creep is time‑dependent deformation under sustained high stress and temperature.
CMfgT Practice Exam
Question 38. The “K-factor” in sheet‑metal bending relates: A) Bend radius to material thickness B) Neutral axis location to material thickness C) Tool clearance to punch diameter D) Springback to bend angle Answer: B Explanation: K‑factor = distance from neutral axis to inner bend surface divided by material thickness. Question 39. Which of the following is a primary benefit of implementing a Manufacturing Execution System (MES)? A) Reducing raw material costs directly B) Providing real‑time shop‑floor data to coordinate production activities C) Replacing all human operators with robots D) Eliminating the need for quality inspections Answer: B Explanation: MES captures real‑time production data, enabling better scheduling, tracking, and control. Question 40. In a statistical sampling plan, an “acceptance number” (c) indicates: A) The maximum number of defective items allowed in the sample for the lot to be accepted B) The total number of items sampled C) The confidence level of the test D) The probability of a Type I error Answer: A Explanation: Acceptance number defines how many defects are tolerable before rejecting a lot.
CMfgT Practice Exam
Explanation: Hall effect sensors generate a voltage proportional to magnetic field strength, useful for speed/position sensing. Question 44. Which of the following machining parameters most directly influences the surface finish (roughness) of a turned part? A) Cutting speed (RPM) B) Feed per revolution (mm/rev) C) Depth of cut D) Tool material Answer: B Explanation: Lower feed rates reduce the distance between successive tool marks, improving surface finish. Question 45. In the context of process capability, a Cp value of 1.33 indicates: A) The process spread is 1.33 times the specification width. B) The process spread fits within the specification limits with a 3‑sigma margin. C) The process is not capable. D) The process mean is centered but the spread is too large. Answer: B Explanation: Cp = (USL‑LSL)/(6σ). A Cp of 1.33 means the process spread occupies 75% of the tolerance, providing a 3‑sigma buffer. Question 46. Which of the following is a characteristic of a “safety‑rated” proximity sensor? A) It operates only at low voltage. B) It includes built‑in circuitry to meet ISO 13849 safety standards. C) It can detect non‑metallic objects.
CMfgT Practice Exam
D) It requires a shielded cable. Answer: B Explanation: Safety‑rated sensors incorporate diagnostics and redundancy to meet functional safety standards. Question 47. In a CNC lathe, the “G98” code specifies: A) Return to initial point after drilling cycle B) Cancel canned cycle C) Use of metric units D) Maximum spindle speed limit Answer: A Explanation: G98 commands the tool to return to the start point after a drilling cycle (non‑ramping). Question 48. Which of the following best describes “lean Six Sigma” integration? A) Using Six Sigma tools only after lean implementation B) Simultaneously reducing waste (lean) and variation (Six Sigma) for process improvement C) Replacing statistical analysis with visual management D) Applying lean principles exclusively to product design Answer: B Explanation: Lean Six Sigma combines waste elimination with statistical reduction of variation. Question 49. The “Burr” formed during machining is best removed by: A) Increasing cutting speed B) Using a deburring tool or abrasive process
CMfgT Practice Exam
B) Pressure loss due to compressibility C) Temperature rise D) Filtration efficiency Answer: B Explanation: Bulk modulus quantifies fluid compressibility; higher modulus means less pressure loss under load. Question 53. The primary purpose of a “go/no‑go gauge” is to: A) Measure continuous dimensions B) Verify that a part dimension is within tolerance limits quickly C) Determine surface roughness D) Calibrate CNC machines Answer: B Explanation: Go/no‑go gauges provide a pass/fail check against preset limits. Question 54. In a CNC milling program, the command “M08” activates: A) Coolant B) Spindle brake C) Tool changer D) Probe cycle Answer: A Explanation: M08 turns on the flood coolant for chip removal and temperature control. Question 55. Which of the following is a common cause of “thermal fatigue” in a component?
CMfgT Practice Exam
A) Repeated loading at constant temperature B) Rapid temperature cycling causing expansion and contraction C) Constant high temperature exposure without cycling D) Exposure to corrosive environment Answer: B Explanation: Thermal fatigue results from cyclic temperature changes that induce repeated stress. Question 56. In a CNC turning operation, the “tool nose radius” mainly influences: A) Material removal rate B) Surface finish and cutting forces C) Spindle speed selection D) Coolant flow Answer: B Explanation: Larger nose radius reduces cutting forces and improves surface finish but may affect chip flow. Question 57. Which of the following is NOT a typical function of a PLC I/O module? A) Digital input sensing B) Analog output control C) Central processing unit (CPU) execution D) Pulse width modulation (PWM) signal generation Answer: C Explanation: The CPU resides in the PLC processor; I/O modules handle signal interfacing.
