Simulation Exam

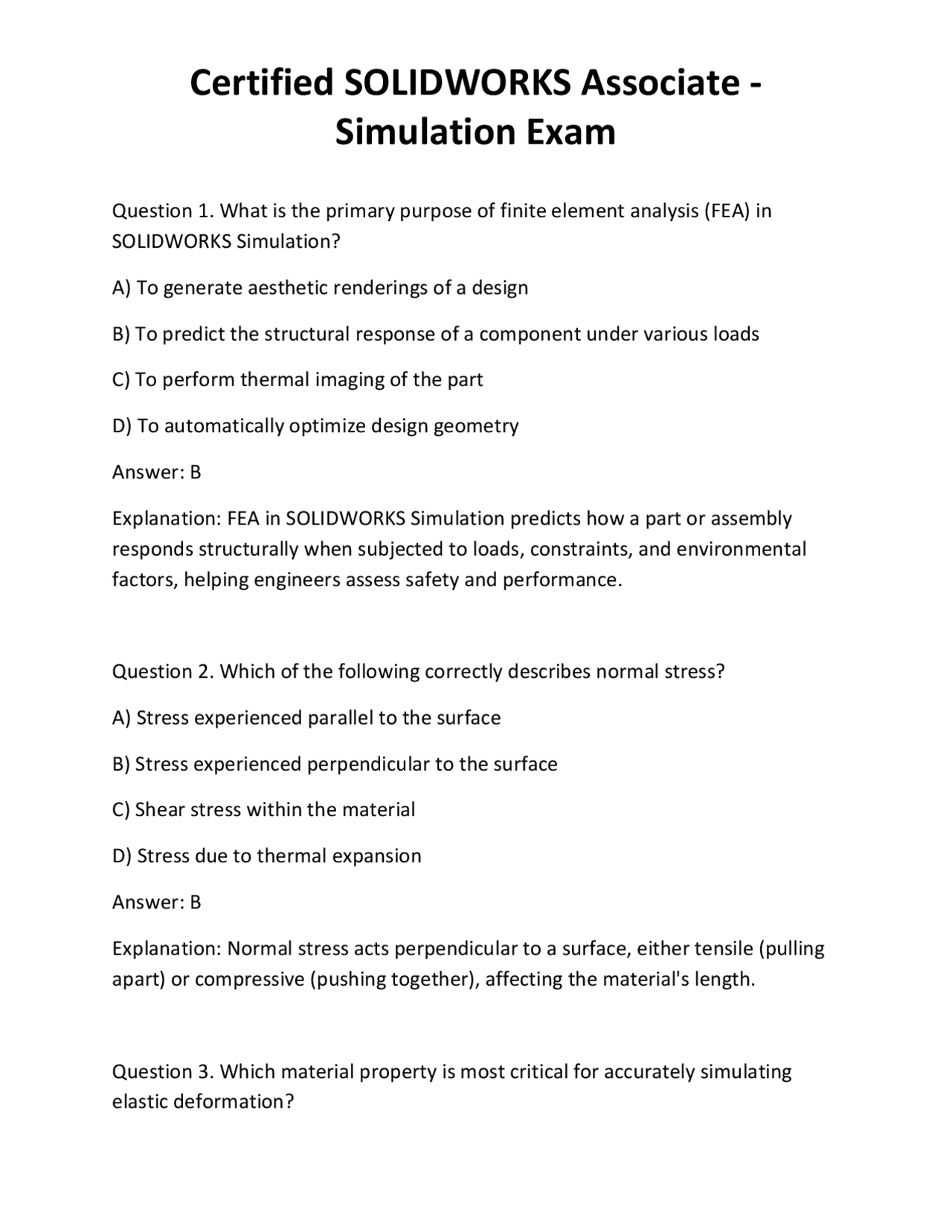

Question 1. What is the primary purpose of finite element analysis (FEA) in SOLIDWORKS Simulation? A) To generate aesthetic renderings of a design B) To predict the structural response of a component under various loads C) To perform thermal imaging of the part D) To automatically optimize design geometry Answer: B Explanation: FEA in SOLIDWORKS Simulation predicts how a part or assembly responds structurally when subjected to loads, constraints, and environmental factors, helping engineers assess safety and performance. Question 2. Which of the following correctly describes normal stress? A) Stress experienced parallel to the surface B) Stress experienced perpendicular to the surface C) Shear stress within the material D) Stress due to thermal expansion Answer: B Explanation: Normal stress acts perpendicular to a surface, either tensile (pulling apart) or compressive (pushing together), affecting the material's length. Question 3. Which material property is most critical for accurately simulating elastic deformation?
Simulation Exam
A) Poisson's Ratio B) Yield Strength C) Young's Modulus D) Tensile Strength Answer: C Explanation: Young's Modulus measures a material's stiffness and is essential for predicting elastic deformation under load. Question 4. Why is it important to define correct material properties before running a static analysis? A) To ensure aesthetic accuracy B) To accurately predict the material's response under loads C) To improve meshing speed D) To enable thermal analysis Answer: B Explanation: Correct material properties ensure the simulation accurately reflects how the material will behave under applied loads, providing reliable results. Question 5. Which of the following is an example of an isotropic material? A) Composite fiber-reinforced polymer B) Steel
Simulation Exam
Answer: B Explanation: The Frequency study type calculates the natural frequencies and mode shapes of a model, useful for vibration analysis. Question 8. Which boundary condition type is used to prevent all movement of a model's face or edge? A) Roller/Slider B) Fixed Geometry C) Force D) Pressure Answer: B Explanation: Fixed Geometry completely constrains a face or edge, preventing all degrees of freedom and simulating a rigid attachment. Question 9. When applying a load in SOLIDWORKS Simulation, which of the following is NOT a typical type of load? A) Force B) Pressure C) Material Property D) Torque Answer: C
Simulation Exam
Explanation: Material properties are not loads; loads are external forces, pressures, torques, etc., applied to the model. Question 10. How do contact sets influence assembly analysis in SOLIDWORKS Simulation? A) They define the thermal properties of components B) They specify how components interact, such as bonded or sliding contact C) They automatically generate mesh D) They assign material properties Answer: B Explanation: Contact sets define the interaction behavior between components, such as bonded, no penetration, or frictional contact. Question 11. What is the main purpose of meshing in FEA? A) To create a visual aesthetic of the model B) To subdivide the geometry into elements for numerical analysis C) To apply boundary conditions D) To define material properties Answer: B Explanation: Meshing divides the geometry into smaller elements, enabling numerical methods to approximate the solution of the physical problem.
Simulation Exam
Question 14. Which of the following plots displays the distribution of von Mises stress in a model? A) Displacement plot B) Von Mises stress plot C) Strain plot D) Factor of safety plot Answer: B Explanation: The von Mises stress plot visualizes the equivalent stress used to predict yielding in ductile materials. Question 15. How does the factor of safety (FOS) plot assist engineers? A) It shows the maximum displacement B) It indicates regions where the design may yield or fail C) It displays thermal gradients D) It visualizes natural frequencies Answer: B Explanation: The FOS plot highlights areas where the stress approaches or exceeds material yield strength, indicating potential failure zones. Question 16. Which tool is used to visualize internal stresses or displacements within a model?
Simulation Exam
A) Clip plane B) Section cut C) Probe tool D) Mesh control Answer: B Explanation: Section cuts allow internal visualization of stresses or displacements by slicing through the model. Question 17. What is the main benefit of using clip planes in post-processing? A) To simplify the mesh B) To remove features from the geometry C) To visualize internal results by slicing through the model D) To define boundary conditions Answer: C Explanation: Clip planes allow internal features and results to be viewed by slicing through the model, aiding detailed analysis. Question 18. When generating a report in SOLIDWORKS Simulation, what can be customized? A) Only the title B) Content, images, and formatting of the report
Simulation Exam
Answer: C Explanation: Design optimization aims to achieve the best possible performance with minimal weight and material usage while ensuring safety. Question 21. What is a typical pitfall when interpreting singularities in simulation results? A) They always indicate a failure in the part B) They may be numerical artifacts caused by geometry or meshing issues C) They confirm the design is optimal D) They are always accurate stress concentrations Answer: B Explanation: Singularities often arise from geometric discontinuities or meshing problems and should be carefully analyzed to avoid false failure indications. Question 22. Why is it recommended to validate simulation results with hand calculations or physical tests? A) To confirm accuracy and reliability of the simulation B) To replace the need for meshing C) To avoid setting boundary conditions D) To improve the graphical interface Answer: A
Simulation Exam
Explanation: Validation ensures the simulation's predictions are accurate and trustworthy before making critical design decisions. Question 23. Which step is NOT part of the typical workflow in a SOLIDWORKS Simulation study? A) Geometry simplification B) Meshing C) Rendering photorealistic images D) Post-processing results Answer: C Explanation: Rendering is related to visualization and aesthetics, not the simulation analysis workflow. Question 24. When setting up fixtures, which type constrains a component to prevent all degrees of freedom? A) Roller B) Fixed C) Free D) Remote load Answer: B Explanation: Fixed fixtures completely constrain the component, preventing translation and rotation.
Simulation Exam
Question 27. Which type of analysis is most appropriate for determining the buckling load of a structure? A) Static B) Frequency C) Buckling D) Thermal Answer: C Explanation: Buckling analysis predicts the critical load at which a structure may become unstable and fail due to buckling. Question 28. How does applying a remote load differ from applying a force directly? A) It applies a load at a distance, often through a reference point or connector B) It applies a load without specifying magnitude C) It only applies to thermal analysis D) It applies load uniformly across the entire model Answer: A Explanation: Remote loads simulate forces applied at a distance or through an intermediary, useful in complex assemblies. Question 29. In an assembly, what is the purpose of defining contact conditions like 'no penetration'?
Simulation Exam
A) To allow parts to pass through each other B) To prevent parts from intersecting or passing through each other C) To define thermal conductance D) To specify material properties Answer: B Explanation: 'No penetration' contact enforces that parts do not occupy the same space, accurately modeling real-world interactions. Question 30. Which study type is best suited for analyzing the natural frequencies of a structure? A) Static B) Frequency C) Buckling D) Thermal Answer: B Explanation: The Frequency study identifies the natural modes and frequencies, crucial for vibration analysis. Question 31. What does a high displacement result typically indicate in a simulation? A) Structural rigidity
Simulation Exam
D) To show natural frequencies Answer: B Explanation: The factor of safety plot compares applied stresses to yield strengths, highlighting critical regions. Question 34. In the context of optimization, which parameter is typically NOT a primary variable? A) Material properties B) Geometry dimensions C) External environmental conditions D) Mesh size Answer: C Explanation: External environmental conditions are usually fixed parameters; primary optimization variables are geometry, material, and mesh. Question 35. Why is it important to avoid singularities in models? A) They improve accuracy B) They can cause numerical instability and inaccurate results C) They simplify analysis D) They enhance mesh quality Answer: B
Simulation Exam
Explanation: Singularities can lead to unrealistic stress concentrations and numerical errors, affecting result accuracy. Question 36. Which of the following best describes the purpose of iterative design in simulation? A) To randomly change geometry until a desired shape is found B) To systematically improve the design based on analysis results C) To avoid running multiple simulations D) To increase computational time unnecessarily Answer: B Explanation: Iterative design involves refining the model based on simulation feedback to optimize performance and safety. Question 37. What is the significance of applying fixtures at appropriate locations? A) To ensure rigid body motion B) To accurately simulate real-world supports and prevent unrealistic movement C) To increase computational complexity D) To automatically generate loads Answer: B Explanation: Proper fixtures simulate realistic boundary conditions, ensuring meaningful analysis results.
Simulation Exam
Question 40. What is the main limitation of linear static analysis? A) It cannot predict failure B) It assumes small deformations and linear material behavior C) It requires thermal data D) It automatically accounts for non-linear effects Answer: B Explanation: Linear static analysis assumes small strains and linear material responses; it does not model large deformations or non-linear behaviors. Question 41. Why is it important to check the mesh quality criteria such as aspect ratio? A) To ensure aesthetic appearance B) To improve numerical stability and accuracy C) To reduce the number of elements D) To automatically generate boundary conditions Answer: B Explanation: Good mesh quality ensures stable, accurate solutions by avoiding poorly shaped elements. Question 42. Which of the following is an example of a thermal analysis in SOLIDWORKS Simulation?
Simulation Exam
A) Calculating natural frequencies B) Studying temperature distribution under heat loads C) Determining maximum shear stress D) Evaluating structural buckling Answer: B Explanation: Thermal analysis predicts temperature distribution and heat flow within a component. Question 43. In post-processing, what does a displacement plot show? A) Distribution of stress B) Deformation of the structure under load C) Material properties D) Thermal flux Answer: B Explanation: Displacement plots visualize how much and where the structure deforms due to applied loads. Question 44. Which study type is most suitable for analyzing the effect of cyclic loads? A) Static B) Frequency
