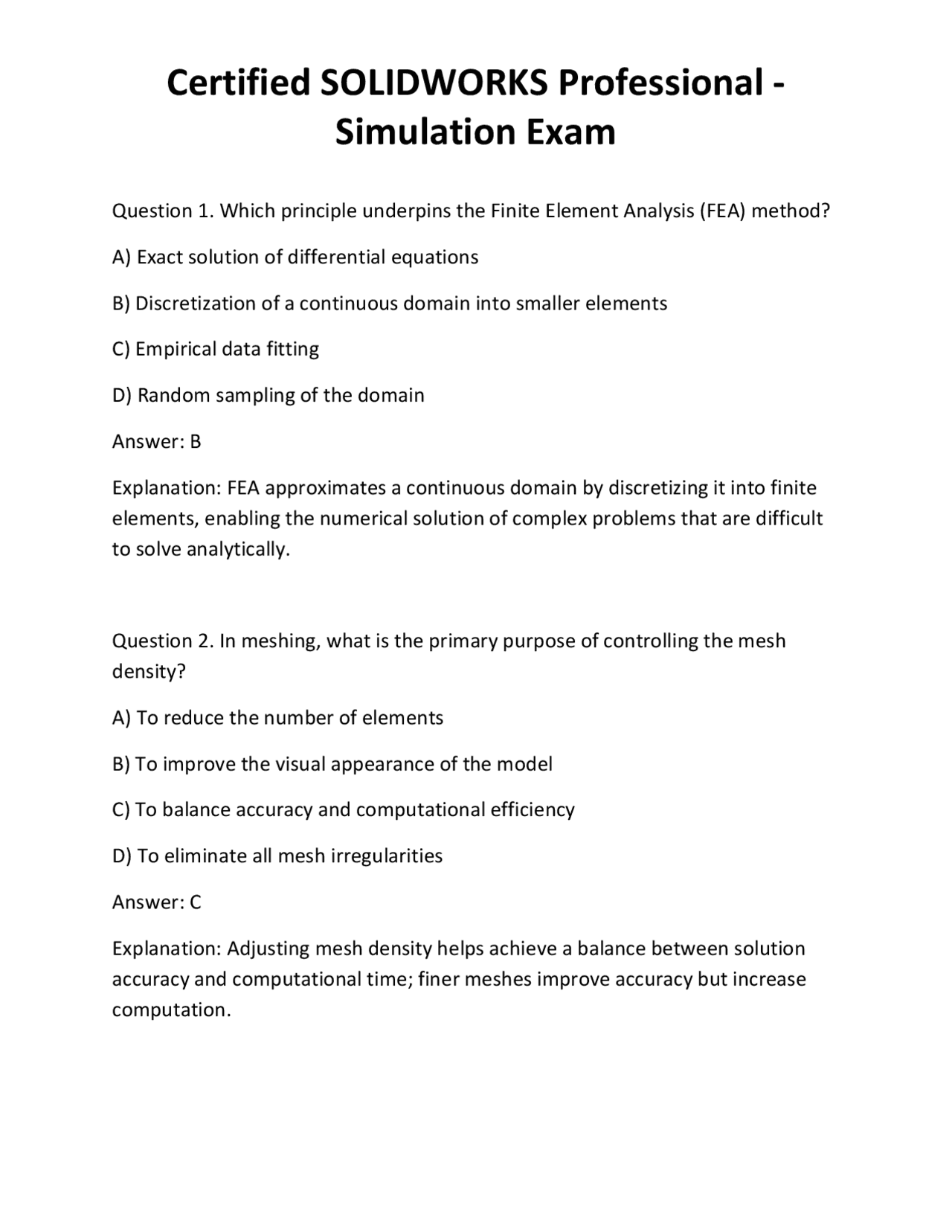

Simulation Exam
Question 1. Which principle underpins the Finite Element Analysis (FEA) method? A) Exact solution of differential equations B) Discretization of a continuous domain into smaller elements C) Empirical data fitting D) Random sampling of the domain Answer: B Explanation: FEA approximates a continuous domain by discretizing it into finite elements, enabling the numerical solution of complex problems that are difficult to solve analytically. Question 2. In meshing, what is the primary purpose of controlling the mesh density? A) To reduce the number of elements B) To improve the visual appearance of the model C) To balance accuracy and computational efficiency D) To eliminate all mesh irregularities Answer: C Explanation: Adjusting mesh density helps achieve a balance between solution accuracy and computational time; finer meshes improve accuracy but increase computation.
Simulation Exam
Question 3. Which type of element is most suitable for modeling a thin-walled pressure vessel? A) Solid elements B) Shell elements C) Beam elements D) Plate elements Answer: B Explanation: Shell elements are ideal for modeling thin-walled structures because they capture bending and membrane effects efficiently without the computational cost of solid elements. Question 4. Which material property indicates how much a material deforms elastically under load? A) Tensile strength B) Poisson’s Ratio C) Young’s Modulus D) Yield strength Answer: C Explanation: Young’s Modulus measures a material's stiffness by quantifying the ratio of stress to strain in the elastic deformation region.
Simulation Exam
A) To store material properties B) To relate nodal displacements to applied forces C) To define boundary conditions D) To visualize deformation Answer: B Explanation: The global stiffness matrix relates nodal displacements to applied forces, forming the core system of equations solved in FEA. Question 8. Which contact condition prevents penetration between two bodies and enforces bonded interaction? A) No Penetration B) Bonded C) Free D) Virtual Wall Answer: B Explanation: Bonded contact enforces a fixed relationship, preventing separation or penetration, simulating welding or gluing. Question 9. In static analysis, what does the Von Mises stress criterion help determine? A) Maximum shear stress
Simulation Exam
B) Yielding under complex loading C) Normal stress distribution D) Principal stresses Answer: B Explanation: Von Mises stress is used as a failure criterion for ductile materials, indicating when yielding occurs under combined stresses. Question 10. Which of the following best describes a design study in SOLIDWORKS Simulation? A) A static load application B) An optimization process involving multiple variables C) A thermal analysis setup D) A modal frequency extraction Answer: B Explanation: Design studies allow evaluating how changing parameters affects the design, enabling optimization like minimizing weight or maximizing safety. Question 11. What is the main purpose of a frequency analysis in SOLIDWORKS Simulation? A) To determine the static load capacity B) To identify natural frequencies and mode shapes
Simulation Exam
Answer: C Explanation: Linear buckling assumes small deformations and a linear elastic response, with stiffness unaffected by the buckling process. Question 14. Which parameter indicates the load factor at which buckling occurs? A) Buckling load B) Critical load C) Buckling load factor D) Safety factor Answer: C Explanation: The buckling load factor multiplies the applied load to reach the critical buckling condition; a factor less than 1 indicates instability. Question 15. In thermal analysis, which heat transfer mode involves energy transfer through electromagnetic waves? A) Conduction B) Convection C) Radiation D) Conduction and convection Answer: C
Simulation Exam
Explanation: Radiation involves energy transfer via electromagnetic waves, independent of a medium. Question 16. What is the main difference between steady-state and transient thermal analysis? A) Steady-state considers time-dependent changes B) Transient considers time-dependent changes C) Steady-state is only for conduction D) Transient ignores heat sources Answer: B Explanation: Transient thermal analysis models how temperature varies over time, whereas steady-state assumes constant temperatures. Question 17. When simplifying a model using symmetry, which feature should be preserved? A) The full geometry B) The boundary conditions C) The original loadings D) All small features Answer: B Explanation: Symmetry simplifications require preserving the boundary conditions and loadings consistent with the symmetry plane.
Simulation Exam
Question 20. Which of the following is an effective way to troubleshoot convergence issues in FEA? A) Increase the mesh size B) Reduce the number of load steps C) Refine the mesh and check boundary conditions D) Remove fixtures Answer: C Explanation: Refining the mesh and verifying boundary conditions improve solution stability and accuracy, aiding convergence. Question 21. Why is it important to verify simulation results? A) To ensure the model is visually appealing B) To confirm the accuracy and reliability of the results C) To reduce computation time D) To avoid setting up boundary conditions Answer: B Explanation: Verification ensures that the simulation accurately represents reality and produces reliable results. Question 22. In the SOLIDWORKS Simulation interface, what does the study tree primarily manage?
Simulation Exam
A) Material properties B) Loads and fixtures C) Simulation studies and results D) Geometry features Answer: C Explanation: The study tree organizes different simulation studies, their parameters, and results for easy management. Question 23. Which command in the Simulation Command Manager allows access to tools for applying loads, fixtures, and contacts? A) Results B) Study Tree C) Property Manager D) Simulation Tools Answer: D Explanation: The Simulation Tools in the Command Manager provide access to setup features such as loads, fixtures, and contact definitions. Question 24. How can results be effectively visualized in SOLIDWORKS Simulation? A) By printing the model
Simulation Exam
C) To apply loads D) To set boundary conditions Answer: B Explanation: Contact conditions define how bodies interact, such as bonded, no penetration, or frictional contact, affecting stress distribution. Question 27. Which type of meshing is most appropriate for analyzing a complex assembly with varying thicknesses? A) Uniform solid mesh B) Shell mesh only C) Mixed mesh with solid and shell elements D) Manual mesh only Answer: C Explanation: Mixed meshing combines different element types to accurately model regions with varying geometrical features efficiently. Question 28. In a thermal analysis, what does a heat flux plot directly indicate? A) Temperature distribution B) Rate of heat transfer across surfaces C) Displacement results D) Stress concentrations
Simulation Exam
Answer: B Explanation: Heat flux plots show the amount and direction of heat transfer per unit area across surfaces. Question 29. Which material property is crucial for modeling heat transfer in a thermal analysis? A) Young’s Modulus B) Poisson’s Ratio C) Thermal conductivity D) Shear modulus Answer: C Explanation: Thermal conductivity dictates how well a material conducts heat, essential for accurate thermal simulations. Question 30. In buckling analysis, what does a buckling mode shape illustrate? A) The deformation pattern at critical load B) The stress distribution C) The natural frequency D) The temperature gradient Answer: A
Simulation Exam
Question 33. What is the primary consideration when choosing mesh size for a stress concentration area? A) Mesh size can be coarse B) Use a finer mesh for accuracy C) Mesh size does not matter D) Use the same size as the rest of the model Answer: B Explanation: Finer mesh in stress concentration zones captures high gradients accurately, ensuring reliable results. Question 34. Which of the following best describes a factor of safety (FoS) plot in a static analysis? A) A plot showing maximum stress B) A visualization of regions where the design is safe or unsafe C) A stress-strain curve D) A displacement distribution Answer: B Explanation: FoS plots highlight areas where the safety margin is above or below the acceptable threshold, guiding design modifications.
Simulation Exam
Question 35. In frequency analysis, what does a mode shape represent? A) The deformation pattern at a specific natural frequency B) The stress distribution C) The static displacement D) The temperature distribution Answer: A Explanation: Mode shapes illustrate how the structure deforms at each natural frequency, revealing potential failure patterns. Question 36. How does increasing the mesh density affect the computational time? A) Decreases time B) Has no effect C) Increases time D) Eliminates the need for boundary conditions Answer: C Explanation: Finer meshes result in more elements and equations, increasing computation time. Question 37. Which boundary condition would best simulate a pin connection allowing rotation but preventing translation?
Simulation Exam
C) Frequency thermal D) Buckling thermal Answer: B Explanation: Transient thermal analysis models temperature changes as they evolve over time. Question 40. When using symmetry in modeling, which of the following should be true? A) Symmetry plane must be free of loads B) Symmetry boundary condition should be applied on the plane C) Symmetry is only applicable to thermal analysis D) Symmetry reduces the need for boundary conditions Answer: B Explanation: Applying symmetry boundary conditions on the symmetry plane enforces the symmetry constraints, reducing model size. Question 41. Which SOLIDWORKS feature allows for the creation of multiple analysis scenarios with different parameters? A) Study Tree B) Design Study C) Result Plot
Simulation Exam
D) Mesh Control Answer: B Explanation: Design Study enables setting up multiple scenarios to compare different parameters or configurations efficiently. Question 42. What is the primary purpose of a clipping plane in post-processing? A) To hide geometry B) To cut through the model and view internal features C) To generate mesh D) To apply boundary conditions Answer: B Explanation: Clipping planes slice through the model, allowing detailed inspection of internal results. Question 43. Which of the following best describes a shell element's application? A) Modeling solid blocks B) Representing thin-walled structures C) Simulating fluid flow D) Analyzing thermal conduction Answer: B
