Exam

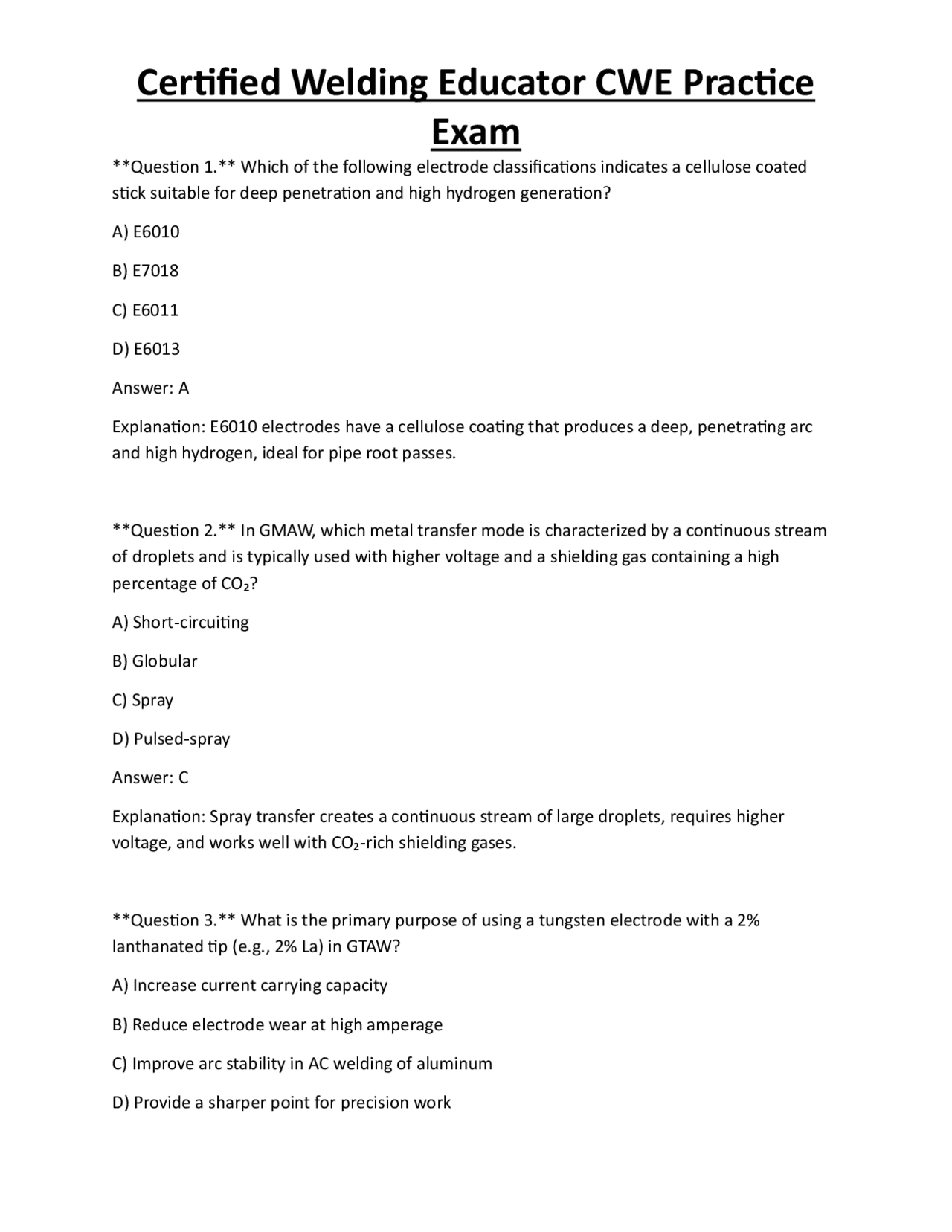

Question 1. Which of the following electrode classifications indicates a cellulose coated stick suitable for deep penetration and high hydrogen generation? A) E B) E C) E D) E Answer: A Explanation: E6010 electrodes have a cellulose coating that produces a deep, penetrating arc and high hydrogen, ideal for pipe root passes. Question 2. In GMAW, which metal transfer mode is characterized by a continuous stream of droplets and is typically used with higher voltage and a shielding gas containing a high percentage of CO₂? A) Short‑circuiting B) Globular C) Spray D) Pulsed‑spray Answer: C Explanation: Spray transfer creates a continuous stream of large droplets, requires higher voltage, and works well with CO₂‑rich shielding gases. Question 3. What is the primary purpose of using a tungsten electrode with a 2% lanthanated tip (e.g., 2% La) in GTAW? A) Increase current carrying capacity B) Reduce electrode wear at high amperage C) Improve arc stability in AC welding of aluminum D) Provide a sharper point for precision work
Exam
Answer: C Explanation: Lanthanated tungsten improves arc stability and ionization in AC welding, especially for aluminum and magnesium. Question 4. Which flux‑cored wire type requires an external shielding gas for proper operation? A) Self‑shielded FCAW B) Gas‑shielded FCAW C) Submerged arc welding (SAW) wire D) Manual metal arc (MMA) electrode Answer: B Explanation: Gas‑shielded FCAW wires contain flux but still need an external shielding gas (often CO₂ or a mix) to protect the weld pool. Question 5. In oxy‑fuel cutting, what is the primary function of the pre‑heat flame? A) To melt the metal surface before oxidation B) To provide a protective inert atmosphere C) To ignite the cutting torch automatically D) To cool the surrounding area to prevent warping Answer: A Explanation: The pre‑heat flame raises the metal temperature to its ignition point, allowing the oxygen jet to oxidize and remove material. Question 6. Which of the following best describes the plasma arc cutting (PAC) process? A) A high‑temperature, high‑velocity gas jet that melts metal without oxidation B) An electric arc that ionizes a gas, creating a plasma that cuts metal with an assist gas
Exam
Question 9. Which term refers to the region of the base metal that experiences temperature rise but does not melt during welding? A) Fusion zone B) Heat‑affected zone (HAZ) C) Weld bead D) Interpass temperature Answer: B Explanation: The HAZ is the portion of the base metal that is thermally affected without reaching the melting point. Question 10. In the iron‑carbon phase diagram, which microstructure is formed when austenite is cooled rapidly (quenched) below the eutectoid temperature? A) Pearlite B) Ferrite C) Martensite D) Bainite Answer: C Explanation: Rapid cooling (quenching) transforms austenite into martensite, a hard, supersaturated body‑centered tetragonal structure. Question 11. What is the primary effect of a high preheat temperature on the weldability of high‑strength low‑alloy (HSLA) steels? A) Increases hardness of the weld metal B) Reduces the risk of hydrogen‑induced cracking C) Promotes formation of coarse grain structure in HAZ D) Eliminates the need for post‑weld heat treatment
Exam
Answer: B Explanation: Preheating reduces cooling rates and hydrogen diffusion, thereby minimizing hydrogen‑induced cracking in HSLA steels. Question 12. Which stainless steel classification is austenitic and typically requires a minimum of 304 grade filler metal for welding? A) 410 B) 430 C) 304 D) 410S Answer: C Explanation: 304 stainless steel is an austenitic alloy; compatible filler metals are also austenitic, commonly 304 or 308L. Question 13. What is the main cause of weld distortion in a large plate welded with a single‑pass butt joint? A) Excessive shielding gas flow B) Unequal heating and cooling cycles on opposite sides of the joint C) Over‑tightening of clamps during welding D) Use of a low‑amperage power source Answer: B Explanation: Unequal heating/cooling creates residual stresses that cause the plate to warp or distort. Question 14. Which welding sequence technique helps minimize distortion in a rectangular frame? A) Weld all four sides sequentially clockwise
Exam
Question 17. According to AWS D1.1, what is the maximum allowable length of an undercut in a fillet weld for structural steel? A) 1.5 mm B) 3.0 mm C) 6.0 mm D) 9.0 mm Answer: B Explanation: AWS D1.1 limits undercut in fillet welds to 3 mm (1/8 in) to ensure adequate weld strength. Question 18. Which NDE method is most effective for detecting surface‑breaking cracks in ferromagnetic materials? A) Radiographic testing (RT) B) Ultrasonic testing (UT) C) Magnetic particle testing (MT) D) Penetrant testing (PT) Answer: C Explanation: MT uses magnetic fields to reveal surface or near‑surface discontinuities in ferromagnetic parts. Question 19. In radiographic testing, what does “film density” refer to? A) Thickness of the weld bead B) Amount of X‑ray exposure recorded on the film C) Size of the radiation source D) Distance between the source and the object Answer: B
Exam
Explanation: Film density indicates the degree of exposure; too high or too low density can obscure defects. Question 20. Which destructive test method provides a measure of a material’s resistance to impact loading at low temperatures? A) Tensile test B) Hardness test C) Charpy V‑notch test D) Bend test Answer: C Explanation: The Charpy V‑notch test measures the energy absorbed by a specimen during a high‑rate impact, indicating toughness. Question 21. When developing a welding curriculum, which level of Bloom’s Taxonomy focuses on the ability to apply welding theory in a practical demonstration? A) Remembering B) Understanding C) Applying D) Analyzing Answer: C Explanation: The “Applying” level requires learners to use knowledge in concrete situations, such as performing a weld. Question 22. In instructional delivery, which teaching aid is most effective for demonstrating the arc length adjustment in GTAW? A) PowerPoint slides B) Video recording of a previous weld
Exam
Question 25. Which ventilation method is most effective for controlling fumes generated when welding galvanized steel? A) General dilution ventilation only B) Local exhaust ventilation (LEV) positioned near the welding arc C) Opening windows and doors D) Using a larger shielding gas flow rate Answer: B Explanation: LEV captures fumes at the source, providing the highest protection against zinc‑oxide fumes from galvanized steel. Question 26. What is the primary hazard associated with welding stainless steel without proper ventilation? A) Carbon monoxide poisoning B) Nickel and chromium oxide fume inhalation, which can cause metal fume fever C) Excessive UV radiation exposure D) Increased risk of electric shock Answer: B Explanation: Stainless steel welding releases nickel and chromium oxides; inhalation can cause respiratory irritation and metal fume fever. Question 27. Which PPE component provides protection against the intense infrared and ultraviolet radiation produced by the welding arc? A) Leather welding gloves B) Welding helmet with appropriate shade filter C) Steel‑toed boots D) Earplugs
Exam
Answer: B Explanation: The helmet’s filter shade shields the eyes and face from harmful arc radiation. Question 28. When storing compressed gas cylinders, which practice is essential for safety? A) Storing them horizontally to save space B) Keeping them in a well‑ventilated area, upright, with valve caps in place C) Painting them any color for identification D) Storing them near open flames for easy access Answer: B Explanation: Cylinders must be stored upright, with caps secured, in ventilated areas to prevent leaks and hazards. Question 29. In a preventive maintenance schedule for welding equipment, which task should be performed monthly? A) Complete replacement of the transformer B) Calibration of voltage and current output using a certified meter C) Re‑wiring of the entire power distribution panel D) Painting the machine housing Answer: B Explanation: Regular calibration ensures the welding machine delivers accurate power settings and maintains weld quality. Question 30. Which record is required to demonstrate a student’s competency in a specific welding process for certification purposes? A. Attendance sheet B. Welder Performance Qualification (WPQ) test record
Exam
Question 33. In GTAW of aluminum, why is AC polarity preferred over DC? A) AC provides cleaning action through electrode polarity reversal B) AC reduces the need for shielding gas C) AC allows higher voltage without increasing current D) AC eliminates the need for a tungsten electrode Answer: A Explanation: AC alternates electrode polarity, providing a cleaning (positive) and heating (negative) action that removes oxide layers on aluminum. Question 34. Which type of FCAW wire contains a metallic shielding gas‑generating core and must be used with an external gas supply? A) Self‑shielded (no‑gas) B) Gas‑shielded (dual‑shield) C) Submerged arc welding (SAW) wire D) Manual metal arc (MMA) electrode Answer: B Explanation: Dual‑shield FCAW wires have a flux core that produces gas but still require an external shielding gas for full protection. Question 35. During oxy‑fuel welding of steel, which flame type provides the highest temperature for welding? A) Carburizing (acetylene‑rich) flame B) Neutral flame (balanced O₂/acetylene) C) Oxidizing flame (excess O₂) D) Flame with added propane Answer: B
Exam
Explanation: A neutral flame has a balanced O₂/acetylene ratio, delivering the maximum temperature (~3,200 °F) for welding steel. Question 36. Which plasma arc cutting parameter most directly influences the kerf width? A) Torch travel speed B) Type of shielding gas C) Electrodes’ amperage setting D) Diameter of the plasma nozzle Answer: D Explanation: The nozzle diameter determines the plasma jet size, directly affecting kerf width. Question 37. In brazing, what is the primary role of flux? A) Act as a filler metal B) Clean and protect the metal surfaces from oxidation C) Increase the melting point of the joint D) Provide structural strength to the joint Answer: B Explanation: Flux removes oxides and prevents further oxidation during heating, allowing the filler metal to wet the base metals. Question 38. According to AWS symbols, what does a “U” shape on a groove symbol indicate? A) Single‑V groove B) Double‑U groove (double‑V) C) U‑groove (U‑shaped) D) Fillet weld
Exam
B) Decreases hardness by promoting ferrite and pearlite formation C) Has no effect on hardness D) Causes formation of brittle carbides only Answer: B Explanation: Slow cooling allows transformation to softer phases (ferrite/pearlite), reducing HAZ hardness. Question 42. Which post‑weld heat treatment is most commonly applied to reduce residual stress in thick carbon steel welds? A) Annealing at 600 °C for 1 hour B) Normalizing at 900 °C followed by air cooling C) Stress‑relief tempering at 550‑ 650 °C D) Quenching in oil from 800 °C Answer: C Explanation: Stress‑relief tempering at 550‑ 650 °C reduces residual stresses without significantly altering microstructure. Question 43. Which carbon steel classification is most susceptible to hydrogen cracking when welded without preheat? A) AISI 1018 (low‑carbon) B) AISI 1045 (medium‑carbon) C) AISI 1080 (high‑carbon) D) AISI 304 (austenitic stainless) Answer: C Explanation: High‑carbon steels like 1080 have high hardenability and are prone to hydrogen‑induced cracking if not preheated.
Exam
Question 44. In aluminum alloy welding, which alloy series is generally considered non‑heat‑treatable and therefore more weldable? A) 2xxx series (Al‑Cu) B) 6xxx series (Al‑Mg‑Si) C) 7xxx series (Al‑Zn) D) 5xxx series (Al‑Mg) Answer: D Explanation: The 5xxx series (Al‑Mg) are non‑heat‑treatable, retain good mechanical properties after welding, and are widely used. Question 45. Which phenomenon describes the contraction of metal as it cools from the welding temperature, leading to tensile residual stresses? A) Thermal expansion B) Shrinkage stress C) Grain growth D) Phase transformation Answer: B Explanation: Shrinkage stresses develop as the weld and surrounding metal contract during cooling, creating tensile residual stresses. Question 46. Which welding technique is most effective for minimizing distortion in a thin‑walled tube? A) Continuous bead around the circumference B) Back‑step welding (alternating short beads) C) High‑heat input welding with large beads
Exam
A) Porosity B) Undercut C) Overlap D) Crater crack Answer: B Explanation: Undercut appears as a groove or depression next to the weld toe, reducing cross‑sectional area. Question 50. Penetrant testing (PT) is most suitable for detecting which type of defect? A) Subsurface volumetric flaws B) Surface‑breaking cracks and porosity C) Internal porosity in thick sections D) Magnetic particles in ferrous parts Answer: B Explanation: PT uses dye to reveal surface‑breaking discontinuities, making it ideal for detecting cracks, seams, and surface porosity. Question 51. Magnetic particle testing (MT) requires the test specimen to be: A) Non‑magnetic B) Ferromagnetic and free of residual magnetism C) Conductive to electricity D) Made of aluminum or copper Answer: B Explanation: MT works on ferromagnetic materials; the specimen must be demagnetized before testing to avoid false indications.
Exam
Question 52. In ultrasonic testing (UT), what does the “A‑scan” display represent? A) A visual image of the weld cross‑section B) A graph of echo amplitude versus time (depth) C) A color‑coded map of flaw locations D) A digital photograph of the weld surface Answer: B Explanation: An A‑scan shows amplitude on the vertical axis and time (or depth) on the horizontal axis, indicating flaw reflections. Question 53. Which hardness test method uses a diamond indenter and is commonly applied to weld HAZ evaluation? A) Rockwell B) Brinell C) Vickers D) Shore Answer: C Explanation: The Vickers test uses a diamond pyramid indenter and provides precise hardness values for small areas like the HAZ. Question 54. When preparing a tensile test specimen from a welded plate, which region should be positioned in the gauge length to evaluate weld strength? A. Base metal only B. Heat‑affected zone only C. Entire weld joint (including filler) D. Only the weld bead surface Answer: C
