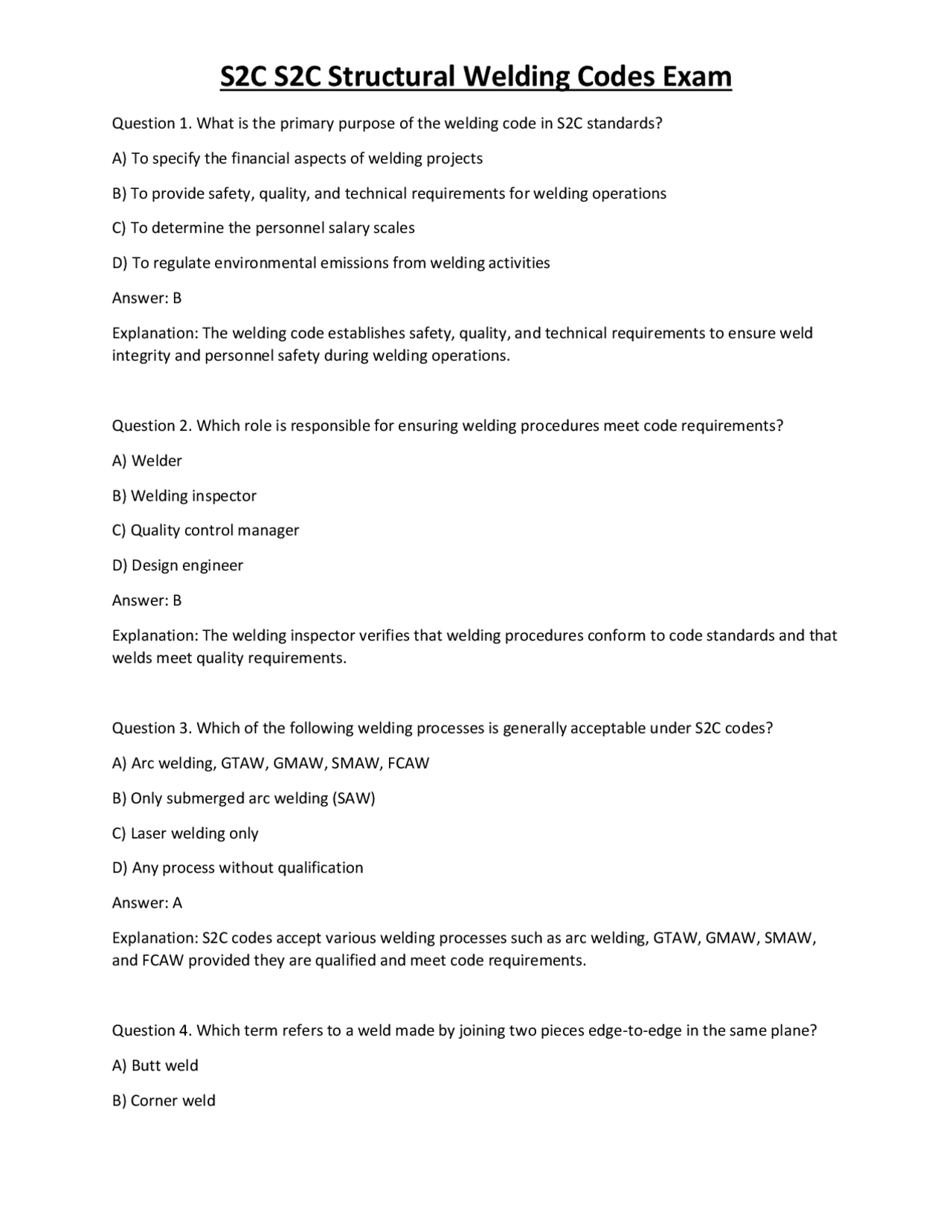

Question 1. What is the primary purpose of the welding code in S2C standards? A) To specify the financial aspects of welding projects B) To provide safety, quality, and technical requirements for welding operations C) To determine the personnel salary scales D) To regulate environmental emissions from welding activities Answer: B Explanation: The welding code establishes safety, quality, and technical requirements to ensure weld integrity and personnel safety during welding operations. Question 2. Which role is responsible for ensuring welding procedures meet code requirements? A) Welder B) Welding inspector C) Quality control manager D) Design engineer Answer: B Explanation: The welding inspector verifies that welding procedures conform to code standards and that welds meet quality requirements. Question 3. Which of the following welding processes is generally acceptable under S2C codes? A) Arc welding, GTAW, GMAW, SMAW, FCAW B) Only submerged arc welding (SAW) C) Laser welding only D) Any process without qualification Answer: A Explanation: S2C codes accept various welding processes such as arc welding, GTAW, GMAW, SMAW, and FCAW provided they are qualified and meet code requirements. Question 4. Which term refers to a weld made by joining two pieces edge-to-edge in the same plane? A) Butt weld B) Corner weld
C) T-joint weld D) Fillet weld Answer: A Explanation: A butt weld joins two pieces aligned in the same plane, typically end-to-end. Question 5. What is the primary difference between a fillet weld and a groove weld? A) Fillet welds are used only on stainless steel B) Groove welds are made in a prepared groove between parts, while fillet welds are applied in corners or T-joints C) Fillet welds require no qualification D) Groove welds are always stronger than fillet welds Answer: B Explanation: Groove welds involve preparing a groove between parts to be joined, whereas fillet welds are applied in corners or T-joints without a groove. Question 6. Which welding position is considered the most challenging for weld quality? A) Flat position B) Horizontal position C) Vertical position D) Overhead position Answer: D Explanation: The overhead position is most challenging due to gravity's effect, making control and weld quality more difficult. Question 7. What is the significance of effective throat in a fillet weld? A) It determines the weld's aesthetic appearance B) It is the minimum thickness of the weld metal that resists shear forces C) It indicates the weld's length D) It measures the distance from the weld surface to the root Answer: B
Question 11. What is the purpose of preheating before welding? A) To accelerate cooling after welding B) To reduce the risk of cracking and control thermal stresses C) To make the base metal softer for welding D) To remove surface contaminants Answer: B Explanation: Preheating reduces thermal gradients, decreasing the risk of cracking and residual stresses in the weld. Question 12. Which inspection is performed during the welding process to catch defects early? A) Visual Inspection (VT) B) Radiographic Testing (RT) C) During-welding inspection (e.g., visual and NDE) D) Post-weld heat treatment inspection Answer: C Explanation: During-welding inspection involves monitoring the process to identify and correct defects in real-time. Question 13. Which nondestructive testing method uses magnetic fields to detect surface and subsurface discontinuities? A) Ultrasonic Testing (UT) B) Magnetic Particle Testing (MT) C) Radiographic Testing (RT) D) Penetrant Testing (PT) Answer: B Explanation: Magnetic Particle Testing detects surface and near-surface flaws in ferromagnetic materials using magnetic fields and particles. Question 14. What is the main purpose of visual inspection (VT) in welding? A) To assess weld surface appearance and detect surface defects
B) To measure weld hardness C) To evaluate weld chemical composition D) To perform tensile testing on welds Answer: A Explanation: Visual inspection assesses weld geometry, surface defects, and compliance with specifications. Question 15. Which type of NDE is most suitable for detecting internal discontinuities in welds? A) Visual Inspection B) Ultrasonic Testing (UT) C) Magnetic Particle Testing (MT) D) Penetrant Testing (PT) Answer: B Explanation: Ultrasonic Testing is effective for internal flaw detection within welds. Question 16. What is a key requirement for stud welding procedure qualification? A) Aesthetic appearance of the welds B) Mechanical testing such as pull-out or bend tests C) Visual inspection only D) No testing necessary if process is familiar Answer: B Explanation: Mechanical tests like pull-out or bend tests verify the strength and quality of stud welds during qualification. Question 17. Which of the following is a common cause of porosity in welds? A) Excessive preheating B) Contaminated base metal or improper shielding C) Excessive welding speed D) Too much heat input leading to fusion
Question 21. What does the term "fit-up" refer to in welding fabrication? A) The process of selecting filler metal B) The correct positioning and alignment of parts before welding C) The welding technique used D) The type of welding current used Answer: B Explanation: Fit-up involves aligning and assembling parts accurately before welding to ensure proper joint geometry. Question 22. Which welding process is most suitable for high-quality, precise welds in thin materials? A) Gas Tungsten Arc Welding (GTAW) B) Shielded Metal Arc Welding (SMAW) C) Submerged Arc Welding (SAW) D) Flux-Cored Arc Welding (FCAW) Answer: A Explanation: GTAW, also known as TIG welding, provides high precision and quality, especially for thin materials. Question 23. Which of the following best describes the purpose of a weld symbol in drawings? A) To specify the color of the weld B) To communicate weld type, size, and location to the welder C) To indicate the time required for welding D) To show the weld’s electrical requirements Answer: B Explanation: Weld symbols convey essential information about weld type, size, length, and location to ensure proper fabrication. Question 24. What is the primary reason for controlling distortion during welding? A) To improve weld aesthetics B) To maintain dimensional accuracy and structural integrity
C) To reduce welding time D) To minimize the amount of filler metal used Answer: B Explanation: Controlling distortion ensures the final structure maintains its designed dimensions and performance. Question 25. Which of the following is a common cause of lack of fusion in a weld? A) Excessive preheating B) Insufficient heat input or improper technique C) Use of incompatible filler metal D) Excessive shielding gas flow Answer: B Explanation: Lack of fusion occurs when weld metal does not properly fuse with the base metal, often due to inadequate heat or improper technique. Question 26. Which qualification is necessary for a welding inspector to perform acceptance testing? A) Certification as a Certified Welding Inspector (CWI) B) A degree in civil engineering C) Experience only, no certification needed D) A license to operate heavy machinery Answer: A Explanation: Certification as a CWI or equivalent ensures the inspector has the knowledge and authority to perform acceptance testing. Question 27. Which of the following is an advantage of using prequalified WPSs? A) They eliminate the need for inspection B) They simplify approval processes since they meet standard requirements C) They are only applicable to stainless steel D) They do not require any documentation Answer: B
Question 31. What is the primary purpose of a welder’s qualification test? A) To verify the welder’s ability to produce welds that meet code standards B) To determine the welder’s salary level C) To test the welding equipment’s electrical capacity D) To assess the welder’s physical fitness Answer: A Explanation: Qualification tests confirm that a welder can produce welds that meet specified code and quality standards. Question 32. Which of the following is an example of a non-prequalified joint? A) A standard butt joint in carbon steel with known geometry B) A complex joint with multiple passes and special preparations C) A fillet weld in a standard T-joint in accordance with prequalified procedures D) A joint made with a process and variables listed in the code’s prequalified list Answer: B Explanation: Complex joints with unique geometry or variables outside prequalified conditions require qualification by testing. Question 33. Which type of weld defect is characterized by a crater or a hole at the weld toe? A) Undercut B) Porosity C) Crater crack or crater defect D) Lack of fusion Answer: C Explanation: Crater defects are small holes or cracks at the weld termination point, often caused by improper termination or cooling. Question 34. Why is proper cleaning essential before welding? A) To improve electrical conductivity B) To prevent contamination, porosity, and inclusions
C) To make the weld look shiny D) To reduce the welding time significantly Answer: B Explanation: Proper cleaning removes contaminants like oil, rust, and paint, preventing defects such as porosity and inclusions. Question 35. Which of the following is a typical requirement for welder qualification? A) Welding in all positions without restrictions B) Producing test welds that meet specified acceptance criteria C) Completing a training course only D) Operating welding equipment for at least 8 hours continuously Answer: B Explanation: Welders must produce test welds that meet code-defined acceptance standards to qualify for specific welding positions and procedures. Question 36. What is the main concern when welding with high heat input? A) Increased risk of distortion and residual stresses B) Reduced weld strength C) Excessive cooling D) Poor visual appearance Answer: A Explanation: High heat input can cause distortion, residual stresses, and metallurgical changes that affect weld integrity. Question 37. Which of the following is a typical cause of cracking in welds? A) Proper preheating and post-weld heat treatment B) Rapid cooling and high residual tensile stresses C) Use of appropriate filler metals D) Adequate welding technique and process control Answer: B
Question 41. Which factor most influences the selection of welding process? A) Material type and thickness B) The color of the weld C) The project’s location D) The age of the welder Answer: A Explanation: Material type, thickness, and application determine the most suitable welding process for quality and efficiency. Question 42. Which welding process typically produces the highest quality welds in critical applications? A) Gas Tungsten Arc Welding (GTAW) B) Shielded Metal Arc Welding (SMAW) C) Flux-Cored Arc Welding (FCAW) D) Gas Metal Arc Welding (GMAW) Answer: A Explanation: GTAW (TIG) produces high-quality, precise welds suitable for critical applications due to its control and clean welds. Question 43. Which of the following is a common cause of incomplete fusion? A) Excessive preheating B) Insufficient heat input or improper technique C) Using the wrong filler metal D) Excessive shielding gas flow Answer: B Explanation: Incomplete fusion results from inadequate heat or improper technique, preventing proper bonding. Question 44. Which of the following is a key aspect of welder qualification testing? A) Achieving a certain weld appearance B) Producing welds that meet specified mechanical and visual acceptance criteria
C) Completing a written exam only D) Passing a background check Answer: B Explanation: Welding qualification tests verify the welder’s ability to produce code-compliant welds with required properties. Question 45. What does the term "weld penetration" refer to? A) The depth of weld metal deposited into the joint B) The width of the weld bead on the surface C) The surface roughness of the weld D) The color change in the weld area Answer: A Explanation: Penetration measures how deeply the weld metal fuses into the base metal, affecting strength and integrity. Question 46. Which of the following is an advantage of using continuous welds over intermittent welds? A) Better load distribution and strength B) Easier inspection C) Less material used D) Faster welding process only in thin materials Answer: A Explanation: Continuous welds provide uniform load transfer, increasing structural strength and reducing stress concentrations. Question 47. What is a typical cause of undercut in a weld? A) Excessive heat input causing melting of the base metal edges B) Insufficient welding speed leading to poor fusion C) Improper electrode angle or travel speed D) Too much filler metal added Answer: C
Question 51. What is the main reason for performing a radiographic test (RT)? A) To detect internal weld discontinuities such as porosity, inclusions, or cracks B) To evaluate weld surface finish C) To measure the hardness of the weld D) To assess the weld’s aesthetic appearance Answer: A Explanation: RT provides internal imaging to identify internal flaws that are not visible externally. Question 52. Which of the following is NOT a typical responsibility of a certified welding inspector (CWI)? A) Verifying welds meet code and project specifications B) Approving weld procedures and welder qualifications C) Performing destructive testing of welds D) Conducting visual and NDE inspections Answer: C Explanation: CWIs do not perform destructive tests; they oversee inspection and compliance activities. Question 53. What is the key purpose of a weld procedure qualification record (PQR)? A) To document the actual welding data and test results for a specific procedure B) To list the project budget C) To record the welder’s personal information D) To specify the project timeline Answer: A Explanation: The PQR records welding parameters and test results that validate the WPS’s suitability for production. Question 54. Which process is most suitable for welding thin stainless steel sheets with high aesthetic quality? A) GTAW (TIG)
B) SMAW (Stick) C) FCAW (Flux-Cored Arc Welding) D) GMAW (MIG) with spray transfer Answer: A Explanation: GTAW offers precise control and produces clean, aesthetically pleasing welds on thin materials. Question 55. What is the main purpose of a weld map or weld diagram? A) To locate and identify welds for inspection, record keeping, and traceability B) To show the electrical wiring diagram C) To plan the project schedule D) To indicate the color coding of welds Answer: A Explanation: Weld maps provide visual documentation of weld locations and details for quality assurance. Question 56. Which of the following is a typical cause of hydrogen-induced cracking in welds? A) Excessive preheat and moisture presence B) Insufficient heat input C) Excessive cooling rate and high hydrogen content in the weld metal D) Use of incompatible filler metals Answer: C Explanation: Hydrogen-induced cracking occurs from rapid cooling and high hydrogen levels, leading to internal cracking. Question 57. Which of the following best describes the term "fillet weld"? A) A weld made in a corner joint to join two surfaces at a right angle B) A weld that joins two pieces end-to-end in the same plane C) A weld made in a groove prepared in the base metal D) A weld used only in aluminum structures
Question 61. Which of the following is a typical reason for weld cracking? A) Proper preheating and post-weld heat treatment B) Rapid cooling and high residual tensile stresses C) Use of recommended filler metals D) Correct welding parameters Answer: B Explanation: Rapid cooling and residual tensile stresses are primary causes of weld cracking. Question 62. What is the main role of a welder’s qualification test record? A) To prove the welder’s ability to produce code-compliant welds B) To record the time spent on each weld C) To document the project schedule D) To determine the cost of welding materials Answer: A Explanation: Qualification records certify that the welder can produce welds meeting specified standards. Question 63. Which of the following is an acceptable method to repair a weld defect such as porosity? A) Grinding out the defect and rewelding in accordance with code B) Filling the porosity with adhesive C) Painting over the defect D) Bending the component to close the porosity Answer: A Explanation: Grinding out and re-welding the defect is a standard repair method, ensuring defect removal and proper fusion. Question 64. What is the primary purpose of a weld procedure specification (WPS)? A) To define how the welding process must be performed to meet code requirements B) To specify the project budget
C) To list the project team members D) To record the project timeline Answer: A Explanation: The WPS provides detailed instructions for welding to ensure consistent, compliant welds. Question 65. Which nondestructive testing method is most suitable for detecting surface-breaking discontinuities like cracks? A) Visual Testing (VT) B) Ultrasonic Testing (UT) C) Magnetic Particle Testing (MT) D) Radiographic Testing (RT) Answer: C Explanation: MT is effective for detecting surface and near-surface flaws like cracks in ferromagnetic materials. Question 66. What is the purpose of a welder’s qualification in terms of weld positions? A) To ensure the welder can produce acceptable welds in specified positions such as flat, horizontal, vertical, and overhead B) To restrict the welder to only flat position welding C) To certify the welder for only one position D) To allow the welder to weld without supervision in all positions without testing Answer: A Explanation: Qualification ensures the welder can produce quality welds in the required positions specified in the scope. Question 67. Which of the following best describes "distortion" in welding? A) Unintended deformation of the workpiece caused by uneven heating and cooling B) Excessive weld metal deposition C) The aesthetic unevenness of the weld surface D) A defect caused by contamination
