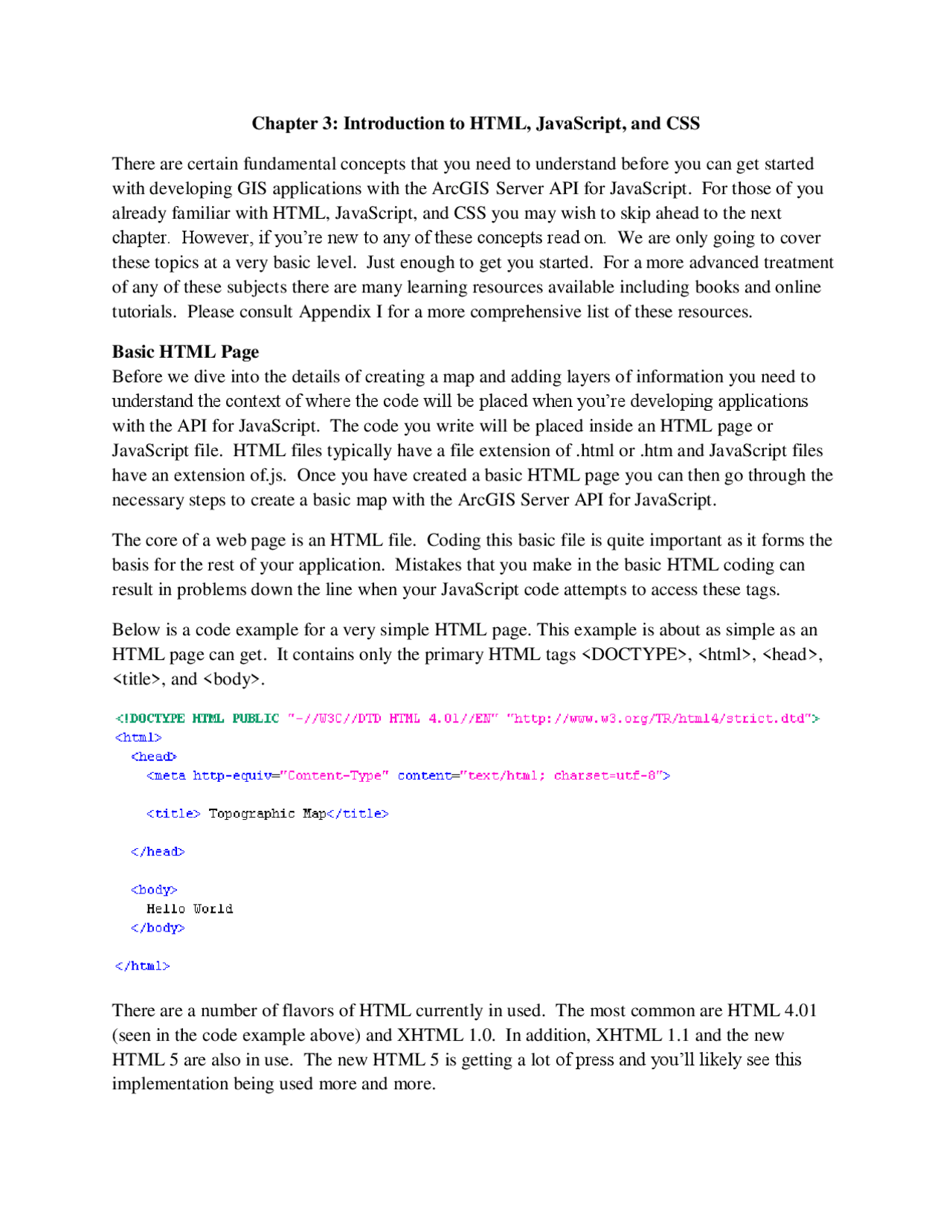

Chapter 3: Introduction to HTML, JavaScript, and CSS
There are certain fundamental concepts that you need to understand before you can get started with developing GIS applications with the ArcGIS Server API for JavaScript. For those of you already familiar with HTML, JavaScript, and CSS you may wish to skip ahead to the next chapter. However, if you‟re new to any of these concepts read on. We are only going to cover these topics at a very basic level. Just enough to get you started. For a more advanced treatment of any of these subjects there are many learning resources available including books and online tutorials. Please consult Appendix I for a more comprehensive list of these resources.
Basic HTML Page Before we dive into the details of creating a map and adding layers of information you need to understand the context of where the code will be placed when you‟re developing applications with the API for JavaScript. The code you write will be placed inside an HTML page or JavaScript file. HTML files typically have a file extension of .html or .htm and JavaScript files have an extension of.js. Once you have created a basic HTML page you can then go through the necessary steps to create a basic map with the ArcGIS Server API for JavaScript.
The core of a web page is an HTML file. Coding this basic file is quite important as it forms the basis for the rest of your application. Mistakes that you make in the basic HTML coding can result in problems down the line when your JavaScript code attempts to access these tags.
Below is a code example for a very simple HTML page. This example is about as simple as an HTML page can get. It contains only the primary HTML tags , , , , and <body>.
There are a number of flavors of HTML currently in used. The most common are HTML 4. (seen in the code example above) and XHTML 1.0. In addition, XHTML 1.1 and the new HTML 5 are also in use. The new HTML 5 is getting a lot of press and you‟ll likely see this implementation being used more and more.
DOCTYPE
The first line of your HTML page will contain the DOCTYPE. This is used to tell the browser how the HTML should be interpreted. The two most common DOCTYPEs are HTML 4. Strict and XHTML 1.0 Strict:
HTML 4.01 Strict
XHTML 1.0 Strict
Primary Tags At a minimum all your web pages will need to contain the , , and tags. The tag defines the whole HTML document. All other tags must be placed inside this tag. Tags that define how the web page will appear in the browser are placed inside the tag. For instance, your mapping applications will contain a tag inside the tag that is used as a container for displaying the map.
Loading this HTML page in a browser would produce the content you see in the figure below. Most of the ArcGIS Server API for JavaScript code that you write will be placed between the tags and within a
Figure 13: W3C Validator
Assuming that your HTML code successfully validates you will get a nice screen with a green message indicating a successful validation.
Figure 14: Successful Validation
On the other hand it will identify any problems with a red error message. Errors are described in detail which makes it easier to correct problems. Often a single error can lead to many other errors so it is not uncommon to see a long list of error items. Don‟t panic if this is the case. Fixing one error often resolves many others.
data value. At a lower level, these variables are areas of space carved out in a computer‟s memory that store data.
You can think of a variable as a box that has a name and which contains some sort of data. When we initially create the variable it is empty until data is assigned. Basically, variables give us the ability to store and manipulate data. In the figure below we create a variable called „ssn‟. Initially this variable is empty but is then assigned a value of „467-63-6732‟. The data value assigned to a variable can be of various types including numbers, strings, booleans, objects, and arrays.
Figure 16: Creating a Variable
In JavaScript, variables are declared with the „var‟ keyword. In general, the names that you assign to your variables are completely up to you. However, there are certain rules that you need to follow when creating a variable. Variables can contain both text and numbers but should never start with a number. Always start your variable name with a letter or underscore. In addition, spaces are not allowed within variable names nor are special characters such as percent signs and ampersands. Other than that you are free to create variable names as you wish but you should try to assign variable names that describe the data that the variable will be assigned. It is also perfectly legal to declare multiple variables with the same „var‟ keyword, and you can also combine variable declaration with data assignment as seen in the examples seen below.
var i = 10; var j = 20; var k = 30;
JavaScript is Case-Sensitive One very important point that I need to make is that JavaScript is a case-sensitive language and you need to be very careful about this because it can introduce some difficult to track down bugs in your code. All variables, keywords, functions, and identifiers must be typed with a consistent capitalization of letters. This gets even more confusing when you consider that HTML is not case sensitive. This tends to be a stumbling block for new JavaScript developers. Below I have created three variables, all with the same spelling, but because they do not follow the same capitalization pattern you end up with three different variables.
var myName = „Eric‟; var myname = „Eric‟; var MyName = „Eric‟;
Variable Data Types JavaScript supports various types of data that can be assigned to your variables. Unlike other strongly typed languages like .NET or C++, JavaScript is a loosely typed language. What this means is that you don‟t have to specify the type of data that will occupy your variable. The JavaScript interpreter does this for you on the fly. You can assign strings of text, numbers, boolean true/false values, arrays, or objects to your variables.
Numbers and strings are pretty straight-forward for the most part. Strings are simply text enclosed by either a single or double quote. For instance:
var baseMapLayer = “Terrain”; var operationalLayer = „Parcels‟;
Numbers are not enclosed inside quote marks and can be integers or floating point numbers.
var currentMonth = 12; var layered = 3; var speed = 34.35;
One thing I would point out to new programmers is that numeric values can be assigned to string variables through the user of single or double quotes that enclose the value. This can be confusing at times for some new programmers. For instance, a value of 3.14 without single or double-quotes is a numeric data type while a value of “3.14” with single or double quotes is assigned a string data type.
Other data types include booleans which are simply true or false values, and arrays which are a collection of data values. An array basically serves as a container for multiple values. For instance, you could store a list of geographic data layer names within an array and access them individually as necessary.
var male = false; var female = true;
Objects deserve special consideration and we‟ll examine them in a lot greater detail as we advance through the book. Basically, objects are named pieces of data that have both properties and methods. Objects that are part of the ArcGIS Server API for JavaScript are stored in object variables.
Functions Now let‟s cover the very important topic of functions. Functions are simply named blocks of code that execute when called. The vast majority of the code that you write in this course and in your development efforts will occur within functions that you define.
Constructors are special purpose functions that are used to create new instances of an object. With some objects it is also possible to pass parameters in to the constructor to give more control over the object that is created. Events are actions that take place on the object and are triggered by the end user or the application. This would include events such as a map click, mouse move, or a layer being added to the map.
Properties and methods are accessed via dot notation wherein the object instance name is separated from the property or method by a dot. For instance, to access the current map extent you would enter map.extent in your code. The same is the case with methods except that methods have parentheses. When data is passed into a method via parameters they are placed inside the parentheses.
Basic CSS Principles CSS or Cascading Style Sheets is a language used to describe how HTML elements should be displayed on a web page. For instance, CSS is often used to define common styling elements for a page or set of pages such as the font, background color, font size, link colors, and many other things related to the visual design of a web page.
CSS Syntax A CSS rule has two main parts; a selector and one or more declarations. The selector is typically the element that you want to style. In the example below, the selector is „p‟. A „p‟ element in HTML represents a paragraph. The second part of a CSS rule is one or more declarations each of which consists of a property and a value. The property represents the style attribute that you want to change. In our example, we are setting the „color‟ property to red. In effect what we have done with this CSS rule is to define that all text within our paragraph should be red.
p {color:red}
Figure 17: CSS Syntax
You can include more than one declaration in a CSS rule as you see in the example below. A declaration is always surrounded by curly brackets and each declaration ends with a semi-colon.
Figure 18: Map Border Styling
Unlike „id‟ selectors which are used to assign styles to a single element, „class‟ selectors are used to specify styles for a group of elements all of which have the same HTML class attribute. A class selector is defined with a period followed by the class name. You may also specify that only specific HTML elements with a particular class should be affected by the style. Examples of both are shown in the code example below.
There are three ways to insert CSS into your application: external style sheets, internal style sheets, and inline.
External Style Sheet An external style sheet is simply a text file containing CSS rules and saved with a file extension of .css. This file is then linked into all web pages that want to implement the styles defined within the external style sheet through the use of the HTML tag. This is a commonly
Figure 19: CSS Priority
These are the basic concepts that you need to understand with regard to CSS. You can use CSS to define styles for pretty much anything on a web page including backgrounds, text, fonts, links, lists, images, tables, maps, and any other visible objects.
Note: For a more in-depth treatment of the ArcGIS Server API for JavaScript please refer to our Building Custom ArcGIS Server Applications with JavaScript. This course is offered as both a traditional instructor led course and an instructor guided online course. For more information on this course please visit our website at geospatialtraining.com
