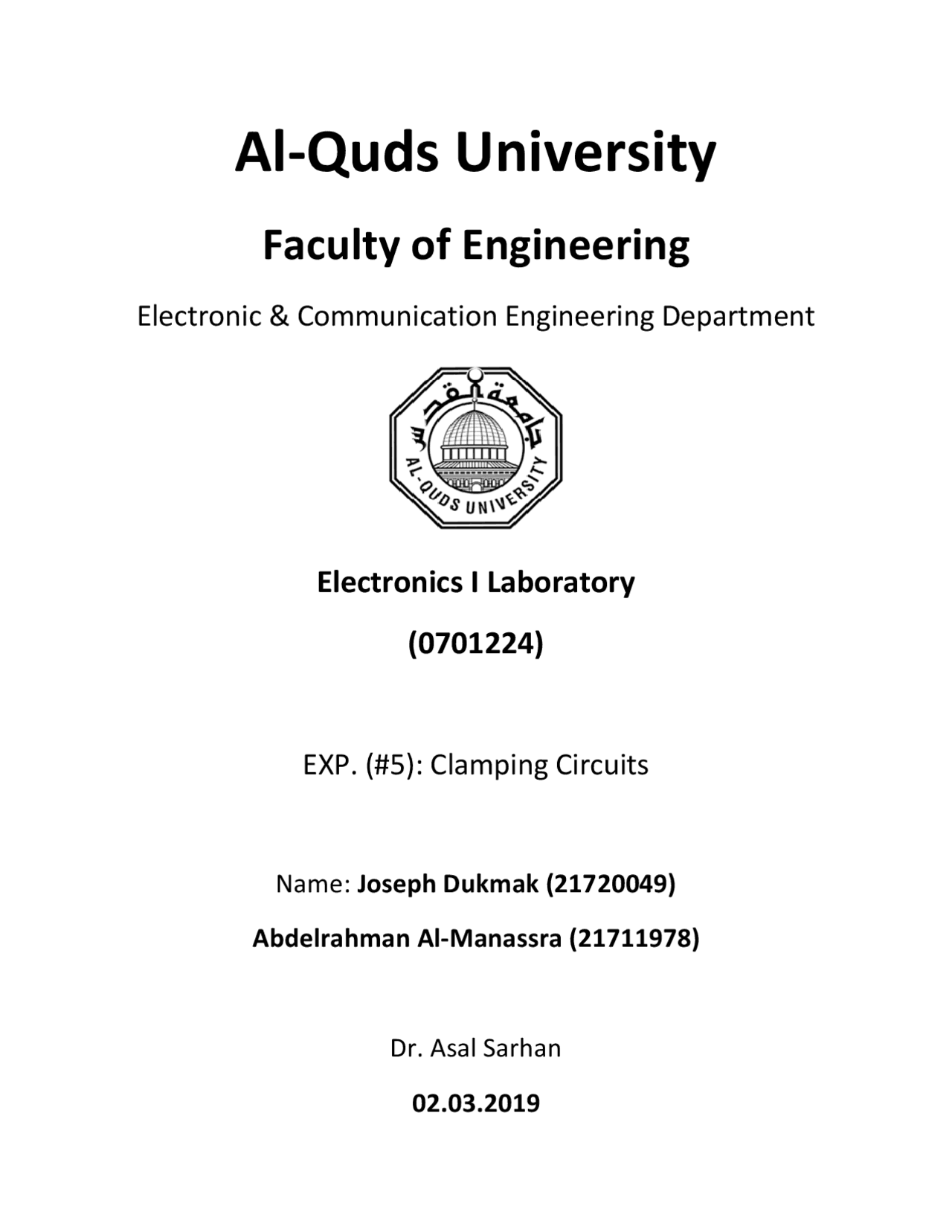

Al-Quds University
Faculty of Engineering
Electronic & Communication Engineering Department
Electronics I Laboratory
(0701224)
EXP. (#5): Clamping Circuits
Name: Joseph Dukmak (21720049)
Abdelrahman Al-Manassra (21711978)
Dr. Asal Sarhan
02.03.2019
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe

Partial preview of the text

Download Clamping Circuits report and more Exercises Electronics engineering in PDF only on Docsity!

Al-Quds University

Faculty of Engineering

Electronic & Communication Engineering Department

Electronics I Laboratory

EXP. (#5): Clamping Circuits

Name: Joseph Dukmak (21720049)

Abdelrahman Al-Manassra (21711978)

Dr. Asal Sarhan

Table of Contents

  • Objectives
  • Equipment required
  • Theoretical Background 3-
  • Procedure + Results 4-
  • Conclusion
  • In a clamper circuit, a vertical shift of upward or downward takes place in the output waveform with respect to the input signal.
  • The load resistor and the capacitor affect the waveform. So, the discharging time of the capacitor should be large enough.

The DC component present in the input is rejected when a capacitor coupled network is used (as a capacitor blocks dc). Hence when dc needs to be restored , clamping circuit is used.

Procedure and Results:

Part 1: Threshold Voltage:

Determine the threshold voltage for the silicon diode using the DMM.

๐‘‰๐‘‰๐‘‡๐‘‡ = 0.58 ๐‘‰๐‘‰.

Part 2: Clampers (R, C, Diode Combination):

R (^) (meas) = 99k ฮฉ b. By KVL VC (calculated) = -4 +Vc + V (^) d = 0 -4 + Vc + 0.7 = 0 => V (^) C = 3.3V. VO = 0.7V.

c. VO (calculated) -4 - VO - VC = 0 VO = -7.

d. VO from calculated results:

Vertical sensitivity = 2

Horizontal sensitivity = 0.2ms

e. VO from measured results:

Figure 5.

Figure 5.

i. VO from measured results:

The waveform of Fig 5.5 didnโ€™t differ with the expected waveform in the Fig 5.4. The wave form in both Fig 5.2 and 5.3 was shifted downwards and in the next two waveforms it was shifted upwards, because the diode was reversed.

Part 3: Clampers with a DC Battery:

a. E (^) (meas) = 1.5 V. f= 1000hz b. VC (calculated) = -4 +Vc + Vd +1.5 = 0 -4 + Vc + 0.7 + 1.5 = 0 => V (^) C = 1.8V.

VO = 0.7 +1.5 = 2.2V.

Figure 5. 5

c. By KVL -4 -VO -VC = 0 VO = -5.8V.

d. VO from calculated results:

Vertical sensitivity = 2

Horizontal sensitivity = 0.2ms

Figure 5.

h. VO from calculated results:

Vertical sensitivity = 5

Horizontal sensitivity = 0.2ms

i. VO from measured results:

Figure 5.

Figure 5.

Part 4: Clampers (Sinusoidal Input):

Use the sinusoidal signal with same frequency and components as in part 2.

B + C.

Part 5: Clampers (Effect of R):

a. ฯ„ = R.C ฯ„ = 0.1 s

b. T(calculated) = 1/f = 1ms T/2 = 0.5ms

c. The discharge period of an RC network is about 5 ฯ„

5 ฯ„ = 0.5s which is 0.5s >> 0.5ms

Figure 5.11 + 5.

j. The discharging time is the same as T/2. The discharge time will happen very quickly. So, whenever we lower the value of R, the discharge time decreases.

k. R = 100 ohms

Vertical sensitivity = 2

Horizontal sensitivity = 0.2ms

l. The lower value of R is, the more distorted the waveform will be.

m. 5 ฯ„ >> T/

Figure 5.

Conclusion:

For a clamping circuit at least three components โ€” a diode, a capacitor and a resistor are required. Sometimes an independent dc supply is also required to cause an additional shift. The important points regarding clamping circuits are:

  • The shape of the waveform will be the same, but its level is shifted either upward or downward.
  • There will be no change in the peak-to-peak or rms value of the waveform due to the clamping circuit. Thus, the input waveform and output waveform will have the same peak-to-peak value that is, 2V (^) max. This is shown in the figure above. It must also be noted that same reading will be obtained in the ac voltmeter for the input voltage and the clamped output voltage.
