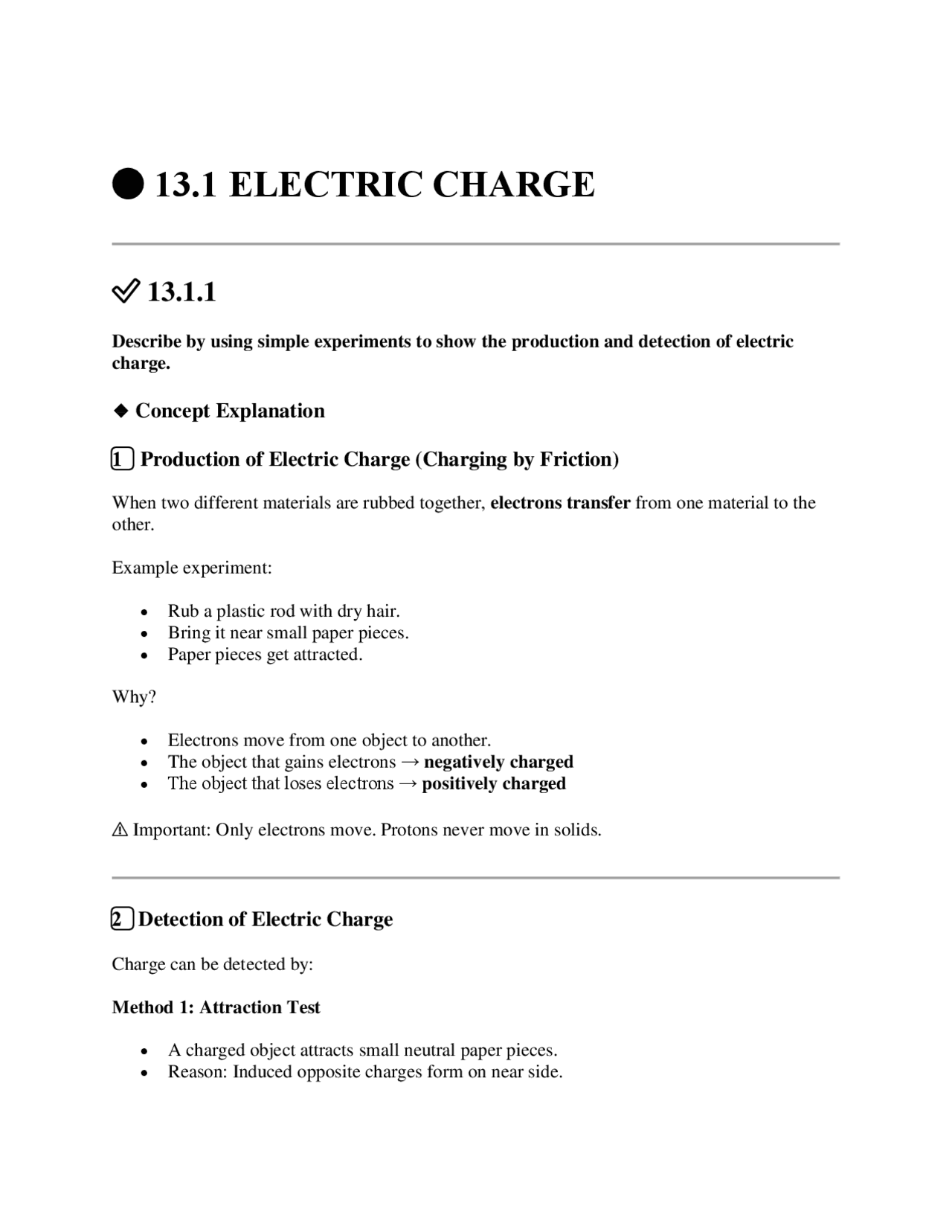

🔵 13.1 ELECTRIC CHARGE
Describe by using simple experiments to show the production and detection of electric charge.
🔹 Concept Explanation
1 ⃣ Production of Electric Charge (Charging by Friction)
When two different materials are rubbed together, electrons transfer from one material to the other. Example experiment: Rub a plastic rod with dry hair.Bring it near small paper pieces. Paper pieces get attracted. Why? Electrons move from one object to another. The object that gains electronsThe object that loses electrons → → positively chargednegatively charged
⚠ Important: Only electrons move. Protons never move in solids.
2️ ⃣ Detection of Electric Charge
Charge can be detected by: Method 1: Attraction Test A charged object attracts small neutral paper pieces. Reason: Induced opposite charges form on near side.
Method 2: Electroscope When a charged body touches electroscope knob, Leaves repel due to same charge.
🧠 Conceptual Understanding
- Like charges repel • Unlike charges attract
- Neutral objects can be attracted due to induction
- Charge is due to transfer of electrons
🎯 Important MCQ Points
Charge is measured inElectron charge = 1.6 × 10⁻¹⁹ C Coulomb (C) Proton charge = same magnitude, opposite sign Charging by friction involves electron transfer Attraction does NOT always mean opposite charge (can be neutral body)
Applications
Photocopiers Inkjet printers Lightning formation Electrostatic precipitators
⚠ Conceptual Trap
Many students think: If two objects attract, they must have opposite charge. Wrong. A charged body can attract a neutral body due to induction.
AKU-EB LOVES this trap.
Lightning is a large-scale electrostatic discharge.
Real Life Examples
Petrol tanker chains dragging on road Earthing wires Lightning rods
⚠ Conceptual Trap
Voltage may be very high but current small. Yet spark can still ignite fuel. AKU-EB may test: High voltage ≠ always high current.
🔵 13.2️ ELECTROSTATIC INDUCTION
Describe electrostatic charging by induction.
🔹 Concept Explanation
Charging by induction = charging without direct contact. Experiment:
- Bring negatively charged rod near neutral metal sphere.
- Electrons in sphere move away (repulsion).
- Far side becomes negative.
- Near side becomes positive.
- Connect far side to Earth.Electrons flow to Earth.
- Remove Earth first, then rod.
- Sphere remains positively charged.
🧠 Key Idea
No contact required. Charge redistribution occurs due to electric field.
🎯 Important Points
Induction requires conductor. Earthing is important. Opposite charge is produced. Charge transfer happens through grounding.
⚠ Conceptual Trap
Students think rod transfers charge. Wrong. Rod only causes rearrangement. Actual charge flow happens via Earth.
✅ 13.2.
State that there are positive and negative charges in nature.
🔹 Concept Explanation
There are only two types of charge:
- Positive (proton)
- Negative (electron) Neutral object:
🔵 13.3 ELECTROSCOPE
Describe the construction and working principle of an electroscope.
🔹 Concept Explanation
Construction:
- A metallic rod with a metallic knob at the top.
- Thin metal leaves (usually gold or aluminum) attached at the bottom inside a glass enclosure.
- The glass prevents air currents but allows observation. Working Principle: Based on repulsion of like charges. When a charged body touches the knob: o Charge flows to the leaves. Observation of leaf divergence indicates presence and type of charge.^ o^ Leaves get the^ same type of charge^ → repel each other. Types:
- Gold-leaf electroscope – thin gold leaves
- Pith-ball electroscope – small lightweight ball suspended by thread
🧠 Conceptual Understanding
Detects presence of charge. Determines sign of charge (with reference). Measures relative amount of charge (greater divergence → more charge).
🎯 Important Points
Electroscope works only with conductors.
Non-contact charging is possible via induction. Air must be dry → avoids leakage of charge.
⚠ Conceptual Trap
Students confuse leaf divergence with magnitude of charge. It is only proportional if leaves are ideal and no leakage occurs.
🔵 13.4 COULOMB’S LAW
Explain Coulomb’s law.
🔹 Concept Explanation
Coulomb’s Law: The electrostatic force between two point charges is:
- Directly proportional to the product of the magnitudes of the charges.
- Inversely proportional Acts along the line joining the charges to the square of the distance between them..
⚠ Conceptual Trap
Forgetting unit conversion μC → C. Not consideringIgnoring vector nature direction for multiple charges. of force.
🔵 13.5 ELECTRIC FIELD AND ITS
INTENSITY
Define electric field and electric field intensity.
🔹 Concept Explanation
Electric Field (E): Region around a charge where another charge experiences force.
Electric Field Intensity (E): Force experienced per unit positive test charge at a point:
🧠 Conceptual Understanding
Direction: Along force on positive test charge Vector quantityCan be calculated from point charge :
🎯 Important Points
SI unit of E = N/C Field inside a conductor in electrostatic equilibrium = 0 Superposition applies for multiple charges
✅ 13.5.
Draw electric field lines for isolated positive and negative point charges.
🔹 Concept Explanation
Rules for drawing:
- Lines start on positive charges and end on negative charges.
- Number of lines ∝ magnitude of charge.
- Never cross.
- Tangent at point →Closer lines → stronger field. direction of E.
Positive Charge: Lines radiate outward. Negative Charge: Lines converge inward. Dipole: Lines start from +, end at −, curved pattern.
⚠ Conceptual Trap
Students draw arrows wrong (towards positive → wrong). Lines crossing → forbidden.
🧠 PART- 2 SUMMARY
🧠 Conceptual Understanding
Positive charges move naturally fromNegative charges move from low to high potential high to low potential.. Equipotential surfaces → work done moving along surface = 0.
🎯 Important Points
Unit of potential = Volt (V) 1 Volt = 1 Joule/Coulomb Potential of a point charge :
⚠ Conceptual Trap
Confusing electric potential (scalar) with electric field (vector). Field is zero on surface → potential not necessarily zero.
Define the unit ‘volt’. Volt (V): 1 Volt is the potential difference across which 1 Coulomb of charge does 1 Joule of work. 1V = 1J / 1C
Describe potential difference. Potential Difference (V): The difference in electric potential between two points :
🔵 13.7 APPLICATIONS OF
ELECTROSTATICS
Describe a situation in which static electricity is dangerous. Example Situations:
⚠ Conceptual Trap
Students think electrostatics only dangerous → AKU-EB may test beneficial uses like printers, copiers, painting, dust removal.
🔵 13.8 CAPACITORS AND CAPACITANCE
Describe a capacitor. Capacitor: A device that stores electric charge and energy in an electric field. Structure: TwoPlates hold conducting plates equal and opposite charges separated by insulator. (dielectric).
Function: Stores energy when connected to battery. Used in circuits for filtering, timing, and energy storage.
Define capacitance and state its SI unit. Capacitance (C): The ability of a capacitor to store charge per unit potential difference :
✅ 13.8.
Derive the formula for the effective/equivalent capacitance of a number of capacitors connected in series and in parallel.
🔹 Parallel Connection
Voltage across each capacitor = same Charge divides among capacitors
🔹 Series Connection
Charge on each capacitor = same Voltage divides among capacitors
Capacitance is constant ; cannot be adjusted. Structure: Two plates with dielectric material in between (air, ceramic, mica, plastic). Uses: o Tuning circuits o Filters o Energy storage Example Types: Ceramic capacitor Electrolytic capacitor Mica capacitor
2️ ⃣ Variable Capacitor: Capacitance can be mechanically adjusted. Structure: One rotor plate and one stator plate ; overlap changes capacitance. Uses: o Radio tuners o Oscillator circuits Key Idea: Capacitance depends on area of plates (A) , distance (d) , and dielectric constant (ε) :
🧠 Conceptual Understanding
Fixed: Stable, reliable, predictable. Variable: Adjustable, used for tuning or calibration.
🎯 Important Points for MCQs
Property Fixed Capacitor Variable Capacitor Capacitance Constant Adjustable Structure Plates + dielectric Rotor + stator plates Use Energy storage, filters Tuning circuits Adjustment None Mechanical rotation or sliding
⚠ Conceptual Trap
Students often think dielectric type makes it variable → Wrong. Variable depends on mechanical movement , not dielectric alone.
🧠 PART- 4 SUMMARY (Electrostatics Complete)
You should now have all conceptual points for AKU-EB level preparation:
- Electric Charge: friction, conduction, induction, dangers
- Electroscope:Coulomb’s Law: construction, detection, working principle force, vector, problems
- Electric Field & Intensity: definition, field lines, vector nature
- Electrostatic Potential: potential, potential difference, volts
- Applications: printers, photocopiers, dangers, precautions
- Capacitors & Capacitance:Types of Capacitors: fixed vs variable types, series/parallel, energy
🔑 AKU-EB Concept Tips:
AlwaysCharge moves → only electrons move in solids. think in concepts first , formulas second. Induction → no contact, just rearrangement. Coulomb law problems → vector, magnitude, unit check. Electric field vs potential → vector vs scalar. Capacitor series vs parallel → rememberReal-world electrostatics → dangers and applications series < smallest, parallel = sum are tested..
