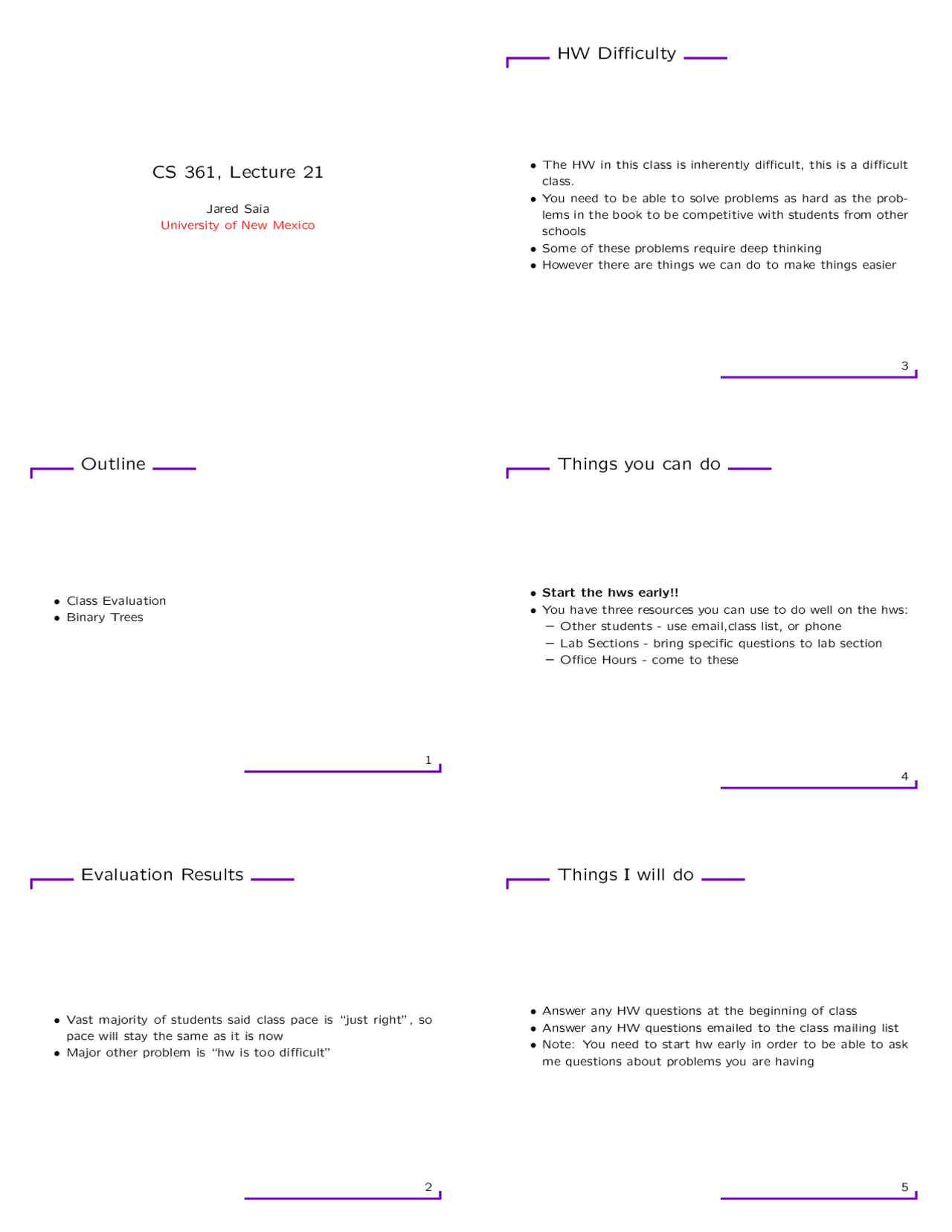

CS 361, Lecture 21
Jared Saia University of New Mexico
Outline
- Class Evaluation
- Binary Trees
Evaluation Results
- Vast majority of students said class pace is “just right”, so pace will stay the same as it is now
- Major other problem is “hw is too difficult”
HW Difficulty
- The HW in this class is inherently difficult, this is a difficult class.
- You need to be able to solve problems as hard as the prob- lems in the book to be competitive with students from other schools
- Some of these problems require deep thinking
- However there are things we can do to make things easier
Things you can do
- Start the hws early!!
- You have three resources you can use to do well on the hws:
- Other students - use email,class list, or phone
- Lab Sections - bring specific questions to lab section
- Office Hours - come to these
Things I will do
- Answer any HW questions at the beginning of class
- Answer any HW questions emailed to the class mailing list
- Note: You need to start hw early in order to be able to ask me questions about problems you are having
HW Questions
- Are there any questions on the current HW?
Binary Search Trees
- Q: What is a search tree?
- A1: It’s yet another data structure for implementing the dictionary ADT
- Q: Don’t we already know enough of those?
- A: No
Hash Tables
Hash Tables implement the Dictionary ADT, namely:
- Insert(x) - O(1) expected time, Θ(n) worst case
- Lookup(x) - O(1) expected time, Θ(n) worst case
- Delete(x) - O(1) expected time, Θ(n) worst case
Red-Black Trees
Red-Black trees (a kind of binary tree) also implement the Dic- tionary ADT, namely:
- Insert(x) - O(log n) time
- Lookup(x) - O(log n) time
- Delete(x) - O(log n) time
Why BST?
- Q: When would you use a Search Tree?
- A1: When need a hard guarantee on the worst case run times (e.g. “mission critical” code)
- A2: When want something more dynamic than a hash table (e.g. don’t want to have to enlarge a hash table when the load factor gets too large)
- A3: Search trees can implement some other important op- erations...
Search Tree Operations
- Insert
- Lookup
- Delete
- Minimum/Maximum
- Predecessor/Successor
Analysis
Search in BT
Tree-Search(x,k){ if (x=nil) or (k = key(x)){ return x; } if (k<key(x)){ return Tree-Search(left(x),k); }else{ return Tree-Search(right(x),k); } }
Analysis
- Let h be the height of the tree
- The run time is O(h)
- Correctness???
In-Class Exercise
- Q1: What is the loop invariant for Tree-Search?
- Q2: What is Initialization?
- Q3: Maintenance?
- Q4: Termination?
Tree Min/Max
- Tree Minimum(x): Return the leftmost child in the tree rooted at x
- Tree Maximum(x): Return the rightmost child in the tree rooted at x
Tree-Successor
Tree-Successor(x){ if (right(x) != null){ return Tree-Minimum(right(x)); } y = parent(x); while (y!=null and x=right(y)){ x = y; y = parent(y); } return y; }
Successor Intuition
- Case 1: If right subtree of x is non-empty, successor(x) is just the leftmost node in the right subtree
- Case 2: If the right subtree of x is empty and x has a suc- cessor, then successor(x) is the lowest ancestor of x whose left child is also an ancestor of x.
Insertion
Insert(T,x)
- Let r be the root of T.
- Do Tree-Search(r,key(x)) and let p be the last node pro- cessed in that search
- If p is nil (there is no tree), make x the root of a new tree
- Else if key(x) ≤ p, make x the left child of p, else make x the right child of p
Deletion
- Code is in book, basically there are three cases, two are easy and one is tricky
- Case 1: The node to delete has no children. Then we just delete the node
- Case 2: The node to delete has one child. Then we delete the node and “splice” together the two resulting trees
Case 3
Case 3: The node, x to be deleted has two children
- Swap x with Successor(x) (Successor(x) has no more than 1 child (why?))
- Remove x, using the procedure for case 1 or case 2.
Analysis
- All of these operations take O(h) time where h is the height of the tree
- If n is the number of nodes in the tree, in the worst case, h is O(n)
- However, if we can keep the tree balanced, we can ensure that h = O(log n)
- Next time, we’ll see how Red-Black trees can maintain a balanced BST
