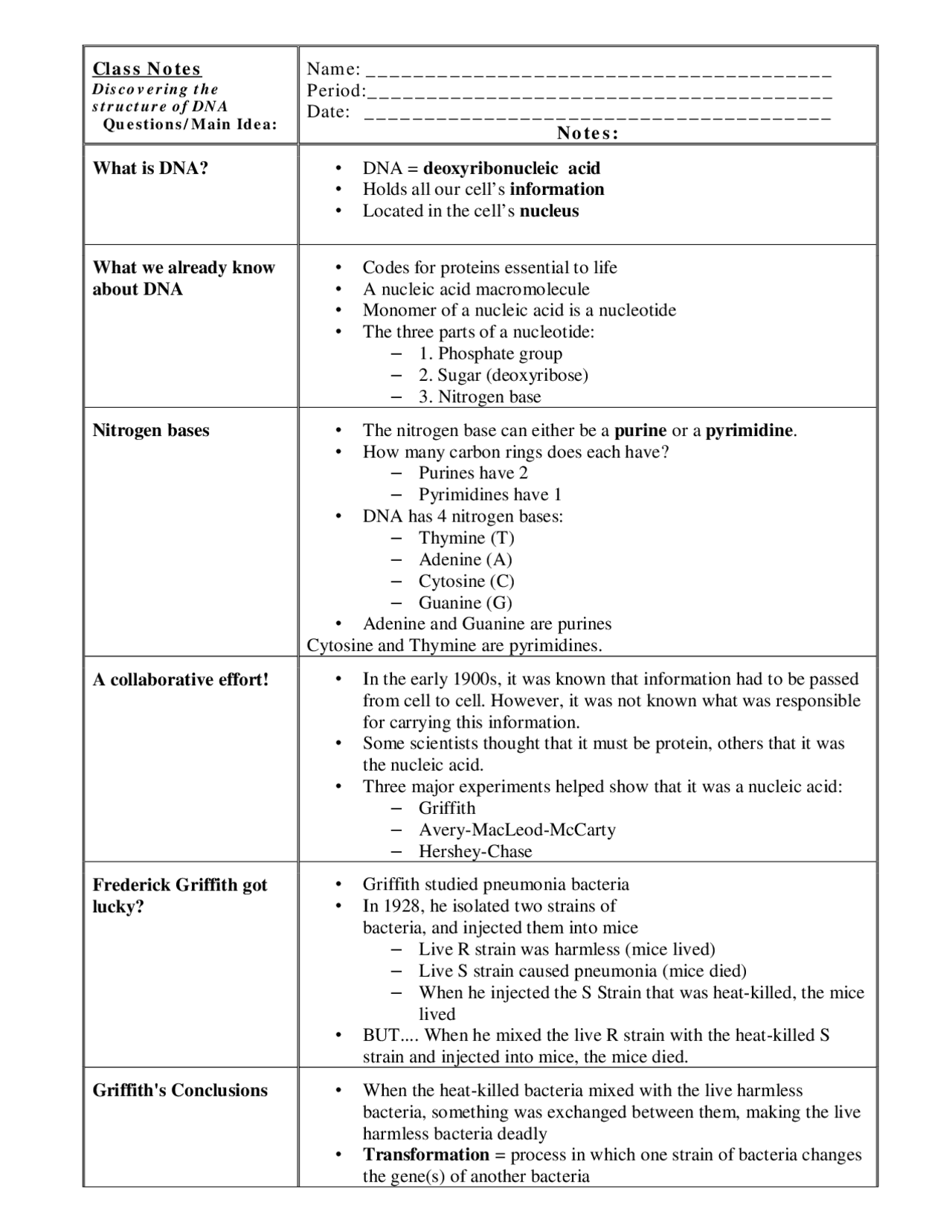

Class Notes
Discovering the
structure of DNA
Questions/Main Idea:
Name: _______________________________________
Period:_______________________________________
Date: _______________________________________
Notes:
What is DNA?
DNA = deoxyribonucleic acid
Holds all our cell’s information
Located in the cell’s nucleus
What we already know
about DNA
Codes for proteins essential to life
A nucleic acid macromolecule
Monomer of a nucleic acid is a nucleotide
The three parts of a nucleotide:
1. Phosphate group
2. Sugar (deoxyribose)
3. Nitrogen base
Nitrogen bases
The nitrogen base can either be a purine or a pyrimidine.
How many carbon rings does each have?
Purines have 2
Pyrimidines have 1
DNA has 4 nitrogen bases:
Thymine (T)
Adenine (A)
Cytosine (C)
Guanine (G)
Adenine and Guanine are purines
Cytosine and Thymine are pyrimidines.
A collaborative effort!
In the early 1900s, it was known that information had to be passed
from cell to cell. However, it was not known what was responsible
for carrying this information.
Some scientists thought that it must be protein, others that it was
the nucleic acid.
Three major experiments helped show that it was a nucleic acid:
Griffith
Avery-MacLeod-McCarty
Hershey-Chase
Frederick Griffith got
lucky?
Griffith studied pneumonia bacteria
In 1928, he isolated two strains of
bacteria, and injected them into mice
Live R strain was harmless (mice lived)
Live S strain caused pneumonia (mice died)
When he injected the S Strain that was heat-killed, the mice
lived
BUT.... When he mixed the live R strain with the heat-killed S
strain and injected into mice, the mice died.
Griffith's Conclusions
When the heat-killed bacteria mixed with the live harmless
bacteria, something was exchanged between them, making the live
harmless bacteria deadly
Transformation = process in which one strain of bacteria changes
the gene(s) of another bacteria
pf3

Partial preview of the text

Download Discovering the Structure of DNA: A Journey of Scientific Discoveries and more Exams Photography in PDF only on Docsity!

Class Notes Discovering the structure of DNA Questions/Main Idea:

Name: _______________________________________ Period:_______________________________________ Date: _______________________________________ Notes:

What is DNA? • DNA = deoxyribonucleic acid

  • Holds all our cell’s information
  • Located in the cell’s nucleus

What we already know about DNA

  • Codes for proteins essential to life
  • A nucleic acid macromolecule
  • Monomer of a nucleic acid is a nucleotide
  • The three parts of a nucleotide:
      1. Phosphate group
      1. Sugar (deoxyribose)
      1. Nitrogen base

Nitrogen bases • The nitrogen base can either be a purine or a pyrimidine.

  • How many carbon rings does each have?
    • Purines have 2
    • Pyrimidines have 1
  • DNA has 4 nitrogen bases:
    • Thymine (T)
    • Adenine (A)
    • Cytosine (C)
    • Guanine (G)
  • Adenine and Guanine are purines Cytosine and Thymine are pyrimidines.

A collaborative effort! • In the early 1900s, it was known that information had to be passed from cell to cell. However, it was not known what was responsible for carrying this information.

  • Some scientists thought that it must be protein, others that it was the nucleic acid.
  • Three major experiments helped show that it was a nucleic acid:
    • Griffith
    • Avery-MacLeod-McCarty
    • Hershey-Chase

Frederick Griffith got lucky?

  • Griffith studied pneumonia bacteria
  • In 1928, he isolated two strains of bacteria, and injected them into mice - Live R strain was harmless (mice lived) - Live S strain caused pneumonia (mice died) - When he injected the S Strain that was heat-killed, the mice lived
  • BUT.... When he mixed the live R strain with the heat-killed S strain and injected into mice, the mice died.

Griffith's Conclusions •^ When the heat-killed bacteria mixed with the live harmless bacteria, something was exchanged between them, making the live harmless bacteria deadly

  • Transformation = process in which one strain of bacteria changes the gene(s) of another bacteria

Avery-MacLeod- McCarty

  • Following Griffith (1943), scientists heat killed the virulent S strain and then selectively destroyed parts of the bacteria before combining with R strain - Destroyed proteins, lipids, carbs = mice died => something different was transforming bacteria - Destroyed nucleic acids = mice lived! => DNA was transforming bacteria
  • Demonstrated that DNA was the transforming agent

Hershey and Chase • Experimented (1950) with bacteriophages to see if information is carried on proteins or DNA

  • Used radioactive elements to “mark” DNA and protein
  • Only the radioactive DNA was found in bacteria cells (not proteins)
  • Further supported Avery’s experiment that genetic material is DNA

Discovery of the structure of DNA

  • Many scientists contributed to determining the structure of DNA
    • Erwin Chargaff
    • Rosalind Franklin
    • James Watson & Francis Crick

Erwin Chargaff • Worked with DNA nitrogen bases, discovered (1950):

  • In any sample of DNA,
    • adenines (A) = # thymines (T)

    • cytosines (C) = # guanines (G)

  • Therefore, in DNA, the bases are always paired: A with T , and C with G.
  • This is Chargaff’s Rule!

Rosalind Franklin •^ Worked with x-ray photography to try to find DNA structure

  • Her “Photo 51” revealed DNA’s structure (1952)
  • Died of cancer in 1958

Watson and Crick •^ Credited with finding the structure of DNA (1953)

  • Watson got a sneak peak at Franklin’s x-ray photos and used them with other evidence
  • They described DNA as a double helix, with the strands held together by weak hydrogen bonds formed between the bases A-T and C-G.

DNA structure • Looks like a twisted ladder made of nucleotides

  • The nucleotide: (hosphate group, sugar, nitrogen base
  • Sugars and phosphates make the sides of the ladder, nitrogen bases are the rungs
  • The atoms within the two strands are held together by strong covalent bonds
  • The two strands are held together by weak hydrogen bonds between the nitrogenous bases.

What bonds with what? •^ A bond between two purines would be too wide.

  • A bond between two pyrimidines would be too narrow.
  • THUS, a purine always bonds with a pyrimidine.
    • A bonds with T
    • G bonds with C
