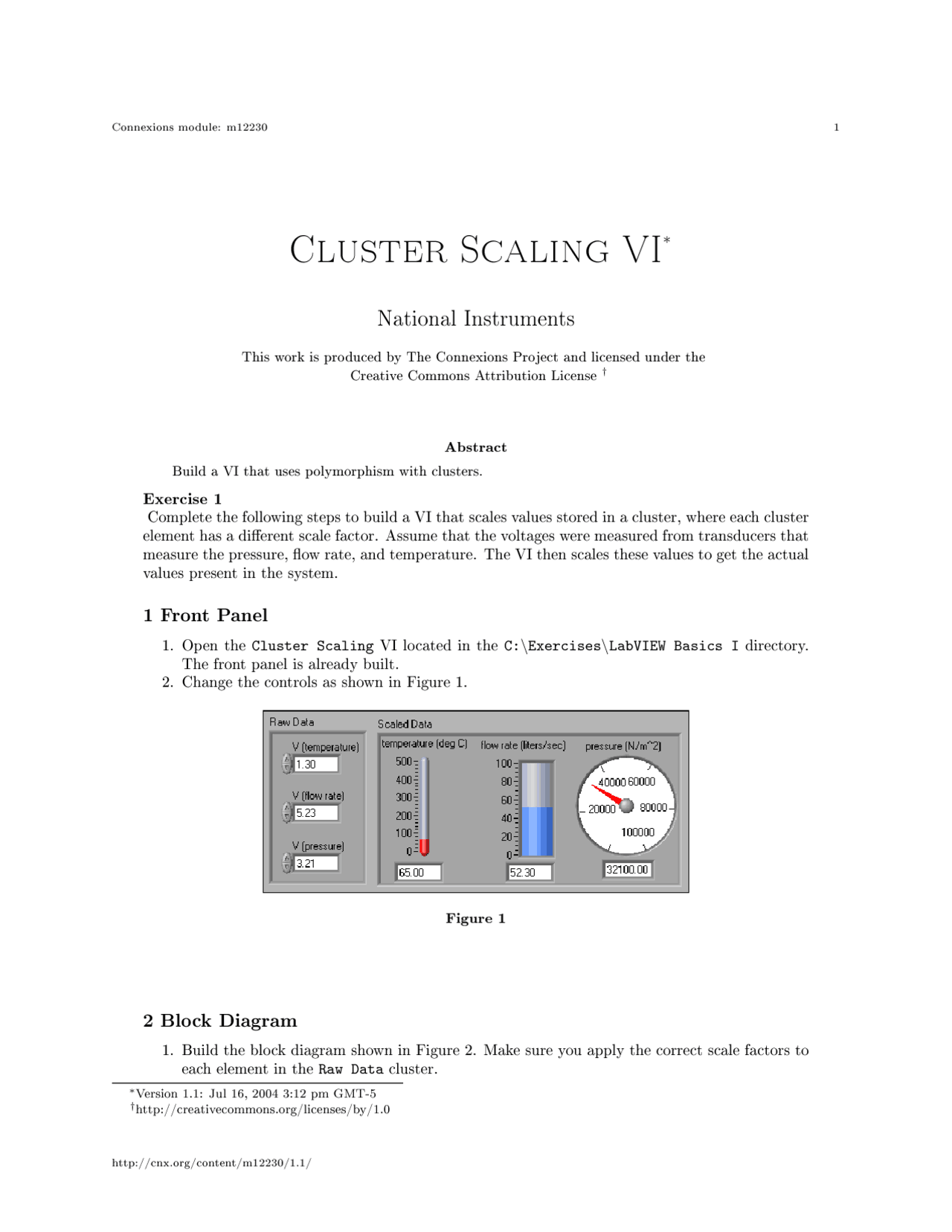

Connexions module: m12230 1
Cluster Scaling VI
∗
National Instruments
This work is produced by The Connexions Project and licensed under the
Creative Commons Attribution License
†
Abstract
Build a VI that uses polymorphism with clusters.
Exercise 1
Complete the following steps to build a VI that scales values stored in a cluster, where each cluster
element has a dierent scale factor. Assume that the voltages were measured from transducers that
measure the pressure, ow rate, and temperature. The VI then scales these values to get the actual
values present in the system.
1 Front Panel
1. Open the
Cluster Scaling
VI located in the
C:
\
Exercises
\
LabVIEW Basics I
directory.
The front panel is already built.
2. Change the controls as shown in Figure 1.
Figure 1
2 Block Diagram
1. Build the block diagram shown in Figure 2. Make sure you apply the correct scale factors to
each element in the
Raw Data
cluster.
∗
