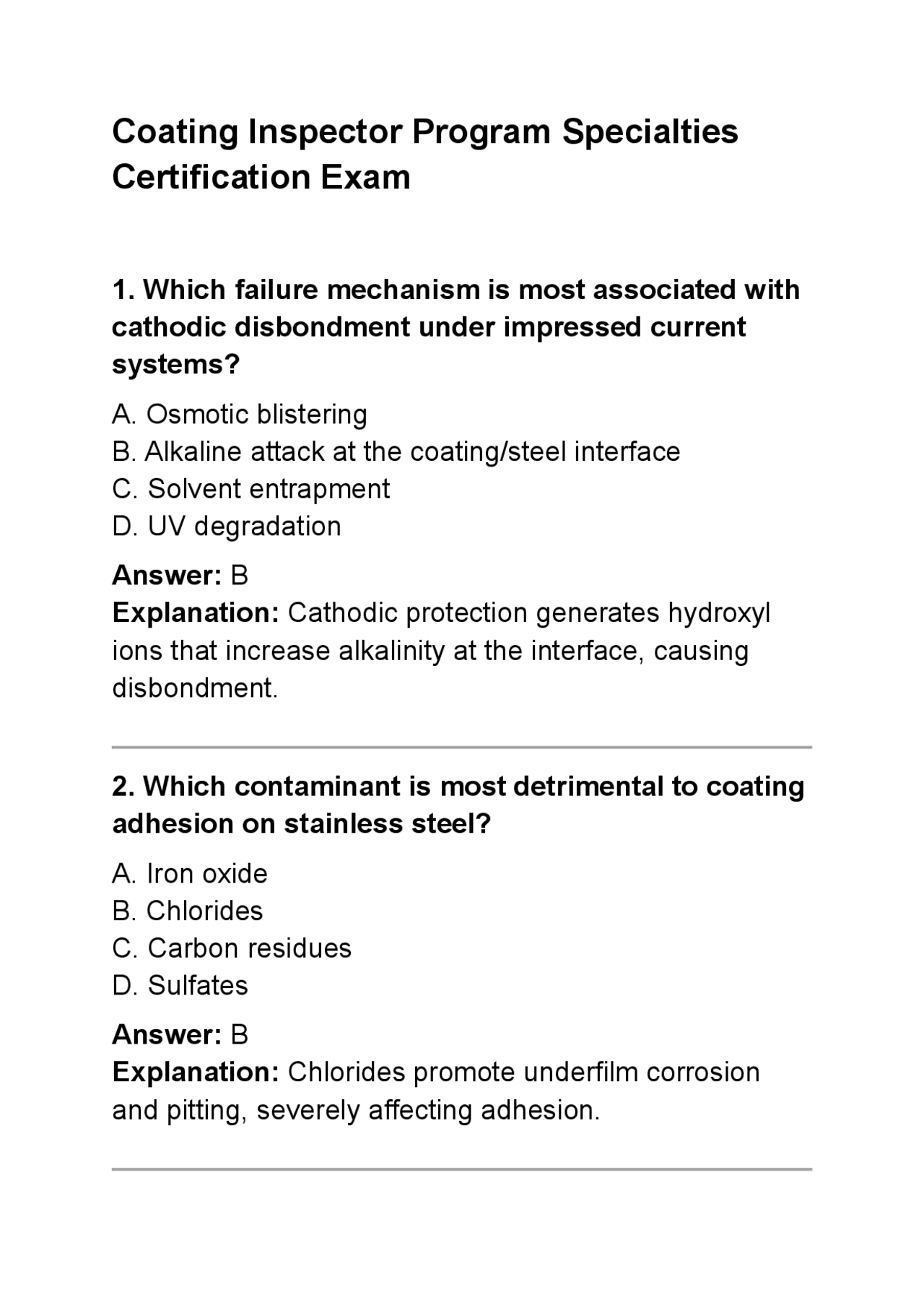

Coating Inspector Program Specialties
Certification Exam
1. Which failure mechanism is most associated with cathodic disbondment under impressed current systems? A. Osmotic blistering B. Alkaline attack at the coating/steel interface C. Solvent entrapment D. UV degradation Answer: B Explanation: Cathodic protection generates hydroxyl ions that increase alkalinity at the interface, causing disbondment. 2. Which contaminant is most detrimental to coating adhesion on stainless steel? A. Iron oxide B. Chlorides C. Carbon residues D. Sulfates Answer: B Explanation: Chlorides promote underfilm corrosion and pitting, severely affecting adhesion.
3. Which NACE test method evaluates cathodic disbondment resistance? A. TM B. TM C. TM D. TM03 04 Answer: D Explanation: NACE TM0304 specifically addresses cathodic disbondment testing. 4. Which coating type is most resistant to immersion in strong acids? A. Alkyd B. Epoxy novolac C. Acrylic latex D. Vinyl ester Answer: B Explanation: Epoxy novolacs provide excellent chemical resistance to acids and solvents. 5. What primarily controls abrasive blasting efficiency? A. Nozzle diameter B. Particle kinetic energy C. Ambient humidity D. Abrasive color
8. Which standard governs holiday detection on pipeline coatings? A. ASTM D B. NACE SP C. ISO 8501- 1 D. SSPC-PA 2 Answer: B Explanation: NACE SP0188 covers holiday detection for pipeline coatings. 9. Why is surface profile critical for coating adhesion? A. It reduces porosity B. It increases surface energy and mechanical anchoring C. It decreases permeability D. It prevents cathodic reactions Answer: B Explanation: Roughness increases bonding area and mechanical interlocking. 10. What is the main cause of osmotic blistering? A. Differential vapor pressure across the coating B. UV radiation C. Mechanical impact D. Cathodic overprotection
Answer: A Explanation: Water diffuses through coatings creating osmotic pressure.
11. Which coating best resists high-temperature oxidation (>400°C)? A. Silicone-aluminum B. Polyurethane C. Epoxy D. Acrylic Answer: A Explanation: Silicone-aluminum coatings withstand extreme heat. 12. Which salt test method is field-practical for surface contamination? A. Bresle method B. Karl Fischer C. Potentiometric titration D. FTIR Answer: A Explanation: The Bresle test is portable and widely used onsite.
Answer: A Explanation: Differential movement causes brittle coatings to crack.
16. Which environmental factor most increases corrosion rate under coatings? A. UV radiation B. Oxygen availability C. High pH D. Low temperature Answer: B Explanation: Oxygen drives electrochemical corrosion reactions. 17. Which coating is preferred for offshore splash zones? A. Alkyd B. Glass flake epoxy C. Acrylic latex D. Chlorinated rubber Answer: B Explanation: Glass flake epoxies offer superior barrier protection in aggressive marine zones. 18. What does SSPC-SP 11 specify?
A. Power tool cleaning to bare metal B. Hand tool cleaning C. Solvent cleaning D. White metal blasting Answer: A Explanation: SP 11 requires power-tool cleaning to bare metal.
19. Which defect is most associated with contamination by oils or silicones? A. Orange peel B. Fisheyes C. Wrinkling D. Cracking Answer: B Explanation: Low surface energy contaminants cause coating to pull away forming fisheyes. 20. Why is dew point monitoring essential? A. To control curing speed B. To prevent condensation on steel C. To increase surface roughness D. To reduce VOC emissions Answer: B Explanation: Condensation causes flash rust and adhesion loss.
C. Bresle test D. Cross-cut test Answer: B Explanation: Pencil hardness evaluates surface hardness.
24. What causes underfilm corrosion? A. Poor wetting B. Water and oxygen permeation through coating C. Excessive dry film thickness D. UV degradation Answer: B Explanation: Moisture and oxygen reaching steel initiate corrosion beneath coating. 25. Which factor most affects epoxy cure rate? A. Wind speed B. Temperature C. Surface roughness D. Gloss Answer: B Explanation: Chemical reactions accelerate with higher temperature.
26. Which defect is caused by applying coating too thick in one pass? A. Sagging B. Chalking C. Pinholing D. Peeling Answer: A Explanation: Excess wet film weight causes sagging. 27. What is the main risk of over-blasting? A. Smooth surface B. Profile collapse and steel damage C. Increased adhesion D. Reduced rust Answer: B Explanation: Over-blasting can round peaks and thin steel. 28. Which standard defines surface cleanliness grades Sa 2½? A. ISO 8501- 1 B. ASTM D C. SSPC-PA 2 D. NACE SP
A. Cross-cut B. Pull-off test C. Visual inspection D. Wet sponge Answer: B Explanation: Pull-off gives numeric adhesion values.
32. Which coating is best for potable water tanks? A. Coal tar epoxy B. FDA-approved epoxy C. Vinyl ester D. Alkyd Answer: B Explanation: Only certified food-grade epoxies are acceptable. 33. Which chemical accelerates epoxy amine blush? A. CO₂ B. Moisture C. Oxygen D. Nitrogen Answer: B Explanation: Moisture reacts with amines causing blush.
34. What does DFT primarily affect? A. Color B. Barrier performance C. Gloss D. Cure time Answer: B Explanation: Thicker films generally improve barrier protection. 35. Which test detects soluble salts in μg/cm²? A. Pull-off test B. Bresle test C. Holiday test D. Gloss test Answer: B Explanation: Bresle method quantifies surface salts. 36. Which phenomenon causes coating undercutting at scratches? A. Capillary action B. Galvanic corrosion C. Crevice corrosion D. Erosion
A. Low humidity B. High humidity after blasting C. High temperature D. Low oxygen Answer: B Explanation: Moist air rapidly oxidizes freshly cleaned steel.
40. Which coating property limits oxygen diffusion? A. Hardness B. Permeability C. Color D. Flexibility Answer: B Explanation: Low permeability reduces oxygen ingress. 41. Which inspection verifies proper surface roughness? A. Replica tape B. Holiday detector C. Gloss meter D. Psychrometer Answer: A Explanation: Replica tape measures blast profile.
42. What is the main reason for coating holidays? A. Poor color mixing B. Insufficient wetting and coverage C. Excessive DFT D. High gloss Answer: B Explanation: Poor wetting leaves uncoated voids. 43. Which mechanism causes underfilm blister growth? A. Osmosis B. UV degradation C. Mechanical fatigue D. Thermal expansion Answer: A Explanation: Osmotic pressure draws water under coating. 44. Which failure is associated with cyclic thermal loading? A. Chalking B. Cracking C. Fisheyes D. Sagging
C. DFT
D. Adhesion Answer: B Explanation: Psychrometers measure humidity and dew point.
48. Which factor increases coating permeability? A. Cross-link density decrease B. Higher DFT C. Glass flake addition D. Lower temperature Answer: A Explanation: Looser polymer networks allow more diffusion. 49. What does ISO 12944 primarily address? A. Surface preparation only B. Corrosion protection of steel by paint systems C. Holiday detection D. Adhesion testing Answer: B Explanation: ISO 12944 defines corrosion categories and coating systems.
50. Which failure is linked to excessive zinc loading? A. Cracking B. Mud-cracking C. Chalking D. Blistering Answer: B Explanation: High pigment volume concentration causes mud-cracking during cure. 51. Which corrosion mechanism dominates beneath disbonded coatings on buried pipelines? A. Uniform corrosion B. Crevice corrosion C. Differential aeration corrosion D. Galvanic corrosion Answer: C Explanation: Oxygen concentration differences create anodic and cathodic zones. 52. Which parameter most influences cathodic disbondment rate? A. Coating thickness B. CP potential level C. Pigment type D. Surface roughness
