Specialty Exam

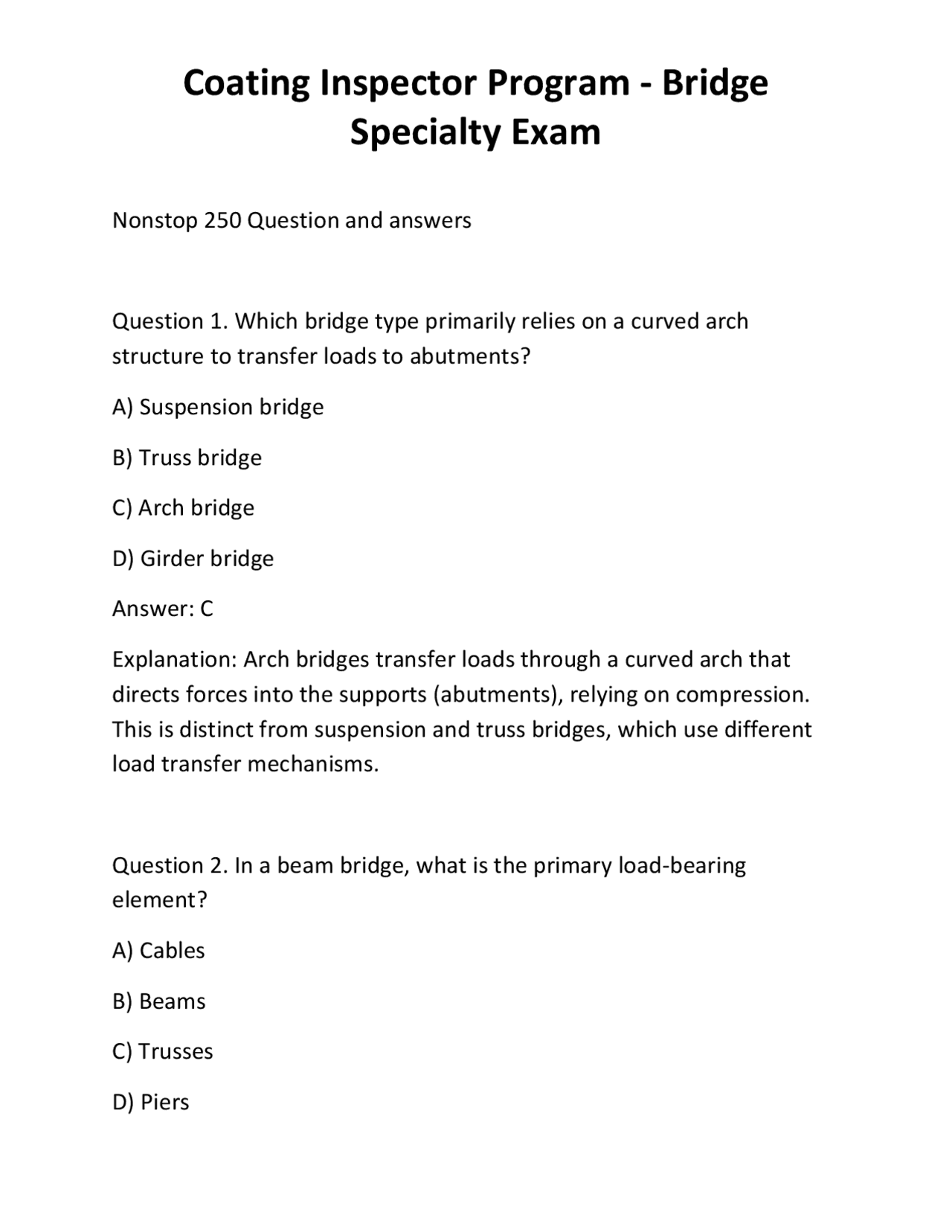

Nonstop 250 Question and answers Question 1. Which bridge type primarily relies on a curved arch structure to transfer loads to abutments? A) Suspension bridge B) Truss bridge C) Arch bridge D) Girder bridge Answer: C Explanation: Arch bridges transfer loads through a curved arch that directs forces into the supports (abutments), relying on compression. This is distinct from suspension and truss bridges, which use different load transfer mechanisms. Question 2. In a beam bridge, what is the primary load-bearing element? A) Cables B) Beams C) Trusses D) Piers
Specialty Exam
Answer: B Explanation: Beam bridges primarily rely on horizontal beams that span between supports to carry loads; the beams are the main load-bearing components. Question 3. Which material is most commonly used for the superstructure of a steel girder bridge? A) Timber B) Concrete C) Steel D) Composites Answer: C Explanation: Steel is predominantly used in girder bridges for the superstructure due to its high strength, ductility, and ease of fabrication. Question 4. Which component is critical for accommodating thermal expansion in bridges? A) Bearings B) Diaphragms
Specialty Exam
B) Topcoat C) Sealant D) Barrier coating Answer: B Explanation: The topcoat in splash zones must resist water, salts, and UV exposure; it's critical for protecting underlying steel or concrete in highly exposed areas. Question 7. Which type of load can induce fatigue in steel bridge components? A) Dead load B) Live load C) Repetitive traffic loads D) Static wind load Answer: C Explanation: Repetitive traffic loads cause cyclic stresses, leading to fatigue failure over time in steel components. Question 8. Which design feature can create challenges for coating application due to moisture entrapment?
Specialty Exam
A) Sharp edges B) Crevices C) Flat surfaces D) Large fillets Answer: B Explanation: Crevices can trap moisture and contaminants, making surface preparation and coating adhesion more difficult and increasing corrosion risk. Question 9. How does thermal expansion affect coating performance on bridges? A) Causes chemical degradation B) Induces cracking and delamination C) Enhances adhesion D) Reduces UV resistance Answer: B Explanation: Thermal movement can induce stresses in coatings, leading to cracking and delamination if not properly accommodated by design features like expansion joints.
Specialty Exam
Explanation: Marine environments contain high levels of salts and moisture, significantly accelerating atmospheric corrosion on steel and concrete. Question 12. De-icing salts primarily cause which type of deterioration on steel bridges? A) Pitting corrosion B) Galvanic corrosion C) Uniform corrosion D) Microbial induced corrosion Answer: A Explanation: De-icing salts penetrate the protective oxide layer, promoting localized pitting corrosion, especially in steel components. Question 13. Which deterioration mechanism is most likely to affect concrete bridge decks in tidal zones? A) Alkali-aggregate reaction B) Chloride ingress leading to rebar corrosion C) Pitting corrosion D) Hydrogen embrittlement
Specialty Exam
Answer: B Explanation: Chloride ingress from tidal water and salts accelerates rebar corrosion, leading to spalling and cracking of concrete decks. Question 14. What is the primary cause of carbonation in concrete structures? A) Chloride penetration B) Reaction of CO₂ with calcium hydroxide C) Freeze-thaw cycles D) Alkali-aggregate reaction Answer: B Explanation: Carbonation occurs when CO₂ reacts with calcium hydroxide in concrete, reducing pH and compromising steel reinforcement protection. Question 15. Which form of steel corrosion involves localized pitting that can penetrate deeply into the metal? A) Uniform corrosion B) Crevice corrosion C) Pitting corrosion
Specialty Exam
C) SSPC-SP 5
D) SSPC-SP 1
Answer: B Explanation: SSPC-SP 6 (Commercial Blast Cleaning) specifies the standards for abrasive blasting to remove mill scale, rust, and old coatings, preparing steel surfaces for new coatings. Question 18. What is the typical anchor profile for a surface prepared to SSPC-SP 10 near-white blast cleaning? A) 0.5-1 mil B) 1.0-2 mils C) 2-3 mils D) 3-4 mils Answer: C Explanation: SSPC-SP 10 typically creates an anchor profile of 2-3 mils, providing good mechanical adhesion for coatings. Question 19. Which abrasive material is recyclable and often used in blast cleaning for bridge maintenance? A) Garnet
Specialty Exam
B) Steel grit C) Slag D) Expendable abrasives Answer: B Explanation: Steel grit is recyclable and commonly used in blast cleaning, providing a consistent profile and minimal environmental impact when collected and reused. Question 20. Waterjetting at ultra-high pressure is classified as which surface preparation grade? A) WJ- 1 B) WJ- 2 C) WJ- 3 D) WJ- 4 Answer: D Explanation: WJ-4 is ultra-high-pressure waterjetting, capable of removing residual coatings, contaminants, and achieving a near-white metal finish suitable for new coating application.
Specialty Exam
Explanation: High humidity can interfere with epoxy curing because moisture can inhibit the chemical reaction necessary for proper curing, leading to surface defects. Question 23. Which type of coating is most suitable for providing corrosion protection in highly UV-exposed bridge decks? A) Inorganic zinc silicate B) Organic zinc-rich primer C) Urethane topcoat D) Alkyd primer Answer: C Explanation: Urethane topcoats are UV stable, providing excellent gloss retention and durability in exposed environments such as bridge decks. Question 24. Which failure mode involves the detachment of coating layers due to internal stresses and poor intercoat adhesion? A) Blistering B) Cracking C) Delamination D) Chalking
Specialty Exam
Answer: C Explanation: Delamination refers to the separation of coating layers, often caused by internal stresses, poor adhesion, or incompatible coatings. Question 25. What is a common cause of blistering in bridge coatings? A) Excessive film thickness B) Moisture entrapment beneath coating C) UV degradation D) Abrasion Answer: B Explanation: Blistering typically results from moisture or soluble salts trapped beneath the coating, causing pressure and separation of the coating film. Question 26. Which component of a bridge is most critical to protect with a corrosion-resistant coating due to its exposure to water and salts? A) Deck B) Bearings
Specialty Exam
A) Sulfates B) Alkali hydroxides reacting with certain aggregates C) Chlorides D) Carbon dioxide Answer: B Explanation: Alkali-aggregate reaction occurs when alkali hydroxides in cement react with reactive silica in certain aggregates, causing expansion and cracking. Question 29. Which form of corrosion is characterized by localized attack within crevices or under deposits? A) Uniform corrosion B) Pitting corrosion C) Crevice corrosion D) Galvanic corrosion Answer: C Explanation: Crevice corrosion occurs in confined spaces where access to oxygen is limited, leading to localized attack.
Specialty Exam
Question 30. Which bridge component is most susceptible to rot in timber elements? A) Piles B) Decking C) Stringers D) Supports in moist environments Answer: D Explanation: Timber supports exposed to moisture are most vulnerable to rot and biological decay, especially in poorly ventilated or water- exposed areas. Question 31. Which SSPC/NACE standard specifies the requirements for hand tool cleaning? A) SSPC-SP 3 B) SSPC-SP 2 C) SSPC-SP 1 D) SSPC-SP 8 Answer: C
Specialty Exam
D) Requires extensive containment measures Answer: B Explanation: Waterjetting is less effective at removing soluble salts compared to abrasive blasting, which mechanically removes surface contaminants and corrosion products. Question 34. Which of the following is a characteristic of inorganic zinc silicate primers? A) Organic binder B) Excellent corrosion resistance in splash zones C) Replaces the need for topcoats D) Cures by solvent evaporation only Answer: B Explanation: Inorganic zinc silicate primers provide excellent corrosion resistance, especially in splash zones, due to their metallurgical bond and barrier properties. Question 35. Which coating is most suitable for preventing graffiti on bridge surfaces? A) Epoxy
Specialty Exam
B) Anti-graffiti coating C) Urethane D) Zinc-rich primer Answer: B Explanation: Anti-graffiti coatings are formulated to be easily cleanable and resistant to paint removal agents, making them ideal for vandal- prone areas. Question 36. What is the primary purpose of a cathodic protection system on a bridge? A) To prevent physical damage B) To reduce electrical resistance C) To inhibit galvanic and stray current corrosion D) To enhance coating adhesion Answer: C Explanation: Cathodic protection systems prevent corrosion by making the metal surface cathodic, inhibiting galvanic and stray current corrosion.
