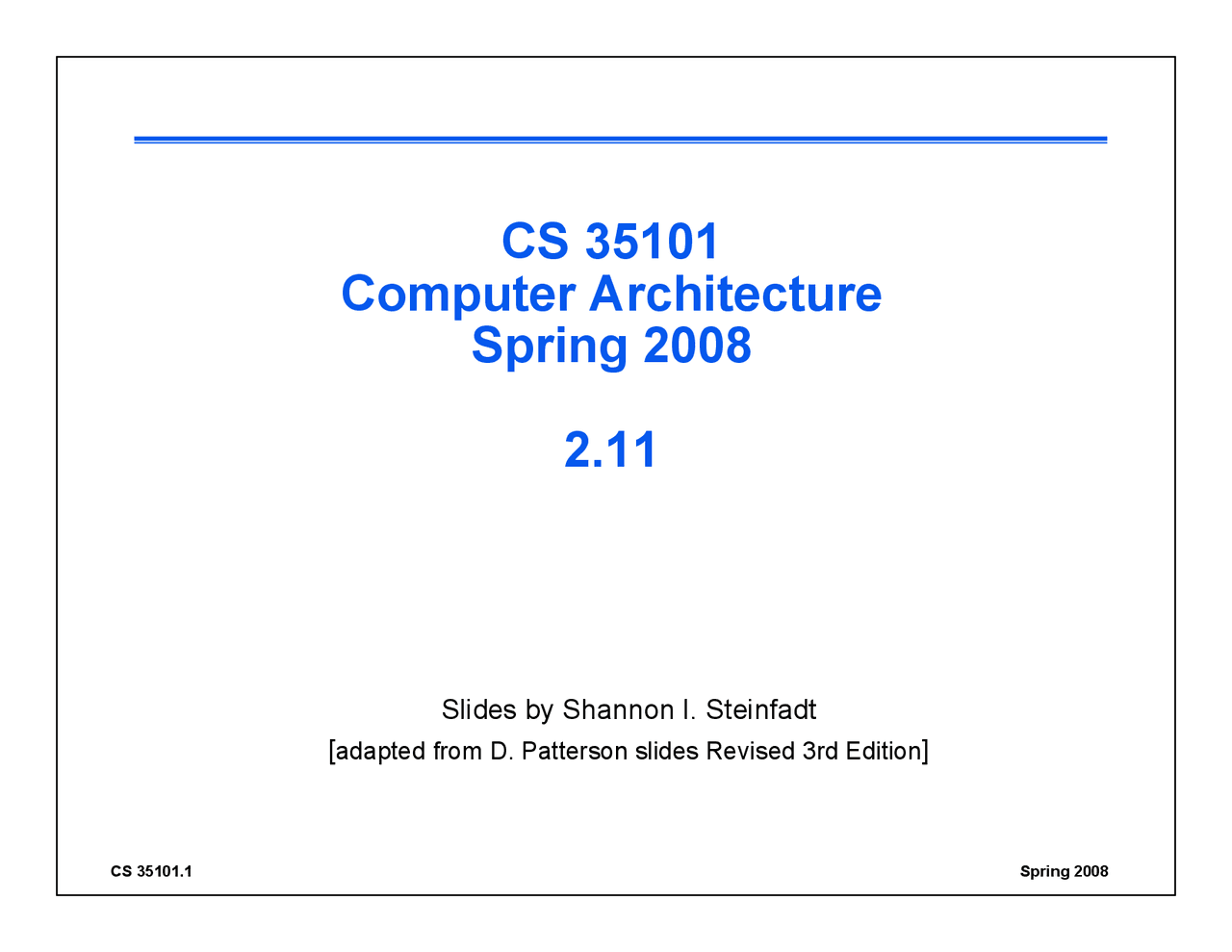

CS 35101

Computer Architecture

Spring 2008

Slides by Shannon I. Steinfadt [adapted from D. Patterson slides Revised 3rd Edition]

(2.11) Compiler Optimizations

Front end per language High-level optimizations Global optimizer Code generator Dependencies Language dependent; machine independent Function Transform language to common intermediate form Intermediate representation Somewhat language dependent; largely machine dependent For example, loop transformations and procedure inlining (procedure integration) Small language dependencies; machine dependences slight (e.g. register counts / types) Including global and local optimizations + register allocation Highly machine dependent; language dependent Detailed instruction selection and machine-dependent optimizations; may include or be followed by assembler

Local and Global Optimizations

 Local optimization

 Within a single basic block

 Often occurs as clean-up prior to and after global

optimization

 Global optimization

 Works across multiple basic blocks

 Global register allocation

 Allocates variables to registers for regions of code

 Crucial for good performance in modern processors

Global and Local Compiler Optimizations

 Common subexpression elimination

 a[i] = a[i] + 4

• Address calculation occurs twice!

 Strength reduction

 Replace complex operations with simpler ones

 Shift left instead of multiplication

 Constant propagation

int x = 14; int y = 7 - x / 2; return y * (28 / x + 2);

 Applying constant propagation once yields:

int x = 14; int y = 7 - 14 / 2; return y * (28 / 14 + 2);

 Constant folding could be applied to simplify the expression

Global Loop Optimizations

 Code motion

 Finds any loop invariants and moves computations

outside of the loop

while (loop_count < n+m-1)

• Where n and m are the size of the input strings and do not

change within the program

maxsize = n+m-

while (loop_count < maxsize)

 Induction variable elimination

 Combination of transformations that reduce

overhead on indexing arrays (replacing array

indexing with pointer accesses)

Why can’t compilers optimize optimally?

 Compilers must be conservative

 The compiler must produce running code that is

correct for any possible combination of inputs

 Programmers may have more knowledge about the

program that the compiler CANNOT assume:

• Absence of aliasing between two pointers
• Absence of side effects by a function call

 Most compilers translate and optimize one function

/ procedure at a time

• Difficult to optimize this way
