A comprehensive overview of solar panel and photovoltaic technology through a series of questions and answers. It covers key concepts such as peak solar power, energy production, solar tracking, semiconductor types, and the photovoltaic effect. The document also addresses practical aspects like solar cell efficiency, the impact of shading, and considerations for off-grid inverters, making it a valuable resource for understanding solar energy systems. It is useful for students and professionals in renewable energy.
Typology: Exams
1 / 3
This page cannot be seen from the preview
Don't miss anything!

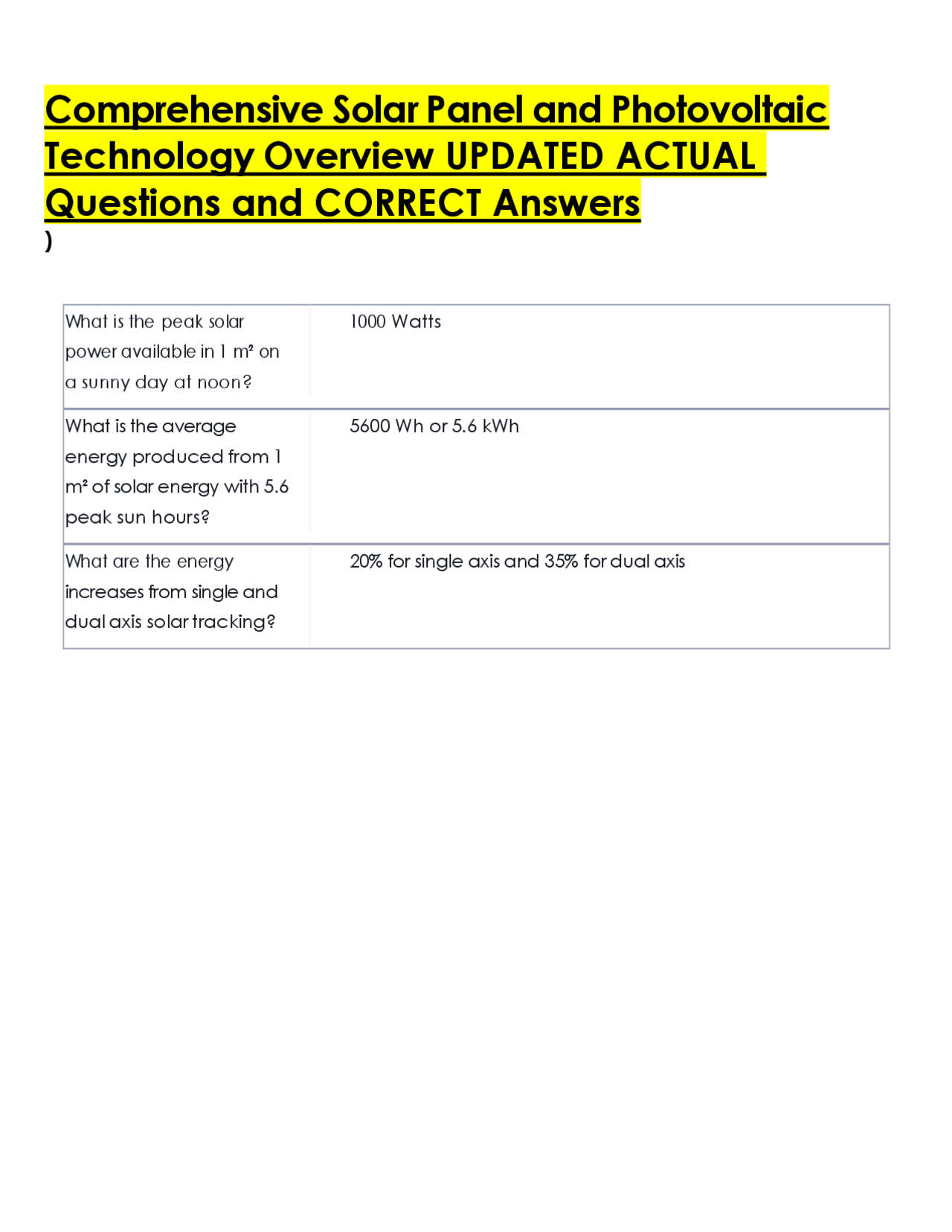

What is the peak solar power available in 1 m² on a sunny day at noon? 1000 Watts What is the average energy produced from 1 m² of solar energy with 5. peak sun hours? 5600 Wh or 5.6 kWh What are the energy increases from single and dual axis solar tracking? 20% for single axis and 35% for dual axis
What group of elements is primarily used in the making of solar cells? Group IV-A: Carbon (C), Silicon (Si), and Germanium (Ge) What is the role of doping in solar cells? Doping introduces impurities to create P-Type and N- Type semiconductors. What is a P-Type semiconductor? A semiconductor created by doping with Group III-A elements like Boron (B) that creates 'holes'. What is an N-Type semiconductor? A semiconductor created by doping with Group V-A elements like Phosphorus (P) that adds extra electrons. What is the function of the depletion region in a solar cell? It is the area where electron-hole pairs are created and separated, leading to voltage generation. What is the open circuit voltage (VOC) of a typical solar cell?
What is the short circuit current (Isc) range for solar cells? 30 - 36 mA/cm² What is the photovoltaic effect? The process where sunlight generates electron-hole pairs at the PN junction, creating voltage. What is the efficiency range of polycrystalline silicon solar cells?
What is the efficiency range of amorphous silicon solar cells?
