ROM (BIOS)
RAM
CPU
Monitor
L
L
Local Bus
Graphics PCI or AGP Local Bus Adapter
Mouse
Keyboard
Removable storage
Modem
Laser printer
Scanner
Adapters: Serial Parallel USB SCSI Firewire
EISA or PCI Bus
Disk array

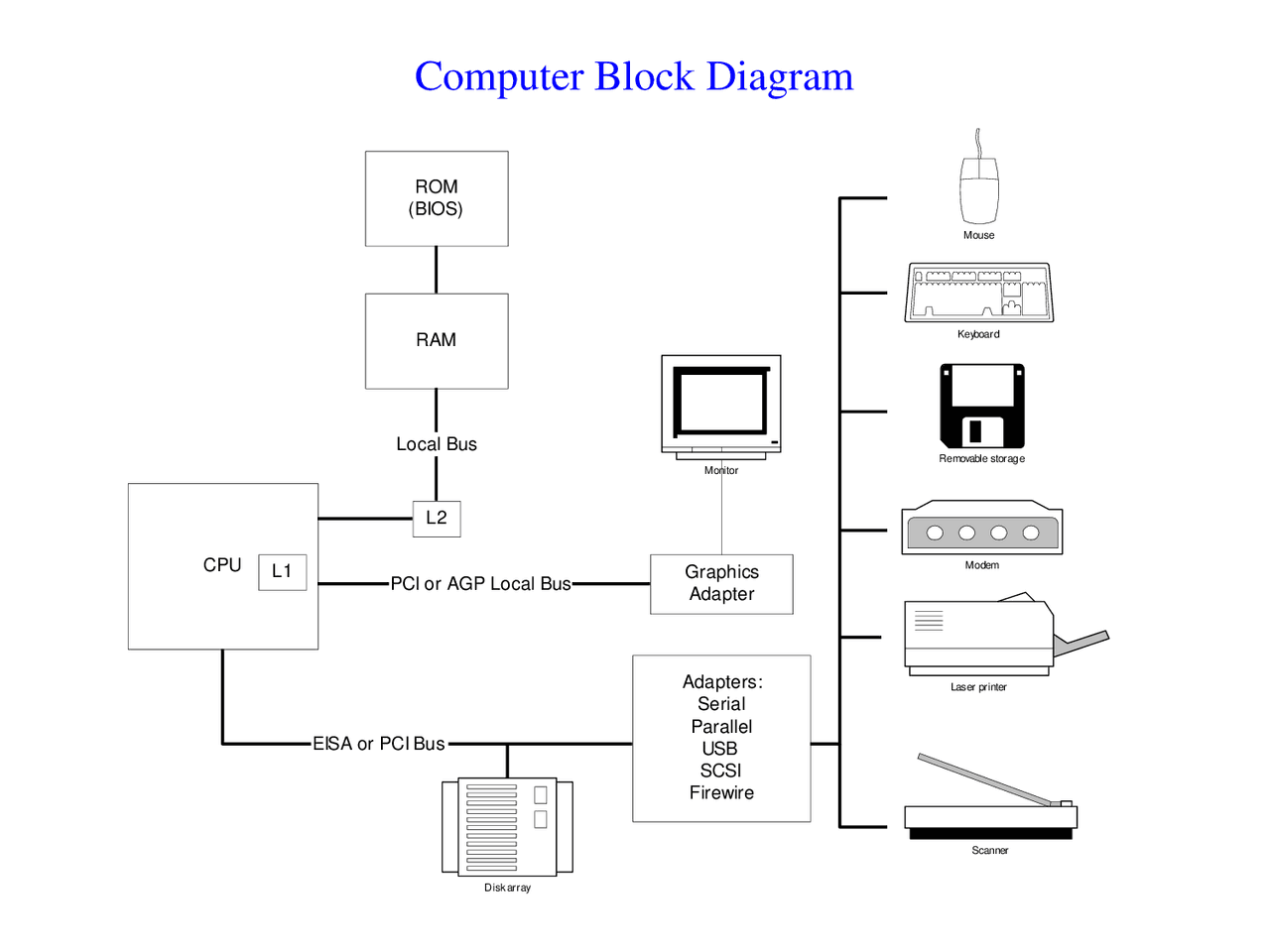

Computer Block Diagram
ALU FP
Clock Instruction Decoder
Control Unit
IP
Interrupt Register
Instruction
Data
Data
Data
Cache
CPU
High Speed Regis ters
MMX
Power
External Clock
Data Lines
Address Lines
Interrupt Line
Name Date Transistors Microns Clock speed Data width MIPS
- 8080 1974 6,000 6 2 MHz 8 bits 0. - 8088 1979 29,000 3 5 MHz 16 bits, 8-bit bus 0. - 80286 1982 134,000 1.5 6 MHz 16 bits - 80386 1985 275,000 1.5 16 MHz 32 bits - 80486 1989 1,200,000 1 25 MHz 32 bits - Pentium 1993 3,100,000 0.8 60 MHz 32 bits, 64-bit bus - Pentium II 1997 7,500,000 0.35 233 MHz 32 bits, 64-bit bus ~
- Pentium III 1999 9,500,000 0.25 450 MHz 32 bits, 64-bit bus ~ - Pentium 4 2000 42,000,000 0.18 1.5 GHz 32 bits, 64-bit bus ~1,
