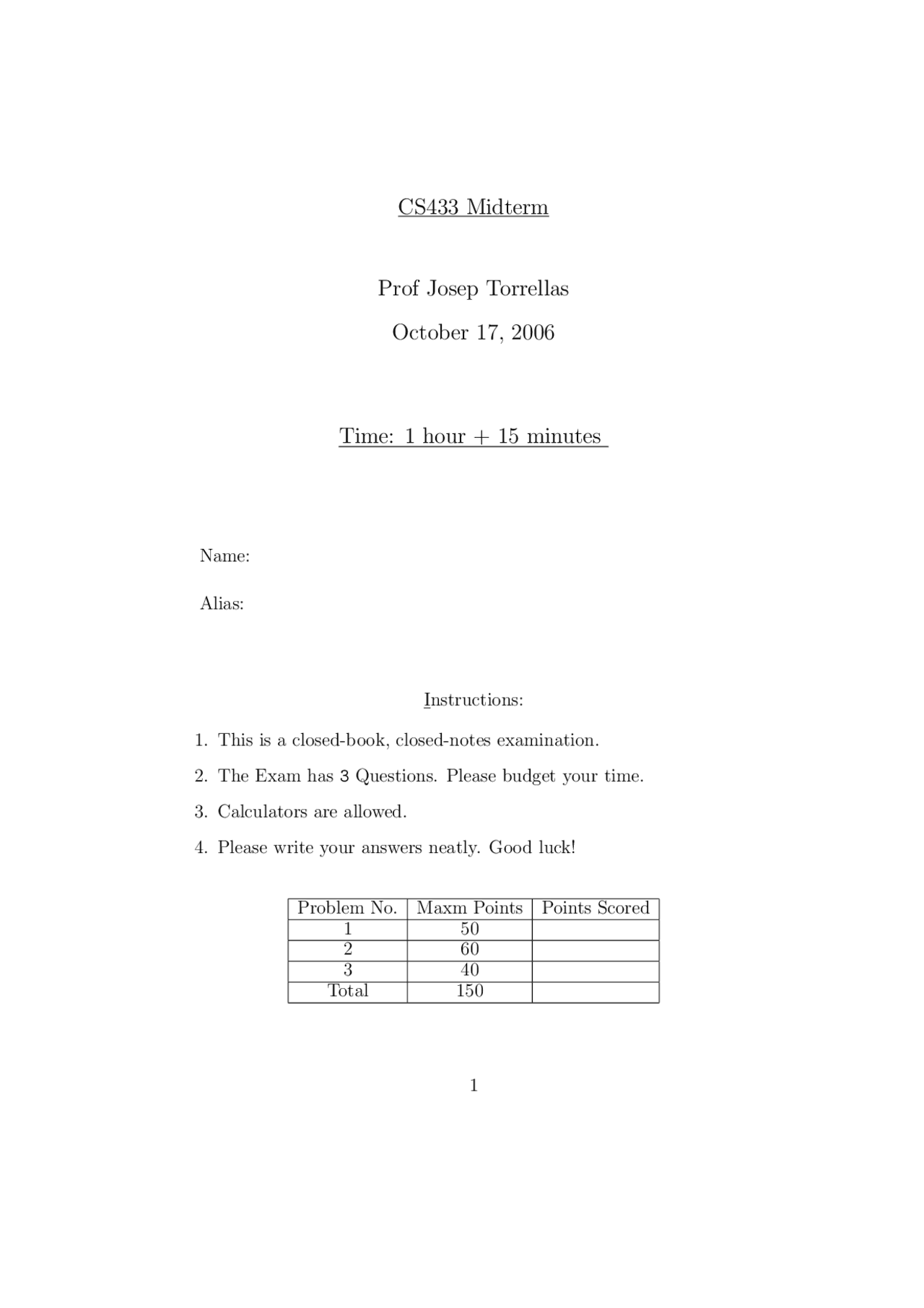

CS433 Midterm
Prof Josep Torrellas
October 17, 2006
Time: 1 hour + 15 minutes
Name:
Alias:
Instructions:
1. This is a closed-book, closed-notes examination.
2. The Exam has 3Questions. Please budget your time.
3. Calculators are allowed.
4. Please write your answers neatly. Good luck!
Problem No. Maxm Points Points Scored
1 50
2 60
3 40
Total 150
1
pf3
pf4
pf5
pf8
pf9
pfa

Partial preview of the text

Download CS433 Midterm Exam for CS Class with Instructions on Pipelining and Tomasulo's Algorithm - and more Exams Computer Architecture and Organization in PDF only on Docsity!

CS433 Midterm

Prof Josep Torrellas

October 17, 2006

Time: 1 hour + 15 minutes

Name:

Alias:

Instructions:

  1. This is a closed-book, closed-notes examination.
  2. The Exam has 3 Questions. Please budget your time.
  3. Calculators are allowed.
  4. Please write your answers neatly. Good luck!

Problem No. Maxm Points Points Scored 1 50 2 60 3 40 Total 150

I Pipelining [50 points]

A. Control Hazards [25 points] Suppose we have a MIPS processor with a 1-delay slot for branches. Consider codes (a) through (c):

ADD R1,R2,R3 ADD R1,R2,R3 ADD R1,R2,R NOP NOP NOP BEQZ R4 label BEQZ R1 label BEQZ R1 label [ [ [ ADD R10,R10,R10 ADD R7,R9,R10 ADD R13,R9,R JMP end JMP end JMP end NOP NOP NOP label: ADD R6,R6,R6 label: ADD R7,R11,R12 label: ADD R14,R9,R end: end: end:

(a) (b) (c)

a. [2 points] What is the best instruction to put in the delay slot in code (a)? Explain why. ADD R1,R2,R b. [2 points] What is the best instruction to put in the delay slot in code (b)? Explain why. NOP. Cannot find any c. [7 points] What is the best instruction to put in the delay slot in code (c) if R2+R3=0 60% of the time? Show the re- sulting code. In this case, what are the instructions executed when R2+R3=0, and what are the instructions executed when R2+R3!=0? ADD R1,R2,R NOP BEQ R1 end ADD R14,R9,R ADD R13,R9,R JMP end NOP label: ADD R14,R9,R end:

case 1) inst # 1, 2, 3, 4 case 2) inst # 1, 2, 3, 4, 5, 6, 7

d. [7 points] Repeat the whole question c if R2+R3=0 40% of the time.

B. Exceptions [25 points]

a. [5 points] What does it mean that a pipeline supports precise exceptions?

b. [4 points] How does a pipeline support precise exceptions?

c. [4 points] List one good thing and one bad thing of precise exceptions?

d. [4 points] What is a statically and a dynamically scheduled machine?

e. [4 points] What is a superscalar and a VLIW? Are they static or dynamic machines?

f. [4 points] How is the reorder buffer related to exception han- dling?

II Tomasulo’s Algorithm and Speculative Execution [60 points]

Consider the following code fragment DADDI R1, R0, # LOOP: L.D F0, 0(R2) MUL.D F2, 0(R1) DADDI F4, F2, F S.D F6, 0(R2) ADD.D F2, F2, F DSUBI F6, F4, F BNEZ R1, LOOP running on a system with the following specifications, noting that the assumptions are the same as in the homework except for those in bold typeface.

  • Assume a single-issue machine with unlimited reservation stations and the pipeline functional units described by Table 1.

Functional Unit Cycles in EX # Functional Units Integer 1 1 FP add 3 1 FP multiply 8 1

Table 1: Functional Unit Specification

  • Functional units are not pipelined.
  • All stages except EX take one cycle to complete.
  • There is no forwarding between functional units. Both integer and floating point results are communicated through the CDB.
  • Memory accesses and branches use the integer functional unit to perform address calculations. All loads and stores access memory during the EX stage and take one cycle to execute.
  • There are unlimited load/store buffers and an infinite instruction queue.
  • If an instruction is in the WR stage in cycle x, then an instruction that is waiting on the same functional unit (due to a structural hazard) can begin execution in cycle x.
  • Only one instruction can write to the CDB in a clock cycle.
  • Branches and stores do not need the CDB. When executing with specu- lative hardware, branches and stores can commit in the cycle that follows EX if there is no other constraint that prevents it.
  • Whenever there is a conflict for a functional unit or the CDB, assume program order.

B. Tomasulo’s Algorithm with Speculative Execution [30 points]

Now, assume the architecture above, except with hardware specu- lation. Assume that the reorder buffer has four entries, named 0, 1, 2, and 3. Only one ROB entry can commit per cycle. Complete table 3, including:

  • The ROB entry used by each instruction.
  • The cycles that each instruction occupies in the IS, EX, WR, and CMT stages.
  • Comments to justify your answer such as type of hazards/stalls and the registers/ROB entries involved.

Instruction ROB IS EX WR CMT Comments (if appropriate) DADDI R1, R0, #2 0 1 2 3 4 L.D F0, 0(R2) 1 2 3 4 5 MUL.D F2, F0, F2 2 3 5-12 13 14 RAW (L.D F0) DADDI R2, R2, #32 3 4 5 6 15 in-order CMT S.D F2, 0(R2) 0 5 14 - 16 RAW (MUL.D F2), in-order CMT ADD.D F4, F2, F4 1 6 14-16 17 18 RAW (MUL.D F2) DSUBI R1, R1, #1 2 15 16-17 18 19 No ROB until 15, CDB conflict BNEZ R1, LOOP 3 16 19 - 20 RAW (DSUBI R1) L.D F0, 0(R2) 0 17 18 19 21 in-order CMT MUL.D F2, F0, F2 1 19 20-27 28 29 No ROB until 19 DADDI R2, R2, #32 2 20 21 22 30 in-order CMT

Table 3: Tomasulo’s Algorithm with Speculative Excecution

III [40 points] Software ILP Consider the following machine.

  • There is 1 integer functional unit, taking 1 cycle to perform integer addition (including effective address calculation for loads/stores), subtraction, logic operations, and branch operations
  • There is 1 FP/integer multiplier, taking 7 cycles to perform any multiply. It is pipelined
  • There is 1 FP adder, taking 4 cycles to perform FP additions and subtractions. It is pipelined
  • Branches are resolved in the ID stage.
  • There is one branch delay slot
  • There is full forwarding and bypassing, including forwarding from the end of an FU to the MEM stage for stores
  • Loads and stores complete in one cycle. That is, they spend one cycle in the MEM stage after the effective address calculation
  • There are as many registers, both FP and integer, as you need
  • While the hardware has full forwarding/bypassing, it is the responsibility of the compiler to schedule such that the operands of each instruction are avail- able when needed by each instruction
  • If unspecified, its properties are like those in the MIPS pipeline we studied in class

Now consider this code fragment:

loop L.D F2, 0(R1) L.D F4, 0(R2) DADDUI R1, R1, # DADDUI R2, R2, # ADD.D F6, F2, F MUL.D F8, F4, F ADD.D F10, F6, F S.D F10, 0(R3) DADDUI R3, R3, # DSUBUI R4, R4, # BNEZ R4, loop

B. Software Pipelining [12 points] Software pipeline the loop and reorder the instructions to reduce stalls. Don’t write the startup or cleanup code.

loop S.D F10, -24(R3) //x- ADD.D F10, F6, F8 //x- ADD.D F6, F2, F2 //x- MUL.D F8, F4, F4 //x- L.D F2, 0(R1) //x L.D F4, 0(R2) //x DADDUI R1, R1, # DSUBUI R3, R3, # DADDUI R2, R2, # BNEZ R4, loop DADDUI R4, R4, #

C. Short Answer [8 points]

a. [4 points] Name one advantage and disadvantage of Loop Un- rolling.

Advantages: more ILP, fewer overheard instructions Disadvantages: code size increases, register pressure increases, problem becomes worse in multiple issue processors b. [4 points] Name one advantage of using VLIW and one prob- lem with the original VLIW model.

Advantages: keep more FU’s busy by issuing multiple instruc- tions, simpler hardware Problems: code size increase, limitations of lockstep operation, binary compatibility, finding parallelism
