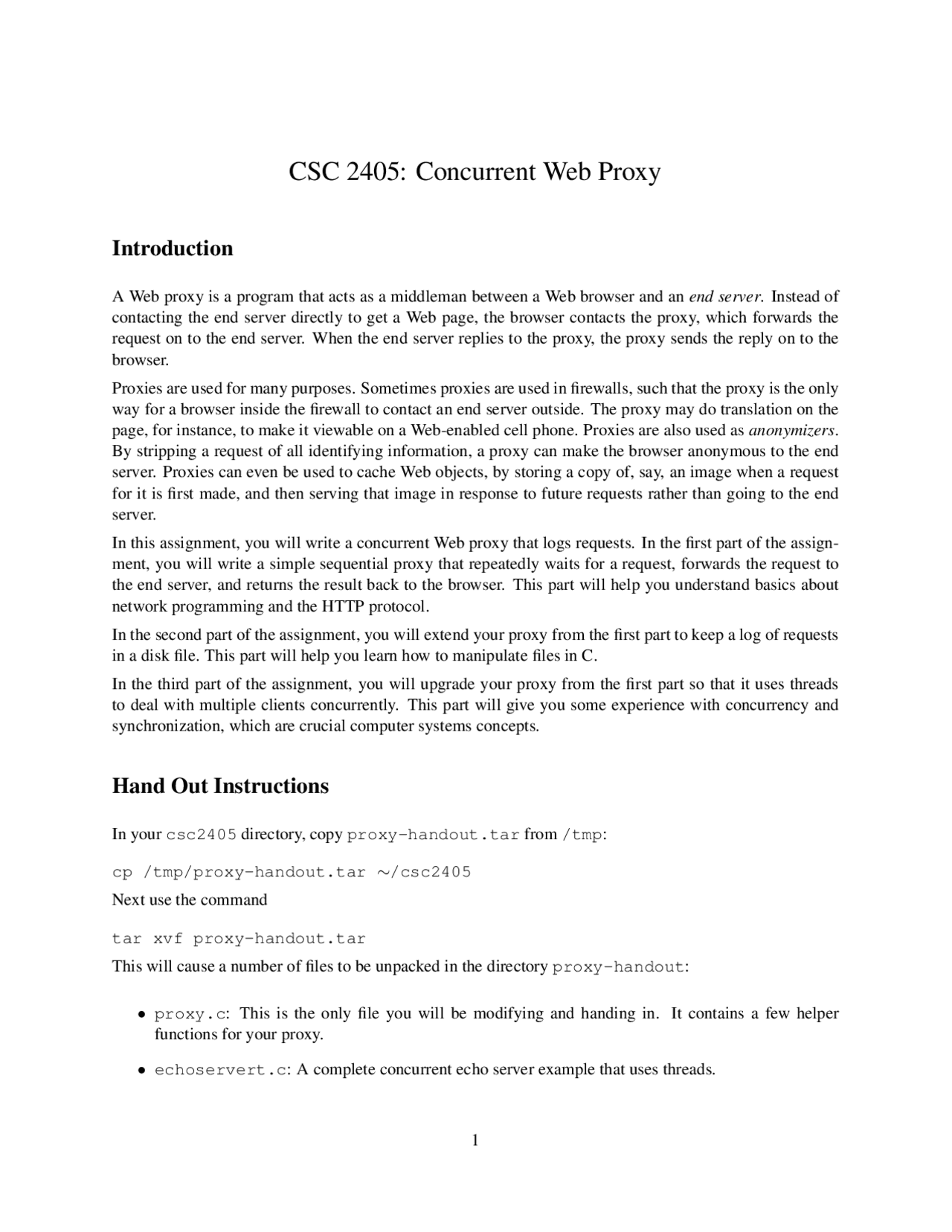

CSC 2405: Concurrent Web Proxy
Introduction
A Web proxy is a program that acts as a middleman between a Web browser and an end server. Instead of contacting the end server directly to get a Web page, the browser contacts the proxy, which forwards the request on to the end server. When the end server replies to the proxy, the proxy sends the reply on to the browser.
Proxies are used for many purposes. Sometimes proxies are used in firewalls, such that the proxy is the only way for a browser inside the firewall to contact an end server outside. The proxy may do translation on the page, for instance, to make it viewable on a Web-enabled cell phone. Proxies are also used as anonymizers. By stripping a request of all identifying information, a proxy can make the browser anonymous to the end server. Proxies can even be used to cache Web objects, by storing a copy of, say, an image when a request for it is first made, and then serving that image in response to future requests rather than going to the end server.
In this assignment, you will write a concurrent Web proxy that logs requests. In the first part of the assign- ment, you will write a simple sequential proxy that repeatedly waits for a request, forwards the request to the end server, and returns the result back to the browser. This part will help you understand basics about network programming and the HTTP protocol.
In the second part of the assignment, you will extend your proxy from the first part to keep a log of requests in a disk file. This part will help you learn how to manipulate files in C.
In the third part of the assignment, you will upgrade your proxy from the first part so that it uses threads to deal with multiple clients concurrently. This part will give you some experience with concurrency and synchronization, which are crucial computer systems concepts.
Hand Out Instructions
In your csc2405 directory, copy proxy-handout.tar from /tmp:
cp /tmp/proxy-handout.tar ∼/csc
Next use the command
tar xvf proxy-handout.tar
This will cause a number of files to be unpacked in the directory proxy-handout:
- proxy.c: This is the only file you will be modifying and handing in. It contains a few helper functions for your proxy.
- echoservert.c: A complete concurrent echo server example that uses threads.
- csapp.c: This file contains error handling wrappers and helper functions such as the RIO (Robust I/O) package, open clientfd and open listenfd.
- csapp.h: This file contains a few manifest constants, type definitions, and prototypes for the func- tions in csapp.c.
- Makefile: Compiles and links a C source file and csapp.c into the corresponding executable.
Your proxy.c file may call any function in the csapp.c file. However, since you are only handing in a single proxy.c file, please do not modify the csapp.c file. If you need different versions of functions in csapp.c (as suggested in the Hints section), write the new functions in the proxy.c file.
Testing the Echo Server
Build the echoservert executable on tanner by typing in make echoservert, then test the server using telnet as follows. Pick a random 5-digit integer N no greater than 64000 and pass it to the server as an argument:
./echoservert N
Open a second terminal window on tanner and invoke telnet at the shell prompt, passing the port number N as a second argument:
telnet tanner N
The telnet application opens a TCP connection to port N on tanner. Now anything that you type into the telnet window will be sent over this connection and echoed back to you by the server.
Part I: Implementing a Sequential Web Proxy
In this part you will implement a sequential proxy. Your proxy should open a socket and listen for a connection request. When it receives a connection request, it should accept the connection, read the HTTP request, and parse it to determine the name of the end server. It should then open a connection to the end server, send the request (altered as described in subsequent sections), receive the reply, and forward the reply (unaltered) to the browser, if the request is not blocked. Check the Hints section for details on error handling. You know that your program works if the browser displays the information correctly.
Since your proxy is a middleman between client and end server, it will have elements of both. It will act as a server to the web browser, and as a client to the end server. Thus you will get experience with both client and server programming. Chapter 12 in our textbook is a very good reference material – use it as needed.
HTTP Requests to Servers
HTTP requests are of many types, but we will only concern ourselves with the GET request in this as- signment. Suppose that you type the URL http://www.google.com/index.html into your Web browser. The Web browser will open a TCP connection to www.google.com on port 80 and send the request (followed by a number of lines not shown here):
A unique port number has been assigned to you – please check the class website to find out the port number your server is supposed to use. This is to ensure that your port number is not currently being used by other students or system services (see /etc/services for a list of the port numbers reserved by system services).
PART II: Logging Requests
Your proxy should keep track of all requests in a log file named proxy.log. Each log file entry should be a line of the form:
Date: browserIP URL size
where browserIP is the IP address of the browser, URL is the URL asked for, size is the size in bytes of the object that was returned. For instance:
Sun 16 Feb 2009 02:51:02 EST: 128.2.111.38 http://www.xxx.com/ 34056
Note that size is essentially the number of bytes received from the end server, from the time the connection is opened to the time it is closed. Only requests that are met by a response from an end server should be logged. We have provided the function format log entry in csapp.c to create a log entry in the required format. See
http://www.csc.villanova.edu/∼mdamian/C/c-files.htm
for instructions on manipulating files in C.
Part III: Implementing Concurrency with Threads
Real proxies do not process requests sequentially. They deal with multiple requests concurrently. Once you have a working sequential logging proxy, you should alter it to handle multiple requests concurrently. The simplest approach is to create a new thread to deal with each new connection request that arrives. Use echoservert.c as a guiding example.
With this approach, it is possible for multiple peer threads to access the log file concurrently. Thus, you will need to use a semaphore to synchronize access to the file such that only one peer thread can modify it at a time. If you do not synchronize the threads, the log file might be corrupted. For instance, one line in the file might begin in the middle of another. Check the Hints section for details on thread-safe functions.
Evaluation
Each student will be evaluated on the basis of a demo to your instructor. Evaluation criteria include:
- Basic proxy functionaliy. Your sequential proxy should correctly accept connections, forward the requests to the end server, and pass the response back to the browser. Your program should be able to proxy browser requests to the following Web sites (and, for Part II, correctly log the requests):
- http://www.yahoo.com
- http://www.aol.com
- Handling concurrent requests using threads.
- Style. Your code should begin with a comment block that describes in a general way how your proxy works. Furthermore, each function should have a comment block describing what that function does. Furthermore, your threads should run detached, and your code should not have any memory leaks.
Hints
- The best way to get going on your proxy is to start with the basic echo server from your handout and then gradually add functionality that turns the server into a proxy.
- Initially, you should debug your proxy using telnet as the client.
- Later, test your proxy with a real browser. Explore the browser settings until you find “proxies”, then enter the host and port where you’re running yours. With Netscape, choose Edit, then Preferences, then Advanced, then Proxies, then Manual Proxy Configuration. In Internet Explorer, choose Tools, then Options, then Connections, then LAN Settings. Check ’Use proxy server,’ and click Advanced. Just set your HTTP proxy, because that’s all your code is going to be able to handle.
- Since the focus of this assignment is on concurrency and network programming, we provide you with two helper routines: parse url, which extracts the hostname, path, and port components from a URL, and format log entry, which constructs an entry for the log file in the proper format.
- Be careful about memory leaks. When the processing for an HTTP request fails for any reason, the thread must close all open socket descriptors and free all memory resources before terminating.
- You will find it very useful to assign each thread a small unique integer ID (such as the current request number) and then pass this ID as one of the arguments to the thread routine. If you display this ID in each of your debugging output statements, then you can accurately track the activity of each thread.
- To avoid a potentially fatal memory leak, your threads should run as detached, not joinable.
- Since the log file is being written to by multiple threads, you must protect it with mutual exclusion semaphores whenever you write to it.
- Be very careful about calling thread-unsafe functions such as inet ntoa, gethostbyname, and gethostbyaddr inside a thread. Such functions compute the result in a static structure and re- turn a pointer to that structure, making it possible for the result used by one thread to be silently over- written by another thread. In particular, the open clientfd function in csapp.c is thread-unsafe because it calls gethostbyaddr. You will need to write a thread-safe version of open clientfd, called open clientfd ts. This function should lock a mutex, call the thread-unsafe function, copy the result to local memory, then unlocks the mutex.
- Use the RIO (Robust I/O) package for all I/O on sockets. Do not use standard I/O on sockets. You will quickly run into problems if you do. However, standard I/O calls such as fopen and fwrite are fine for I/O on the log file.
