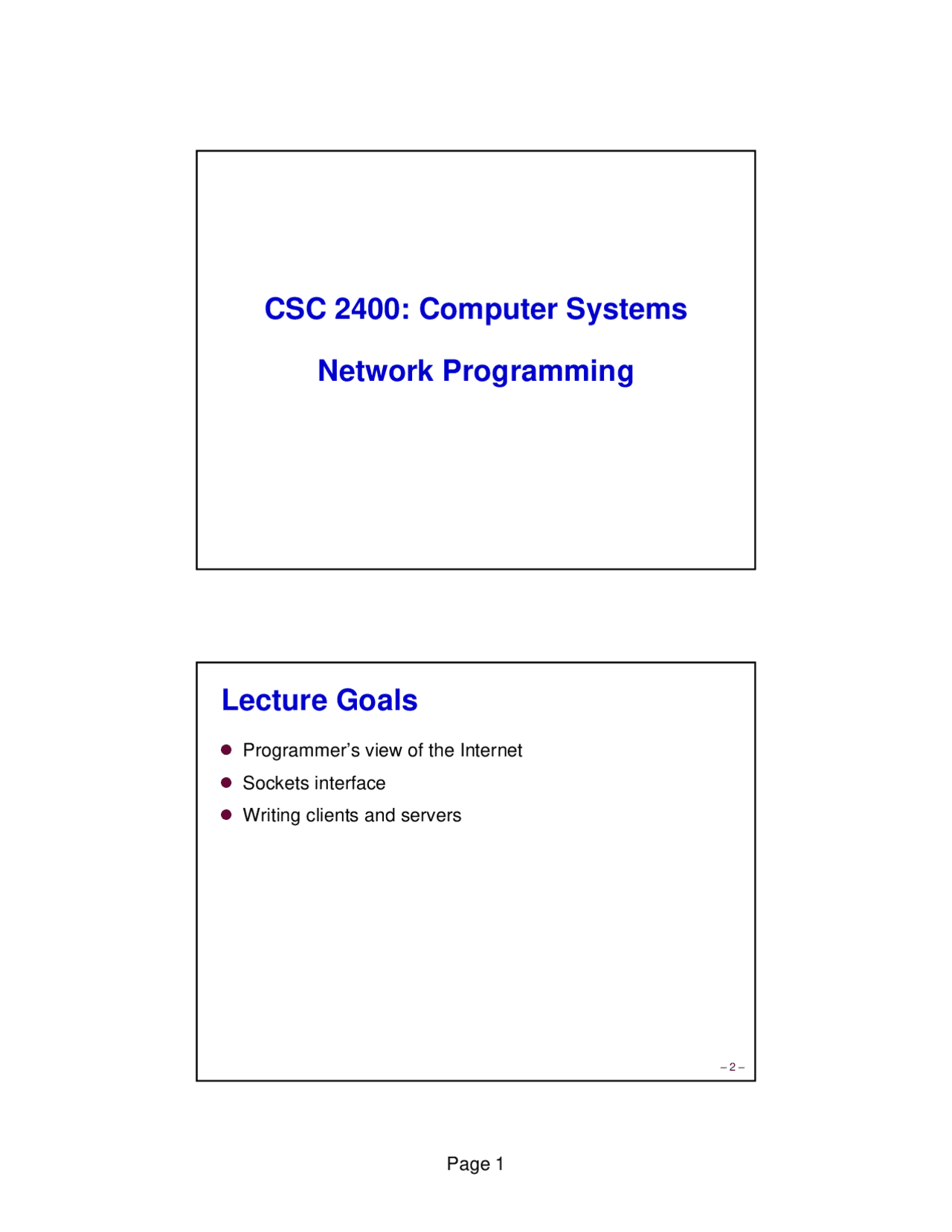

CSC 2400: Computer Systems

Network Programming

• 2 –

Lecture Goals

z Programmer’s view of the Internet

z Sockets interface

z Writing clients and servers

• 3 –

End System: Computer on the ‘Net

Internet

Also known as a “host”…

• 4 –

Clients and Servers

Client program

„ Running on end host

„ Requests service

„ E.g., Web browser

Server program

„ Running on end host

„ Provides service

„ E.g., Web server

GET /index.html

“Site under construction”

• 7 –

Delivering the Data: Division of Labor

Network

„ Deliver data packet to the destination host

„ Based on the destination IP address

Operating system

„ Deliver data to the destination socket

„ Based on the destination port number

Application

„ Read data from and write data to the socket

„ Interpret the data (e.g., render a Web page)

• 8 –

A Programmer’s View of the Internet

1. Hosts are mapped to a set of 32-bit IP addresses.

2. The set of IP addresses is mapped to a set of identifiers

called Internet domain names.

„ 128.2.203.179 is mapped to www.cs.cmu.edu

3. Internet sockets are communication endpoints.

4. A process on one Internet host can communicate with a

process on another Internet host over a connection.

• 9 –

1. IP Addresses

32-bit IP addresses are stored in an IP address struct

„ IP addresses are always stored in memory in network byte order

(big-endian byte order)

„ True in general for any integer transferred in a packet header

from one machine to another.

z E.g., the port number used to identify an Internet connection.

/* Internet address structure / struct in_addr { unsigned int s_addr; / network byte order (big-endian) */ };

Handy network byte-order conversion functions:

htonl: convert long int from host to network byte order.

htons: convert short int from host to network byte order.

ntohl: convert long int from network to host byte order.

ntohs: convert short int from network to host byte order.

• 10 –

2. Domain Naming System (DNS)

The Internet maintains a mapping between IP addresses and

domain names in a huge worldwide distributed database

called DNS.

„ Conceptually, programmers can view the DNS database as a

collection of millions of host entry structures :

Functions for retrieving host entries from DNS:

„ gethostbyname: query key is a DNS domain name.

„ gethostbyaddr: query key is an IP address.

/* DNS host entry structure */ struct hostent { char h_name; / official domain name of host */ char *h_aliases; / null-terminated array of domain names / int h_addrtype; / host address type (AF_INET) / int h_length; / length of an address, in bytes */ char *h_addr_list; / null-terminated array of in_addr structs */ };

• 13 –

4. Internet Connections

Connection socket pair (128.2.194.242:51213, 208.216.181.15:80)

Server (port 80) Client

Client socket address 128.2.194.242:

Server socket address 208.216.181.15:

Client host address 128.2.194.

Server host address 208.216.181.

Clients and servers communicate by sending streams of

bytes over connections.

Connections are point-to-point, full-duplex (2-way

communication), and reliable.

Note: 51213 is an ephemeral port allocated by the kernel

Note: 80 is a well-known port associated with Web servers

• 14 –

Clients

Examples of client programs

„ Web browsers, ftp, telnet, ssh

How does a client find the server?

„ The IP address in the server socket address identifies the host

(more precisely, an adapter on the host)

„ The (well-known) port in the server socket address identifies the

service, and thus implicitly identifies the server process that

performs that service.

„ Examples of well know ports

z Port 7: Echo server

z Port 23: Telnet server

z Port 25: Mail server

z Port 80: Web server

• 15 –

Well-Known vs. Ephemeral Ports

Server has a well-known port (e.g., port 80)

„ Between 0 and 1023

Client picks an unused ephemeral (i.e., temporary) port

„ Between 1024 and 65535

See http://www.iana.org/assignments/port-numbers

• 16 –

Servers

Servers are long-running processes (daemons).

„ Created at boot-time (typically) by the init process (process 1)

„ Run continuously until the machine is turned off.

Each server waits for requests to arrive on a well-known port

associated with a particular service.

„ Port 7: echo server

„ Port 23: telnet server

„ Port 25: mail server

„ Port 80: HTTP server

A machine that runs a server process is also often referred to

as a “server.”

See /etc/services for a

comprehensive list of the

services available on a

Linux machine.

• 19 –

Sockets Interface

Created in the early 80’s as part of the original Berkeley

distribution of Unix that contained an early version of the

Internet protocols.

Provides a user-level interface to the network.

Underlying basis for all Internet applications.

Based on client/server programming model.

• 20 –

Overview of the Sockets Interface

Client (^) Server

socket socket

bind

listen

accept

read

read

write

close

read

connect

write

close

Connection request

EOF

Await connection request from next client

open_listenfd

open_clientfd

• 21 –

Sockets Interface

socket

„ First step in making a network connection: create a socket

bind

„ The server's second step in making a network connection: bind

the socket so it can listen

connect

„ The client's second step in making a network connection: connect

(call) on the socket

listen

„ The server's third step in making a network connection: listen for

calls on the socket

accept

„ The server's fourth step in making a network connection: accept

an incoming connection (call) on the socket

• 22 –

Read and Write

Once the connection is established, both the server and

client can use the read and write system calls to

transmit data back and forth

• 25 –

Typical Server Program

Prepare to communicate

„ Create a socket

„ Associate local address and port with the socket

Wait to hear from a client (passive open)

„ Indicate how many clients-in-waiting to permit

„ Accept an incoming connection from a client

Exchange data with the client over new socket

„ Receive data from the socket

„ Do stuff to handle the request (e.g., get a file)

„ Send data to the socket

„ Close the socket

Repeat with the next connection request

• 26 –

Putting It all Together …

Client (^) Server

socket socket

bind

listen

accept

read

read

write

close

read

connect

write

close

Connection request

EOF

Await connection request from next client

open_listenfd

open_clientfd

• 27 –

Socket Address Structures

Generic socket address:

„ For address arguments to connect , bind, and accept.

„ Necessary only because C did not have generic (void *)

pointers when the sockets interface was designed.

Internet-specific socket address:

„ Must cast (sockaddr_in *) to (sockaddr *) for connect,

bind, and accept.

struct sockaddr { unsigned short sa_family; /* protocol family / char sa_data[14]; / address data. */ };

struct sockaddr_in { unsigned short sin_family; /* address family (always AF_INET) / unsigned short sin_port; / port num in network byte order / struct in_addr sin_addr; / IP addr in network byte order / unsigned char sin_zero[8]; / pad to sizeof(struct sockaddr) */ };

• 28 –

Echo Client: Main Routine

#include “nethelp.h"

/* usage: ./echoclient host port */ int main(int argc, char **argv) { int clientfd, port; char *host, buf[MAXLINE]; rio_t rio;

host = argv[1]; port = atoi(argv[2]);

clientfd = open_clientfd(host, port);

while (fgets(buf, MAXLINE, stdin) != NULL) { write(clientfd, buf, strlen(buf)); n = (clientfd, buf, MAXLINE); write(1, buf, n); } close(clientfd); exit(0); }

Must be implemented. Not built-in.

readline

• 31 –

accept() blocks waiting for a connection request.

accept returns a connected descriptor (connfd) with the

same properties as the listening descriptor (listenfd)

„ Returns when the connection between client and server is

created and ready for I/O transfers.

„ All I/O with the client will be done via the connected socket.

accept also fills in client’s IP address.

Echo Server: accept

int listenfd; /* listening descriptor / int connfd; / connected descriptor */ struct sockaddr_in clientaddr; int clientlen;

clientlen = sizeof(clientaddr); connfd = accept(listenfd, (SA *)&clientaddr, &clientlen);

• 32 –

Echo Server: accept Illustrated

listenfd(3)

Client

1. Server blocks in accept,

waiting for connection

request on listening

clientfd descriptor^ listenfd.

Server

listenfd(3)

Client

clientfd

Server

2. Client makes connection

request by calling and blocking in

connect.

Connection request

listenfd(3)

Client

clientfd

Server

3. Server returns connfd from

accept. Client returns from

connect. Connection is now

established between clientfd

and connfd.

connfd(4)

• 33 –

Connected vs. Listening Descriptors

Listening descriptor

„ End point for client connection requests.

„ Created once and exists for lifetime of the server.

Connected descriptor

„ End point of the connection between client and server.

„ A new descriptor is created each time the server accepts a

connection request from a client.

„ Exists only as long as it takes to service client.

Why the distinction?

„ Allows for concurrent servers that can communicate over many

client connections simultaneously.

z E.g., Each time we receive a new request, we create a new

thread to handle the request.

• 34 –

Echo Server: echo

void echo(int connfd) { size_t n; char buf[MAXLINE];

while((n = readline(connfd, buf, MAXLINE)) != 0) { printf("server received %d bytes\n", n); write(connfd, buf, n); } }

The server reads and echoes text lines until EOF (end-of-

file) is encountered.

„ EOF notification caused by client calling close(clientfd).

„ IMPORTANT: EOF is a condition, not a particular data byte.

• 37 –

Running the Echo Client and Server

bash$ echoserver 5000

In a separate terminal window:

bash$ echoclient tanner 5000 123 123

bash$

• 38 –

Next …

z Creating our own clients and servers

z Complete the lab posted on the class website
