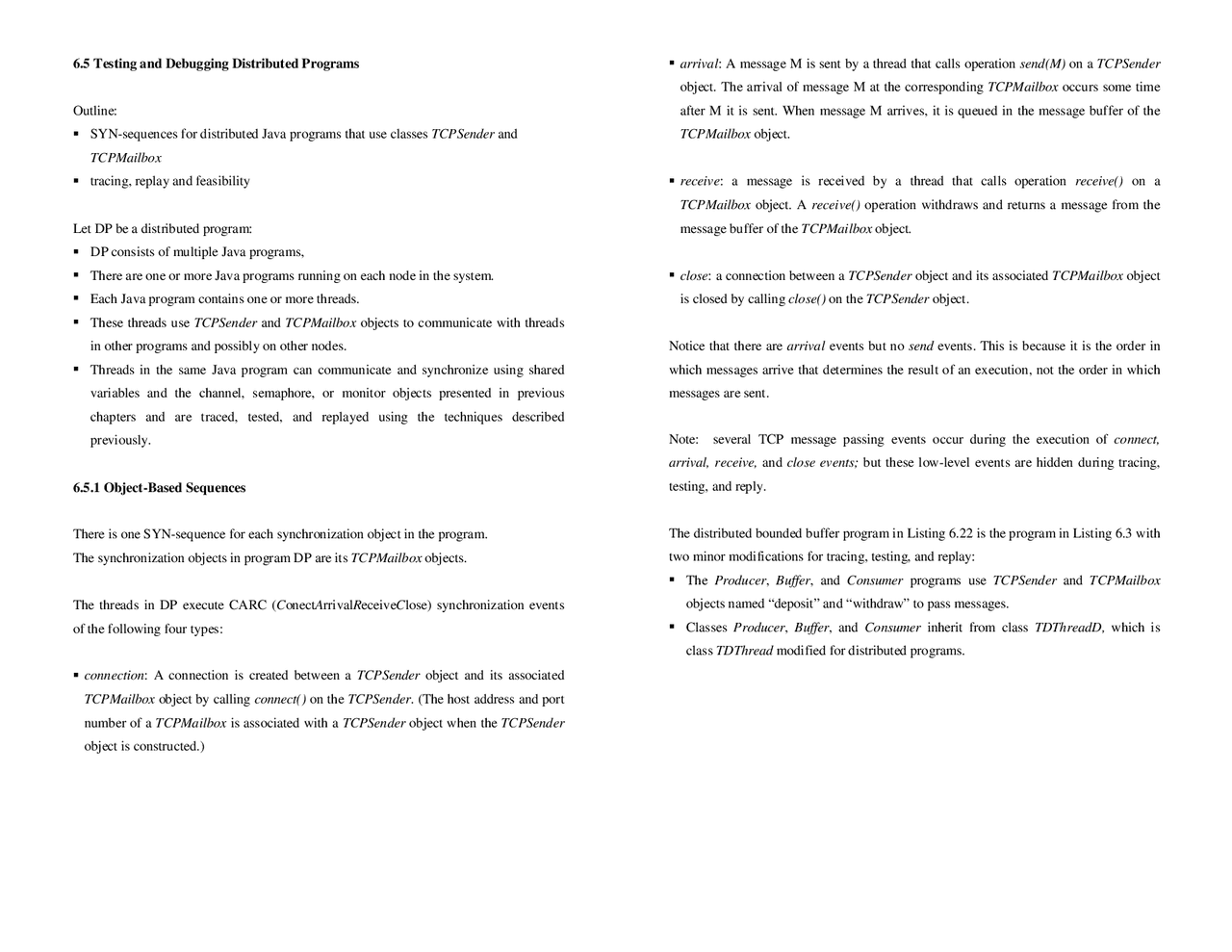

6.5 Testing and Debugging Distributed Programs Outline:^
SYN-sequences for distributed Java programs that use classes
TCPSender
and
TCPMailbox
tracing, replay and feasibility Let DP be a distributed program:^
DP consists of multiple Java programs,
There are one or more Java programs running on each node in the system.
Each Java program contains one or more threads.
These threads use
TCPSender
and
TCPMailbox
objects to communicate with threads
in other programs and possibly on other nodes.
Threads in the same Java program can communicate and synchronize using sharedvariables and the channel, semaphore, or monitor objects presented in previouschapters
and
are
traced,
tested,
and
replayed
using
the
techniques
described
previously. 6.5.1 Object-Based Sequences There is one SYN-sequence for each synchronization object in the program.The synchronization objects in program DP are its
TCPMailbox
objects.
The threads in DP execute CARC (
C
onect
A
rrival
R
eceive
C
lose) synchronization events
of the following four types:^
connection
: A connection is created between a
TCPSender
object and its associated
TCPMailbox
object by calling
connect()
on the
TCPSender
. (The host address and port
number of a
TCPMailbox
is associated with a
TCPSender
object when the
TCPSender
object is constructed.)
^ arrival
: A message M is sent by a thread that calls operation
send(M)
on a
TCPSender
object. The arrival of message M at the corresponding
TCPMailbox
occurs some time
after M it is sent. When message M arrives, it is queued in the message buffer of the TCPMailbox
object.
^ receive
:^
a^
message
is
received
by
a^
thread
that
calls
operation
receive()
on
a
TCPMailbox
object. A
receive()
operation withdraws and returns a message from the
message buffer of the
TCPMailbox
object
^ close
: a connection between a
TCPSender
object and its associated
TCPMailbox
object
is closed by calling
close()
on the
TCPSender
object.
Notice that there are
arrival
events but no
send
events. This is because it is the order in
which messages arrive that determines the result of an execution, not the order in whichmessages are sent.Note:
several TCP message passing events occur during the execution of
connect,
arrival, receive,
and
close events;
but these low-level events are hidden during tracing,
testing, and reply.The distributed bounded buffer program in Listing 6.22 is the program in Listing 6.3 withtwo minor modifications for tracing, testing, and replay:^
The
Producer
,^
Buffer
, and
Consumer
programs use
TCPSender
and
TCPMailbox
objects named “deposit” and “withdraw” to pass messages.
Classes
Producer
,^
Buffer
, and
Consumer
inherit from class
TDThreadD,
which is
class
TDThread
modified for distributed programs.
import java.net.*;public final class Producer extends
TDThreadD
public static void main (String args[]) {(new Producer()).start();}public void run() {
final int bufferPort = 2020;String bufferHost = null;try {
bufferHost = InetAddress.getLocalHost().getHostName();TCPSender deposit = new TCPSender(bufferHost,bufferPort,"
deposit
deposit.connect();for (int i=0; i<3; i++) {
System.out.println("Producing" + i);messageParts msg = new messageParts(new Message(i));deposit.send(msg); } deposit.close(); } catch (UnknownHostException e) {e.printStackTrace();}catch (TCPChannelException e) {e.printStackTrace();} } } public final class Buffer extends TDThreadD {
public static void main (String args[]) {(new Buffer()).start();}public void run() {
final int bufferPort = 2020; final int consumerPort = 2022;try {
String consumerHost = InetAddress.getLocalHost().getHostName();TCPMailbox deposit = new TCPMailbox(bufferPort,"
deposit
TCPSender withdraw = new
TCPSender(consumerHost,consumerPort,"
withdraw
withdraw.connect();for (int i=0; i<3; i++) {
messageParts m = (messageParts) deposit.receive();withdraw.send(m); } withdraw.close(); deposit.close(); } catch (UnknownHostException e) {e.printStackTrace();}catch (TCPChannelException e) {e.printStackTrace();} } }
public final class Consumer extends TDThreadD {
public static void main (String args[]) { (new Consumer()).start();}public void run() {
final int consumerPort = 2022;try {
TCPMailbox withdraw = new TCPMailbox(consumerPort,"
withdraw
for (int i=0; i<3; i++) {
messageParts m = (messageParts) withdraw.receive();Message msg = (Message) m.obj;System.out.println("Consumed " + msg.number); } withdraw.close(); } catch (TCPChannelException e) {e.printStackTrace();} } } Listing 6.22 The distributed bounded buffer program in Listing 6.4 modified for tracing,testing, and replay.Fig. 6.23 shows a diagram of the threads in Listing 6.22. Fig. 6.24 shows part of afeasible sequence of
connect
,^
arrival
,^
receive
, and
close
events for this program.
Producer Thread (ID = 1)
Consumer Thread (ID = 3)
Buffer Thread (ID = 2)
TCPSender
deposit
TCPSenderwithdraw
TCPMailbox
deposit
TCPMailbox
withdraw
TCPMailbox
deposit
Figure 6.23 Threads and mailboxes in the distributed bounded buffer program.
For a
TCPSynchronousMailbox
object M, there are
connection
and
close
events as
defined above, and a third event type:^
SRsynchronization: a synchronization between a
send()
and
receive()
operation
involving M. No
arrival
events are recorded for a
TCPSynchronousMailbox
object since the order of
arrivals is implied by the order of
SRsynchronization
events.
An object-based
connection
,^ SRsynchronization
, or
close
event (CSC-event) for
TCPSynchronousMailbox
M is denoted by
(callingThreadID, calledThreadID, callerOrderNumber, calledOrderNumber,
eventType)
where:^
callingThreadID
is the ID of the thread that opened or closed a connection with
M
, or
the ID of the sending thread in an
SRsynchronization
at M.
calledThreadID
is the ID of the receiving thread in an
SRsynchronization
at
M
. There
is no
calledThread
for
connection
or
close
events involving
M
callingOrderNumber
is the order number of the
callingThread
, which gives the
relative order of this event among all of the
callingThread’s
events.
calledOrderNumber
is the order number of the
calledThread
, which gives the relative
order of this event among all of the
calledThread’s
events. There is no
calledOrderNumber
for
connection
and
close
events involving
M
eventType
is the type of this event, which is either
connection
,^ SRsynchronization
, or
close
We will use the value -1 for the
calledThread
and
calledOrderNumber
in
connection
and
close
events to indicate that the information about the called thread is not applicable.
6.5.1.1 Thread-Based Sequences. Format 1
: A thread-based CARC- or CSC-event for thread
T
is denoted by:
(mailbox, mailboxOrderNumber, eventType) where:^
mailbox
is the
TCPMailbox
name.
mailboxOrderNumber
is the order number of
mailbox
eventType
is the type of the event.
The order number of
M
gives the relative order of this event among all the events
involving
M
. The list of event types is the same as that above for object-based events.
In Format 2, each
TCPMailbox
and
TCPSynchronousMailbox
has one receiving thread
that is considered to be the “owner” of the mailbox:^
Since a mailbox can have multiple receiving threads, one of the receivers must bearbitrarily chosen to be the owner.
If a thread
T
contains a selective wait, the selective wait will choose among one or
more
TCPSelectableSynchronousMailboxes
, all of which we require to be owned by
thread
T
We add a new event type for selective waits:
elseDelay
: selection of an
else
or
delay
alternative
Since thread T is associated with all of the mailbox and
elseDelay
events generated by its
selective waits, we record these events in the sequence for thread
T
Format 2: A thread-based CARC- or CSC-event for thread T, where T is the owner of themailbox associated with the event, is denoted by:
(sendingThreadID, sendingThreadOrderNumber, mailbox, eventType) where:^
sendingThreadID
is the ID of the sending thread (and T is always the receiver).
sendingThreadOrderNumber
is the sending thread’s order number.
mailbox
is the name of the mailbox.
eventType
is the type of this event.
An
SRsynchronization
event representing a synchronization between send and receive
operations on a synchronous mailbox appears in the CSC-sequence for the owning thread(i.e. the receiving thread). There is no corresponding send event for the sending thread.In Format 2, no order number is required for mailbox
M
since the CARC- or CSC-
sequence of M’s owning thread
T
contains all of the events for mailbox
M
and thus the
order numbers for
M
are given implicitly (i.e., the
i th event for
M
implicitly has order
number
i .)
Given the two formats for thread-based CARC- and CSC-events, we can now definethread-based sequences for threads and for programs. For Format 1, a CARC- or CSC-sequence of thread
T
is denoted by
T:
((mailbox
, mailboxOrderNumber^1
, eventType 1
(mailbox
, mailboxOrderNumber 2
, eventType 2
For Format 2, a CARC- or CSC-sequence of thread T is denoted by
T: ( (sendingThreadID
, sendingThreadOrderNumber 1
, mailbox 1
, eventType 1
(sendingThreadID
, sendingThreadOrderNumber 2
, mailbox 2
, eventType 2
A thread-based CARC- or CSC-sequence of a program contains a thread-based CARC-or CSC-sequence for each thread in the program.
6.5.1.2 Totally-Ordered Sequences. Tthere is only one sequence for the program and this sequence contains all of the eventsfor all of the mailboxes and threads.A CARC-event in a totally-ordered sequence is denoted by
(threadID, mailbox, eventType) where:^
mailbox
is the name of the
mailbox
. Each mailbox is associated with a name that is
generated when it is constructed. (We assume users supply a name for each mailbox, orthe name will be generated automatically as we have done for other objects.) threadID
is the ID of the thread that executed this event. This means that this thread
sent a message to the
mailbox
, or opened or closed a connection with the
mailbox
, or
executed a
receive()
operation on the
mailbox
^ eventType
is the type of this event (either
connection
,^
arrival
,^ receive
, or
close
A CSC-event in a totally-ordered sequence is denoted by
(callingThreadID, calledThreadID, mailbox, eventType) which
requires
both
the
calling
and
the
called
thread
to
be
specified
for
SRsynchronization
events.
A totally-ordered CARC- or CSC-sequence contains no order numbers for mailboxes orthreads, since this information is specified implicitly by the ordering of events in thesequence.A totally-ordered CARC-sequence of program DP is denoted as
DP: ((threadID
, mailbox 1
, eventType 1
), (threadID 1
, mailbox 1
, eventType 2
A totally-ordered CSC-sequence of program DP is denoted as
DP: (
(callingThreadID
, calledThreadID 1
, mailbox 1
, eventType 1
(callingThreadID
, calledThreadID 2
mailbox
, eventType 2
6.5.2 Simple Sequences During deterministic testing, we check the feasibility of a (complete) CARC- or CSC-sequence. Simpler sequences can be used for replay.A simple CARC-event for a
TCPMailbox
is denoted as (threadID) where
threadID
is the
ID of the thread that executed the CARC-event.A simple CARC-sequence of node N is denoted by (threadID
), (threadID 1
where the
TCPMailbox
for each event is some mailbox created on node N.
A simple CARC-sequence of a distributed program DP contains a simple CARC-sequence for each node in the program.Fig. 6.26 shows the simple CARC-sequence corresponding to the complete CARC-sequence in Fig. 6.25.(2)(1)(1)(2)(2)(1)(2)(1)(1)(3)(2)(2)(2)(2)(3)(3) Figure 6.26 Simple CARC-sequence of the distributed bounded buffer program.
For
TCPSynchronousMailboxes
and
TCPSelectableSynchronousMailboxes
, a simple
CARC-event is denoted by
(callingThreadID, calledThreadID) which identifies the IDs of the calling and called threads for the event.For
connect
and
close
events, there is no called thread.
For
elseDelay
events, there is no calling thread. In these cases, we use -1 as the ID of the
missing calling or called thread.
6.5.3 Tracing, Testing, and Replaying CARC-sequences and CSC-sequences Before a thread can perform a
connect()
,^
close()
,^
send()
, or
receive()
operation, it must
request permission from a control module.The control module is responsible for reading a complete or simple CARC- or CSC-sequence and forcing the execution to proceed according to this sequence:^
Since we are tracing and replaying one sequence per node, we use one
Controller
per
node.
The
Controller
is a separate program that runs on the node along with the programs
being tested and debugged. 6.5.3.1 Modifying Classes
TCPSender
and
TCPMailbox
Methods
connect()
,^ send()
,^
close()
, and
receive()
in classes
TCPSender
and
TCPMailbox
are modified by adding one or more calls to the
Controller
. In replay and test mode,
methods
connect()
,^ send()
and
close()
issue a call to the
Controller
to request permission
to exercise a
connection
,^
arrival
, or
close
event, respectively.
Methods
connect()
,^ send()
and
close()
do not trace any
connection
,^
arrival
, or
close
events during trace mode. Instead, these events are traced by the destination TCPMailbox
6.5.3.2 Modifying Class
TCPSynchronousMailbox
Since there are no
arrival
events in CSC-sequences, no
arrival
events are traced and
arrival
events are ignored during testing and replay.
6.5.3.3 The Controller Program
The design of the
Controller
program is almost identical to the
Controller
in Chapter 5.
The major difference is that the
Controller
uses vector timestamps to ensure that the
CARC- or CSC-sequence it records in trace mode is consistent with the causal orderingof events. (The recording algorithm is given in Section 6.3.6.)To handle communications with the user programs the
Controller
use four
TCPSelectableMailboxes
These mailboxes receive trace events, requests for permission to execute events,acknowledgement events, etc
The ports used by these mailboxes are computed as offsets to a base port (basePort+0,basePort+1, etc), where the base port is hard coded as port 4040. The
Controller
maintains an open connection between itself and each of the other nodes
in the system.^
All the threads on a given node share that node’s connection with the
Controller
and
use the connection to send messages to the
Controller
During replay and testing, each node uses a
TCPMailbox
to receive replies from the
Controller
. All the threads on a node share this
TCPMailbox
By sharing connections, the number of connections between each node and the Controller
is limited to one connection for tracing, three connections for replay, and
four connections for checking feasibility.
A simple SR-sequence is replayed by running the
Controller
and each user program in
replay
mode:
java -Dmode=replay -DprocessName=Node1 Controllerjava -Dmode=replay -DstartID=1 -DprocessName=process0 -DackPort=
distributedMutualExclusion java -Dmode=replay -DstartID=5 -DprocessName=process1 -DackPort=
distributedMutualExclusion java -Dmode=replay -DstartID=9 -DprocessName=process2 -DackPort=
distributedMutualExclusion java -Dmode=replay -DstartID=13 -DprocessName=process3 -DackPort=
distributedMutualExclusion The
processNames
and
startIDs
must be the same ones used during tracing.
The
ackPort
property specifies a port number that the user program can use to receive
messages from the
Controller
program. Each program should use a unique
ackPort
The
Controller
will read the simple CARC-sequence in file
Node1_channel-replay.txt
and force this sequence to occur during execution. The simple M-sequences of themonitors are replayed as described in Chapter 4.
The feasibility of a CARC-sequence is determined by running the
Controller
and each
user program in
test
mode:
java -Dmode=test -DprocessName=Node1 Controllerjava -Dmode=test -DstartID=1 -DprocessName=process0 -DackPort=
distributedMutualExclusion java -Dmode=test -DstartID=5 -DprocessName=process1 -DackPort=
distributedMutualExclusion java -Dmode=test -DstartID=9 -DprocessName=process2 -DackPort=
distributedMutualExclusion java -Dmode=test -DstartID=13 -DprocessName=process3 -DackPort=
distributedMutualExclusion The
Controller
will read the CARC-sequence in file
Node1_channel-test.txt
and attempt
to force this sequence to occur during execution. If the CARC-sequence is infeasible, the Controller
will issue a diagnostic and terminate.
The feasibility of the M-sequence is determined as described in Chapter 4.If the mode is not specified, the default value for the
mode
property will turn tracing,
replay, and testing off.Fig. 6.27a shows a CARC-sequence of the DME program in which each process enters itscritical section once. We traced an execution and then grouped, reordered, andcommented the events to make the sequence easier to understand. The M-sequence forthe monitor in
process
is shown in Fig. 6.27b.
// Connect events issued by p0:(connect,1,RequestsFor1,1), (connect,1,RepliesFor1,2), (connect,1,RequestsFor2,3),(connect,1,RepliesFor2,4), (connect,1,RequestsFor3,5), (connect,1,RepliesFor3,6),// Connect events issued by p1:(connect,5,RequestsFor0,1), (connect,5,RepliesFor0,2), (connect,5,RequestsFor2,3),(connect,5,RepliesFor2,4), (connect,5,RequestsFor3,5), (connect,5,RepliesFor3,6),// Connect events issued by p2:(connect,9,RequestsFor0,1), (connect,9,RepliesFor0,2), (connect,9,RequestsFor1,3),(connect,9,RepliesFor1,4)(connect,9,RequestsFor3,5), (connect,9,RepliesFor3,6),// Connect events issued by p3:(connect,13,RequestsFor0,1),(connect,13,RepliesFor0,2),(connect,13,RequestsFor1,3),(connect,13,RepliesFor1,4),(connect,13,RequestsFor2,5), (connect,13,RepliesFor2,6),(arrival,5,RequestsFor0,8), (arrival,9,RequestsFor0,8), (arrival,13,RequestsFor0,8)// All three requests have arrived at p0.(arrival,1,RequestsFor1,8), (arrival,9,RequestsFor1,9), (arrival,13,RequestsFor1,9)// All three requests have arrived at p1.(arrival,1,RequestsFor2,9), (arrival,5,RequestsFor2,9), (arrival,13,RequestsFor2,10)// All three requests have arrived at p2.(arrival,1,RequestsFor3,10), (arrival,5,RequestsFor3,10),(arrival,9,RequestsFor3,10)// All three requests have arrived at p3.// Now each process has had a request arrive from all the other processes.(receive,8,RequestsFor1,1) // p1’s helper receives p0’s request and replies(arrival,8,RepliesFor0,3) // p1’s helper’s reply arrives at p0(receive,12,RequestsFor2,1)// p2’s helper receives p0’s request and replies(arrival,12,RepliesFor0,3)
// p2’s helper’s reply arrives at p
(receive,16,RequestsFor3,1)// p3’s helper receives p0’s request and replies(arrival,16,RepliesFor0,3)
// p3’s helper’s reply arrives at p
// Replies from all the processes have arrived at p0.(receive,12,RequestsFor2,4)// p2’s helper receives p1’s request and replies(arrival,12,RepliesFor1,6)
// p2’s helper’s reply arrives at p
(receive,16,RequestsFor3,4)// p3’s helper receives p1’s request and replies(arrival,16,RepliesFor1,6)
// p3’s helper’s reply arrives at p
// Replies from p2 and p3 have arrived at p1.(receive,16,RequestsFor3,7)// p3’s helper receives p2’s request and replies(arrival,16,RepliesFor2,9)
// p3’s helper’s reply arrives at p
// Reply from p3 has arrived at p2(receive,4,RequestsFor0,1) // p0 receives requests from p1, p2, and p3(receive,4,RequestsFor0,3) // but defers all replies since p0 has priority(receive,4,RequestsFor0,5)(receive,1,RepliesFor0,11)
// p0 receives replies from p1, p2, and p
(receive,1,RepliesFor0,12)
// and enters/exits its critical section
(receive,1,RepliesFor0,13)(arrival,1,RepliesFor1,15)
// p0 sends all of its deferred replies
(arrival,1,RepliesFor2,16)(arrival,1,RepliesFor3,17)(receive,8,RequestsFor1,4) // p1’s helper receives requests from p2 and p3 but(receive,8,RequestsFor1,6) // defers replies since p1 has priority over p2 and p3(receive,12,RequestsFor2,7)// p2’s helper receives rqst from p3, but defers reply(receive,5,RepliesFor1,11)
// p1 receives all replies and enters/exits CS
(receive,5,RepliesFor1,12)(receive,5,RepliesFor1,13)(arrival,5,RepliesFor2,15)
// p1 sends its deferred replies to p2 and p
(arrival,5,RepliesFor3,16)(receive,9,RepliesFor2,11)
// p2 receives all replies and enters/exits CS
(receive,9,RepliesFor2,12)(receive,9,RepliesFor2,13)(arrival,9,RepliesFor3,15)
// p2 sends its deferred reply to p
(receive,13,RepliesFor3,11) // p3 receives all replies and enters/exits CS(receive,13,RepliesFor3,12)(receive,13,RepliesFor3,13)// Close events issued by p0:(close,1,RequestsFor1,18), (close,1,RepliesFor1,19), (close,1,RequestsFor2,20),(close,1,RepliesFor2,21), (close,1,RequestsFor3,22), (close,1,RepliesFor3,23),// Close events issued by p1:(close,5,RequestsFor0,17), (close,5,RepliesFor0,18), (close,5,RequestsFor2,19),(close,5,RepliesFor2,20), (close,5,RequestsFor3,21), (close,5,RepliesFor3,22),// Close events issued by p2:(close,9,RequestsFor0,16), (close,9,RepliesFor0,17), (close,9,RequestsFor1,18),
