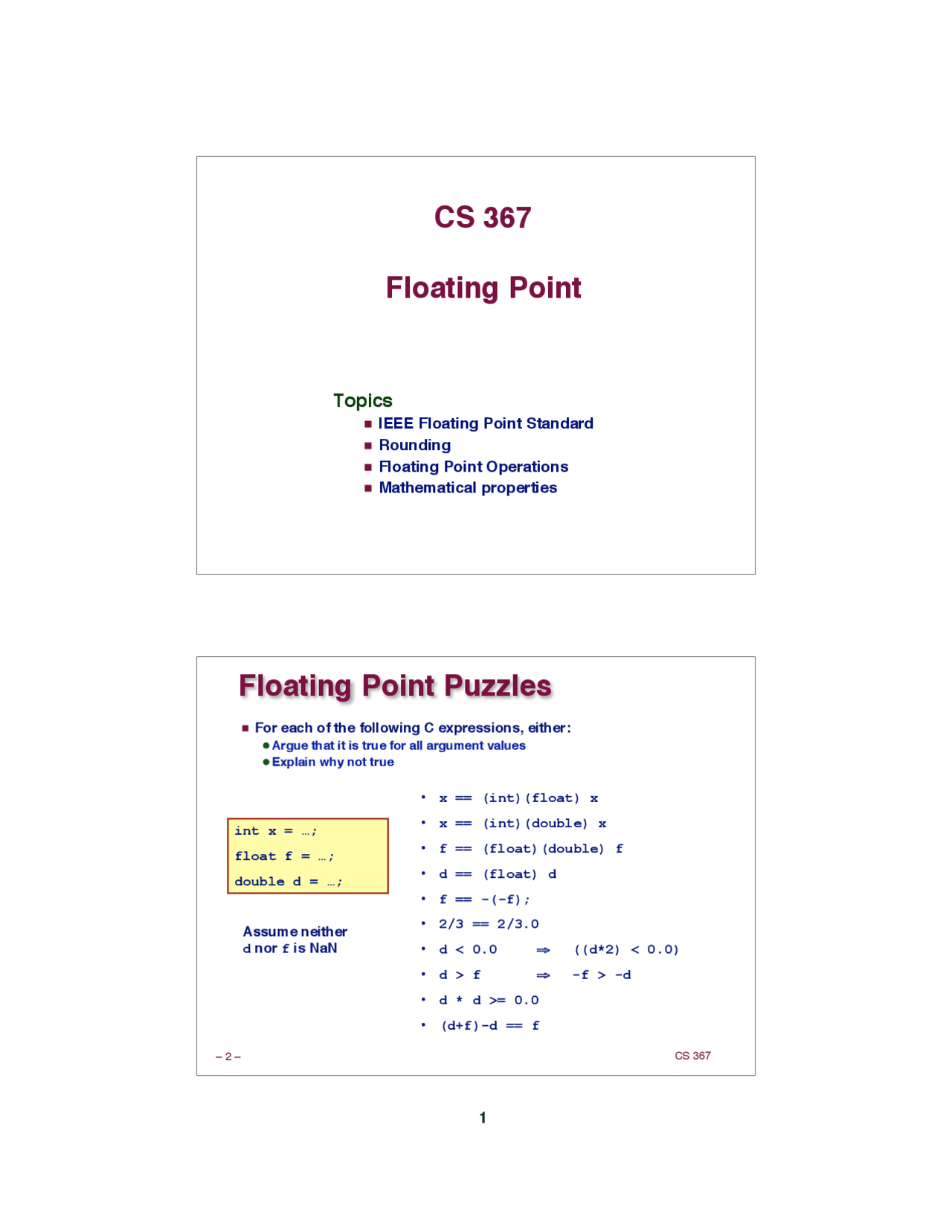

Floating Point
Topics
Topics
IEEE Floating Point Standard
Rounding
Floating Point Operations
Mathematical properties
CS 367
Floating Point Puzzles
For each of the following C expressions, either:
Argue that it is true for all argument values
Explain why not true
- x == (int)(float) x
- x == (int)(double) x
- f == (float)(double) f
- d == (float) d
- f == -(-f);
- d < 0.0 ⇒ ((d2) < 0.0)*
- d > f ⇒ -f > -d
- d * d >= 0.
- (d+f)-d == f
int x = …;
float f = …;
double d = …;
Assume neither
d nor f is NaN
CS 367
IEEE Floating Point
IEEE Standard 754
IEEE Standard 754
Established in 1985 as uniform standard for floating point
arithmetic
Before that, many idiosyncratic formats
Supported by all major CPUs
Driven by Numerical ConcernsDriven by Numerical Concerns
Nice standards for rounding, overflow, underflow
Hard to make go fast
Numerical analysts predominated over hardware types in
defining standard
Fractional Binary Numbers
Representation
Representation
Bits to right of “binary point” represent fractional powers of 2
Represents rational number:
b
i
b
i – 1
b
2
b
1
b
0
b
b
b
b
i – 1
i
b
k
k
k =" j
i
CS 367
Numerical Form
Numerical Form
s
M 2
E
Sign bit s determines whether number is negative or positive
Significand M normally a fractional value in range [1.0,2.0).
Exponent E weights value by power of two
Encoding
Encoding
MSB is sign bit
exp field encodes E
frac field encodes M
Floating Point Representation
s exp frac
Encoding
Encoding
MSB is sign bit
exp field encodes E
frac field encodes M
Sizes
Sizes
Single precision: 8 exp bits, 23 frac bits
32 bits total
Double precision: 11 exp bits, 52 frac bits
64 bits total
Extended precision: 15 exp bits, 63 frac bits
Only found in Intel-compatible machines
Stored in 80 bits
» 1 bit wasted
Floating Point Precisions
s exp frac
CS 367
“Normalized” Numeric Values
Condition
Condition
exp ≠ 000 … 0 and exp ≠ 111 … 1
Exponent coded as
Exponent coded as
biased
biased
value
value
E = Exp – Bias
Exp : unsigned value denoted by exp
Bias : Bias value
» Single precision: 127 ( Exp : 1…254, E : -126…127)
» Double precision: 1023 ( Exp : 1…2046, E : -1022…1023)
» in general: Bias = 2
e-
- 1, where e is number of exponent bits
SignificandSignificand coded with implied leading 1coded with implied leading 1
M = 1.xxx … x
2
xxx…x: bits of frac
Minimum when 000 … 0 ( M = 1.0)
Maximum when 111 … 1 ( M = 2.0 – ε)
Get extra leading bit for “free”
Normalized Encoding Example
Value
Value
Float F = 15213.0;
10
2
2
X 2
13
Significand
Significand
M = 1. 1101101101101
2
frac = 11011011011010000000000
2
Exponent
Exponent
E = 13
Bias = 127
Exp = 140 = 10001100
2
Floating Point Representation (Class 02):
Hex: 4 6 6 D B 4 0 0
Binary: 0100 0110 0110 1101 1011 0100 0000 0000
CS 367
Summary of Floating Point
Real Number Encodings
NaN
NaN
-Normalized -Denorm +Denorm +Normalized
Tiny Floating Point Example
8-bit Floating Point Representation
8-bit Floating Point Representation
the sign bit is in the most significant bit.
the next four bits are the exponent, with a bias of 7.
the last three bits are the frac
Same General Form as IEEE Format
Same General Form as IEEE Format
normalized, denormalized
representation of 0, NaN, infinity
s
exp frac
76 32 0
CS 367
Values Related to the Exponent
Exp exp E 2
E
0 0000 -6 1/64 (denorms)
15 1111 n/a (inf, NaN)
Dynamic Range
s exp frac E Value
0 1111 000 n/a inf
closest to zero
largest denorm
smallest norm
closest to 1 below
closest to 1 above
largest norm
Denormalized
numbers
Normalized
numbers
CS 367
Interesting Numbers
DescriptionDescription expexp fracfrac Numeric ValueNumeric Value
Zero
Zero 00
Smallest Pos.Smallest Pos. DenormDenorm.. 0000 …… 0000 0000 …… 0101 22
X 2X 2
Single ≈ 1.4 X 10
Double ≈ 4.9 X 10
LargestLargest DenormalizedDenormalized 0000 …… 0000 1111 …… 1111 (1.0(1.0 – – εε) X 2) X 2
Single ≈ 1.18 X 10
Double ≈ 2.2 X 10
Smallest Pos. NormalizedSmallest Pos. Normalized 0000 …… 0101 0000 …… 0000 1.0 X 21.0 X 2
{126,1022}
{126,1022}
Just larger than largest denormalized
One
One 01
Largest NormalizedLargest Normalized 1111 …… 1010 1111 …… 1111 (2.0(2.0 – – εε) X 2) X 2
{127,1023}
{127,1023}
Single ≈ 3.4 X 10
38
Double ≈ 1.8 X 10
308
Special Properties of Encoding
FP Zero Same as Integer Zero
FP Zero Same as Integer Zero
All bits = 0
Can (Almost) Use Unsigned Integer Comparison
Can (Almost) Use Unsigned Integer Comparison
Must first compare sign bits
Must consider -0 = 0
NaNs problematic
Will be greater than any other values
What should comparison yield?
Otherwise OK
Denorm vs. normalized
Normalized vs. infinity
CS 367
Floating Point Operations
Conceptual View
Conceptual View
First compute exact result
Make it fit into desired precision
Possibly overflow if exponent too large
Possibly round to fit into frac
Rounding Modes (illustrate with $ rounding)Rounding Modes (illustrate with $ rounding)
Zero $1 $1 $1 $2 – $
Round down (-∞) $1 $1 $1 $2 – $
Round up (+∞) $2 $2 $2 $3 – $
Nearest Even (default) $1 $2 $2 $2 – $
Note:
- Round down: rounded result is close to but no greater than true result.
- Round up: rounded result is close to but no less than true result.
Closer Look at Round-To-Even
Default Rounding Mode
Default Rounding Mode
Hard to get any other kind without dropping into assembly
All others are statistically biased
Sum of set of positive numbers will consistently be over- or under-
estimated
Applying to Other Decimal Places / Bit Positions
Applying to Other Decimal Places / Bit Positions
When exactly halfway between two possible values
Round so that least significant digit is even
E.g., round to nearest hundredth
1.2349999 1.23 (Less than half way)
1.2350001 1.24 (Greater than half way)
1.2350000 1.24 (Half way—round up)
1.2450000 1.24 (Half way—round down)
CS 367
FP Addition
Operands
Operands
s
M1 2
E
s
M2 2
E
Assume E1 > E
Exact Result
Exact Result
s
M 2
E
Sign s, significand M:
Result of signed align & add
Exponent E: E
FixingFixing
If M ≥ 2, shift M right, increment E
if M < 1, shift M left k positions, decrement E by k
Overflow if E out of range
Round M to fit frac precision
s
M
s
M
E1– E
s
M
Mathematical Properties of FP Add
Compare to those of
Compare to those of
Abelian
Abelian
Group
Group
Closed under addition? YES
But may generate infinity or NaN
Commutative? YES
Associative? NO
Overflow and inexactness of rounding
0 is additive identity? YES
Every element has additive inverse ALMOST
Except for infinities & NaNs
MonotonicityMonotonicity
a ≥ b ⇒ a+ c ≥ b+ c? ALMOST
Except for infinities & NaNs
CS 367
Math. Properties of FP Mult
Compare to Commutative Ring
Compare to Commutative Ring
Closed under multiplication? YES
But may generate infinity or NaN
Multiplication Commutative? YES
Multiplication is Associative? NO
Possibility of overflow, inexactness of rounding
1 is multiplicative identity? YES
Multiplication distributes over addition? NO
Possibility of overflow, inexactness of rounding
Monotonicity
Monotonicity
a ≥ b & c ≥ 0 ⇒ a * c ≥ b * c? ALMOST
Except for infinities & NaNs
Floating Point in C
C Guarantees Two Levels
C Guarantees Two Levels
float single precision
double double precision
Conversions
Conversions
Casting between int , float , and double changes numeric
values
Double or float to int
Truncates fractional part
Like rounding toward zero
Not defined when out of range
» Generally saturates to TMin or TMax
int to double
Exact conversion, as long as int has ≤ 53 bit word size
int to float
Will round according to rounding mode
CS 367
Summary
IEEE Floating Point Has Clear Mathematical PropertiesIEEE Floating Point Has Clear Mathematical Properties
Represents numbers of form M X 2
E
Can reason about operations independent of implementation
As if computed with perfect precision and then rounded
Not the same as real arithmetic
Violates associativity/distributivity
Makes life difficult for compilers & serious numerical
applications programmers
