Solid-state physics
Conduction phenomena

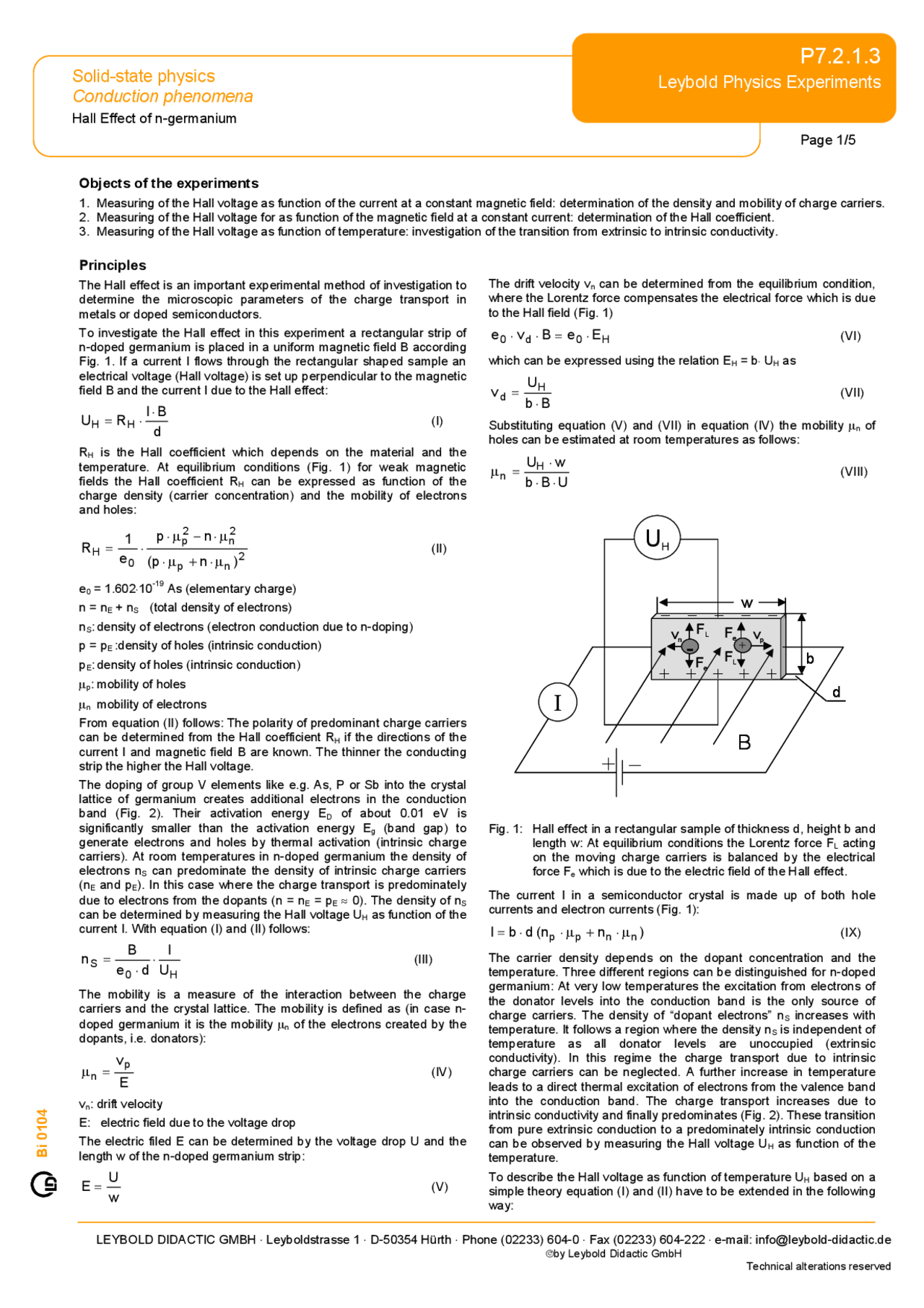

Hall Effect of n-germanium
Leybold Physics Experiments
Page 1/
Objects of the experiments
- Measuring of the Hall voltage as function of the current at a constant magnetic field: determination of the density and mobility of charge carriers.
- Measuring of the Hall voltage for as function of the magnetic field at a constant current: determination of the Hall coefficient.
- Measuring of the Hall voltage as function of temperature: investigation of the transition from extrinsic to intrinsic conductivity.
Principles
The Hall effect is an important experimental method of investigation to determine the microscopic parameters of the charge transport in metals or doped semiconductors. To investigate the Hall effect in this experiment a rectangular strip of n-doped germanium is placed in a uniform magnetic field B according Fig. 1. If a current I flows through the rectangular shaped sample an electrical voltage (Hall voltage) is set up perpendicular to the magnetic field B and the current I due to the Hall effect:
d
IB
U H RH
= ⋅ (I)
RH is the Hall coefficient which depends on the material and the temperature. At equilibrium conditions (Fig. 1) for weak magnetic fields the Hall coefficient RH can be expressed as function of the charge density (carrier concentration) and the mobility of electrons and holes:
2 p n
2 n
2 p
0
H
(p n )
p n
e
R
= ⋅ (II)
e 0 = 1.602⋅ 10 -19^ As (elementary charge) n = nE + nS (total density of electrons) nS: density of electrons (electron conduction due to n-doping) p = pE :density of holes (intrinsic conduction) pE: density of holes (intrinsic conduction) μp: mobility of holes μn mobility of electrons From equation (II) follows: The polarity of predominant charge carriers can be determined from the Hall coefficient RH if the directions of the current I and magnetic field B are known. The thinner the conducting strip the higher the Hall voltage. The doping of group V elements like e.g. As, P or Sb into the crystal lattice of germanium creates additional electrons in the conduction band (Fig. 2). Their activation energy ED of about 0.01 eV is significantly smaller than the activation energy Eg (band gap) to generate electrons and holes by thermal activation (intrinsic charge carriers). At room temperatures in n-doped germanium the density of electrons nS can predominate the density of intrinsic charge carriers (nE and pE). In this case where the charge transport is predominately due to electrons from the dopants (n = nE = pE ≈ 0). The density of nS can be determined by measuring the Hall voltage UH as function of the current I. With equation (I) and (II) follows:
0 H
S U
I
e d
B
n ⋅
= (III)
The mobility is a measure of the interaction between the charge carriers and the crystal lattice. The mobility is defined as (in case n- doped germanium it is the mobility μn of the electrons created by the dopants, i.e. donators):
Bi 0104
E
v p
μn = (IV)
vn: drift velocity E: electric field due to the voltage drop The electric filed E can be determined by the voltage drop U and the length w of the n-doped germanium strip:
w
U
E = (V)
The drift velocity vn can be determined from the equilibrium condition, where the Lorentz force compensates the electrical force which is due to the Hall field (Fig. 1)
e 0 ⋅ vd⋅B=e 0 ⋅E H (VI)
which can be expressed using the relation EH = b⋅ UH as
b B
U
v d H
= (VII)
Substituting equation (V) and (VII) in equation (IV) the mobility μn of holes can be estimated at room temperatures as follows:
bB U
U H w
n
μ = (VIII)
I
U H
_ _ _ _ _
B
_
w
b
FL
Fe
vn Fe
FL
vp
d
I
U H
__ __ __ __ __
B
_
w
b
FL
Fe
vn
FL
Fe
vn Fe
FL
Fe vp
FL
vp
dd
Fig. 1: Hall effect in a rectangular sample of thickness d, height b and length w: At equilibrium conditions the Lorentz force FL acting on the moving charge carriers is balanced by the electrical force Fe which is due to the electric field of the Hall effect.
The current I in a semiconductor crystal is made up of both hole currents and electron currents (Fig. 1):
I = b⋅d(np ⋅μp+nn⋅μn ) (IX)
The carrier density depends on the dopant concentration and the temperature. Three different regions can be distinguished for n-doped germanium: At very low temperatures the excitation from electrons of the donator levels into the conduction band is the only source of charge carriers. The density of “dopant electrons” nS increases with temperature. It follows a region where the density nS is independent of temperature as all donator levels are unoccupied (extrinsic conductivity). In this regime the charge transport due to intrinsic charge carriers can be neglected. A further increase in temperature leads to a direct thermal excitation of electrons from the valence band into the conduction band. The charge transport increases due to intrinsic conductivity and finally predominates (Fig. 2). These transition from pure extrinsic conduction to a predominately intrinsic conduction can be observed by measuring the Hall voltage UH as function of the temperature. To describe the Hall voltage as function of temperature UH based on a simple theory equation (I) and (II) have to be extended in the following way:
LEYBOLD DIDACTIC GMBH.^ Leyboldstrasse 1.^ D-50354 Hürth.^ Phone (02233) 604-0.^ Fax (02233) 604-222.^ e-mail: [email protected] by Leybold Didactic GmbH
Solid-state physics Conduction phenomena
Hall Effect of n-germanium
Leybold Physics Experiments
Page 2/
Bi 0104
D ED E Eg
VB
CB
D ED E Eg
VB
CB
Fig. 2: Simplified diagram of extrinsic (left) and intrinsic conduction (right) under influence of an electric field E: Incorporating of dopants (donors D) into the crystal lattice creates negative charge carriers (electrons) in the conduction band (CB). With increasing temperature the thermal energy of valence electrons increases allowing them to breach the energy gap Eg into the conduction band (CB) leaving a vacancy called hole in the VB.
It is assumed that the mobility of electrons and holes are different. Introducing the ratio of the mobility
p
k n
= (X)
equation (II) can be rewritten as follows:
2
2
0
H
(p nk)
p nk
e
R
= ⋅ (XI)
For undoped semiconductors the temperature dependency of the charge carriers can be assumed as
2 k T
E
0
B
g
n n e ⋅ ⋅
−
2 k T
E
0
B
g
p p e ⋅ ⋅
−
= ⋅ (XII)
kB = 1.36 10-23^ J/K: Boltzmann constant The product of the densities n and p is temperature dependent: 2
n ⋅ p=(nE +nS)⋅pE=η (XIII)
where the effective state density η is approximated as
k T
E
0
(^2) B
g
N e
⋅
−
η = ⋅ (XIV)
In the extrinsic conductivity regime the density nS can be determined according equation (III). For the intrinsic charge carriers pE = nE which leads to a quadratic equation for nE with the solution:
2
2 S S E
n
n
n = − + +η (XV)
With equations (XI) and (XV) together with the relations n = nE + nS and p = pE the temperature dependency of Hall voltage UH can be simulated. Using for Eg = 0.7 eV the result of experiment P7.2.1.5 as estimate value for the simulation only two unknown parameters N 0 and k are left.
Apparatus
1 Base unit for Hall effect Ge .........................................586 850 1 n-doped Ge plug-in board ...........................................586 852 1 Tangential B-probe......................................................561 60 1 B-box ...........................................................................524 083 1 Multicore cable, 6-pole ................................................501 16 1 Sensor CASSY............................................................524 010 1 CASSY Lab .................................................................524 200 2 AC/DC Power Supply 0 to 15 V...................................521 50 1 DC power supply .........................................................521 541 1 U-core with yoke..........................................................562 11 1 Pair of bored pole pieces.............................................560 31 2 Coil with 250 turns.......................................................562 13 1 Stand rod, 25 cm .........................................................300 41 1 Leybold Multi clamp.....................................................301 01 1 Stand base, V-shape, 20 cm .......................................300 02 7 Pair of cables, 1 m, red and blue ................................501 46 additionally required: PC with Windows 95/98/NT or higher
Setup
Mounting and connecting the plug-in board: Notes: The n-doped Ge crystal is extremely fragile: Handle the plug-in board carefully and do not subject it to mechanical shocks or loads. Due to its high specific resistance, the p-doped Ge crystal warms up even if only the cross-current is applied: Do not exceed the maximum cross-current I = 33 mA. Turn the control knob for the cross-current on the base unit for Hall effect to the left stop.
- Insert the plug-in board with the n-doped Ge crystal into the DIN socket on the base unit for Hall effect until the pins engage in the holes.
- Carefully insert the plug-in board with DIN plug into the DIN socket on Insert the base unit with rod into the hole of the U-core all the way to the stop; make sure that the plug-in board is seated parallel to the U-core (see instruction sheet base unit Hall effect 586 850).
- Carefully attach the pair of bored pole pieces with additional pole piece, and slide the additional pole piece as far as the spacers of the plug-in boards (make sure that the plug-in board is not bent).
- Turn the current limiter of the current-controlled power supply to the left stop, and connect the power supply. Measuring the magnetic field:
- The Axial B-probe is fixed by the Stand rod to the V-shaped Stand base.
- Before the measuring the magnetic induction of the field B place the B-probe carefully in the gap (see instruction sheet base unit Hall effect 586 850) after the apparatus is adjusted.
- For the measurement connect B-probe to the Sensor CASSY using the B-box. Compensation of the Hall voltage:
- Before performing a measurement with a constant current I the Hall voltage have to be compensated for B = 0 T:
- For measuring the current I connect the cables to the Input A of the Sensor CASSY (Fig. 3, see also instruction sheet base unit Hall effect 586 850).
LEYBOLD DIDACTIC GMBH.^ Leyboldstrasse 1.^ D-50354 Hürth.^ Phone (02233) 604-0.^ Fax (02233) 604-222.^ e-mail: [email protected] by Leybold Didactic GmbH Printed in the Federal Republic of Germany
Solid-state physics Conduction phenomena
Hall Effect of n-germanium
Leybold Physics Experiments
Page 4/
2. Measuring the Hall voltage as function of magnetic field
Fig. 5: Hall voltage UH as function of the magnetic field B for I = 30 mA.. The straight line with slope A corresponds to a fit according equation (I).
3. Measuring of the Hall voltage as function of temperature
Fig. 6: Hall voltage UH as function of the temperature T for I = 30 mA and different magnetic fields B.
Evaluation and results
1. Measuring of the Hall voltage as function of current For the measurement with e. g. B = 0,35 T and I = 30 mA in Fig. 4 the slope
A
V
d
R B
A H^ =
Bi 0104
is obtained by the fitting a straight line through the origin (right mouse click in the diagram and “fit function”). With the linear regression result and equation (III) the density pS of holes in the extrinsic conducting regime can determined as follows:
d = 1⋅ 10 -3^ m
B = 0.35 T
3
21 0
S
m
e dA
B
n = ⋅
With the experimental results at room temperature
U = 1.4 V
B = 0.35 T
UH = 72 mV
and the dimensions of the n-doped germanium strip
b = 10 mm
w = 20 mm
the drift velocity vn (equation (VII)) and the mobility μn (equation (VIII)) of the charge carriers in the extrinsic region can be estimated:
s
m
bB
U
v d H =
Vs
cm
bB U
U H w^2
n =
2. Measuring of the Hall voltage as function of magnetic field As can be seen from the linear regression of a straight line through the origin the Hall voltage UH is proportional to the magnetic field B:
UH ~ B.
Together with the result of part 1., i.e. UH ~ I, the following relation is found:
UH ~ I ⋅ B.
Thus the theoretically derived formula (equation (I)) for the Hall voltage UH of a strip-shaped conductor of thickness d is confirmed. Form the fit of a straight line to the experimental data of Fig. 5 the Hall coefficient RH is obtained as follows:
d = 1⋅ 10 -3^ m
I = 30 mA
A = 0.167 V/T (slope of Fig. 5)
As
m
I
A d
R
3 3 H
A comparison of the Hall coefficient with the Hall coefficient of the metallic conductor silver (RH = 8.9⋅ 10 -11mC-1^ experiment P7.2.1.1) shows that the material dependent factor is about 10^7 larger.
3. Measuring of the Hall voltage as function of temperature Using equations (XI) and (XV) together with the relations n = nE + nS and p = pE the Hall voltage UH can be expressed as follows: UH =((A+(Sqr(A^2/4+B^2Exp(-C13025.9/x))-A/2)(1-1/D^2))/ ((A+(Sqr(A^2/4+B^2Exp(-C13025.9/x))-A/2)(1+1/D))^2) 6.55410^22) (XVI) Thus the temperature behavior of the Hall voltage UH can be simulated with the following fit parameters (For the Fit use key Alt F): A = 1.17⋅ 1021 m-
B = N 0 = 3.13⋅ 10 26 m -
C = Eg = 0.74 eV
D = μn/μp =2.
The result of the fit is shown in Fig. 7.
LEYBOLD DIDACTIC GMBH.^ Leyboldstrasse 1.^ D-50354 Hürth.^ Phone (02233) 604-0.^ Fax (02233) 604-222.^ e-mail: [email protected] by Leybold Didactic GmbH Printed in the Federal Republic of Germany
Solid-state physics Conduction phenomena
Hall Effect of n-germanium
Leybold Physics Experiments
Page 5/
Bi 0104
Fig. 7: Fit according equation (XVI) to the experimental data of Fig 6 for B = 0.35 T and I = 30 mA.
The temperature dependency of the Hall voltage UH probes the transition from a charge transport due to “dopant electrons” to bipolar a charge transport of electron and holes. At room temperatures the observed behavior of UH is due to electrons created by the donor atoms in the germanium lattice. Increasing the temperature, the charge transport is more and more due to thermally activated electrons and “vacancies” left in the valence band. In contrast to experiment P7.2.1.4 of p-doped germanium no sign change of the Hall voltage UH is observed as the charge transport is always predominately due to electrons. The drift velocity and thus the mobility of the electrons in the conduction band is larger as the drift velocity and mobility of the holes in the valence band:
μn ≈ 2. 4 ⋅μ p
For higher temperatures, the charge transport is predominately due to the intrinsic charge carriers, i.e. the electrons and holes. In this temperature region the charge density of holes and electrons are approximately the same. Thus the Hall voltage UH decreases to zero for increasing temperature due to the equal but opposite Hall voltages of the electrons and holes (Fig. 7). For that reason no Hall Effect can be observed in pure semiconductors (intrinsic charge carriers only).
The simplified model neglects the quantum mechanical corrections due to the band theory. Especially, the effective state density N 0 which is given as the product of the effective state densities of the conduction band NC and valence band. NV is not constant as assumed in equation (XIV): N 0 has to be replaced by the product of the effective state densities of the conduction band NC and valence band NV:
2
3
N 0 = NC⋅NV∝T (XII)
Supplementary information
The Hall effect was discovered in 1879. Although the Hall effect is present in all conducting materials it remained a laboratory curiosity until the later half of 2000 century. With the advent of semiconductor technology and development of various III- and V-compounds it has become possible to produce Hall voltages several orders of magnitude larger than with earlier materials. In technical applications the Hall effect of semiconductors is especially used in magnetic measurement probes.
