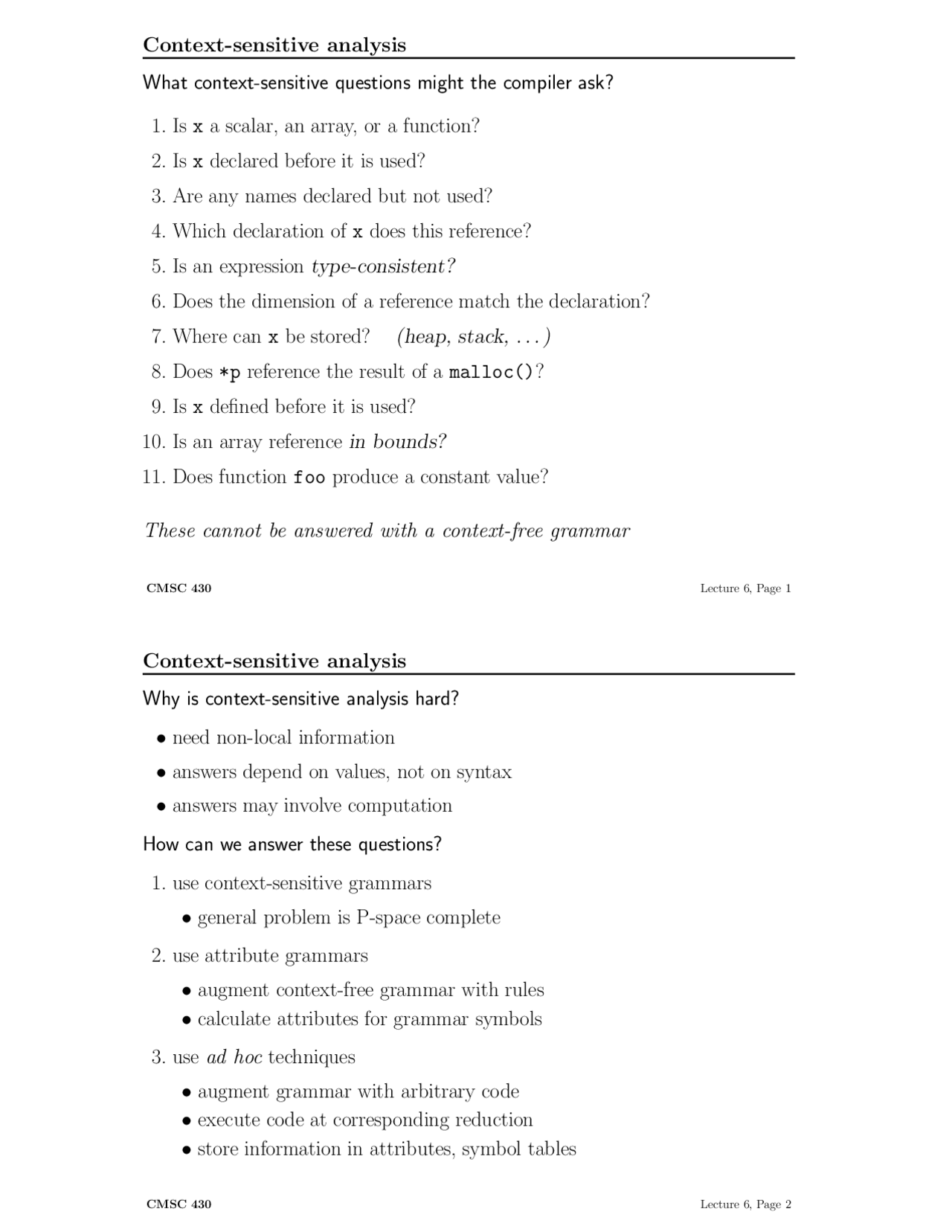

Context-sensitive analysis What context-sensitive questions might the compiler ask?
- Is x a scalar, an array, or a function?
- Is x declared before it is used?
- Are any names declared but not used?
- Which declaration of x does this reference?
- Is an expression type-consistent?
- Does the dimension of a reference match the declaration?
- Where can x be stored? (heap, stack,... )
- Does *p reference the result of a malloc()?
- Is x defined before it is used?
- Is an array reference in bounds?
- Does function foo produce a constant value?
These cannot be answered with a context-free grammar
CMSC 430 Lecture 6, Page 1
Context-sensitive analysis Why is context-sensitive analysis hard?
- need non-local information
- answers depend on values, not on syntax
- answers may involve computation
How can we answer these questions?
- use context-sensitive grammars
- general problem is P-space complete
- use attribute grammars
- augment context-free grammar with rules
- calculate attributes for grammar symbols
- use ad hoc techniques
- augment grammar with arbitrary code
- execute code at corresponding reduction
- store information in attributes, symbol tables
Attribute grammars
Attribute grammar
- generalization of context-free grammar
- each grammar symbol has an associated set of attributes
- augment grammar with rules that define values
- high-level specification, independent of evaluation scheme
Dependences between attributes
- values are computed from constants & other attributes
- synthesized attribute โ value computed from children
- inherited attribute โ value computed from siblings & parent
CMSC 430 Lecture 6, Page 3
Example attribute grammar
A grammar to evaluate signed binary numbers due to Scott K. Warren, Rice Ph.D.
Production Evaluation Rules 1 NUM ::= SIGN LIST LIST .pos โ 0 NUM .val โ if SIGN.neg then - LIST .val else LIST .val 2 SIGN ::= + SIGN.neg โ false 3 SIGN ::= - SIGN.neg โ true 4 LIST ::= BIT BIT .pos โ LIST .pos LIST .val โ BIT .val 5 LIST 0 ::= LIST 1 BIT LIST 1 .pos โ LIST 0 .pos + 1 BIT .pos โ LIST 0 .pos LIST 0 .val โ LIST 1 .val + BIT .val 6 BIT ::= 0 BIT .val โ 0 7 BIT ::= 1 BIT .val โ 2 BIT^ .pos
Abstract syntax tree
An abstract syntax tree (AST) is the procedureโs parse tree with the nodes for most non-terminal symbols removed.
<id,x> *
<num, 2 > <id,y>
This represents โx - 2 * yโ.
For ease of manipulation, can use a linearized (operator) form of the tree.
x 2 y * - in postfix form.
A popular intermediate representation.
CMSC 430 Lecture 6, Page 7
Symbol tables
A symbol table associates values or attributes (e.g., types and values) with names.
What should be in a symbol table?
- variable and procedure names
- literal constants and strings
What information might compiler need?
- textual name
- data type
- declaring procedure
- lexical level of declaration
- if array, number and size of dimensions
- if procedure, number and type of parameters
Symbol tables
Implementation
- usually implemented as hash tables
How to handle nested lexical scoping?
- when we ask about a name, we want the closest lexical declaration
One solution
- use one symbol table per scope
- tables chained to enclosing scopes
- insert names in table for current scope
- name lookup starts in current table if needed, checks enclosing scopes in order
CMSC 430 Lecture 6, Page 9
Type systems
Types
- values that share a set of common properties
- defined by language and/or programmer
Type system
- set of types in a programming language, and
- rules that use types to specify program behavior
Example type rules
- If operands of addition are of type integer, then result is of type integer
- The result of the unary & operator is a pointer to the object referred to by the operand
Advantages of typed languages
- ensure run-time safety
- expressiveness (overloading, polymorphism)
- provide information for code generation
A simple type checker
Using a synthesized attribute grammar, we will describe a type checker for arrays, pointers, statements, and functions.
Grammar for source language:
P ::= D ; E D ::= D ; E | id: T T ::= char | integer | array [num] of T | โ T E ::= literal | num | id | E mod E | E[E] | E โ
- Basic types char, integer, typeError
- assume all arrays start at 1, e.g., array [256] of char results in the type expression array(1.. .256,char)
- โ builds a pointer type, so โ integer results in the type expression pointer(integer)
CMSC 430 Lecture 6, Page 13
Type checking example
Partial attribute grammar for the type system
D ::= id: T { addtype(id.entry, T.type) } T ::= char { T.type โ char } T ::= integer { T.type โ integer } T ::= โ T 1 { T.type โ pointer(T 1 .type) } T ::= array [num] of T 1 { T.type โ array( 1.. .num.val, T 1 .type) }
Type checking expressions
Each expression is assigned a type using rules associated with the grammar.
E ::= literal { E.type โ char } E ::= num { E.type โ integer } E ::= id { E.type โ lookup(id.entry) } E ::= E 1 mod E 2 { E.type โ if E 1 .type = integer and E 2 .type = integer then integer else typeError } E ::= E 1 [E 2 ] { E.type โ if E 2 .type = integer and E 1 .type = array(s,t) then t else typeError } E ::= E 1 โ { E.type โ if E 1 .type = pointer then t else typeError }
CMSC 430 Lecture 6, Page 15
Type checking statements
Statements do not typically have values, therefore we assign them the type void. If an error is detected within the statement, it gets type typeError.
S ::= id โ E { S.type โ if id.type = E.type then void else typeError } S ::= if E then S 1 { S.type โ if E.type = boolean then S 1 .type else typeError } S ::= while E do S 1 { S.type โ if E.type = boolean then S 1 .type else typeError } S ::= S 1 ; S 2 { S.type โ if S 1 .type = void then void else typeError }
