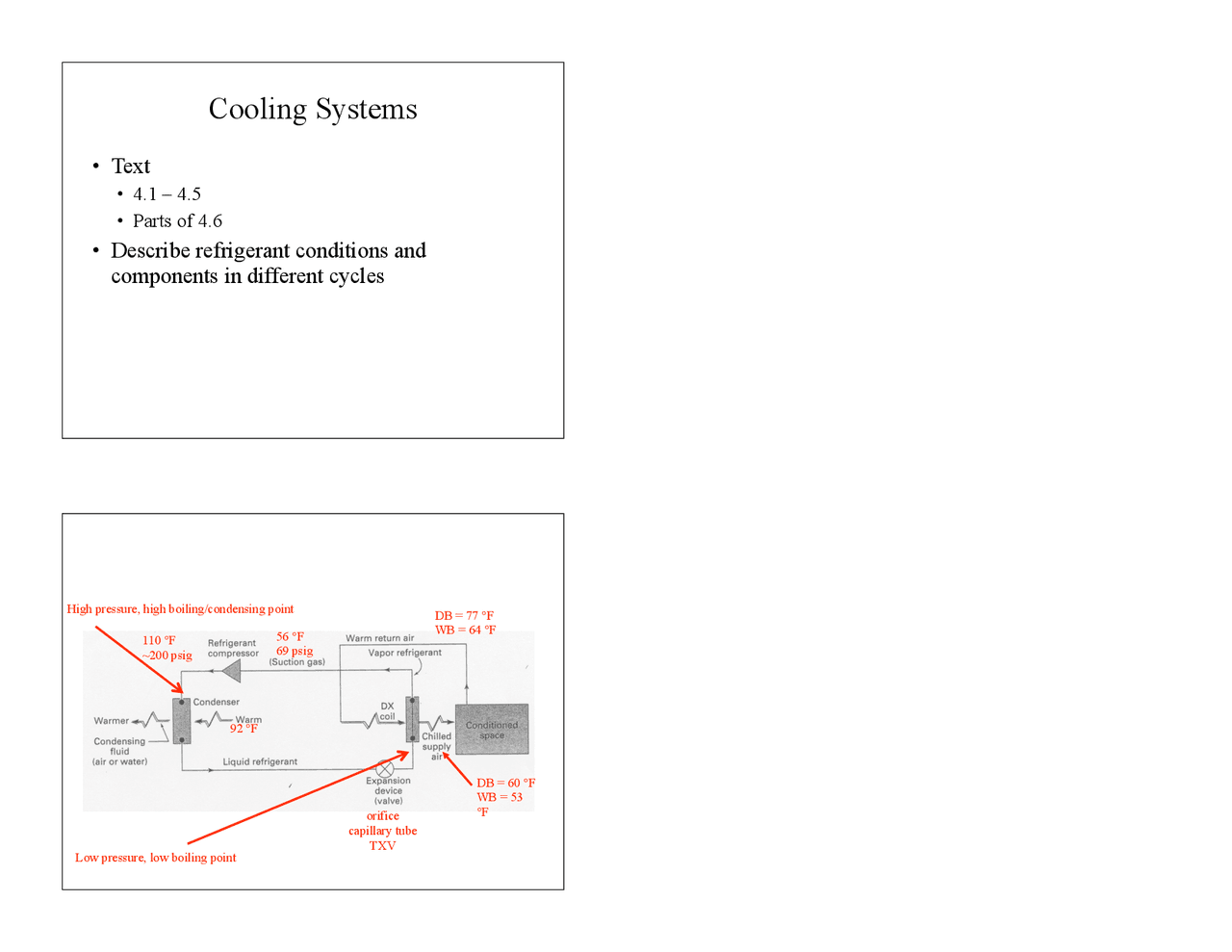

Cooling Systems
• Text
• 4.1 – 4.5
• Parts of 4.6
• Describe refrigerant conditions and
components in different cycles
92 °F
56 °F
69 psig
DB = 77 °F
WB = 64 °F
orifice
capillary tube
TXV
110 °F
~200 psig
DB = 60 °F
WB = 53
°F
High pressure, high boiling/condensing point
Low pressure, low boiling point
pf3
pf4
pf5
pf8

Partial preview of the text

Download Cooling Systems: Refrigerant Conditions, Components, and Cycles - Prof. Jeffrey A. Siegel and more Study notes Architecture in PDF only on Docsity!

Cooling Systems

  • Text
    • 4.1 – 4.
    • Parts of 4.
  • Describe refrigerant conditions and

components in different cycles

92 °F 56 °F 69 psig DB = 77 °F WB = 64 °F orifice capillary tube TXV 110 °F ~200 psig DB = 60 °F WB = 53 °F High pressure, high boiling/condensing point Low pressure, low boiling point

The purpose of an expansion valve in a vapor

compression cycle is to ________.

A) Lower refrigerant pressure before entering evaporator B) Lower refrigerant pressure after leaving evaporator C) Raise refrigerant pressure before entering evaporator D) Raise refrigerant pressure after leaving evaporator Why is it desirable to have lower pressure in the evaporator?

A. Lowers the boiling point of refrigerant

B. Raises the boiling point of refrigerant

C. Lowers the pressure drop

D. Raises the density of the refrigerant

Evaporative Cooling

  • Wet media/water spray – direct
    • Raise absolute humidity, lowers temperature of conditioned air
  • Cooling tower – indirect
    • Cools through a heat exchanger
    • Lowers temperature around condenser (outside)
    • Does not affect indoor absolute humidity
    • Can directly cool air in cold weather

Why Chilled Water?

  • Big centralized equipment
    • Low noise
    • Access to cooling towers
    • Easier maintenance
      • Less chance of leak
  • Easier to make changes/add buildings
  • Small pipes for distribution

Disadvantages of Chilled Water?

  • Water freezing
  • Water treatment
  • No condensing pump
  • Bigger first cost

What about phase change?

  • Common problem, sizing an evaporator coil
  • How cold should an evaporator coil be?
    • Too cold and water will freeze out of air
    • Too warm and it won’t dehumidify
  • Relevant equation
    • q= ρ ×Q×(^ hfg + C× ΔT )
    • Often have to solve for both air and for refrigerant
    • Often have to do mass balance on water/water vapor

Example

  • Size an evaporator coil that will cool 1000 CFM of air from 85 °F and 50% RH to 60 °F
  • Coil temperature is 40 °F everywhere in coil
  • Refrigerant is R-22 and is just boiling everywhere in coil
  • What is sensible capacity of coil?
  • What is latent capacity of coil?
  • What is total capacity of coil?
  • How much water is removed by the AC system?
  • What is refrigerant mass flow rate?
  • What is volumetric flow rate of refrigerant into coil?
  • What is volumetric flow rate of refrigerant out of coil?
