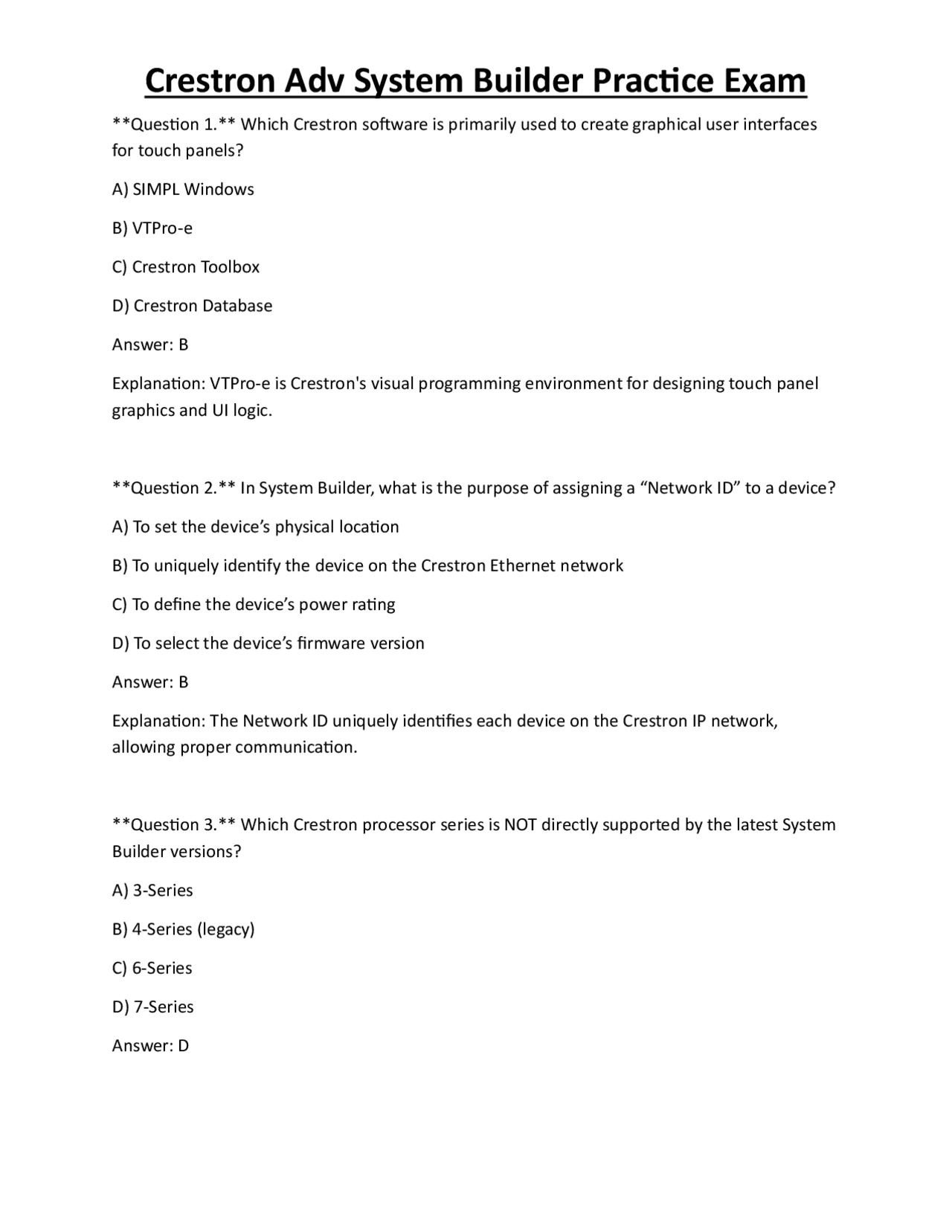

Question 1. Which Crestron software is primarily used to create graphical user interfaces for touch panels? A) SIMPL Windows B) VTPro-e C) Crestron Toolbox D) Crestron Database Answer: B Explanation: VTPro-e is Crestron's visual programming environment for designing touch panel graphics and UI logic. Question 2. In System Builder, what is the purpose of assigning a “Network ID” to a device? A) To set the device’s physical location B) To uniquely identify the device on the Crestron Ethernet network C) To define the device’s power rating D) To select the device’s firmware version Answer: B Explanation: The Network ID uniquely identifies each device on the Crestron IP network, allowing proper communication. Question 3. Which Crestron processor series is NOT directly supported by the latest System Builder versions? A) 3-Series B) 4-Series (legacy) C) 6-Series D) 7-Series Answer: D
Explanation: System Builder supports legacy 3‑Series and older 4‑Series; the newer 7‑Series requires Crestron Studio or SIMPL+. Question 4. When adding a third‑party AV device that communicates via RS‑232, which System Builder setting must be configured? A) IR code library B) Serial port parameters (baud rate, data bits, parity, stop bits) C) DM‑Net routing matrix D) Cresnet address Answer: B Explanation: RS‑232 devices need correct serial settings to ensure proper command transmission. Question 5. What is the primary advantage of using Crestron’s Cresnet® network for low‑bandwidth devices? A) High‑speed video streaming B) Simplified wiring with a single twisted‑pair cable C) Wireless connectivity D) Automatic IP address assignment Answer: B Explanation: Cresnet uses a single twisted‑pair cable to connect low‑bandwidth devices like keypads, lighting, and shades, reducing cabling complexity. Question 6. In System Builder, which wizard would you select to quickly configure a multi‑zone audio distribution system? A) QuickMedia™ Wizard B) iMedia Wizard C) Audio Mixer Wizard
B) VTPro-e C) SIMPL Windows D) Crestron Database Answer: A Explanation: Crestron Toolbox provides utilities for compiling, uploading, and managing firmware on Crestron processors. Question 10. In a System Builder project, what does the “QuickMedia™” configuration primarily manage? A) Lighting control B) Video routing over DM‑Net C) Audio distribution over Ethernet (QSYS) D) HVAC scheduling Answer: C Explanation: QuickMedia™ (now part of QSYS) handles audio distribution over Ethernet, including source selection and zone routing. Question 11. Which of the following best describes the relationship between System Builder logic and SIMPL Windows? A) System Builder generates SIMPL code that can be edited directly in SIMPL Windows B) System Builder logic is a separate, incompatible language C) System Builder only creates UI files, while SIMPL Windows handles all logic D) System Builder exports a binary that replaces SIMPL Windows entirely Answer: A Explanation: System Builder translates its drag‑and‑drop logic into SIMPL code, which can be opened and refined in SIMPL Windows.
Question 12. When configuring a Crestron touch panel in System Builder, which setting determines the screen resolution the UI will use? A) Device firmware version B) Panel model selection from the device database C) Network ID D) IP address mask Answer: B Explanation: Selecting the correct panel model automatically sets the appropriate resolution for the UI project. Question 13. Which Crestron feature allows a control system to respond to occupancy sensor data? A) Cresnet polling B) Event‑based programming in System Builder C) Fixed‑time scheduling only D) IR command mapping Answer: B Explanation: System Builder can create event‑driven logic that triggers actions when occupancy sensors send status updates. Question 14. In System Builder, what is the purpose of an “Application Template”? A) To provide a pre‑configured set of logic blocks for a specific AV scenario B) To store device firmware updates C) To define network security policies D) To generate HTML documentation automatically Answer: A
D) HVAC Wizard Answer: A Explanation: The Multimedia Presentation System (MPS) Wizard assists in setting up multi‑room video routing and control. Question 18. What is the primary function of the “Real‑Time” mode in System Builder? A) To compile the program faster B) To simulate device behavior without hardware C) To interactively test and debug the live system while it runs on the processor D) To generate project documentation automatically Answer: C Explanation: Real‑Time mode connects to the actual processor, allowing live testing and debugging of logic and UI interactions. Question 19. Which of the following is a required step before uploading a System Builder project to a Crestron processor? A) Deleting all existing device definitions B) Running the “Compile & Export” function to generate the binary file C. Changing the processor’s MAC address D. Enabling Wi‑Fi on the processor Answer: B Explanation: The project must be compiled and exported to produce the .cpr file that can be uploaded to the processor. Question 20. In System Builder, what does the “Conditional Logic” block allow you to do? A) Define static IP addresses only B) Execute actions based on variable values or sensor inputs
C) Change the firmware version of a device D. Create a new device database entry Answer: B Explanation: Conditional Logic evaluates variables, sensor states, or time conditions to determine which actions to execute. Question 21. Which Crestron device type is most appropriate for controlling motorized shades? A) DM‑Net Matrix Switcher B) Cresnet Shade Module C) IP‑Audio Mixer D) VTPro-e Touch Panel Answer: B Explanation: The Cresnet Shade Module is designed specifically for controlling motorized shades via the Cresnet network. Question 22. When integrating a third‑party projector that uses HDMI‑CEC for power control, which System Builder setting must be enabled? A) IR command library for the projector B) HDMI‑CEC control flag in the device definition C) RS‑232 port mapping D) DM‑Net routing path Answer: B Explanation: Enabling HDMI‑CEC in the device definition allows System Builder to send power on/off commands over HDMI. Question 23. Which of the following best describes the “Device Database” in System Builder?
Question 26. In a System Builder project, you need to route two video sources to three displays with picture‑in‑picture (PiP). Which Crestron technology should you select? A) QuickMedia™ B) DM‑Net with a Matrix Switcher supporting PiP C) Cresnet lighting module D) IP‑Audio Mixer Answer: B Explanation: DM‑Net matrix switchers can handle multi‑source routing and PiP functionality. Question 27. When configuring a Crestron processor’s Ethernet settings, which parameter determines the subnet the device belongs to? A) Device ID B) IP address mask (subnet mask) C) Cresnet node ID D) Serial port baud rate Answer: B Explanation: The subnet mask defines the network segment for the IP address. Question 28. Which System Builder component is used to create a simple “Press‑to‑Toggle” button for a projector power command? A) Slider widget B) Toggle button object with associated command block C) Text label with hyperlink D) Dropdown menu Answer: B Explanation: A toggle button object can be linked to a command block that sends the projector power command on press.
Question 29. What is the primary purpose of the “iMedia” wizard in System Builder? A) To configure Crestron’s IP‑based audio distribution (QSYS) B) To set up DM‑Net video routing only C) To generate HVAC control schedules D) To create custom IR code libraries Answer: A Explanation: iMedia (now part of QSYS) focuses on IP‑based audio distribution, similar to QuickMedia but with additional features. Question 30. Which Crestron processor architecture uses a dual‑core ARM processor and supports both DM‑Net and QSYS? A) 3‑Series (e.g., CP3) B) 4‑Series (legacy) C) 6‑Series (e.g., CP6) D) 7‑Series (e.g., CP7) Answer: C Explanation: The 6‑Series processors are dual‑core ARM devices that support both DM‑Net video and QSYS audio. Question 31. In System Builder, how do you assign a device to a specific “Room” for UI generation? A) By dragging the device icon into the room’s hierarchy in the Project Explorer B. By editing the device’s firmware version C. By changing the device’s MAC address D. By setting the device’s time zone Answer: A
D. CIP (Crestron IP) Answer: D Explanation: Crestron IP (CIP) provides deterministic control for devices like lighting and shades over Ethernet. Question 35. In System Builder, what does the “Variable” object allow you to store? A) Device firmware versions B) User‑defined data such as numeric values, strings, or boolean states for use in logic C. IP address ranges only D. Network topology diagrams Answer: B Explanation: Variables hold data that can be referenced by logic blocks, enabling dynamic behavior. Question 36. Which of the following actions can be performed directly from System Builder’s “Real‑Time” window? A. Compiling the program B. Sending manual commands to devices for testing C. Updating device firmware D. Generating PDF documentation Answer: B Explanation: Real‑Time mode allows you to manually trigger commands and observe device responses for debugging. Question 37. When configuring a Crestron DM‑Net matrix, which parameter defines the maximum video resolution supported? A. IP address subnet
B. Port bandwidth setting (e.g., 1080p60, 4K30) C. Cresnet node ID D. Serial baud rate Answer: B Explanation: The port bandwidth setting determines the highest resolution the matrix can handle. Question 38. What is the purpose of the “Upload” button in Crestron Toolbox after compiling a System Builder project? A. To send the compiled binary to the control processor B. To back up the project to the cloud C. To export the UI as a PDF D. To generate a device inventory report Answer: A Explanation: Upload transfers the compiled program (.cpr) to the target processor for execution. Question 39. Which of the following best describes “Conditional Variable” usage in System Builder? A. A variable that changes its type based on user input B. A variable whose value is set only if a specific condition evaluates true C. A read‑only system constant D. A variable that controls network bandwidth Answer: B Explanation: Conditional variables are assigned values only when certain logic conditions are met.
Question 43. Which of the following is a valid reason to use an “IR” emitter in a System Builder design? A. To control legacy AV equipment that only accepts infrared commands B. To provide power over Ethernet C. To replace Cresnet for lighting control D. To increase network bandwidth Answer: A Explanation: IR emitters allow control of older devices that lack IP or RS‑232 interfaces. Question 44. In System Builder, what is the effect of linking a “Button Press” event to a “Toggle Variable” action? A. The button will send an IR command automatically B. Each press will invert the boolean state of the variable, which can drive device on/off C. The system will reboot D. The UI will close Answer: B Explanation: A toggle variable flips its state each time the button is pressed, enabling on/off control logic. Question 45. Which Crestron software is primarily used for creating detailed system documentation and reports? A. Crestron Toolbox B. System Builder (Report Generation feature) C. VTPro-e D. SIMPL Windows Answer: B
Explanation: System Builder includes built‑in report generation that produces HTML or PDF documentation of the project. Question 46. When configuring a Crestron HVAC controller, which sensor type is commonly used for temperature feedback? A. DM‑Net video sensor B. RS‑485 temperature sensor C. IP‑based thermostat (e.g., Crestron TSW‑-X) D. Cresnet lighting sensor Answer: C Explanation: Crestron IP thermostats provide temperature data over Ethernet for HVAC integration. Question 47. Which of the following best describes the “Application Template” named “VisionTools Pro‑e”? A. A pre‑configured audio mixing solution B. A template for creating custom UI graphics only C. A pre‑built logic set for integrating VisionTools Pro‑e video distribution hardware D. A network security module Answer: C Explanation: The VisionTools Pro‑e template includes logic for controlling VisionTools video distribution devices. Question 48. In System Builder, what does the “Compile & Export” process generate for the control processor? A. A .cpr binary file containing all program logic and UI resources B. A .zip archive of device manuals C. A .exe installer for Windows
D. Setting the same IP address on all devices Answer: B Explanation: NTP syncs the processor’s clock, and devices can reference it for consistent time. Question 52. In System Builder, the “Slider” UI object is most appropriate for which type of control? A. Selecting a video source B. Adjusting volume or lighting level continuously C. Turning a device on/off D. Displaying system status text Answer: B Explanation: Sliders provide a range of values, ideal for dimming lights or setting volume. Question 53. Which Crestron protocol is used for sending simple on/off commands to devices over Ethernet? A. CIP (Crestron IP) B. DM‑Net C. HDMI‑CEC D. RS‑ 422 Answer: A Explanation: Crestron IP (CIP) is the standard Ethernet command protocol for basic control. Question 54. When adding a custom IR code library for a new TV model, which System Builder component must you associate the codes with? A. Device definition → IR command set B. Network ID field C. Cresnet address field
D. Variable object Answer: A Explanation: The IR command set within the device definition stores the codes for that TV. Question 55. Which of the following best explains the purpose of “Variable Mapping” in System Builder? A. Linking UI elements to logical variables so that user actions update the variable’s value and vice versa B. Assigning IP addresses to variables C. Generating XML reports of variables D. Converting variables to binary firmware files Answer: A Explanation: Variable mapping connects UI controls (buttons, sliders) with program variables for two‑way interaction. Question 56. In a Crestron DM‑Net environment, what does the term “Auto‑Negotiation” refer to? A. Automatic selection of video resolution and frame rate between source and destination devices B. Automatic IP address assignment via DHCP C. Automatic Cresnet node discovery D. Automatic firmware updates Answer: A Explanation: Auto‑Negotiation lets DM‑Net devices agree on the highest compatible video format. Question 57. Which System Builder feature allows you to simulate device responses without physical hardware?
