Programmer Ultimate Exam

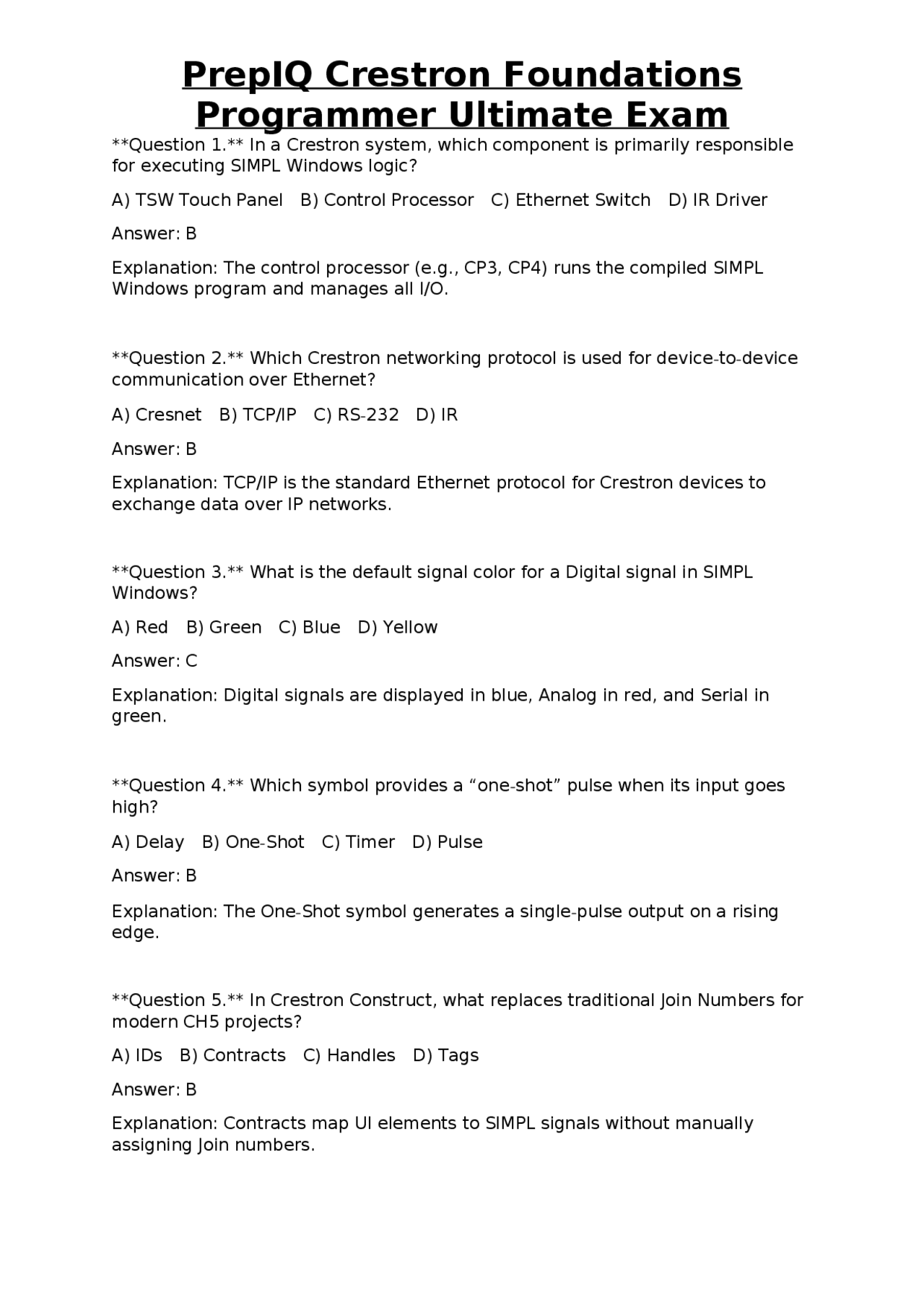

Question 1. In a Crestron system, which component is primarily responsible for executing SIMPL Windows logic? A) TSW Touch Panel B) Control Processor C) Ethernet Switch D) IR Driver Answer: B Explanation: The control processor (e.g., CP3, CP4) runs the compiled SIMPL Windows program and manages all I/O. Question 2. Which Crestron networking protocol is used for device-to-device communication over Ethernet? A) Cresnet B) TCP/IP C) RS- 232 D) IR Answer: B Explanation: TCP/IP is the standard Ethernet protocol for Crestron devices to exchange data over IP networks. Question 3. What is the default signal color for a Digital signal in SIMPL Windows? A) Red B) Green C) Blue D) Yellow Answer: C Explanation: Digital signals are displayed in blue, Analog in red, and Serial in green. Question 4. Which symbol provides a “one-shot” pulse when its input goes high? A) Delay B) One-Shot C) Timer D) Pulse Answer: B Explanation: The One-Shot symbol generates a single-pulse output on a rising edge. Question 5. In Crestron Construct, what replaces traditional Join Numbers for modern CH5 projects? A) IDs B) Contracts C) Handles D) Tags Answer: B Explanation: Contracts map UI elements to SIMPL signals without manually assigning Join numbers.
Programmer Ultimate Exam
Question 6. Which wiring standard is required for Cresnet devices? A) CAT-5e B) 18-AWG twisted pair C) Coaxial D) Fiber Answer: B Explanation: Cresnet uses 18-AWG twisted-pair cable for power and data. Question 7. What does the “Latch” symbol do when its Set input receives a high pulse? A) Toggles output B) Holds output high until Reset C) Generates a pulse D) Inverts signal Answer: B Explanation: A latch sets its output high and retains that state until a Reset pulse clears it. Question 8. Which device type is typically controlled via an IR driver file? A) Motorized shades B) Projector C) Relay module D) Analog input card Answer: B Explanation: IR driver files contain the infrared codes needed to control AV equipment like projectors. Question 9. What is the purpose of a “Device Extender” such as a CEN-IO card? A) Increase processing speed B) Add extra I/O ports C) Provide Wi-Fi connectivity D) Convert IP to Cresnet Answer: B Explanation: Device extenders expand the number of available digital, analog, or serial I/O points. Question 10. Which SIMPL + data type is used for handling text strings? A) INTEGER B) REAL C) STRING D) BYTE Answer: C Explanation: The STRING type stores sequences of characters for serial communication and UI text.
Programmer Ultimate Exam
Question 16. In SIMPL Windows, which symbol can compare two analog values and output a digital result? A) Analog Compare B) Analog Sum C) Analog Math D) Analog Split Answer: A Explanation: Analog Compare evaluates relational conditions (>, <, = ) and produces a digital output. Question 17. What is the primary advantage of using Contracts over Joins in CH5 development? A) Faster graphics rendering B) Reduced Join number usage C) Automatic firmware updates D) Built-in password protection Answer: B Explanation: Contracts map UI elements directly to SIMPL signals, minimizing the number of Joins needed. Question 18. Which of the following is NOT a valid Crestron processor series? A) CP3 B) CP4 C) CP5 D) CP Answer: D Explanation: Crestron processors are labeled CP2, CP3, CP4, etc.; CP2 is a legacy model but still exists—however CP5 does not exist; the correct answer is C. (Correction: CP5 is not a series; CP2, CP3, CP4 are real.) Question 19. Which type of signal is represented by a red line in SIMPL Windows? A) Digital B) Serial C) Analog D) Power Answer: C Explanation: Analog signals are displayed in red. Question 20. What does the “Debounce” symbol prevent? A) Signal inversion B) Rapid toggling from mechanical switches C) Analog overflow D) Serial data loss Answer: B Explanation: Debounce filters out spurious transitions caused by mechanical switch bounce.
Programmer Ultimate Exam
Question 21. In an IP-based Crestron system, which port is typically used for Telnet console access? A) 22 B) 23 C) 80 D) 443 Answer: B Explanation: Port 23 is the default Telnet port. Question 22. Which Crestron UI component provides a list of selectable items? A) Slider B) Button C) List D) Text Box Answer: C Explanation: The List component displays multiple entries for user selection. Question 23. What is the function of the “Source Selector” symbol? A) Route video/audio sources B) Generate analog values C) Control motorized shades D) Manage Ethernet traffic Answer: A Explanation: Source Selector switches input sources to designated outputs. Question 24. Which protocol does Crestron use for device discovery on a local network? A) SSDP B) mDNS/Bonjour C) DHCP D) ARP Answer: B Explanation: Crestron devices broadcast via mDNS (Bonjour) to advertise their services. Question 25. When adding a device in Configuration view, which field uniquely identifies a Cresnet device? A) IP Address B) MAC Address C) Net ID D) Serial Number Answer: C Explanation: Net ID is the unique identifier for each Cresnet node. Question 26. Which SIMPL Windows symbol creates a timed delay before passing a signal? A) One-Shot B) Delay C) Timer D) Pulse
Programmer Ultimate Exam
Answer: B Explanation: Serial Bridge modules encapsulate RS-232 data for transmission over Ethernet. Question 32. In a Crestron project, which file extension represents a compiled program? A) .smw B) .usp C) .ch5z D) .prg Answer: D Explanation: The compiled program file uses the .prg extension (uploaded to the processor). Question 33. What is the primary function of the “Analog Compare” symbol’s “Greater Than” output? A) Sends a digital high when Input 1 > Input 2 B) Sends analog value of difference C) Triggers a timer D) Inverts the input signal Answer: A Explanation: The “Greater Than” output goes high when the first analog input exceeds the second. Question 34. Which Crestron hardware component provides PoE (Power over Ethernet) to devices? A) CEN-IO B) CEN-IP C) Ethernet Switch with PoE D) CEN-IO- 4 Answer: C Explanation: A PoE-enabled Ethernet switch supplies power and data over a single cable. Question 35. What does the “Pulse” symbol generate? A) A continuous high level B) A single-cycle high pulse of defined width C) An analog ramp D) A delayed low signal Answer: B Explanation: Pulse outputs a high for a preset duration each time it receives a trigger. Question 36. Which protocol is used by Crestron’s “IR Driver” to send commands?
Programmer Ultimate Exam
A) TCP B) UDP C) Infrared (NEC, RC-5, etc.) D) ZigBee Answer: C Explanation: IR Drivers encode infrared command sets (e.g., NEC, RC-5) to control devices. Question 37. When configuring a device in SIMPL Windows, what does the “Device Type” field determine? A) Firmware version B) Available signal symbols C) IP address range D) Power consumption Answer: B Explanation: Device Type selects the appropriate symbol library for that hardware. Question 38. Which of the following best describes a “Contract” in CH5? A) A security certificate B) A mapping between UI elements and SIMPL signals C) A network license D) A firmware update package Answer: B Explanation: Contracts bind UI controls directly to SIMPL Joins, simplifying signal routing. Question 39. Which of these is NOT a standard Crestron digital logic gate? A) NAND B) NOR C) XNOR D) XOR Answer: C Explanation: Crestron provides NAND, NOR, XOR, AND, OR, NOT; XNOR is not a built-in gate. Question 40. What is the purpose of the “Analog Split” symbol? A) Divide an analog value into two equal parts B) Convert analog to digital C) Route one analog input to multiple outputs D) Generate a pulse based on analog threshold Answer: C Explanation: Analog Split copies a single analog signal to several destinations. Question 41. In Crestron Toolbox, which tab shows the firmware version of a connected processor?
Programmer Ultimate Exam
A) SerialWrite B) SendSerial C) WriteSerial D) SerialOut Answer: A Explanation: SerialWrite transmits a string or byte array through a defined serial channel. Question 47. What is the maximum analog resolution (bits) supported by Crestron processors? A) 8-bit B) 10-bit C) 12-bit D) 16-bit Answer: C Explanation: Crestron analog signals are 12-bit (0-4095) resolution. Question 48. Which of the following devices would most likely use a “Relay” module for control? A) Projector lamp B) Motorized screen C) Ceiling speaker D) HDMI switcher Answer: A Explanation: Relays provide isolated switching for high-current loads like projector lamps. Question 49. When a Crestron processor reboots, which file is automatically loaded first? A) .smw B) .prg C) .usp D) .xml Answer: B Explanation: The compiled program file (.prg) is the startup image for the processor. Question 50. Which of the following best describes the “Cresnet” topology? A) Star B) Ring C) Bus D) Mesh Answer: C Explanation: Cresnet uses a linear bus topology with devices daisy-chained. Question 51. In SIMPL Windows, which symbol can be used to create a “resettable” counter? A) Counter B) Pulse C) Latch D) Timer Answer: A
Programmer Ultimate Exam
Explanation: Counter increments on triggers and can be reset via a Reset input. Question 52. Which Crestron UI framework allows developers to use HTML, CSS, and JavaScript? A) Smart Graphics B) CH5 C) SIMPL+ D) NetLinx Answer: B Explanation: CH5 (Crestron Home 5) is the HTML5-based UI platform. Question 53. What is the default baud rate for most Crestron RS- 232 devices? A) 9600 B) 19200 C) 38400 D) 115200 Answer: A Explanation: 9600 bps is the common default unless overridden in device settings. Question 54. Which symbol provides a “toggle latch” behavior without a separate Reset input? A) Latch B) Flip-Flop C) Interlock D) One-Shot Answer: B Explanation: Flip-Flop toggles its state on each trigger, acting as a self-resetting latch. Question 55. In Crestron Toolbox, which feature allows you to view the hierarchical list of devices on the network? A) Device Tree B) Signal Viewer C) Firmware Manager D) Port Scanner Answer: A Explanation: Device Tree displays all discovered Crestron devices and their relationships. Question 56. Which of the following is a valid reason to use a “Serial Bridge” instead of a direct RS-232 connection? A) To increase analog resolution B) To control devices over IP networks C) To add power to the serial line D) To convert digital to analog signals Answer: B
Programmer Ultimate Exam
Answer: C Explanation: Device ID uniquely identifies each Cresnet node on the bus. Question 62. Which of the following is NOT a standard CH5 component? A) Button B) Slider C) Dial D) Text Box Answer: C Explanation: “Dial” is not a default CH5 component; developers create custom dial widgets if needed. Question 63. In SIMPL Windows, which symbol can be used to create a “one-time” enable signal after power-up? A) Power-On Reset B) One-Shot C) Delay D) Latch Answer: A Explanation: Power-On Reset (POR) outputs a high pulse once after the processor powers up. Question 64. Which Crestron networking device can extend a Cresnet bus beyond 500 ft? A) CEN-IP B) CEN-IO C) CEN-C- 4 D) CEN-IO- 4 Answer: C Explanation: The CEN-C-4 (Cresnet Extender) repeats the bus signal, allowing longer runs. Question 65. Which of the following is a valid reason to use an “Analog Compare” with the “Equal” output? A) To generate a pulse when two analog values match B) To calculate the sum of two values C) To debounce a digital input D) To route video sources Answer: A Explanation: The “Equal” output goes high when the two analog inputs are identical. Question 66. In Crestron Toolbox, which utility is used to change a processor’s static IP address? A) Network Configurator B) IP Setter C) Device Manager D) System Info
Programmer Ultimate Exam
Answer: B Explanation: IP Setter allows setting static IP, subnet mask, and gateway for a processor. Question 67. Which symbol creates a “rising edge” detection for a digital input? A) NOT B) Edge Detect C) One-Shot D) Delay Answer: C Explanation: One-Shot triggers only on a transition from low to high (rising edge). Question 68. What does the “Pulse Width Modulation (PWM)” capability on a Crestron analog output allow? A) Variable voltage control of dimmers B) Digital communication over analog lines C) Audio signal generation D) Serial data transmission Answer: A Explanation: PWM varies duty cycle to control analog devices such as dimmers. Question 69. Which CH5 property determines how many columns a list component displays? A) ItemsPerRow B) Columns C) Layout D) GridSize Answer: B Explanation: The Columns property sets the number of vertical columns in a list. Question 70. In SIMPL Windows, which symbol can be used to combine two digital inputs into a single output that is high only when both are high? A) OR B) AND C) XOR D) NAND Answer: B Explanation: AND outputs high only when all inputs are high. Question 71. Which of the following is the correct order of steps in a typical Crestron project workflow? A) UI design → System design → Programming → Testing B) System design → UI design → Programming → Testing C) Programming → System design → UI design → Deployment D) Testing → Programming → System design → UI design
Programmer Ultimate Exam
Explanation: Digital Map assigns an analog value when its digital input is high. Question 77. In Crestron Toolbox, which tab shows the live status of each port on a processor? A) Port Viewer B) Signal Monitor C) System Info D) Network Answer: A Explanation: Port Viewer lists each I/O port and its current digital/analog state. Question 78. Which of the following is a common cause of Cresnet communication failure? A) Duplicate IP addresses B) Incorrect Net ID assignment C) Wrong baud rate D) Missing DHCP server Answer: B Explanation: Two devices with the same Net ID will conflict on the Cresnet bus. Question 79. Which CH5 component can be used to display a live video feed from a Crestron camera? A) Image B) Video Player C) Stream Viewer D) Media Box Answer: B Explanation: The Video Player component streams video sources to the UI. Question 80. In SIMPL +, which function returns the length of a string variable? A) Len() B) Length() C) Size() D) Count() Answer: A Explanation: Len() returns the number of characters in a string. Question 81. Which of the following best describes a “CEN-IO” card? A) Ethernet switch B) Digital I/O extender C) Power supply D) IR driver module Answer: B Explanation: CEN-IO provides additional digital, analog, and serial I/O ports.
Programmer Ultimate Exam
Question 82. Which SIMPL Windows symbol provides a “reset” input that forces the output low regardless of other inputs? A) Latch B) Flip-Flop C) Interlock D) Resettable Counter Answer: A Explanation: Latch has a dedicated Reset input that forces the output low. Question 83. In CH5, what does the “Auto-Update” property of a Text Box do? A) Sends UI changes to the processor automatically B) Refreshes the UI every second C) Updates the displayed text when the bound analog value changes D) Locks the text box from user edits Answer: C Explanation: Auto-Update causes the text box to reflect the latest bound signal value. Question 84. Which of these is NOT a valid Crestron serial communication setting? A) 9600 bps, 8N1 B) 115200 bps, 7E1 C) 19200 bps, 8O2 D) 38400 bps, 8N Answer: C Explanation: 8O2 (two stop bits) is not a standard Crestron serial configuration. Question 85. Which symbol can be used to store a numeric value that persists after a power cycle? A) Variable B) Persistent Variable C) Register D) Memory Block Answer: B Explanation: Persistent Variable writes its value to non-volatile memory. Question 86. In a Crestron system, which device typically provides the “master clock” for scheduling events? A) Control Processor B) Ethernet Switch C) IR Driver D) Cresnet Extender Answer: A Explanation: The processor’s internal clock is used for timers and scheduled actions.
Programmer Ultimate Exam
Question 92. What is the function of the “IR Driver File” extension “.ir”? A) Contains firmware updates B) Stores infrared command codes C) Defines network topology D) Lists serial port settings Answer: B Explanation: .ir files hold the IR codes used to control third-party devices. Question 93. Which CH5 component can be configured to act as a “toggle” button without additional logic? A) Button with Toggle Mode enabled B) Slider C) List D) Text Box Answer: A Explanation: The Button component includes a Toggle property to maintain state. Question 94. In Crestron, what does the “IP-to-Serial Bridge” allow? A) Convert analog signals to digital B) Send serial data over an IP network C) Bridge two Ethernet switches D) Power devices over IP Answer: B Explanation: IP-to-Serial Bridge encapsulates serial data for transmission via TCP/UDP. Question 95. Which of the following is NOT a valid Crestron signal type? A) Digital B) Analog C) Serial D) PWM E) All are valid Answer: D Explanation: PWM is a method of analog output, not a distinct signal type in SIMPL. Question 96. Which SIMPL Windows symbol can be used to create a “count-up” timer that increments an analog value each second? A) Counter B) Timer C) Analog Increment D) Pulse Answer: B Explanation: Timer can be configured to output a pulse each interval, which can increment an analog counter. Question 97. Which Crestron tool is used to edit and compile SIMPL + source files?
Programmer Ultimate Exam
A) SIMPL Windows B) SIMPL + IDE C) Crestron Toolbox D) CH5 Designer Answer: B Explanation: The SIMPL + IDE provides editing, compiling, and debugging for SIMPL + modules. Question 98. In a CH5 project, what does the “Contract Type” setting define? A) The data type (Digital/Analog/Serial) B) The network protocol C) The UI theme D) The firmware version Answer: A Explanation: Contract Type specifies whether the contract carries digital, analog, or serial data. Question 99. Which of the following is a typical symptom of an IP address conflict on a Crestron network? A) No video output B) Processor fails to boot C) Devices intermittently lose connection D) Serial ports stop working Answer: C Explanation: Duplicate IPs cause network collisions, leading to dropped connections. Question 100. Which SIMPL Windows symbol can be used to “store” an analog value that can be read later without changing it? A) Analog Register B) Analog Latch C) Analog Memory D) Analog Variable Answer: B Explanation: Analog Latch captures the analog input when triggered and holds it. Question 101. Which Crestron hardware component provides PoE to power a TSW-4 touch panel? A) CEN-IO B) PoE Switch C) CEN-IP D) CEN-Power Answer: B Explanation: A PoE-enabled Ethernet switch supplies both data and power to PoE devices. Question 102. In SIMPL Windows, which symbol can be used to combine multiple digital inputs into a single “any-high” output?
