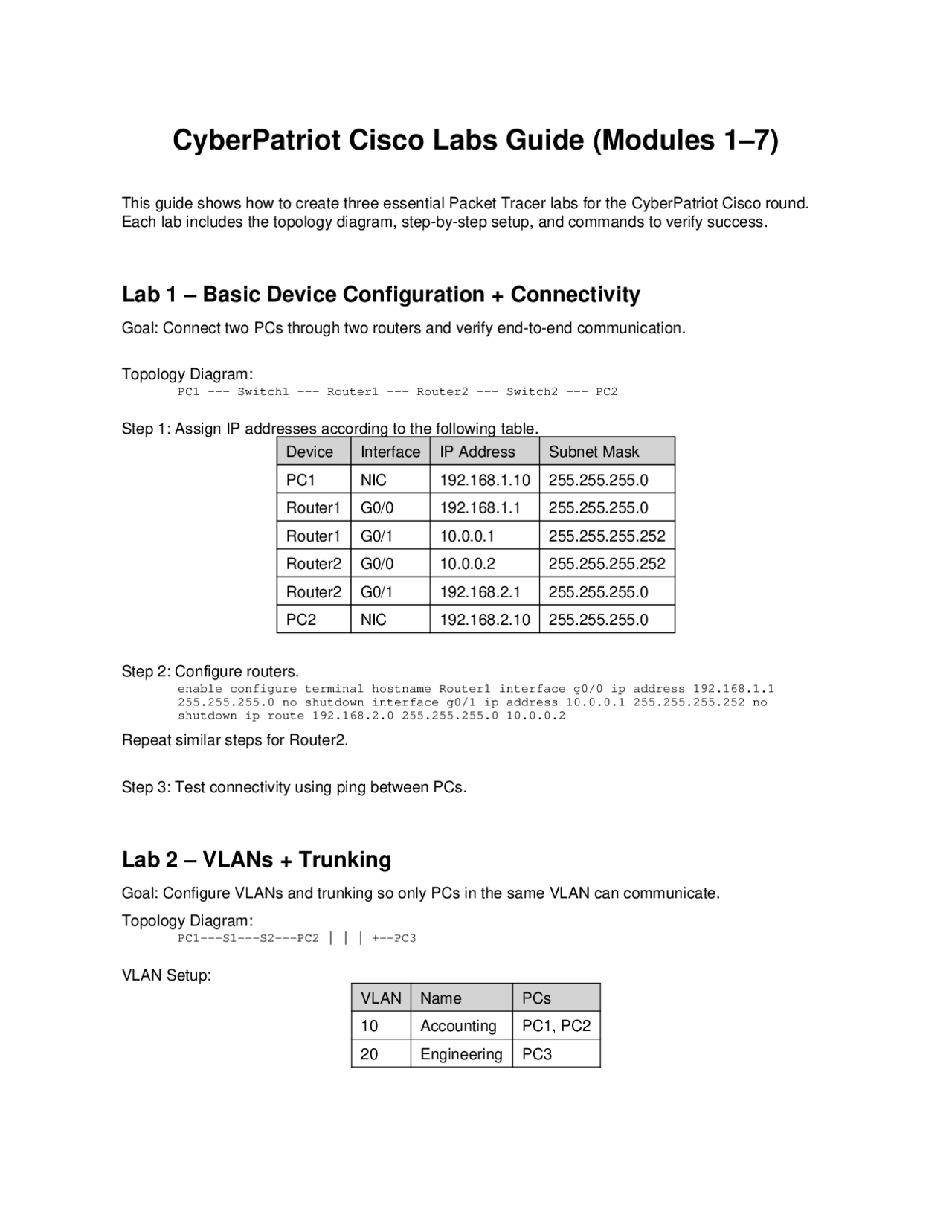

CyberPatriot Cisco Labs Guide (Modules 1โ€“7)
This guide shows how to create three essential Packet Tracer labs for the CyberPatriot Cisco round.
Each lab includes the topology diagram, step-by-step setup, and commands to verify success.
Lab 1 โ€“ Basic Device Configuration + Connectivity
Goal: Connect two PCs through two routers and verify end-to-end communication.
Topology Diagram:
PC1 --- Switch1 --- Router1 --- Router2 --- Switch2 --- PC2
Step 1: Assign IP addresses according to the following table.
Device Interface IP Address Subnet Mask
PC1 NIC 192.168.1.10 255.255.255.0
Router1 G0/0 192.168.1.1 255.255.255.0
Router1 G0/1 10.0.0.1 255.255.255.252
Router2 G0/0 10.0.0.2 255.255.255.252
Router2 G0/1 192.168.2.1 255.255.255.0
PC2 NIC 192.168.2.10 255.255.255.0
Step 2: Configure routers.
enable configure terminal hostname Router1 interface g0/0 ip address 192.168.1.1
255.255.255.0 no shutdown interface g0/1 ip address 10.0.0.1 255.255.255.252 no
shutdown ip route 192.168.2.0 255.255.255.0 10.0.0.2
Repeat similar steps for Router2.
Step 3: Test connectivity using ping between PCs.
Lab 2 โ€“ VLANs + Trunking
Goal: Configure VLANs and trunking so only PCs in the same VLAN can communicate.
Topology Diagram:
PC1---S1---S2---PC2 | | | +--PC3
VLAN Setup:
VLAN Name PCs
10 Accounting PC1, PC2
20 Engineering PC3
pf2

Partial preview of the text

Download Cyberpatriot Cheat Sheet and more Cheat Sheet Computer science in PDF only on Docsity!

CyberPatriot Cisco Labs Guide (Modules 1โ€“7)

This guide shows how to create three essential Packet Tracer labs for the CyberPatriot Cisco round.

Each lab includes the topology diagram, step-by-step setup, and commands to verify success.

Lab 1 โ€“ Basic Device Configuration + Connectivity

Goal: Connect two PCs through two routers and verify end-to-end communication.

Topology Diagram:

PC1 --- Switch1 --- Router1 --- Router2 --- Switch2 --- PC

Step 1: Assign IP addresses according to the following table.

Device Interface IP Address Subnet Mask

PC1 NIC 192.168.1.10 255.255.255.

Router1 G0/0 192.168.1.1 255.255.255.

Router1 G0/1 10.0.0.1 255.255.255.

Router2 G0/0 10.0.0.2 255.255.255.

Router2 G0/1 192.168.2.1 255.255.255.

PC2 NIC 192.168.2.10 255.255.255.

Step 2: Configure routers.

enable configure terminal hostname Router1 interface g0/0 ip address 192.168.1. 255.255.255.0 no shutdown interface g0/1 ip address 10.0.0.1 255.255.255.252 no shutdown ip route 192.168.2.0 255.255.255.0 10.0.0.

Repeat similar steps for Router2.

Step 3: Test connectivity using ping between PCs.

Lab 2 โ€“ VLANs + Trunking

Goal: Configure VLANs and trunking so only PCs in the same VLAN can communicate.

Topology Diagram:

PC1---S1---S2---PC2 | | | +--PC

VLAN Setup:

VLAN Name PCs

10 Accounting PC1, PC

20 Engineering PC

Configuration commands:

vlan 10 name Accounting vlan 20 name Engineering interface f0/1 switchport mode access switchport access vlan 10 interface f0/2 switchport mode access switchport access vlan 20 interface f0/24 switchport mode trunk

Verify using 'show vlan brief' and 'show interfaces trunk'.

Lab 3 โ€“ Router-on-a-Stick (Inter-VLAN Routing)

Goal: Allow VLANs to communicate through a router using subinterfaces.

Topology Diagram:

PC1(VLAN10) -- Switch -- Router -- PC2(VLAN20)

Router Configuration:

interface g0/0.10 encapsulation dot1Q 10 ip address 192.168.10.1 255.255.255. interface g0/0.20 encapsulation dot1Q 20 ip address 192.168.20.1 255.255.255. interface g0/0 no shutdown

Switch Configuration:

vlan 10 vlan 20 interface g0/1 switchport mode trunk interface f0/2 switchport mode access switchport access vlan 10 interface f0/3 switchport mode access switchport access vlan 20

Verify connectivity using ping between PCs in VLAN10 and VLAN20.
