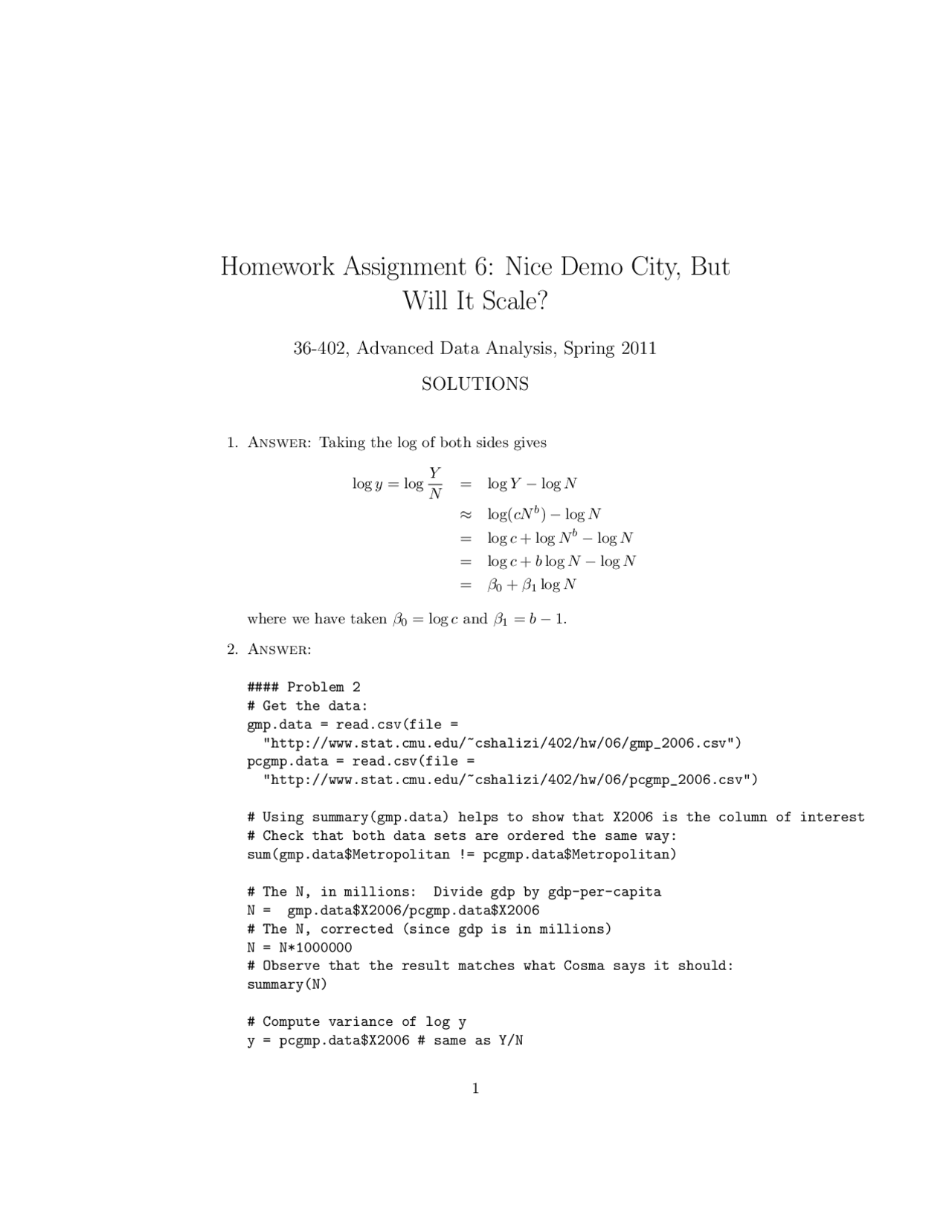

Homework Assignment 6: Nice Demo City, But
Will It Scale?
36-402, Advanced Data Analysis, Spring 2011
SOLUTIONS
1. Answer: Taking the log of both sides gives
log y= log Y
N= log Y−log N
≈log(cN b)−log N
= log c+ log Nb−log N
= log c+blog N−log N
=β0+β1log N
where we have taken β0= log cand β1=b−1.
2. Answer:
#### Problem 2
# Get the data:
gmp.data = read.csv(file =
"http://www.stat.cmu.edu/~cshalizi/402/hw/06/gmp_2006.csv")
pcgmp.data = read.csv(file =
"http://www.stat.cmu.edu/~cshalizi/402/hw/06/pcgmp_2006.csv")
# Using summary(gmp.data) helps to show that X2006 is the column of interest
# Check that both data sets are ordered the same way:
sum(gmp.data$Metropolitan != pcgmp.data$Metropolitan)
# The N, in millions: Divide gdp by gdp-per-capita
N = gmp.data$X2006/pcgmp.data$X2006
# The N, corrected (since gdp is in millions)
N = N*1000000
# Observe that the result matches what Cosma says it should:
summary(N)
# Compute variance of log y
y = pcgmp.data$X2006 # same as Y/N
1
pf3
pf4
pf5

Partial preview of the text

Download Data Analysis Density Estimation 1, Exercises - Engineering and more Exercises Advanced Data Analysis in PDF only on Docsity!

Homework Assignment 6: Nice Demo City, But

Will It Scale?

36-402, Advanced Data Analysis, Spring 2011

SOLUTIONS

1. Answer: Taking the log of both sides gives

log y = log

Y

N

= log Y − log N

≈ log(cN

b

) − log N

= log c + log N

b

− log N

= log c + b log N − log N

= β 0 + β 1 log N

where we have taken β 0 = log c and β 1 = b − 1.

2. Answer:

#### Problem 2

# Get the data:

gmp.data = read.csv(file =

"http://www.stat.cmu.edu/~cshalizi/402/hw/06/gmp_2006.csv")

pcgmp.data = read.csv(file =

"http://www.stat.cmu.edu/~cshalizi/402/hw/06/pcgmp_2006.csv")

# Using summary(gmp.data) helps to show that X2006 is the column of interest

# Check that both data sets are ordered the same way:

sum(gmp.data$Metropolitan != pcgmp.data$Metropolitan)

# The N, in millions: Divide gdp by gdp-per-capita

N = gmp.data$X2006/pcgmp.data$X

# The N, corrected (since gdp is in millions)

N = N*

# Observe that the result matches what Cosma says it should:

summary(N)

# Compute variance of log y

y = pcgmp.data$X2006 # same as Y/N

log.y = log(y)

> var(log.y)

[1] 0.

3. Answer:

# Compute log population:

log.N = log(N)

# Fit a linear model

lm.3 = lm(log.y ~ log.N)

# The output of summary(lm.3) includes the following

Coefficients:

Estimate

(Intercept) 8.

log.N 0.

The first thing to notice is that the adjusted R-squared value is only

about 0.24 (from the model summary). This means that the model does

not explain a very large portion of the variability in the response. But it

is still possible that the model is close to optimal, unless we have reason

to think that the single predictor variable contains enough information to

explain much more than 24% of the variability.

The model summary gives an estimate of the intercept

β 0 = 8.80 and the

log.N coefficient

β 1 = 0.12. Using the expressions at the end of part (1)

we can generate the corresponding estimates of c and b for the equation

Y ≈ cN

b

which motivates the log-linear model. We get ˆc = exp(

6610 and

b =

β 1 + 1 = 1.12. There is nothing obvious here to suggest that

the model Y ≈ 6610 N

is not a reasonable approximation.

Finally, we compute the MSE for the model in the log scale:

> mean(lm.3$residuals^2)

[1] 0.

4. Answer:

plot(N, y, main = "The fitted power-law curve",

cex = 0.4, lwd = 2, pch = 16)

# The fitted values are the exponentials of the log fit:

y.fit = exp(fitted(lm.3))

fitted.points = cbind(N,y.fit)

fitted.points = fitted.points[order(N),]

lines(fitted.points, lwd = 2, col = 2)

See Figure 1.

5. Answer:

# For the nonparametric fit we will use the function smooth.spline,

# letting R use a default process to choose the bandwidth (or

# number of knots).

spline.mod = smooth.spline(log.y~log.N)

spline.fit = predict(spline.mod, log.N)

# MSE:

> mean((spline.fit$y - log.y)^2)

[1] 0.

# comparison: plotting may help

plot(N, y)

fitted.points = cbind(exp(spline.fit$x),exp(spline.fit$y))

fitted.points = fitted.points[order(fitted.points[,1]),]

lines(fitted.points, lwd = 2, col = 2)

# RESULTS NOT SHOWN HERE

In words, the spline curve is rather similar to the power-law curve. The

most noticeable difference is that the spline curve is not monotonically

increasing; near small populations the fit sharply decreases.

6. Answer:

# We have completed steps 1-3 in the method outlined

# in lecture 10 section 1

# Step 4: How much bigger is the parametric MSE from the nonparametric MSE?

t.hat = mean(lm.3$residuals^2) - mean((spline.fit$y - log.y)^2)

# For steps 5-9, we need some functions:

# make.fake (below) is a function that simulates

# faked data based on the parametric model lm.

# The new x’s are the same as the old x’s; the new y’s are the lm.

# fitted values plus Gaussian noise with variance approximated by the

# in-sample MSE

make.fake = function(){

fake.log.y = fitted(lm.3) +

+ rnorm(length(log.y), mean = 0, sd = sqrt(mean(lm.3$residuals^2)))

return(fake.log.y)

# This function estimates the parametric model on the simulated data:

sim.parametric = function(fake.log.y){

lm.on.fake = lm(fake.log.y ~ log.N)

MSE = mean(lm.on.fake$residuals^2)

return(MSE)

# This function estimates the nonparametric model on the simulated data:

sim.non.parametric = function(fake.log.y){

spline.mod = smooth.spline(fake.log.y~log.N)

spline.fit = predict(spline.mod, log.N)

MSE = mean((spline.fit$y - fake.log.y)^2)

return(MSE)

# Use the functions above to simulate t.hat as T.hat

sim.T.hat = function(){

fake.log.y = make.fake()

MSE.parametric = sim.parametric(fake.log.y)

MSE.non.parametric = sim.non.parametric(fake.log.y)

T.hat = MSE.parametric - MSE.non.parametric

return(T.hat)

# Produce 1000 T.hat replicates

T.hat.replicates = replicate(1000, sim.T.hat())

# The p-value

> (1+sum(T.hat.replicates > t.hat))/(1+length(T.hat.replicates))

[1] 0.

The p-value is 0.04. Note that the p-value is small whenever most of the of

simulated values

T are smaller than the observed ˆt, where ˆt is the amount

by which the nonparametric model does better than the parametric model

(as measured by MSE). If nearly all of the simulated values were less than

the observed value, we might conclude that the observed value is large

enough to be statistically significant, indicating that the nonparametric

model is better. Since the p-value is small, we have reasonable evidence

that the parametric model is worse than the non-parametric model. (A

p-value of only 4% is not however especially overwhelming evidence.)

Further diagnosis of what is wrong with the parametric model (which is

not required by the problem) could involve either looking at the linearity

or the Gaussian distribution of noise around the regression. The shape

of the spline strongly suggests nonlinearity (at least for small city sizes),

but rather than leaping to that conclusion we could look at replacing the

Gaussian noise in the simulation with resampling the residuals. (This

would involve changing the make.fake function above.) Doing so in this

case does not change the p-value very much. This still assumes the noise

around the regression has the same distribution for all city sizes, so saving

the log-linear, power-law model is only going to be possible if we allow a

lot of heteroskedasticity (and perhaps not even then).
