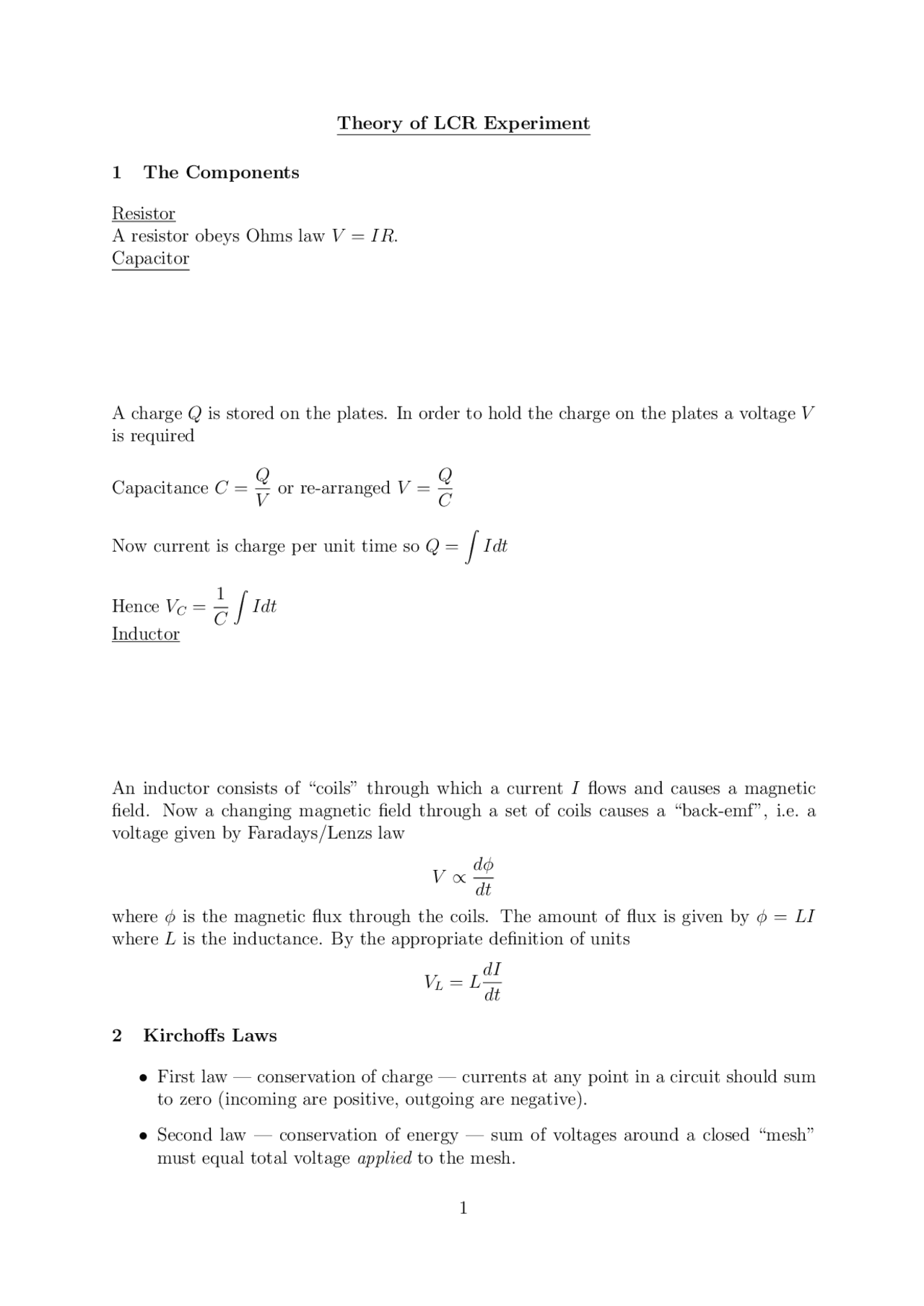

Theory of LCR Experiment
1 The Components
Resistor
A resistor obeys Ohms law V=IR.
Capacitor
A charge Qis stored on the plates. In order to hold the charge on the plates a voltage V
is required
Capacitance C=Q
Vor re-arranged V=Q
C
Now current is charge per unit time so Q=ZIdt
Hence VC=1
CZIdt
Inductor
An inductor consists of “coils” through which a current Iflows and causes a magnetic
field. Now a changing magnetic field through a set of coils causes a “back-emf”, i.e. a
voltage given by Faradays/Lenzs law
V
dt
where φis the magnetic flux through the coils. The amount of flux is given by φ=LI
where Lis the inductance. By the appropriate definition of units
VL=LdI
dt
2 Kirchoffs Laws
First law conservation of charge currents at any point in a circuit should sum
to zero (incoming are positive, outgoing are negative).
Second law conservation of energy sum of voltages around a closed “mesh”
must equal total voltage applied to the mesh.
1
pf3
pf4

Partial preview of the text

Download Data Analysis, Practical - Engineering - 19 and more Study notes Engineering Physics in PDF only on Docsity!

Theory of LCR Experiment

1 The Components

Resistor A resistor obeys Ohms law V = IR. Capacitor

A charge Q is stored on the plates. In order to hold the charge on the plates a voltage V is required

Capacitance C =

Q

V

or re-arranged V =

Q

C

Now current is charge per unit time so Q =

∫ Idt

Hence VC =

C

∫ Idt

Inductor

An inductor consists of “coils” through which a current I flows and causes a magnetic field. Now a changing magnetic field through a set of coils causes a “back-emf”, i.e. a voltage given by Faradays/Lenzs law

V ∝ dφ dt where φ is the magnetic flux through the coils. The amount of flux is given by φ = LI where L is the inductance. By the appropriate definition of units

VL = L dI dt

2 Kirchoffs Laws

  • First law — conservation of charge — currents at any point in a circuit should sum to zero (incoming are positive, outgoing are negative).
  • Second law — conservation of energy — sum of voltages around a closed “mesh” must equal total voltage applied to the mesh.

3 Differential Equations for Current

For a simple (series) mesh of a resistor, an inductor and a capacitor Kirchoff’s second law gives

E = IR + L

dI dt

C

∫ Idt

which if we differentiate w.r.t. time gives us

dE dt

= L

d^2 I dt^2

+ R

dI dt

C

I

Note for DC we have dE dt = 0, which is also true on the flat part of a square wave.

4 The RC Circuit

If we examine the series RC circuit on its own we have

E = VR + VC = IR +

C

∫ Idt dE dt

= R

dI dt

C

I

0 = R

dI dt

C

I because dE dt

dI dt

RC

I

∫ (^) dI I

RC

∫ dt

works perfectly well for this differential equation. However it is not all of the solution. If we can find a solution to the equation

0 = IR + L dI dt

then we can add it to IS and it will also be a solution to the differential equation. This last differential can be solved by

∫ (^) dI I

R

L

∫ dt

⇒ loge I = loge A −

R

L

t

I = A exp

( − t τ

)

where τ = L/R is the time constant. Thus the full solution

I =

E 0

R

  • A exp

( − t τ

)

will satisfy the differential equation. However we still need to know what the value of A is. If we look at the situation at t = 0 then we must have

I(t = 0) = 0 =

E 0

R

+ A

A = −

E 0

R

⇒ I(t) =

E 0

R

( 1 − exp

( − t τ

))

Now VL(t) = L dI dt

= −L

E 0

R

( −

τ exp

( − t τ

))

= E 0 exp

( − t τ

)
