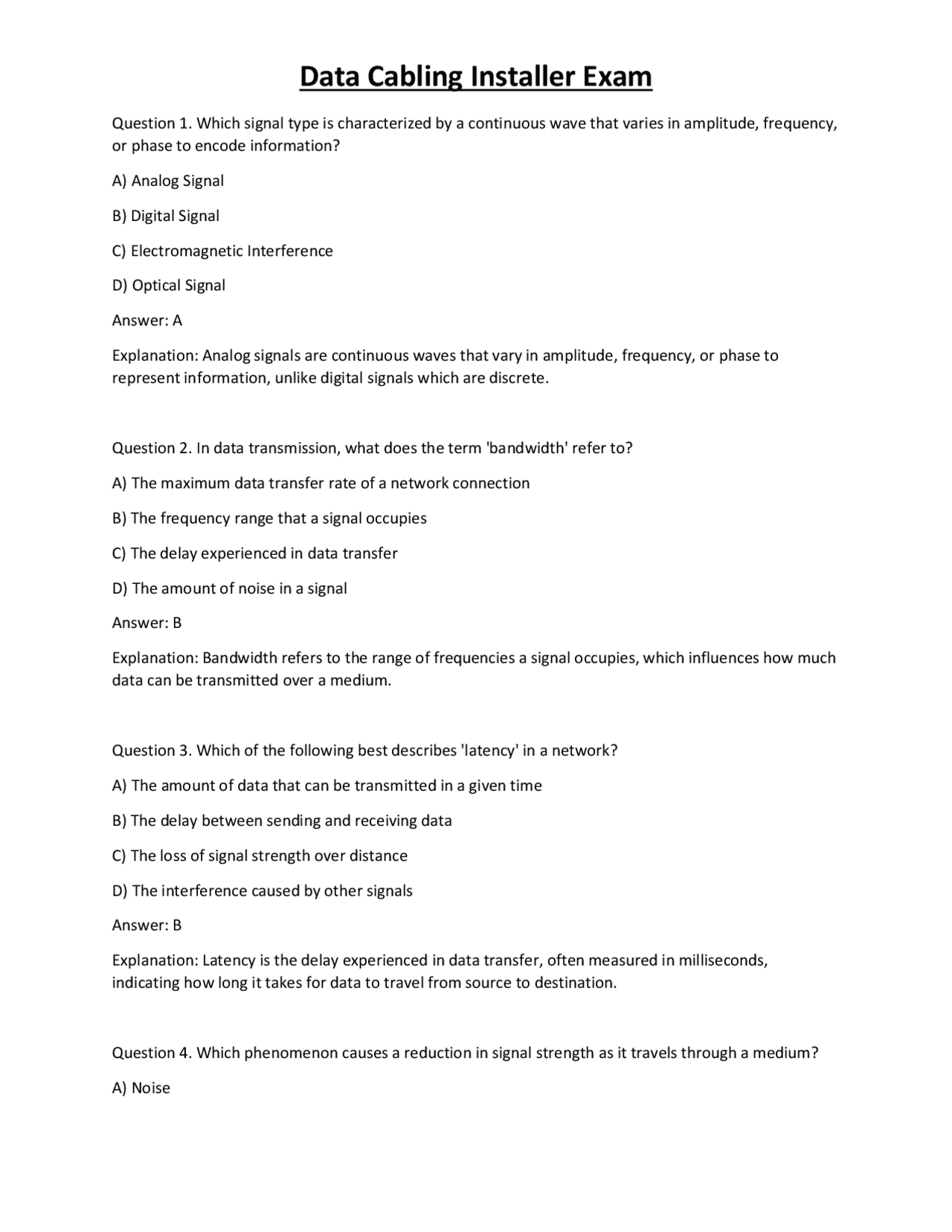

Question 1. Which signal type is characterized by a continuous wave that varies in amplitude, frequency, or phase to encode information? A) Analog Signal B) Digital Signal C) Electromagnetic Interference D) Optical Signal Answer: A Explanation: Analog signals are continuous waves that vary in amplitude, frequency, or phase to represent information, unlike digital signals which are discrete. Question 2. In data transmission, what does the term 'bandwidth' refer to? A) The maximum data transfer rate of a network connection B) The frequency range that a signal occupies C) The delay experienced in data transfer D) The amount of noise in a signal Answer: B Explanation: Bandwidth refers to the range of frequencies a signal occupies, which influences how much data can be transmitted over a medium. Question 3. Which of the following best describes 'latency' in a network? A) The amount of data that can be transmitted in a given time B) The delay between sending and receiving data C) The loss of signal strength over distance D) The interference caused by other signals Answer: B Explanation: Latency is the delay experienced in data transfer, often measured in milliseconds, indicating how long it takes for data to travel from source to destination. Question 4. Which phenomenon causes a reduction in signal strength as it travels through a medium? A) Noise
B) Attenuation C) Interference D) Crosstalk Answer: B Explanation: Attenuation is the reduction in signal strength over distance or through a medium, which can impact data integrity and requires amplification or regeneration. Question 5. Which of the following most accurately describes EMI and RFI? A) Types of data encoding methods B) External sources of electromagnetic interference and radio frequency interference C) Cable categories for high-speed data transmission D) Standards for fiber optic connectors Answer: B Explanation: EMI (Electromagnetic Interference) and RFI (Radio Frequency Interference) are external electromagnetic sources that can disrupt or degrade data signals. Question 6. Which duplex communication mode allows data to flow simultaneously in both directions? A) Simplex B) Half-duplex C) Full-duplex D) None of the above Answer: C Explanation: Full-duplex communication allows simultaneous two-way data transfer, unlike simplex (one-way) and half-duplex (two-way but one direction at a time). Question 7. Which topology is characterized by all devices connected to a single central cable? A) Star B) Bus C) Ring D) Mesh
Question 11. Which OSI model layer is primarily responsible for defining electrical and mechanical specifications for cabling? A) Physical Layer B) Data Link Layer C) Network Layer D) Transport Layer Answer: A Explanation: The Physical Layer specifies electrical, mechanical, and procedural aspects of physical connections, including cabling standards. Question 12. Which Ethernet standard supports 1 Gbps data rates over twisted-pair cabling? A) 10BASE-T B) 100BASE-TX C) 1000BASE-T D) 10GBASE-T Answer: C Explanation: 1000BASE-T supports Gigabit Ethernet over twisted-pair copper cables, commonly Cat5e or higher. Question 13. Which standard is primarily used for wireless networking? A) IEEE 802. B) IEEE 802. C) TIA- 568 - D D) ISO/IEC 11801 Answer: B Explanation: IEEE 802.11 standards govern wireless local area networks (Wi-Fi). Question 14. Which category of copper cabling is rated for the highest frequency and data rate? A) Cat5e
B) Cat C) Cat6a D) Cat Answer: D Explanation: Cat7 cables are designed for higher frequencies (up to 600 MHz) and support higher data rates with better shielding. Question 15. What is the typical conductor gauge (AWG) used in most data cabling? A) 22 AWG B) 24 AWG C) 23 AWG D) 26 AWG Answer: C Explanation: Most twisted-pair cables used in data networking are 23 AWG, balancing flexibility and performance. Question 16. Which coaxial cable type is typically used for cable TV and satellite applications? A) RG- 6 B) RG- 59 C) RG- 11 D) Both A and B Answer: D Explanation: RG-6 is commonly used for high-frequency applications like cable TV, while RG-59 is used for lower frequency signals; RG-11 is for long-distance runs. Question 17. In fiber optic cabling, what is the main difference between single-mode and multi-mode fibers? A) Core diameter B) Cladding material C) Light source type
Explanation: APC connectors are angled to minimize back reflections, which is critical for high- performance fiber optic links, especially in sensitive systems. Question 21. Which termination method involves using a punch-down tool to connect wires to a block? A) Crimping B) Fusion splicing C) Punch-down termination D) Mechanical splicing Answer: C Explanation: Punch-down termination uses a punch-down tool to insert and secure wires into insulation- displacement connectors on patch panels and keystone jacks. Question 22. When terminating RJ45 connectors, which wiring standards are most commonly used? A) T568A and T568B B) 10BASE-T and 100BASE-TX C) ISO and ANSI D) OSI and TCP/IP Answer: A Explanation: T568A and T568B are wiring standards specifying the pinouts for RJ45 Ethernet connectors, ensuring consistent wiring. Question 23. Which fiber optic connector type is known for its small size and high density? A) SC B) ST C) LC D) MPO/MTP Answer: C Explanation: LC connectors are small and suited for high-density applications due to their compact form factor.
Question 24. Which method of fiber optic splicing involves permanently joining two fibers using heat and epoxy? A) Mechanical splicing B) Fusion splicing C) Mechanical cleaving D) No-splice method Answer: B Explanation: Fusion splicing uses heat to fuse two fibers together, providing low-loss, permanent joins suitable for long-distance and high-performance networks. Question 25. Why is proper grounding and bonding essential in data cabling installations? A) To improve cable aesthetics B) To prevent electrical shock and reduce interference C) To increase cable length D) To comply with fire safety codes only Answer: B Explanation: Proper grounding and bonding prevent electrical shocks and mitigate electromagnetic interference, ensuring safety and signal integrity. Question 26. Which component is used to connect multiple cables to a common grounding point? A) Patch panel B) Grounding busbar C) Keystone jack D) Fiber splice tray Answer: B Explanation: A grounding busbar acts as a common connection point for grounding multiple cables and devices, ensuring proper grounding. Question 27. Which is a key consideration when planning cable pathways to minimize interference? A) Running power and data cables in parallel without separation
Answer: B Explanation: Maintaining proper bend radius prevents damage to the cable’s internal fibers or conductors, preserving signal quality. Question 31. Which tool is commonly used to terminate RJ45 connectors onto copper cables? A) Fusion splicer B) Crimping tool C) Visual Fault Locator D) Fiber cleaver Answer: B Explanation: A crimping tool is used to attach RJ45 connectors securely to the ends of twisted-pair cables. Question 32. Which testing device is used to measure the optical loss in fiber optic cables? A) Continuity tester B) OTDR (Optical Time Domain Reflectometer) C) Cable certifier D) Multimeter Answer: B Explanation: An OTDR measures the loss and detects faults or splices along fiber optic cables by sending pulses and analyzing reflections. Question 33. What is an essential maintenance task to ensure fiber optic connectors perform optimally? A) Regular cleaning with alcohol and lint-free wipes B) Applying grease to connectors C) Bending the fiber sharply at connectors D) Leaving connectors exposed to dust and dirt Answer: A Explanation: Cleaning fiber connectors reduces dirt and debris that can cause signal loss and reflection, maintaining optimal performance.
Question 34. Which equipment is used to identify and troubleshoot open or short circuits in copper cabling? A) OTDR B) Continuity tester or wiremap tester C) Visual Fault Locator D) Multimeter Answer: B Explanation: Continuity testers and wiremap testers verify proper wiring and detect opens, shorts, or crossed pairs in copper cables. Question 35. In troubleshooting, what does a high NEXT (Near-End Crosstalk) reading indicate? A) Good cable quality B) Excessive crosstalk between pairs, possibly causing performance issues C) Perfect insulation and shielding D) No interference present Answer: B Explanation: High NEXT indicates significant crosstalk, which can impair data transmission quality and needs to be addressed. Question 36. Which routine maintenance task helps prevent fiber optic connection issues? A) Replacing connectors annually B) Cleaning end-face connectors with appropriate tools C) Increasing the power level of light sources D) Bending fibers sharply at connectors Answer: B Explanation: Regular cleaning of fiber end-faces prevents dirt and debris from causing signal loss and reflection. Question 37. Which documentation is essential for future troubleshooting and upgrades?
C) NFPA 70
D) ISO/IEC 11801
Answer: B Explanation: TIA- 606 - C standard provides guidelines for documentation, labeling, and administration of cabling infrastructure. Question 41. Which safety code mandates the proper grounding of electrical systems in data cabling environments? A) OSHA B) NFPA 70 (NEC) C) ISO/IEC 11801 D) ANSI/TIA- 568 - D Answer: B Explanation: NFPA 70, also known as the National Electrical Code (NEC), requires proper grounding and bonding of electrical systems, including data cabling. Question 42. What is a common risk associated with improper cable pulling techniques? A) Improved signal quality B) Damage to conductors or insulation C) Reduced installation time D) Enhanced network performance Answer: B Explanation: Improper pulling can cause kinks, breaks, or damage to cable insulation or conductors, leading to failures or performance issues. Question 43. Which tool is used for fusion splicing of fiber optic cables? A) Crimping tool B) Fusion splicer C) Multimeter D) Cable tester
Answer: B Explanation: A fusion splicer precisely aligns and melts fibers together, creating low-loss, permanent joints. Question 44. Which is a primary reason for separating power and data cables in installation? A) To improve cable aesthetics B) To prevent electromagnetic interference causing data errors C) To increase cable length D) To reduce overall cabling cost Answer: B Explanation: Separating power and data cables minimizes electromagnetic interference that can disrupt data signals. Question 45. Which connector type is typically used for high-density fiber optic patch panels? A) SC B) LC C) ST D) MTRJ Answer: B Explanation: LC connectors are small and suitable for high-density applications, allowing more connections in limited space. Question 46. Which testing instrument analyzes the reflectance and loss along a fiber optic cable? A) Multimeter B) OTDR C) Wiremap tester D) Continuity tester Answer: B Explanation: OTDR (Optical Time Domain Reflectometer) measures reflections and loss, helping locate faults in fiber optic cables.
B) Cat C) Cat6a D) Cat Answer: B Explanation: Cat6 can support 10 Gbps Ethernet at distances up to 55 meters, though Cat6a extends this to 100 meters. Question 51. Which type of connector is most commonly used for rapid, field-terminated fiber optic connections? A) SC B) LC C) MTP/MPO D) No-splice connectors Answer: D Explanation: No-splice connectors are pre-polished and designed for quick, reliable field termination without splicing, ideal for rapid deployment. Question 52. What is the primary purpose of a patch panel in a structured cabling system? A) To connect multiple cables and organize terminations B) To boost signal strength C) To convert fiber signals to electrical signals D) To provide wireless connectivity Answer: A Explanation: Patch panels serve as centralized points to organize and connect cables, making management and troubleshooting easier. Question 53. Which is the most critical environmental factor to assess during a site survey for data cabling? A) Color of walls B) Temperature and humidity levels
C) Availability of Wi-Fi signals D) Number of electrical outlets Answer: B Explanation: Temperature and humidity affect cable performance and durability; high or fluctuating levels can cause damage or signal degradation. Question 54. Which cabling type typically requires fire-rated plenum-rated jacket materials? A) PVC B) PVC Non-Plenum C) Plenum-rated cables D) Coaxial cables Answer: C Explanation: Plenum-rated cables are designed with fire-resistant jackets suitable for spaces used as air ducts, reducing fire hazard risks. Question 55. What is the typical maximum distance for 1000BASE-T (Gigabit Ethernet over copper)? A) 55 meters B) 100 meters C) 200 meters D) 500 meters Answer: B Explanation: 1000BASE-T supports up to 100 meters over twisted-pair copper cabling, complying with standards for typical Ethernet runs. Question 56. Which fiber optic fiber type is most suitable for high-bandwidth data center applications? A) OM B) OM C) OS D) RG- 6 Answer: B
Question 60. Which method is used to ensure proper termination of fiber optic connectors? A) Mechanical cleaving and epoxy polishing B) Crimping with a standard crimp tool C) Heat fusion only D) Using standard electrical connectors Answer: A Explanation: Mechanical cleaving followed by epoxy polishing ensures precise and smooth fiber end- faces for optimal signal transmission. Question 61. What is the main benefit of using Category 8 (Cat8) cabling? A) Supports 40 Gbps speeds over short distances B) Cheaper than Cat C) Supports wireless signals D) Ideal for residential use Answer: A Explanation: Cat8 cabling supports up to 25 or 40 Gbps over short distances (up to 30 meters), suitable for data centers and high-speed applications. Question 62. Which component is essential for ensuring proper grounding of a network rack? A) Cable tie B) Grounding busbar C) Fiber optic connector D) Patch cord Answer: B Explanation: A grounding busbar provides a common grounding point, ensuring all components are properly grounded for safety and noise reduction. Question 63. What is the typical purpose of a barcode or alphanumeric label on a cable? A) To identify the cable type and destination for maintenance and troubleshooting
B) To increase the cable’s strength C) To improve signal quality D) For aesthetic purposes only Answer: A Explanation: Labels help identify cables quickly, facilitating troubleshooting, maintenance, and future upgrades. Question 64. In a ring topology, what is a common disadvantage? A) Easy fault isolation B) Single point of failure can disrupt the entire network unless ring redundancy is implemented C) High cost of cabling D) Cannot support high data rates Answer: B Explanation: A failure in one part of a ring can disrupt the entire network unless redundancy or dual-ring configurations are used. Question 65. What does the term 'cross-connect' refer to in data cabling? A) Connecting cables between different equipment or patch panels for network linking B) Connecting power and data cables together C) Connecting fiber optic cables to coaxial cables D) The process of splicing fibers together Answer: A Explanation: Cross-connection involves linking different cables or components to establish or modify network connections. Question 66. Which of the following is a common safety procedure before working on electrical or network equipment? A) Ignoring lockout/tagout procedures B) Verifying power is turned off and using lockout/tagout devices C) Working without PPE
