Data Structures and Algorithms: Stack and Graph Implementation, Cheat Sheet of Computer Science

Arab Academy for Science & TechnologyComputer Science

The implementation of a stack data structure using c++ and a graph data structure using a class in c++. The stack implementation includes push, pop, isempty, and display functions, while the graph implementation includes a constructor, destructor, isconnected, addedge, and dfs functions. The main function demonstrates the use of the stack and graph data structures by creating a graph with 8 vertices and adding edges between them, then performing a depth-first search starting from vertex 1 to find vertex 4.

Typology: Cheat Sheet

2022/2023

Available from 06/05/2024

omr-22
omr-22 🇪🇬

12 documents

1 / 5

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

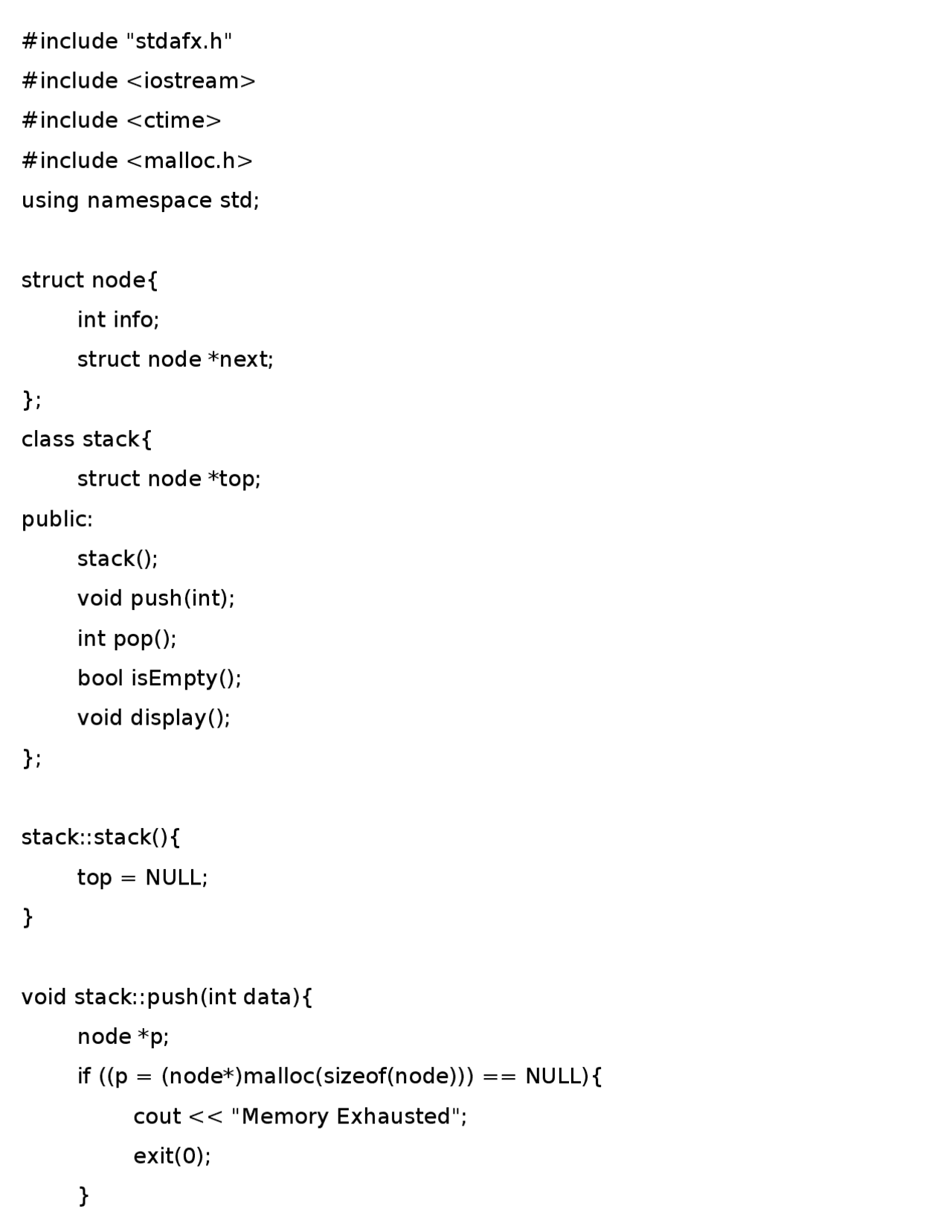

#include "stdafx.h"
#include <iostream>
#include <ctime>
#include <malloc.h>
using namespace std;
struct node{
int info;
struct node *next;
};
class stack{
struct node *top;
public:
stack();
void push(int);
int pop();
bool isEmpty();
void display();
};
stack::stack(){
top = NULL;
}
void stack::push(int data){
node *p;
if ((p = (node*)malloc(sizeof(node))) == NULL){
cout << "Memory Exhausted";
exit(0);
}
pf3
pf4
pf5

Partial preview of the text

Download Data Structures and Algorithms: Stack and Graph Implementation and more Cheat Sheet Computer Science in PDF only on Docsity!

#include "stdafx.h" #include #include #include <malloc.h> using namespace std; struct node{ int info; struct node *next; }; class stack{ struct node *top; public: stack(); void push(int); int pop(); bool isEmpty(); void display(); }; stack::stack(){ top = NULL; } void stack::push(int data){ node p; if ((p = (node)malloc(sizeof(node))) == NULL){ cout << "Memory Exhausted"; exit(0); }

p = new node; p->info = data; p->next = NULL; if (top != NULL){ p->next = top; } top = p; } int stack::pop(){ struct node *temp; int value; if (top == NULL){ cout << "\nThe stack is Empty" << endl; } else{ temp = top; top = top->next; value = temp->info; delete temp; } return value; } bool stack::isEmpty(){ return (top == NULL); } void stack::display(){ struct node *p = top;

A[i] = new int[n]; for (i = 0; i < n; ++i) for (j = 0; j < n; ++j) A[i][j] = 0; } Graph::~Graph() { for (int i = 0; i < n; ++i) delete[] A[i]; delete[] A; } bool Graph::isConnected(int x, int y) { return (A[x - 1][y - 1] == 1); } void Graph::addEdge(int x, int y) { A[x - 1][y - 1] = A[y - 1][x - 1] = 1; } void Graph::DFS(int x, int required){ stack s; bool *visited = new bool[n + 1]; int i; for (i = 0; i <= n; i++) visited[i] = false; s.push(x); visited[x] = true; if (x == required) return; cout << "Depth first Search starting from vertex ";

cout << x << " : " << endl; while (!s.isEmpty()){ int k = s.pop(); if (k == required) break; cout << k << " "; for (i = n; i >= 0; --i) if (isConnected(k, i) && !visited[i]) { s.push(i); visited[i] = true; } } cout << endl; delete[] visited; } int main(){ Graph g(8); g.addEdge(1, 2); g.addEdge(1, 3); g.addEdge(1, 4); g.addEdge(2, 5); g.addEdge(2, 6); g.addEdge(4, 7); g.addEdge(4, 8); g.DFS(1, 4); return 0; }
