A C++ implementation of the Graph data structure. It defines a Graph class with methods to create, insert and delete vertices and edges, search for vertices and edges, and perform depth-first and breadth-first traversals. The implementation uses a linked list to represent the adjacency list of each vertex. a main function that creates a sample graph and performs a depth-first and breadth-first traversal starting from vertex A.
Typology: Lab Reports
1 / 16
This page cannot be seen from the preview
Don't miss anything!

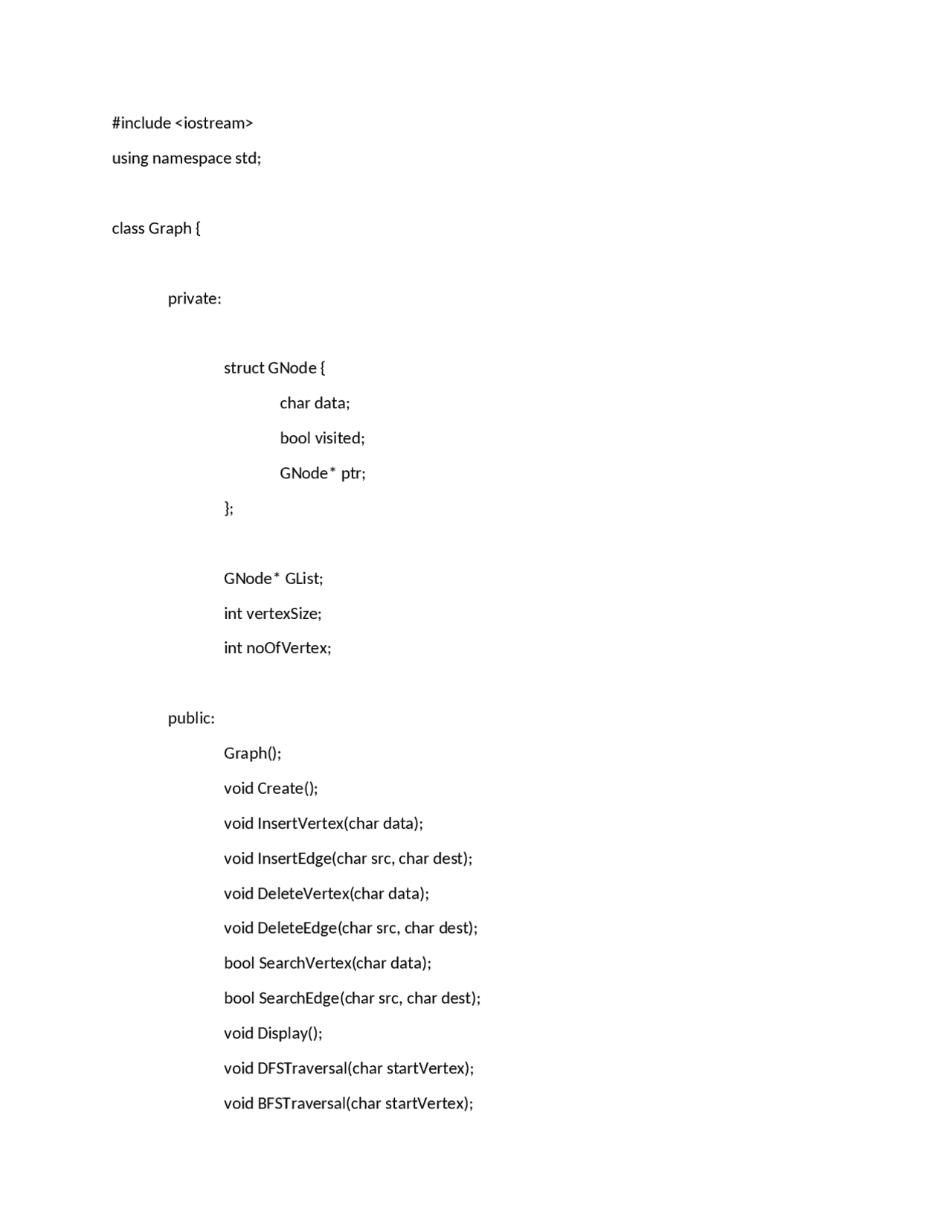

#include
void resetVisited() { for (int i = 0; i < noOfVertex; i++) { GList[i].visited = false; } } GNode* getVertex(char vertex) { if (vertex != ' ') { for (int i = 0; i < noOfVertex; i++) { if (GList[i].data == vertex) { return &GList[i]; } } } return NULL; } }; class Queue { private: struct QNode { char vertex; QNode* next; }; QNode* front; QNode* rear;
front = front -> next; if (front == NULL) { rear = NULL; } }else { vertexReturn = ' '; } return vertexReturn; } bool isEmpty() { if (front == NULL) return true; else return false; } }; class Stack { private: struct SNode { char vertex; SNode* next; }; SNode* top; public:
Stack() { top = NULL; } void push(char vertex) { SNode* temp = new SNode; temp -> vertex = vertex; temp -> next = top; top = temp; } char pop() { char tempVertex = ' '; if (top != NULL) { tempVertex = top -> vertex; top = top -> next; } return tempVertex; } bool isEmpty() { if (top == NULL) return true;
void Graph::InsertEdge(char src, char dest) { bool srcFound = false; bool destFound = false; int i; int index; for (i = 0; i < noOfVertex; i++) { if (GList[i].data == src) { srcFound = true; index = i; } if (GList[i].data == dest) { destFound = true; } } if (srcFound && destFound) { GNode* temp = new GNode; temp -> data = dest; temp -> ptr = NULL; GNode* curr = GList[index].ptr; if (curr == NULL) { GList[index].ptr = temp; }else { while (curr -> ptr != NULL) {
//Already in List if (curr -> data == dest) { cout << "Edge Already Exist" << endl; return; } curr = curr -> ptr; } curr -> ptr = temp; } }else { if (!srcFound) cout << "src Not Found" << endl; if (!destFound) cout << "dest Not Found" << endl; } } void Graph::DeleteVertex(char data) { int i; for (i = 0; i < noOfVertex; i++) { if (GList[i].data == data) break; } while (i < noOfVertex - 1) {
void Graph::DeleteEdge(char src, char dest) { int i; bool srcFound = false; for (i = 0; i < noOfVertex; i++) { if (GList[i].data == src) { srcFound = true; break; } } if (srcFound) { GNode* curr = GList[i].ptr; if (curr -> data == dest) { GList[i].ptr = curr -> ptr; }else { GNode* prev = curr; curr = curr -> ptr; while (curr != NULL) { if (curr -> data == dest) { prev -> ptr = curr -> ptr; return; } prev = curr; curr = curr -> ptr; } //If destination not found cout << "Destination Vertex Not Found" << endl; }
}else { cout << "Source Vertex Not Found" << endl; } } bool Graph::SearchVertex(char data) { bool found = false; int i; for (i = 0; i < noOfVertex; i++) { if (GList[i].data == data) { found = true; break; } } if (found) cout << "Vertex " << data << " Found at " << i << endl; else cout << "Vertex Not Found" << endl; } bool Graph::SearchEdge(char src, char dest) { bool srcFound = false; int i;
for (int i = 0; i < noOfVertex; i++) { cout << "Vertex " << GList[i].data << ": "; GNode* curr = GList[i].ptr; while (curr != NULL) { cout << curr -> data << ", "; curr = curr -> ptr; } cout << endl; } } void Graph::BFSTraversal(char startVertex) { resetVisited(); Queue queue; //First Node to be Traverse GNode* curr = getVertex(startVertex); if (curr != NULL) { queue.Enqueue(curr->data); curr -> visited = true; cout << "\nBFS: "; while (!queue.isEmpty()) { char queueData = queue.Dequeue(); curr = getVertex(queueData);
cout << curr -> data << " "; curr = curr -> ptr; while (curr != NULL) { GNode* vertexPtr = getVertex(curr -> data); if (!(vertexPtr->visited)) { queue.Enqueue(curr->data); vertexPtr -> visited = true; } curr = curr -> ptr; } } cout << endl; } } void Graph::DFSTraversal(char startVertex) { resetVisited(); Stack stack; //First Node to be Traverse GNode* curr = getVertex(startVertex); if (curr != NULL) { cout << "DFS: "; stack.push(curr -> data);
graph.InsertVertex('A'); graph.InsertVertex('B'); graph.InsertVertex('C'); graph.InsertVertex('D'); graph.InsertVertex('E'); graph.InsertEdge('A', 'B'); graph.InsertEdge('A', 'C'); graph.InsertEdge('B', 'E'); graph.InsertEdge('C', 'B'); graph.InsertEdge('D', 'A'); graph.InsertEdge('B', 'D'); graph.InsertEdge('B', 'A'); graph.InsertEdge('D', 'C'); graph.InsertEdge('E', 'A'); graph.Display(); graph.BFSTraversal('A'); graph.DFSTraversal('A'); }
