RDBMS is a database management system that stores data in the form of tables (relations) consisting of rows (tuples) and columns (attributes). Tables are related to each other using keys. Examples: MySQL, Oracle Database, Microsoft SQL Server, PostgreSQL. Features of RDBMS Data stored in tables. Uses rows and columns. Supports relationships between tables. Reduces data redundancy through normalization. Ensures data integrity. Supports SQL for database operations. Provides security and access control. Key Concepts 1. Table (Relation) Collection of related data arranged in rows and columns. 2. Row (Tuple) A single record in a table. 3. Column (Attribute) A field that describes a property of the data. 4. Primary Key Uniquely identifies each record. Cannot contain NULL values. 5. Foreign Key Creates a relationship between two tables. References the primary key of another table. Advantages Easy data management. Reduces redundancy. High security. Data consistency and integrity.

Typology: Schemes and Mind Maps

2024/2025

Available from 06/15/2026

harshada-ganore
harshada-ganore 🇮🇳

1 document

1 / 3

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

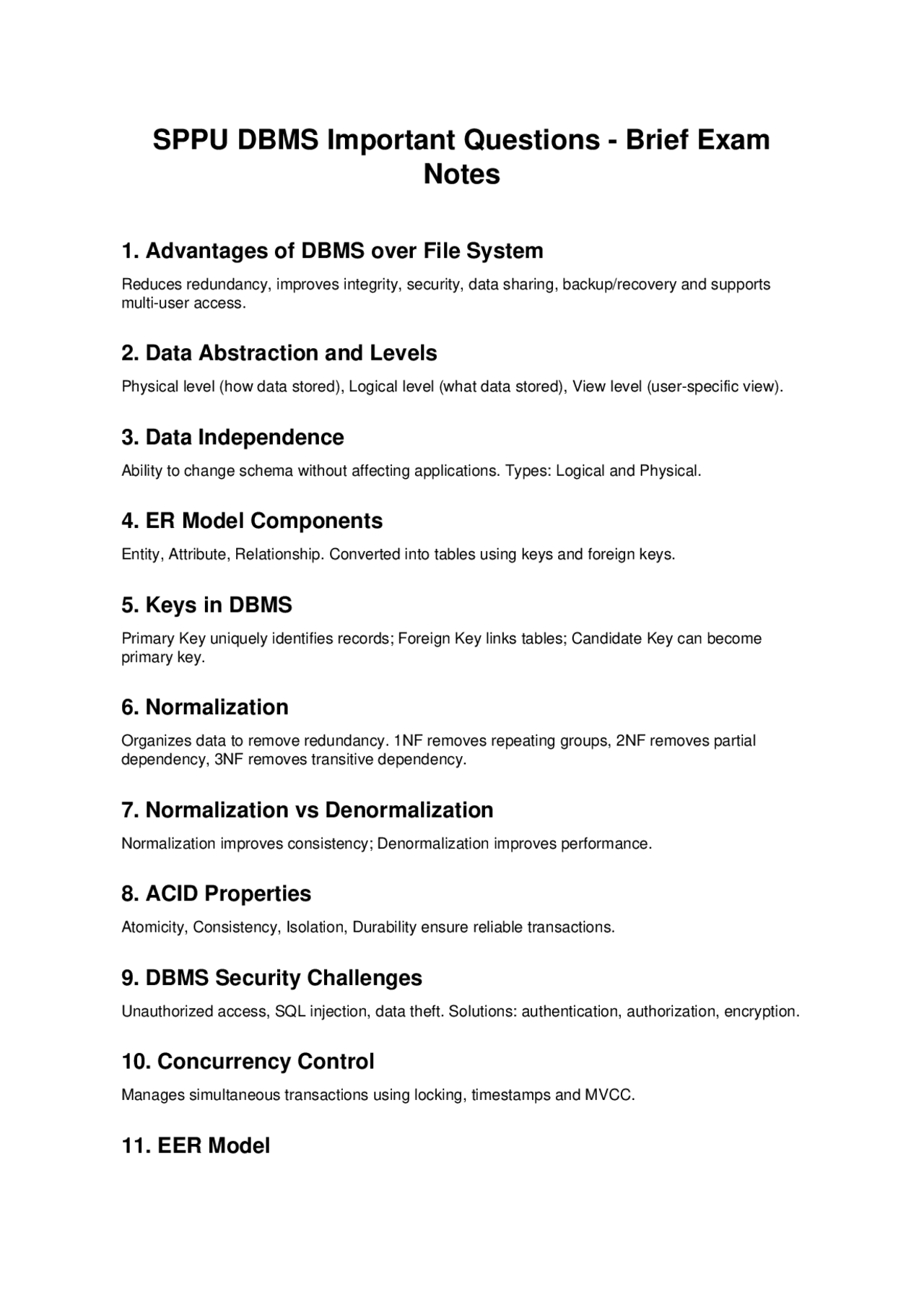

SPPU DBMS Important Questions - Brief Exam
Notes
1. Advantages of DBMS over File System
Reduces redundancy, improves integrity, security, data sharing, backup/recovery and supports
multi-user access.
2. Data Abstraction and Levels
Physical level (how data stored), Logical level (what data stored), View level (user-specific view).
3. Data Independence
Ability to change schema without affecting applications. Types: Logical and Physical.
4. ER Model Components
Entity, Attribute, Relationship. Converted into tables using keys and foreign keys.
5. Keys in DBMS
Primary Key uniquely identifies records; Foreign Key links tables; Candidate Key can become
primary key.
6. Normalization
Organizes data to remove redundancy. 1NF removes repeating groups, 2NF removes partial
dependency, 3NF removes transitive dependency.
7. Normalization vs Denormalization
Normalization improves consistency; Denormalization improves performance.
8. ACID Properties
Atomicity, Consistency, Isolation, Durability ensure reliable transactions.
9. DBMS Security Challenges
Unauthorized access, SQL injection, data theft. Solutions: authentication, authorization, encryption.
10. Concurrency Control
Manages simultaneous transactions using locking, timestamps and MVCC.
11. EER Model
pf3

Partial preview of the text

Download Database managemnet system and more Schemes and Mind Maps Database Management Systems (DBMS) in PDF only on Docsity!

SPPU DBMS Important Questions - Brief Exam

Notes

1. Advantages of DBMS over File System

Reduces redundancy, improves integrity, security, data sharing, backup/recovery and supports multi-user access.

2. Data Abstraction and Levels

Physical level (how data stored), Logical level (what data stored), View level (user-specific view).

3. Data Independence

Ability to change schema without affecting applications. Types: Logical and Physical.

4. ER Model Components

Entity, Attribute, Relationship. Converted into tables using keys and foreign keys.

5. Keys in DBMS

Primary Key uniquely identifies records; Foreign Key links tables; Candidate Key can become primary key.

6. Normalization

Organizes data to remove redundancy. 1NF removes repeating groups, 2NF removes partial dependency, 3NF removes transitive dependency.

7. Normalization vs Denormalization

Normalization improves consistency; Denormalization improves performance.

8. ACID Properties

Atomicity, Consistency, Isolation, Durability ensure reliable transactions.

9. DBMS Security Challenges

Unauthorized access, SQL injection, data theft. Solutions: authentication, authorization, encryption.

10. Concurrency Control

Manages simultaneous transactions using locking, timestamps and MVCC.

11. EER Model

Extended ER model with specialization, generalization and inheritance.

12. Logical vs Physical Data Independence

Logical: conceptual changes don't affect views. Physical: storage changes don't affect schema.

13. Mapping 1:N and M:N

1:N -> foreign key on N side. M:N -> create separate relationship table.

14. Features of SQL

Standard language for creating, querying and managing databases.

15. SQL Data Types

INT, FLOAT, CHAR, VARCHAR, DATE, BOOLEAN etc.

16. DDL Commands

CREATE, ALTER, DROP, TRUNCATE define database structure.

17. SQL Constraints

PRIMARY KEY, FOREIGN KEY, UNIQUE, NOT NULL, CHECK.

18. DML Commands

INSERT, UPDATE, DELETE manipulate data.

19. SELECT, WHERE, ORDER BY

SELECT retrieves data, WHERE filters rows, ORDER BY sorts results.

20. LIKE Operator

Pattern matching using % (many chars) and _ (single char).

21. IN and BETWEEN

IN checks values in a list; BETWEEN checks range.

22. SQL Functions

String: UPPER(), LOWER(); Date: SYSDATE; Numeric: ROUND(), ABS().

23. Aggregate Functions

COUNT(), SUM(), AVG(), MAX(), MIN() often used with GROUP BY and HAVING.
