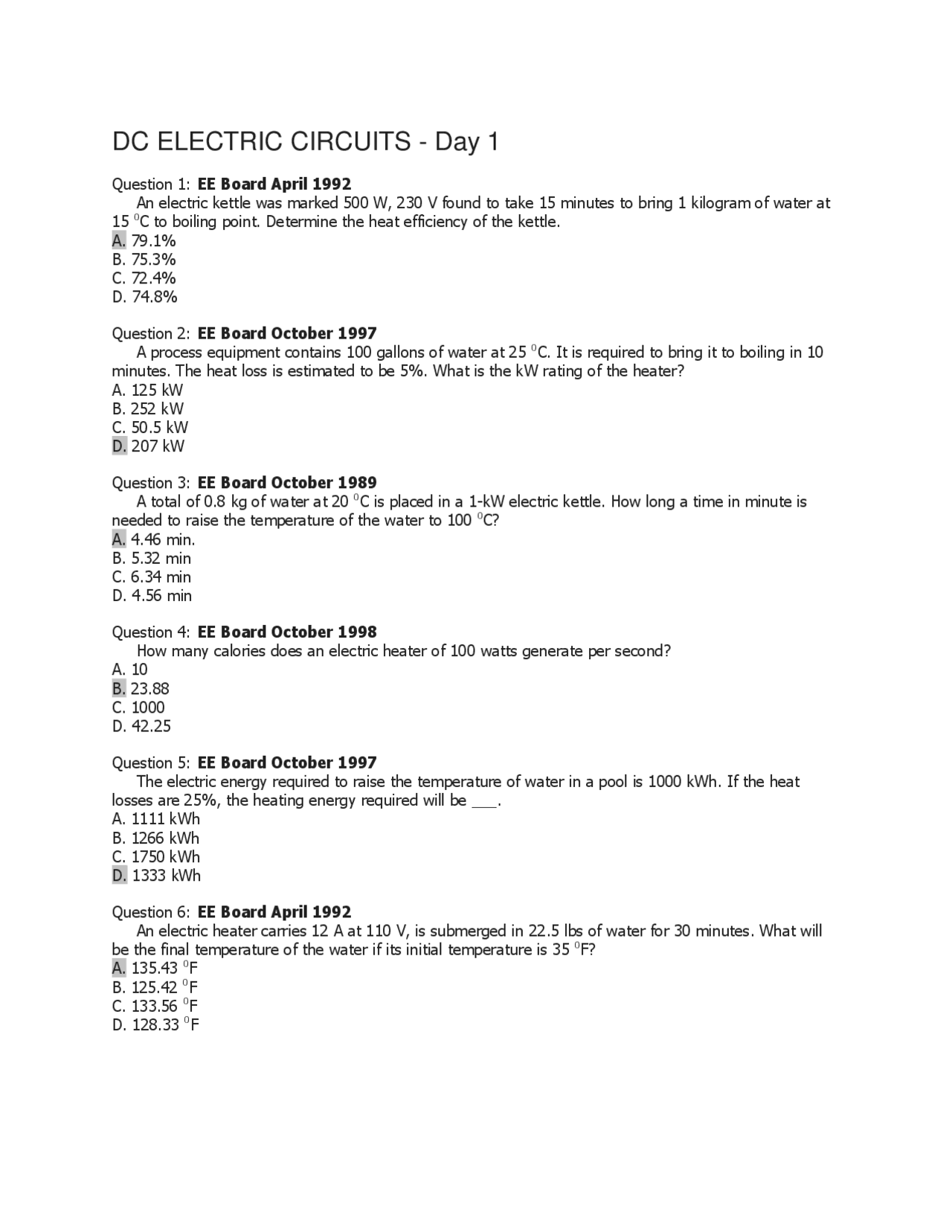

DC ELECTRIC CIRCUITS - Day 1
Question 1: EE Board April 1992
An electric kettle was marked 500 W, 230 V found to take 15 minutes to bring 1 kilogram of water at
15 0C to boiling point. Determine the heat efficiency of the kettle.
A. 79.1%
B. 75.3%
C. 72.4%
D. 74.8%
Question 2: EE Board October 1997
A process equipment contains 100 gallons of water at 25 0C. It is required to bring it to boiling in 10
minutes. The heat loss is estimated to be 5%. What is the kW rating of the heater?
A. 125 kW
B. 252 kW
C. 50.5 kW
D. 207 kW
Question 3: EE Board October 1989
A total of 0.8 kg of water at 20 0C is placed in a 1-kW electric kettle. How long a time in minute is
needed to raise the temperature of the water to 100 0C?
A. 4.46 min.
B. 5.32 min
C. 6.34 min
D. 4.56 min
Question 4: EE Board October 1998
How many calories does an electric heater of 100 watts generate per second?
A. 10
B. 23.88
C. 1000
D. 42.25
Question 5: EE Board October 1997
The electric energy required to raise the temperature of water in a pool is 1000 kWh. If the heat
losses are 25%, the heating energy required will be ___.
A. 1111 kWh
B. 1266 kWh
C. 1750 kWh
D. 1333 kWh
Question 6: EE Board April 1992
An electric heater carries 12 A at 110 V, is submerged in 22.5 lbs of water for 30 minutes. What will
be the final temperature of the water if its initial temperature is 35 0F?
A. 135.43 0F
B. 125.42 0F
C. 133.56 0F
D. 128.33 0F
