Exam Study Guide

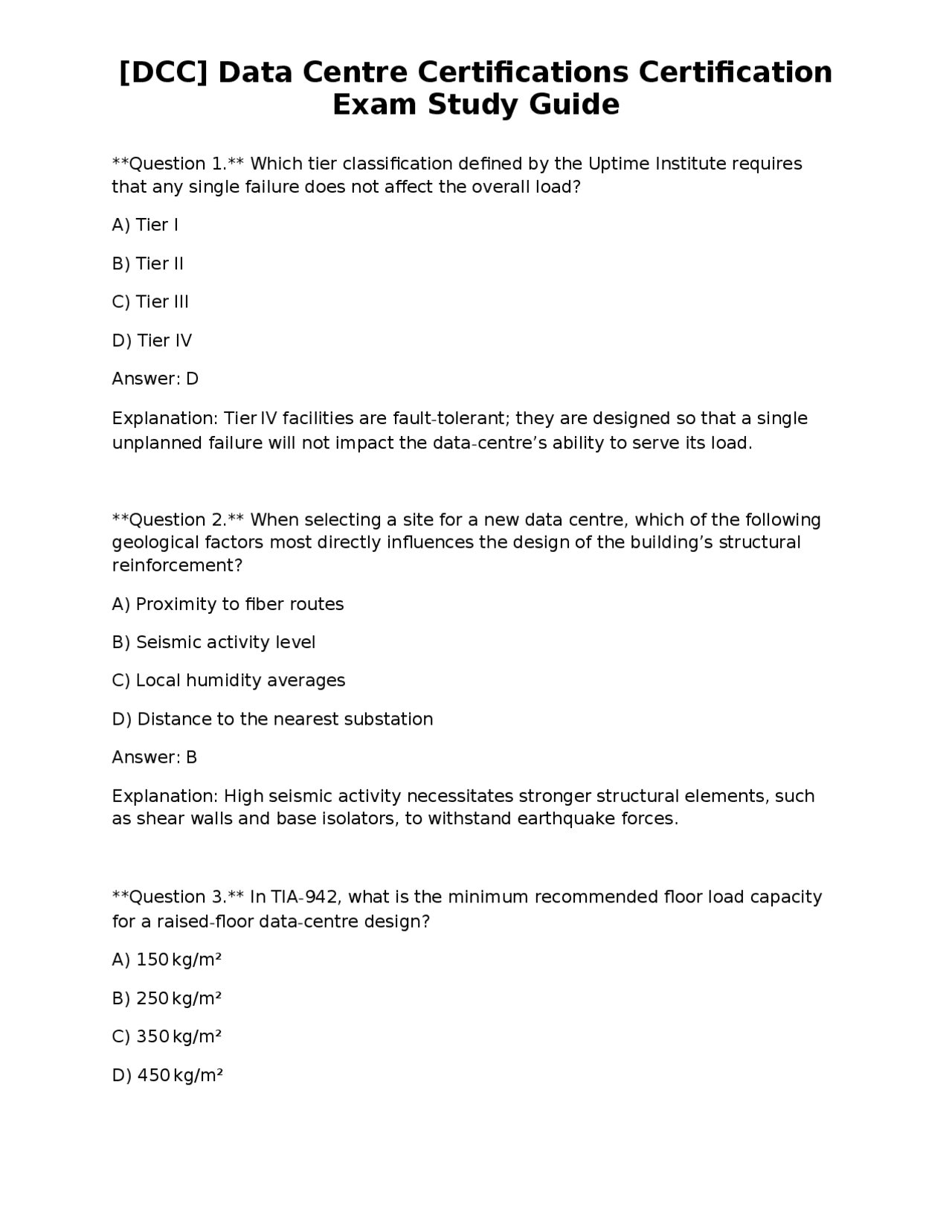

Question 1. Which tier classification defined by the Uptime Institute requires that any single failure does not affect the overall load? A) Tier I B) Tier II C) Tier III D) Tier IV Answer: D Explanation: Tier IV facilities are fault-tolerant; they are designed so that a single unplanned failure will not impact the data-centre’s ability to serve its load. Question 2. When selecting a site for a new data centre, which of the following geological factors most directly influences the design of the building’s structural reinforcement? A) Proximity to fiber routes B) Seismic activity level C) Local humidity averages D) Distance to the nearest substation Answer: B Explanation: High seismic activity necessitates stronger structural elements, such as shear walls and base isolators, to withstand earthquake forces. Question 3. In TIA-942, what is the minimum recommended floor load capacity for a raised-floor data-centre design? A) 150 kg/m² B) 250 kg/m² C) 350 kg/m² D) 450 kg/m²
Exam Study Guide
Answer: C Explanation: TIA-942 advises at least 350 kg/m² to safely support heavy equipment, cabling, and raised-floor tiles. Question 4. Which physical-security control is most effective as the first layer in a “defense-in-depth” strategy for preventing unauthorized entry? A) CCTV monitoring B) Mantrap with biometric authentication C) Security guard patrols D) RFID badge readers at the door Answer: B Explanation: A mantrap forces a visitor to pass through two sequential doors, often combined with biometrics, creating a strong initial barrier. Question 5. What is the primary advantage of a hard-floor design over a raised-floor design in a high-density compute environment? A) Easier cable management B) Lower construction cost C) Improved airflow distribution D) Greater flexibility for future upgrades Answer: C Explanation: Hard-floor designs allow for direct under-floor cooling or overhead distribution, reducing airflow obstruction compared with raised floors that can block air movement. Question 6. Which of the following best describes the “concurrently maintainable” feature of a Tier III data centre? A) All components can be replaced without shutting down any IT load.
Exam Study Guide
Question 9. Which component of a diesel generator system is responsible for automatically switching the load from utility to generator power? A) Automatic Transfer Switch (ATS) B) Load Tap Changer (LTC) C) Voltage Regulator (VR) D) Synchronizing Relay (SR) Answer: A Explanation: The ATS detects loss of utility power and safely transfers the load to the generator, then returns it when utility power is restored. Question 10. What is the typical fuel storage requirement for a data centre that must sustain 48 hours of generator operation at a 2 MW load? A) Approximately 5,000 gallons B) Approximately 10,000 gallons C) Approximately 15,000 gallons D) Approximately 20,000 gallons Answer: C Explanation: Diesel consumption for a 2 MW generator is roughly 150 gallons per hour; 48 hours requires about 7,200 gallons, but industry practice adds a safety margin, leading to ~15,000 gallons. Question 11. Which cooling technology directly uses chilled water to cool the air before it enters the server aisle? A) CRAC (Computer Room Air Conditioning) B) CRAH (Computer Room Air Handler) C) Direct Expansion (DX) cooling D) Immersion cooling
Exam Study Guide
Answer: B Explanation: CRAH units circulate chilled water through coils to lower air temperature, unlike CRAC units that use refrigerant-based direct expansion. Question 12. In a hot-aisle containment (HAC) configuration, what primary benefit is achieved compared with a traditional open-aisle layout? A) Reduced need for raised flooring B) Lower inlet air temperature variance across racks C) Increased ability to use liquid cooling D) Simplified cable routing under the floor Answer: B Explanation: HAC isolates hot exhaust air, preventing it from mixing with cold supply air, which stabilizes inlet temperatures and improves cooling efficiency. Question 13. Which psychrometric parameter is most directly controlled to stay within ASHRAE’s recommended data-centre environment? A) Dew point temperature B) Relative humidity C) Barometric pressure D) Air velocity Answer: B Explanation: ASHRAE guidelines specify relative humidity ranges (typically 45- 55 %) to avoid static electricity and condensation risks. Question 14. Immersion cooling is especially advantageous for which type of workload? A) Low-density office servers
Exam Study Guide
Question 17. In a leaf-spine topology, what is the primary reason for using equal-cost multi-path (ECMP) routing? A) To reduce the number of required switches. B) To provide deterministic latency for all traffic. C) To evenly distribute traffic across multiple spine links, increasing bandwidth and resilience. D) To simplify VLAN configuration. Answer: C Explanation: ECMP spreads traffic over multiple equal-cost paths, preventing bottlenecks and offering redundancy in leaf-spine architectures. Question 18. What is the main advantage of using a Meet-Me Room (MMR) in a carrier-neutral data-centre? A) It eliminates the need for any external fiber connections. B) It provides a centralized location for cross-connects between multiple carriers, enhancing redundancy and flexibility. C) It reduces the overall power consumption of the facility. D) It allows for wireless inter-carrier communication. Answer: B Explanation: An MMR houses inter-carrier cross-connects, enabling customers to switch providers without moving equipment, thereby improving redundancy. Question 19. Which path-management method is most suitable for high-density rack deployments where floor space is limited? A) Overhead basket trays B) Under-floor cable trunking C) Cable ladders in the ceiling plenum
Exam Study Guide
D) Direct-attach copper cables only Answer: B Explanation: Under-floor trunking utilizes the space beneath raised floors, preserving valuable overhead clearance and supporting high-density cabling. Question 20. A Standard Operating Procedure (SOP) for routine maintenance must include which of the following elements to ensure compliance? A) A list of all spare parts inventory. B) Detailed step-by-step tasks, responsible personnel, safety checks, and documentation requirements. C) The cost analysis of each maintenance activity. D) A marketing plan for promoting the data centre. Answer: B Explanation: SOPs require clear instructions, assignments, safety protocols, and documentation to guarantee repeatable, auditable maintenance. Question 21. In an Emergency Operating Procedure (EOP) for fire, why is a “pre-action sprinkler system” preferred over a “wet-pipe system” in many data-centres? A) It activates faster. B) It reduces the risk of accidental water discharge on sensitive equipment. C) It is cheaper to install. D) It requires no water storage on site. Answer: B Explanation: Pre-action systems stay dry until a fire detection event triggers water release, minimizing inadvertent water damage to IT assets.
Exam Study Guide
Answer: A Explanation: CUE measures the carbon impact per unit of IT power, helping assess the data-centre’s environmental footprint. Question 25. In a Tier II data centre, which of the following redundancy features is required? A) Fully redundant power and cooling distribution paths. B) Redundant UPS modules but no redundant cooling. C) Redundant power components for critical loads, but single-path distribution. D) No redundancy is required. Answer: C Explanation: Tier II provides redundant components (e.g., UPS, generators) for critical loads but does not require fully independent distribution paths as Tier III does. Question 26. Which of the following best describes the function of a “flywheel UPS”? A) Stores kinetic energy in a rotating mass to provide short-term power during an outage. B) Uses a high-speed diesel engine to generate electricity. C) Converts AC to DC and back to AC using solid-state converters. D) Provides long-term battery backup for weeks. Answer: A Explanation: Flywheel UPS systems store energy mechanically in a rotating flywheel, delivering power instantly during brief interruptions. Question 27. What is the primary purpose of a “cold-aisle containment” system? A) To trap hot exhaust air and direct it back to the CRAC units.
Exam Study Guide
B) To isolate the cold supply air from the hot exhaust, improving cooling efficiency. C) To provide a physical barrier for security personnel. D) To support the weight of heavy server racks. Answer: B Explanation: Cold-aisle containment encloses the supply air, preventing mixing with hot air and ensuring that servers receive consistent cooling. Question 28. Which of the following fiber types is optimized for short-wave (SW) wavelength division multiplexing (WDM) up to 850 nm? A) OM B) OM C) OM D) OM Answer: C Explanation: OM3 multimode fiber is laser-optimized for short-wave (850 nm) transmission, supporting higher bandwidth over longer distances than OM1/OM2. Question 29. In a leaf-spine architecture, what is the typical ratio of spine switches to leaf switches to achieve optimal scalability? A) 1: B) 1: C) 2: D) 3: Answer: A Explanation: A 1:1 ratio (equal numbers of leaf and spine switches) provides uniform bandwidth and minimizes oversubscription, facilitating linear scalability.
Exam Study Guide
Answer: B Explanation: RDHx devices attach to the rear of a rack, using liquid loops to extract heat from exhaust air, enabling higher rack densities without raising ambient temperatures. Question 33. In power distribution, what is the purpose of an “N+1” redundancy model? A) Two independent power sources, each capable of handling the full load. B) One extra component beyond the minimum required to meet the load. C) No redundancy; all components are single-point. D) Redundant components equal to the number of active components. Answer: B Explanation: “N+1” means there is one additional (standby) unit beyond the number needed (N) to meet the load, providing a single-failure tolerance. Question 34. Which of the following metrics directly measures the amount of water used per unit of IT power? A) PUE B) WUE C) CUE D) DCiE Answer: B Explanation: Water Usage Effectiveness (WUE) = Total Water Use ÷ IT Equipment Power, indicating water efficiency. Question 35. What is the most common fiber connector type used in modern data-centre patch panels? A) ST
Exam Study Guide
B) SC
C) LC
D) FC
Answer: C Explanation: LC connectors are small, high-density, and widely adopted in data-centres for both single-mode and multimode applications. Question 36. Which of the following cooling methods is considered “direct-expansion” (DX) cooling? A) CRAH units using chilled water B) CRAC units with refrigerant-based compressors C) Immersion cooling tanks D) Rear-door heat exchangers Answer: B Explanation: DX cooling uses refrigerant that expands directly in the cooling coil to absorb heat, as found in CRAC units. Question 37. In a data-centre, what is the primary function of a “VESDA” system? A) To extinguish fires with gas agents. B) To detect smoke at the earliest possible moment using a laser-based sensor. C) To monitor temperature and humidity. D) To provide redundant power to critical loads. Answer: B Explanation: VESDA (Very Early Smoke Detection Apparatus) uses aspirating sensors to detect trace smoke particles, offering rapid fire detection.
Exam Study Guide
Answer: B Explanation: Fault tolerance means the facility can sustain any single component failure (power, cooling, network) without affecting availability. Question 41. In a data-centre, which UPS topology provides the highest efficiency for continuous operation? A) Double-conversion (online) UPS B) Line-interactive UPS C) Standby (offline) UPS D) Rotary UPS with flywheel Answer: D Explanation: Rotary UPS combined with a flywheel offers high efficiency (often >95 %) because most power passes through the motor-generator set with minimal conversion loss. Question 42. What is the typical temperature range recommended by ASHRAE for a data-centre operating at 45 % relative humidity? A) 10 °C – 18 °C B) 18 °C – 27 °C C) 27 °C – 35 °C D) 35 °C – 45 °C Answer: B Explanation: ASHRAE Class A recommends 18 °C–27 °C at 45 %–55 % RH for optimal equipment reliability. Question 43. Which of the following is a key benefit of using “hard-floor” raised-cable trays for power distribution? A) Allows for easy re-routing of cables without disrupting airflow.
Exam Study Guide
B) Reduces the need for cable management under the floor. C) Provides a uniform surface for server rack placement. D) Increases the overall height of the data-centre. Answer: B Explanation: Hard-floor trays keep power cables above the floor, freeing the under-floor space for cooling distribution and simplifying cable management. Question 44. In a data-centre, what does the acronym “N+1” refer to in the context of cooling? A) One additional cooling unit beyond the minimum required to meet the load. B) Two independent cooling paths each capable of handling the full load. C) No redundancy; only a single cooling unit is present. D) A cooling system that uses natural ventilation plus one mechanical unit. Answer: A Explanation: “N+1” cooling means the system has one extra unit (e.g., chiller or CRAC) beyond the number needed to meet the design load, providing a single-failure tolerance. Question 45. Which of the following best explains why “liquid immersion cooling” can achieve higher power densities than traditional air cooling? A) Liquid has a higher specific heat capacity and thermal conductivity than air, removing heat more efficiently. B) Liquid cooling eliminates the need for power distribution. C) It allows servers to operate at higher voltages. D) Liquid cooling reduces the need for fire suppression systems. Answer: A Explanation: Dielectric fluids can absorb and transfer heat far more effectively than air, enabling removal of large heat loads from densely packed components.
Exam Study Guide
Answer: A Explanation: Concurrent maintainability means any component (power, cooling, network) can be taken offline for maintenance while the IT load remains uninterrupted. Question 49. Which of the following best describes the function of an “Automatic Transfer Switch” (ATS) in a data-centre power system? A) Converts DC power to AC power. B) Monitors temperature in the UPS room. C) Detects loss of utility power and switches the load to generator power automatically. D) Balances load across multiple UPS units. Answer: C Explanation: ATS continuously monitors utility status and seamlessly transfers the load to on-site generators during outages. Question 50. Which of the following is a primary reason for deploying “cold-aisle containment” rather than “hot-aisle containment” in a high-density environment? A) It reduces the need for raised flooring. B) It provides better control of inlet air temperature, which is critical for server reliability. C) It allows for easier cable management under the floor. D) It simplifies the installation of liquid cooling loops. Answer: B Explanation: Containing the cold aisle ensures that cool supply air remains at a consistent temperature before reaching server inlets, which is essential for high-density workloads.
Exam Study Guide
Question 51. In a data-centre, which component is primarily responsible for converting high-voltage utility power to a usable lower voltage for IT equipment? A) Transformer B) Switchgear C) Power Distribution Unit (PDU) D) Uninterruptible Power Supply (UPS) Answer: C Explanation: PDUs distribute and often step down power to the appropriate voltage levels (e.g., 208 V to 120 V) for rack-level equipment. Question 52. Which of the following is NOT a typical characteristic of a Tier III data centre? A) Redundant power and cooling paths. B) Ability to perform maintenance without shutting down the IT load. C) Fully fault-tolerant design with no single points of failure. D) Multiple independent UPS systems. Answer: C Explanation: Fully fault-tolerant (no single points of failure) is a Tier IV attribute; Tier III provides redundancy but still contains some single points of failure. Question 53. What is the main purpose of a “raised-floor” in many data-centre designs? A) To provide a decorative aesthetic. B) To create an under-floor plenum for chilled air distribution and cable routing. C) To increase the height of the building. D) To support heavy mechanical equipment. Answer: B
