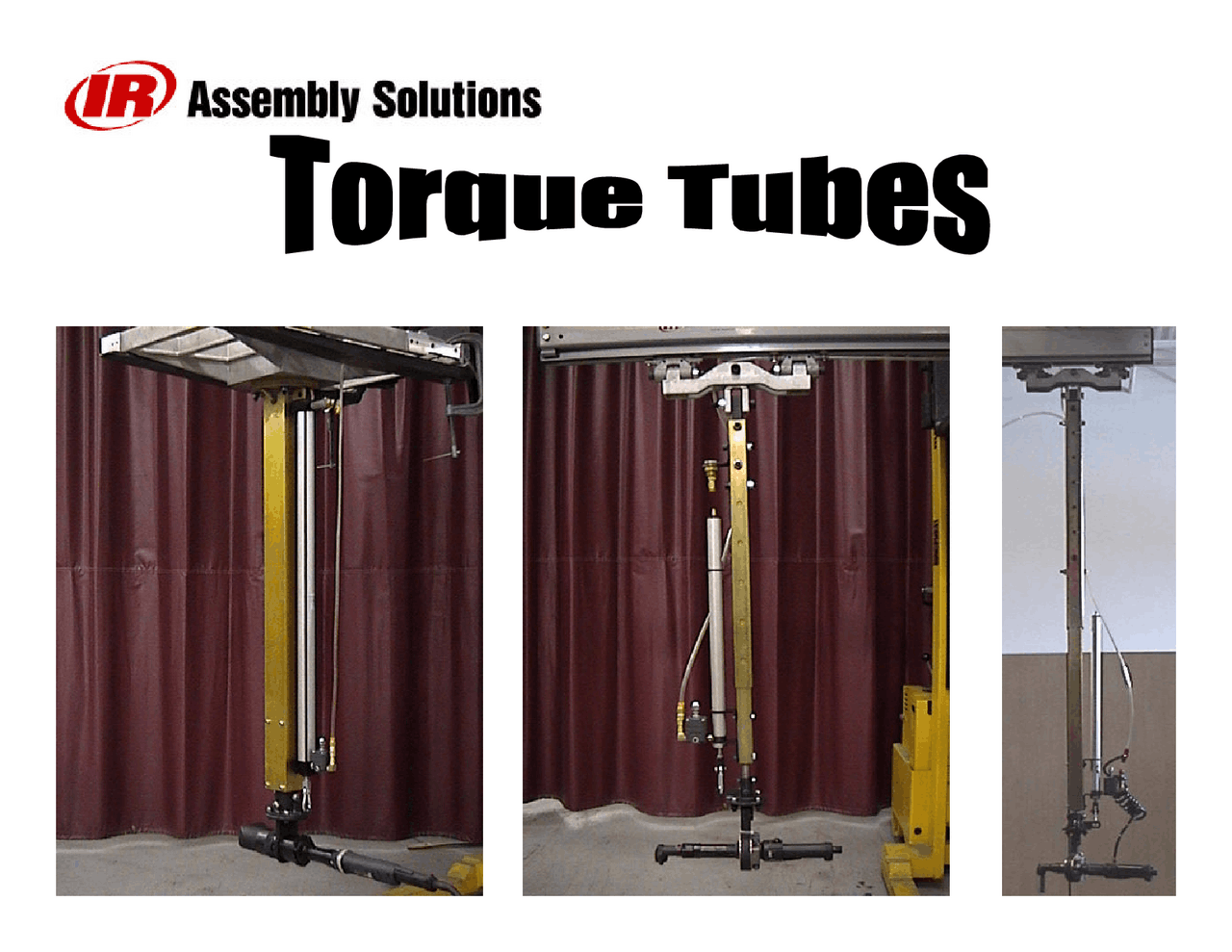

The torque tube is an integrated group of components designed to maximize the interaction of man and machine.

Ease of operation minimizes operator fatigue and incorporates added safety during the performance of repetitive tasks.

The torque tube is assembled at the factory for ease of installation.

Model IRZ-TT Maximum Torque 100Nm (74 ft. lb.) Maximum Tool Weight 27Kg (60 lb.) Vertical Travel 508mm (20 in.) Minimum Dimension 1016mm (40 in.) Maximum Dimension 1524mm (60 in.) Adjustment 38mm (2 in.) increments Torque Tube Weight 18Kg (40lb.) Mounting Options Single/ Dual Trolley

Model IRZ-TT Maximum Torque 250Nm (184 ft. lb.) Maximum Tool Weight 27Kg (60 lb.) Vertical Travel 609.5mm (24 in.) Minimum Dimension 1219mm (48 in.) Maximum Dimension 1829mm (72 in.) Adjustment 38mm (2 in.) increments Torque Tube Weight 23Kg (50lb.) Mounting Options Single/ Dual Trolley

Multiple Mounting Options- Single/ Dual Trolley & Custom Carriage

Low Friction Air Cylinder- Minimizes Effort to Raise and Lower Tool Anodized Steel Tube Construction- Minimizes Corrosion

Self Relieving Regulator- Balance Multiple Tool Weights Multiple Tool Holder Options & Custom Designs

Standard Product/ Standard Price/ Standard Delivery

Single Trolley 100Nm Capacity Cast Aluminum Alloy Trolley High Strength Delrin Wheels Sealed Wheel bearing; life lubricated Low tolerance side guide roller to absorb reaction Kits available for most competitor rail

Carriage 500Nm Capacity Cast Aluminum Alloy Frame & Trolleys High Strength Delrin Wheels Sealed Wheel bearing; life lubricated Low tolerance side guide roller to absorb reaction Kits available for most competitor rail

PN ZHS

Fixed Axis Tool Holder Applications Right Angle & In-line Tools Maximum Capacity 100Nm (74 ft. lb.) Tool Diameter 13- 63mm (0.5- 2.5in.) Features Fixed Axis control to prevent misalignment of tool to part Installed tool secured in specified orientation

Custom Designs Fixed Axis Tool Holder Applications Right Angle & In-line Tools

Maximum Capacity 500Nm (368 ft. lb.) Tool Diameter Specified at purchase Features High capacity

Adjustable Self- relieving regulator Regulator- same as Balancer BA control

Balances tool or can be set to raise when work is complete Feature Normally stock item

Complete instructions in MHD56262, Torque Tube Service and Installation Manual

Beginning of shift Operator should test torque tube to ensure smooth and unrestricted movement Check for loose fasteners Check tool is secure in tool holder Check air system for leaks and arm for drifting down

Annual Inspections Inspect all components for wear Maintenance personnel should torque fasteners

3 Models with ratings up to 500Nm (368 Ft. Lb.) Low Friction Air Cylinders for Minimal Effort to Move Tool Multiple Mounting Options to Install on Competitor Rail Multiple Tool Holder Options to Accept Competitor Tools

Adjustable Self Relieving Regulator to Support Multiple Tool Weights

Application/ Engineering Support if Purchased as Complete System (I-R Tool/ I-R Torque Tube/ I-R Rail System)
